High repetition accuracy for challenging applications

The PSA56 combines Nanotec’s external hybrid linear actuator LSA56 and the smart controllers / drives of the PD4-E series. This extremely compact drive unit is especially designed for challenging applications that require high repetition accuracy. The integrated magnetic single-turn absolute encoder has a resolution of 1024 cpr and supports field-oriented control via CANopen.

Offering the full range of motion control, I/O and communication options, the PSA56 actuator is highly configurable.

The lead screw has a 3/8’’ ACME thread and can be matched with Nanotec’s standard or anti-backlash threaded nuts. Its protective coating is made of carbon material and improves the friction characteristics and thereby the service life of the nuts.

• Fully programmable
• Robust design, rated IP65
• Reduced installation costs and cabling effort
• Other screws, fieldbuses or motor lengths on request
• Operating voltage: 12 – 48 V

Versatile rotary solution

With the HRTA series, Nanotec offers hollow rotary tables in four sizes. Equipped with a crossed roller bearing, they provide high positioning accuracy, excellent runout characteristics and a max. axial force of 4,000 N.

The combination of a hollow rotary table with a stepper motor results in a rotating actuator that is ideal for mounting positioning tables, end-of-arm-tooling (EOAT) or pick-and-place grippers.

• For stepper motors size NEMA 17, 23/24, 34
• Lifetime of 20,000 h
• Max. gear backlash of 1´
• High efficiency

Maximum performance and flexibility

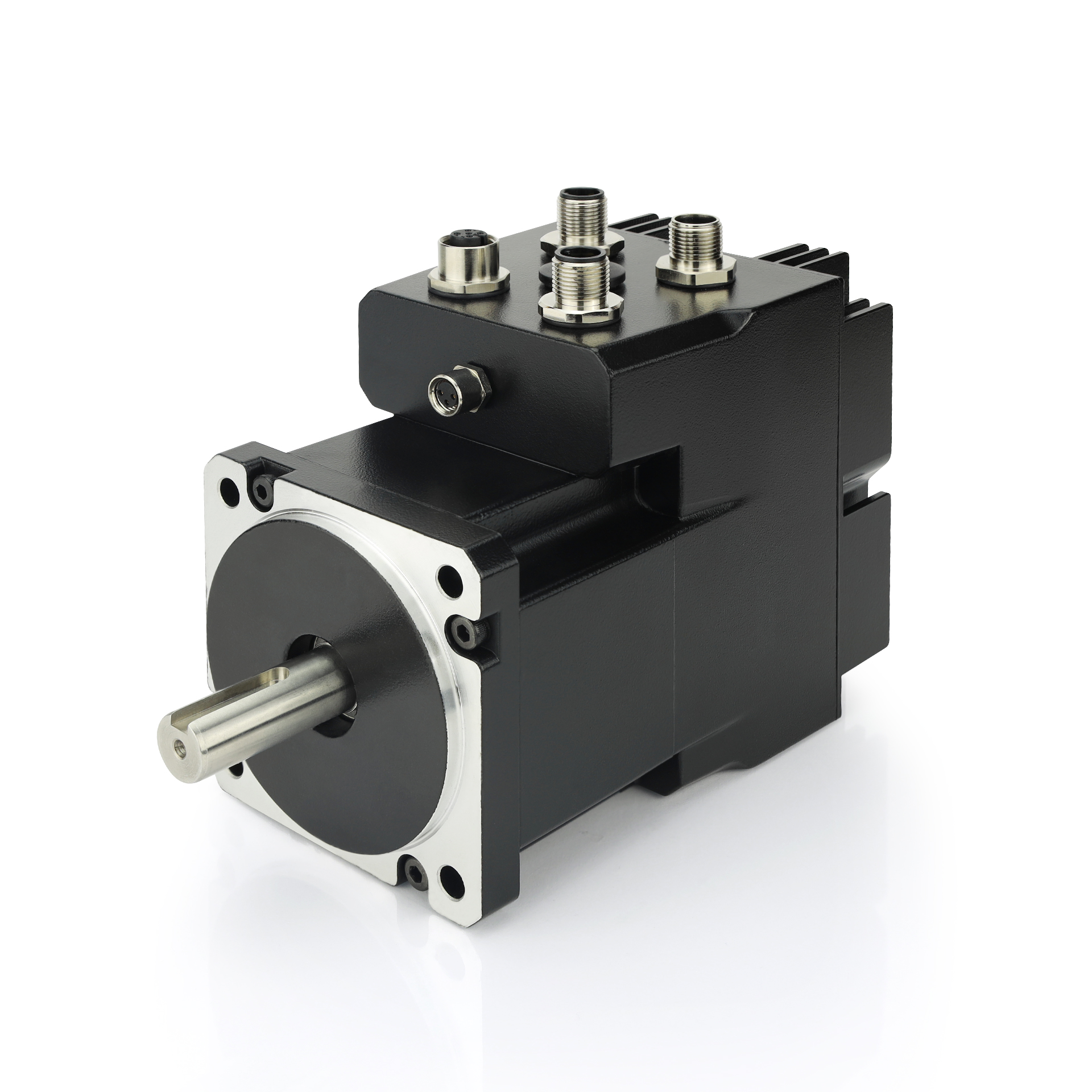

The intelligent compact drives from Nanotec combine motor, controller and encoder in a space-saving package. With its 80 mm flange and a rated power of up to 942 W, the PD6-EB is the most powerful brushless DC motor of this product family.

• Controlled by fieldbus, clock & direction or analog/digital inputs
• Integrated singleturn absolute encoder, multiturn encoder optional
• Fieldbuses: CANopen, EtherCAT, Modbus RTU, Modbus TCP, Profinet and EtherNet/IP
• Easy to parameterize via USB
• Simple programming with Plug & Drive Studio 3
• Highly profitable through reduced installation time and wiring effort

The PD6-EB is ideally suited for dynamic applications with fast acceleration, such as machine tools, printing heads, or camera positioning systems.

Ideal for positioning systems and valve control

The LBA60 short-stroke actuator is designed for precise positioning with a max. force of up to 1,500 N. The integrated ball screw extends the motor’s service life – even when run at high speeds and loads. With a nominal voltage of 48 V, this compact linear actuator reaches a top speed of 292 mm/s. The built-in encoder provides accurate position information via incremental signals or SSI interface.

This BLDC actuator is ideal for use in adjustment units for positioning tasks or for controlling valves.

• 60 mm flange
• Stroke length: 55 mm
• Incremental resolution: 4,096 CPR / 16,384 PPR
• SSI resolution: 17 Bit
• Optionally with integrated brake
