High repetition accuracy for challenging applications

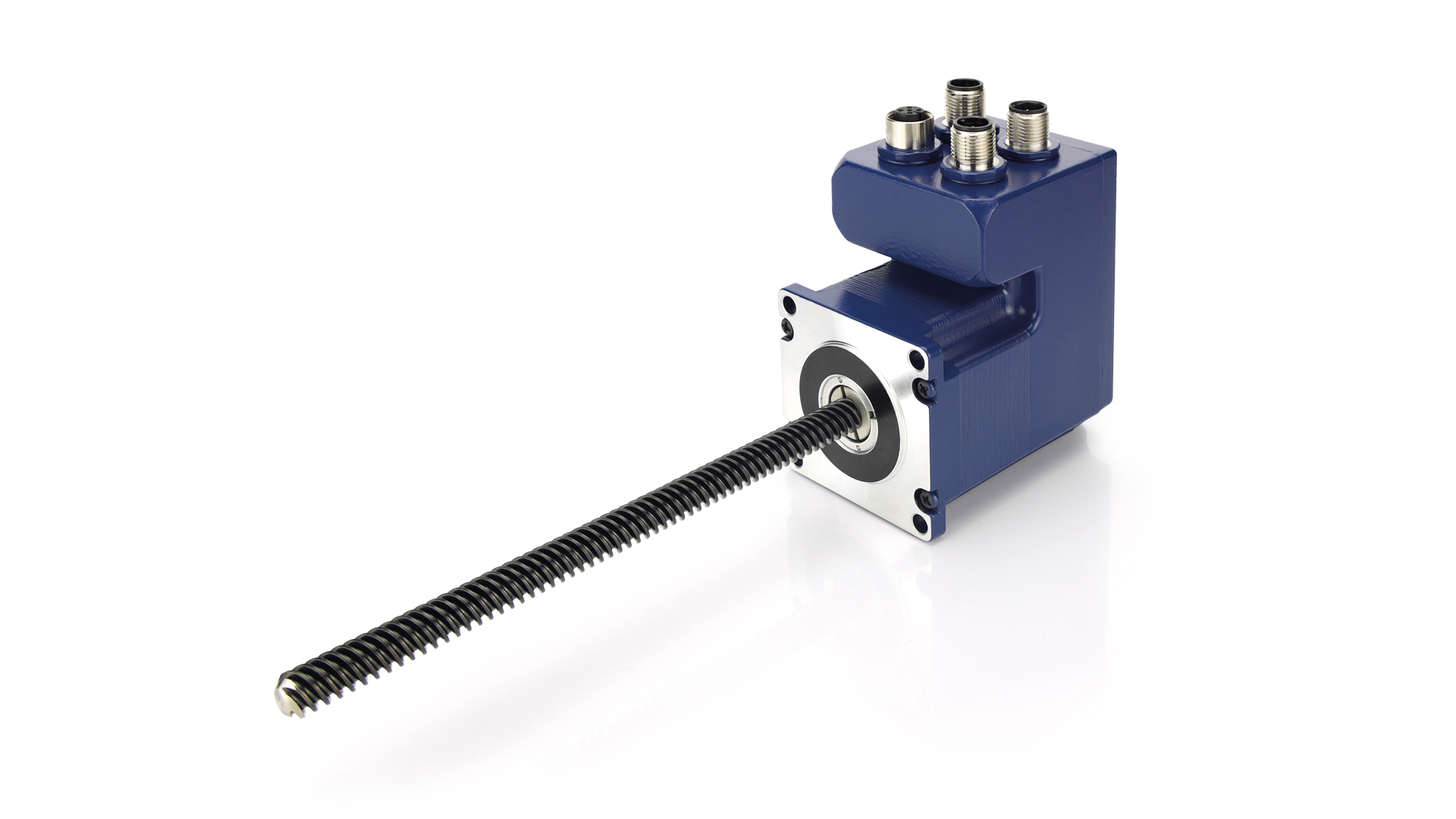

The PSA56 combines Nanotec’s external hybrid linear actuator LSA56 and the smart controllers / drives of the PD4-E series. This extremely compact drive unit is especially designed for challenging applications that require high repetition accuracy. The integrated magnetic single-turn absolute encoder has a resolution of 1024 cpr and supports field-oriented control via CANopen.

Offering the full range of motion control, I/O and communication options, the PSA56 actuator is highly configurable.

The lead screw has a 3/8’’ ACME thread and can be matched with Nanotec’s standard or anti-backlash threaded nuts. Its protective coating is made of carbon material and improves the friction characteristics and thereby the service life of the nuts.

• Fully programmable
• Robust design, rated IP65
• Reduced installation costs and cabling effort
• Other screws, fieldbuses or motor lengths on request
• Operating voltage: 12 – 48 V

Maximum performance and flexibility

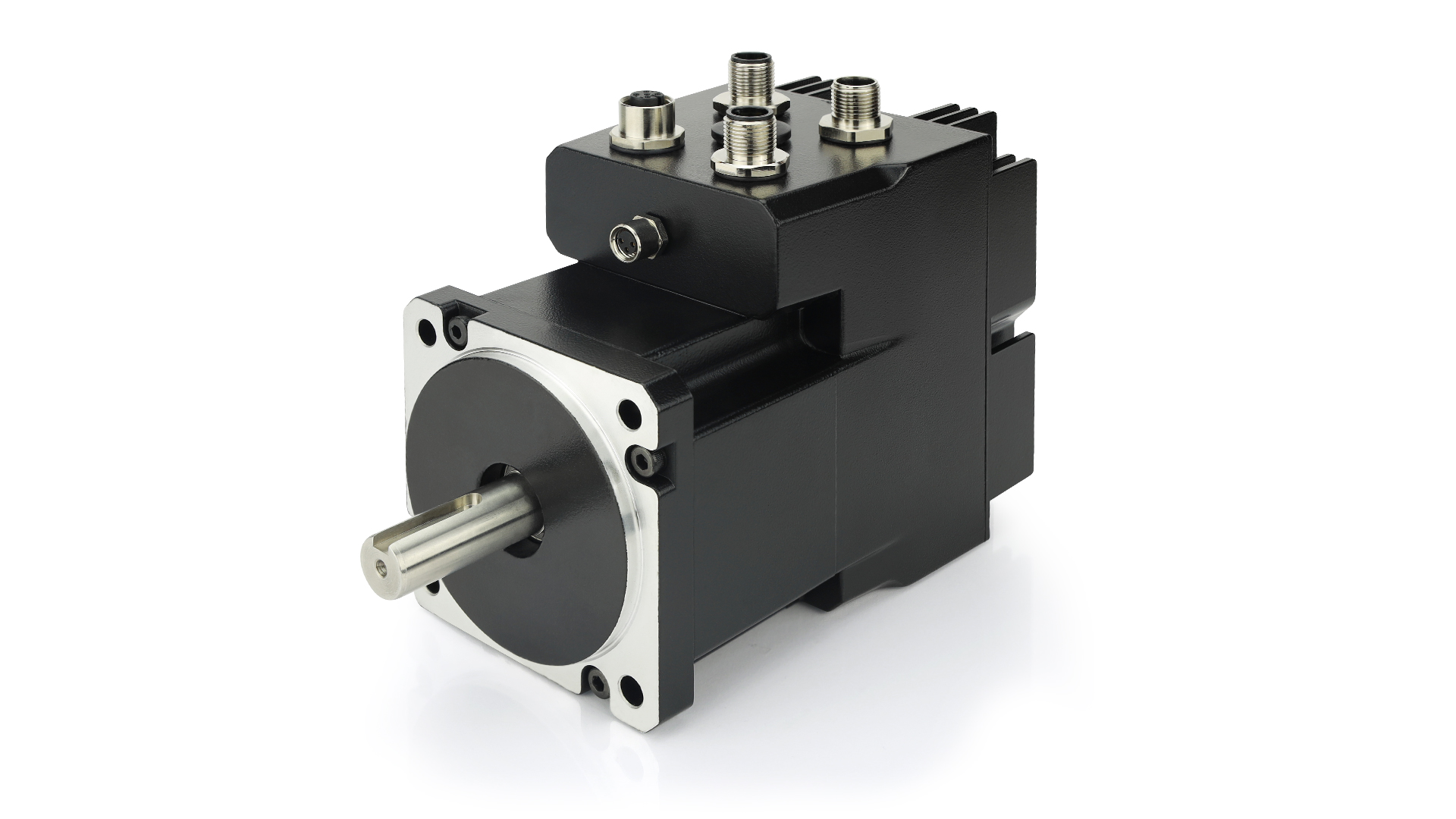

The intelligent compact drives from Nanotec combine motor, controller and encoder in a space-saving package. With its 80 mm flange and a rated power of up to 942 W, the PD6-EB is the most powerful brushless DC motor of this product family.

• Controlled by fieldbus, clock & direction or analog/digital inputs
• Integrated singleturn absolute encoder, multiturn encoder optional
• Fieldbuses: CANopen, EtherCAT, Modbus RTU, Modbus TCP, Profinet and EtherNet/IP
• Easy to parameterize via USB
• Simple programming with Plug & Drive Studio 3
• Highly profitable through reduced installation time and wiring effort

The PD6-EB is ideally suited for dynamic applications with fast acceleration, such as machine tools, printing heads, or camera positioning systems.

Small powerhouse: the WD42 compact wheel drive

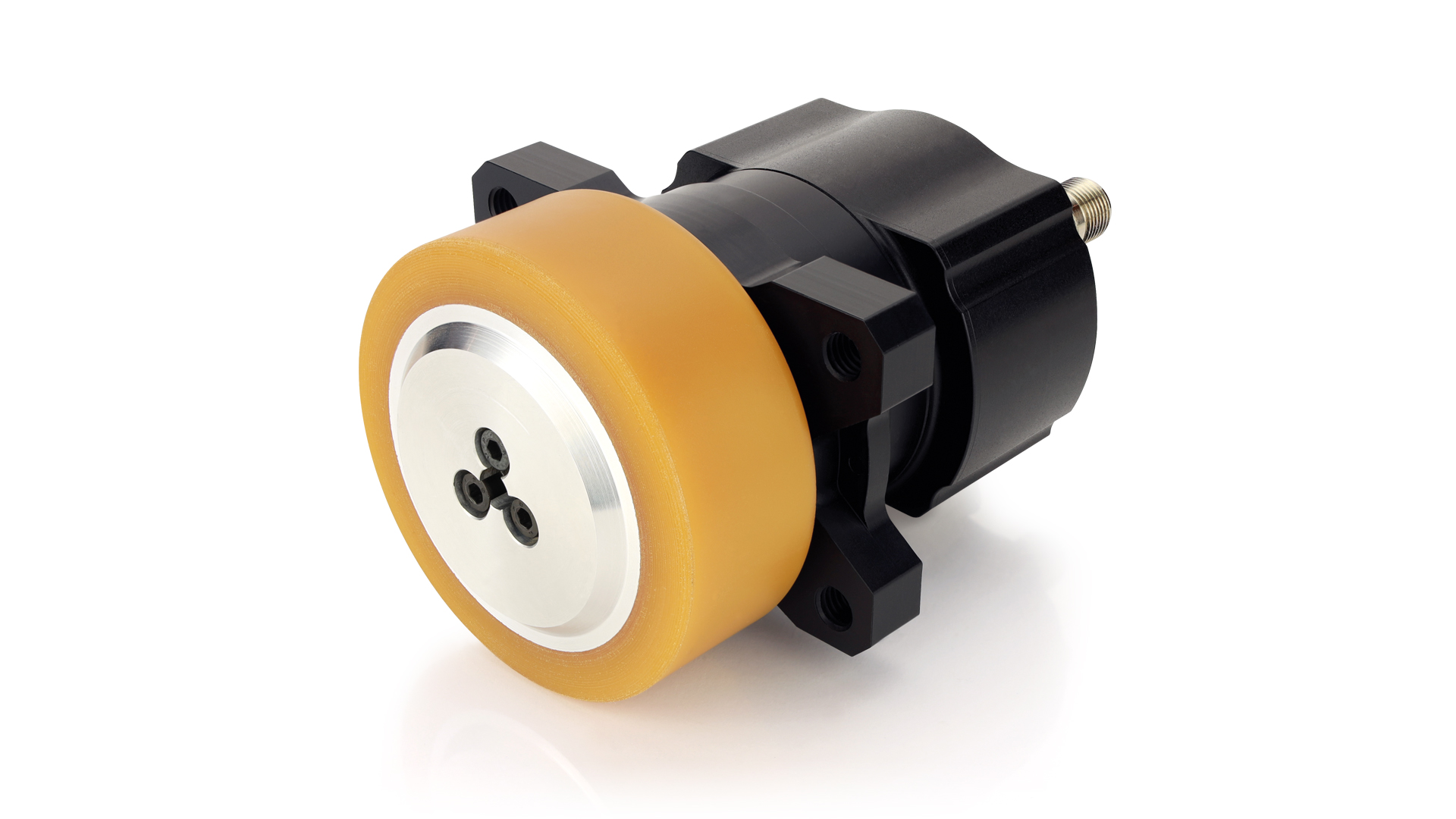

The WD42 wheel drive is a compact unit that consists of a wheel, gearbox, brushless DC motor and encoder. By integrating all components directly at the wheel, the drive has an overall length of just 103 mm. Wheel diameters range from 75 to 140 mm. For maintenance the wheels can be easily changed.

• Space-saving design
• 4 reductions: 12 / 15 / 21 / 26
• Rated speed of up to 2.2 m/s
• Rated motor power of 183 W

Ideal for positioning systems and valve control

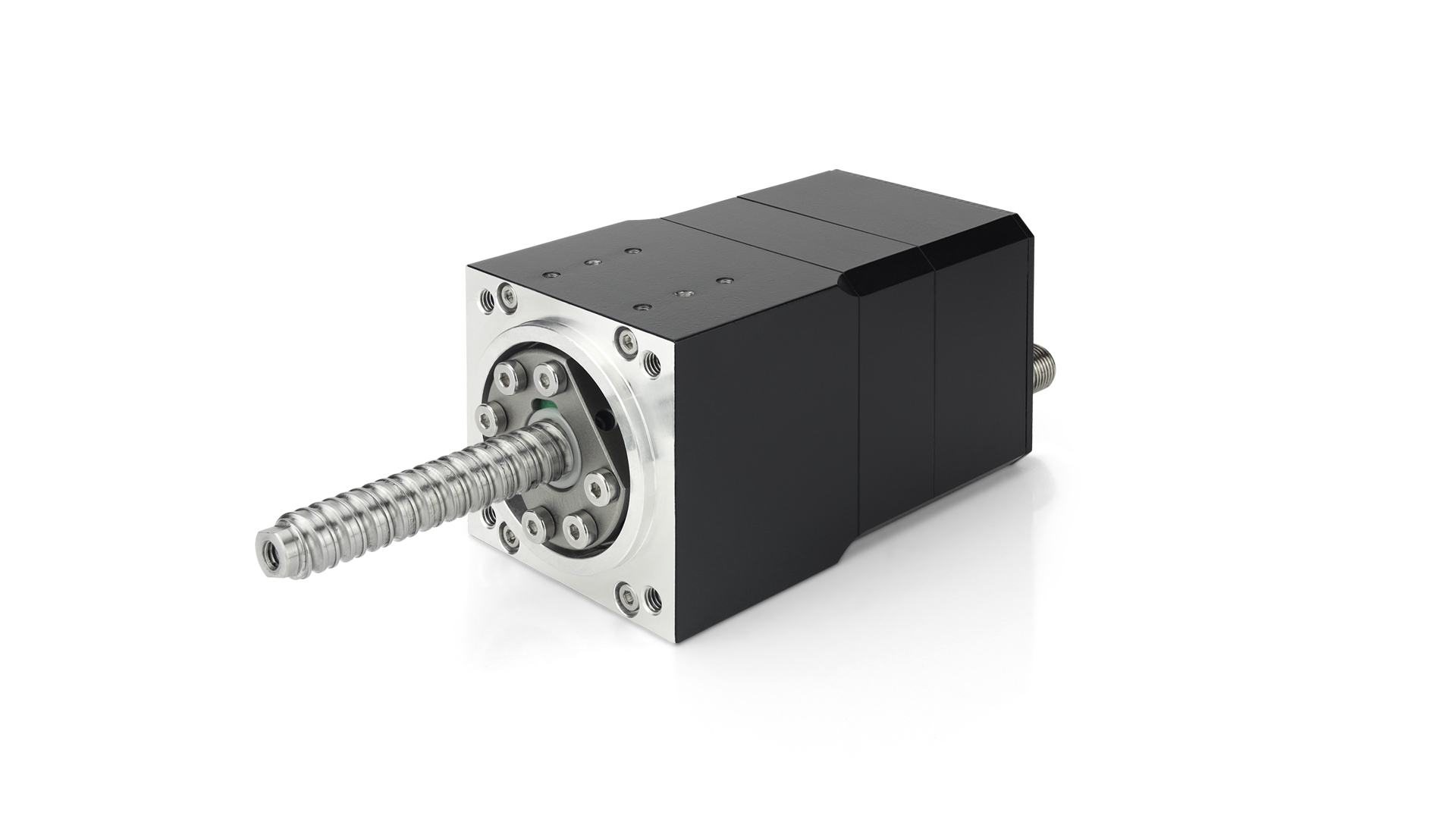

The LBA60 short-stroke actuator is designed for precise positioning with a max. force of up to 1,500 N. The integrated ball screw extends the motor’s service life – even when run at high speeds and loads. With a nominal voltage of 48 V, this compact linear actuator reaches a top speed of 292 mm/s. The built-in encoder provides accurate position information via incremental signals or SSI interface.

This BLDC actuator is ideal for use in adjustment units for positioning tasks or for controlling valves.

• 60 mm flange
• Stroke length: 55 mm
• Incremental resolution: 4,096 CPR / 16,384 PPR
• SSI resolution: 17 Bit
• Optionally with integrated brake
