ICOP’s EB-58 Series

ICOP Technology has announced the release of its new ultra-compact platform, the VOX-070-TS-N8M/VOX-090-TS-N8M. This versatile platform is designed to meet the present era's demanding embedded and productive applications.

VOX-070-TS-N8M/VOX-090-TS-N8M is built with high-quality components that offer exceptional performance and reliability. Equipping NXP i.MX8MMINI CPU and 2GB LPDDR4 DRAM NX8MM-D168 module on the board, VOX-070-TS-N8M/VOX-090-TS-N8M is not only a powerful and versatile computing solution but also a development platform for ICOP's NX8MM-D168.

Main Features of VOX-070-TS-N8M/VOX-090-TS-N8M:

• NXP i.MX8M Mini, Quad-core 1.6GHz ARM Cortex-A53 processor
• 2GB LPDDR4 onboard
• S/2U/GLAN/Audio/eMMC/MiniPCIe
• 7"/9" TFT 1024x600 Resolution LCD with Resistive touch screen
• Operation Temperature: 0 ~ +60°C / -20 ~ +70°C (Optional)
• eMMC-16GB onboard
• MiniPCIe socket with Micro SIM Card Holder
• Wide power voltage input, +12~36VDC
• Optional: WLAN & Bluetooth

🌐 More information:

【VOX-070-TS-N8M】www.icop.com.tw/news/1173

【VOX-090-TS-N8M】www.icop.com.tw/news/1229

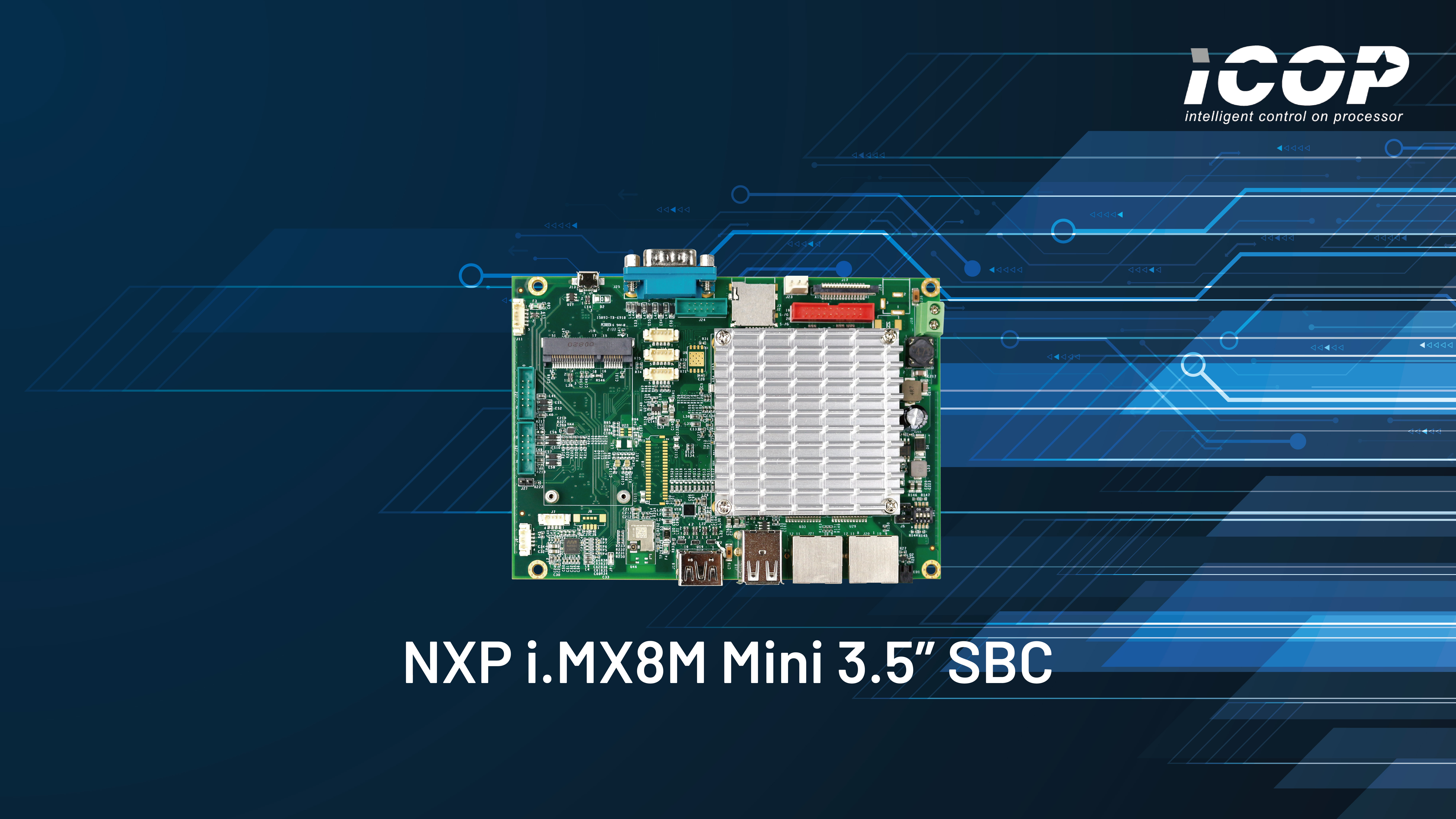

The NX8MM-35 is not only a powerful and versatile computing solution, but also a development platform for ICOP's NX8MM-D168. This makes it an excellent choice for applications that require high-speed data transfer and customization. With technical support from ICOP Technology, customers can easily develop their own carrier board and take advantage of the full potential of the NX8MM-35.

Main Features of NX8MM-35:

• Processor: i.MX 8M Mini Quad-core ARM Cortex-A53 up to 1.6/1.8GHz
• Memory: Up to 4GB LPDDR4
• Storage: Up to 64GB eMMC
• Display: MIPI-DSI/HDMI interface
• Camera: MIPI-CSI interface
• Connectivity: Gigabit Ethernet, USB x4, COMx4, i2c, SPI, GPIO, MiniPCIe and HD Audio.
• Temperature range: -20°C to +70°C or -40°C to +80°C (Optional)

🌐 More information: www.icop.com.tw/news/1143

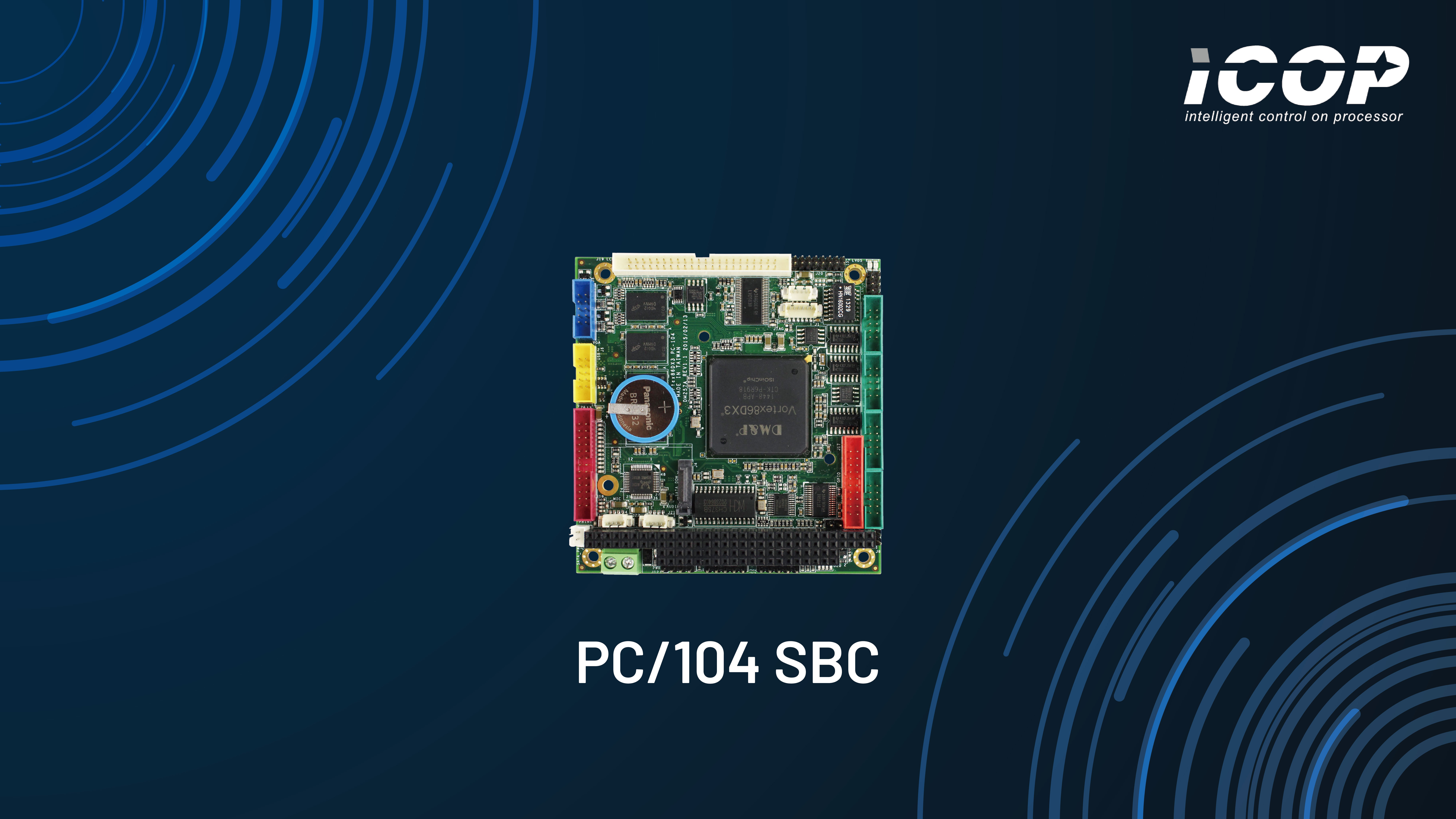

The VDX3-6754 is the most typical PC/104 form factor SBC in ICOP and implements the DM&P dual-core Vortex86 DX3 processor.

The VDX3-6754 also supports the dual-display with VGA and LVDS output, from the DM&P Vortex86 DX3 SoC graphics supports a HD resolution of 1920x1080 at 60Hz for 24-bit LVDS.

The Vortex86 DX3 line of CPUs also support a wide range of operating systems - DOS, Windows CE (6.0, 7.0), Windows 7, WES7, Windows XP Professional, Windows Embedded Standard (XPe), POS Ready (WePOS), Embedded Linux, X-Linux, QNX (BSP), VxWorks (BSP), and FreeBSD.

Main features of VDX3-6754:

• DM&P SoC Vortex86DX3- 1GHz
• 1GB / 2GB DDR3 onboard
• 4S / 2U / VGA / LCD / LVDS / LAN / LPT / Audio / 16GPIO / SATA
• Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
• Two RS-232 interfaces are fully isolated against overvoltage of up to 2.5kV for both power and signal lines.
• The RS-485 is protected against electrostatic discharge (ESD) of +/- 15kV.
• Environmental working temperature ranges from -20 to +70 C standard with the extended temperature of -40 to +85 C optionally.
• The DRAM is soldered directly onboard for resistance to vibrations and shock.

🌐 More information: www.icop.com.tw/news/891

Smart manufacturing has become a global trend, and labor shortages have become the norm. Due to the lack of engineers, the urgent need for non-traditional engineers to write simple automation programs to upgrade to Industry 4.0 has become more popular.

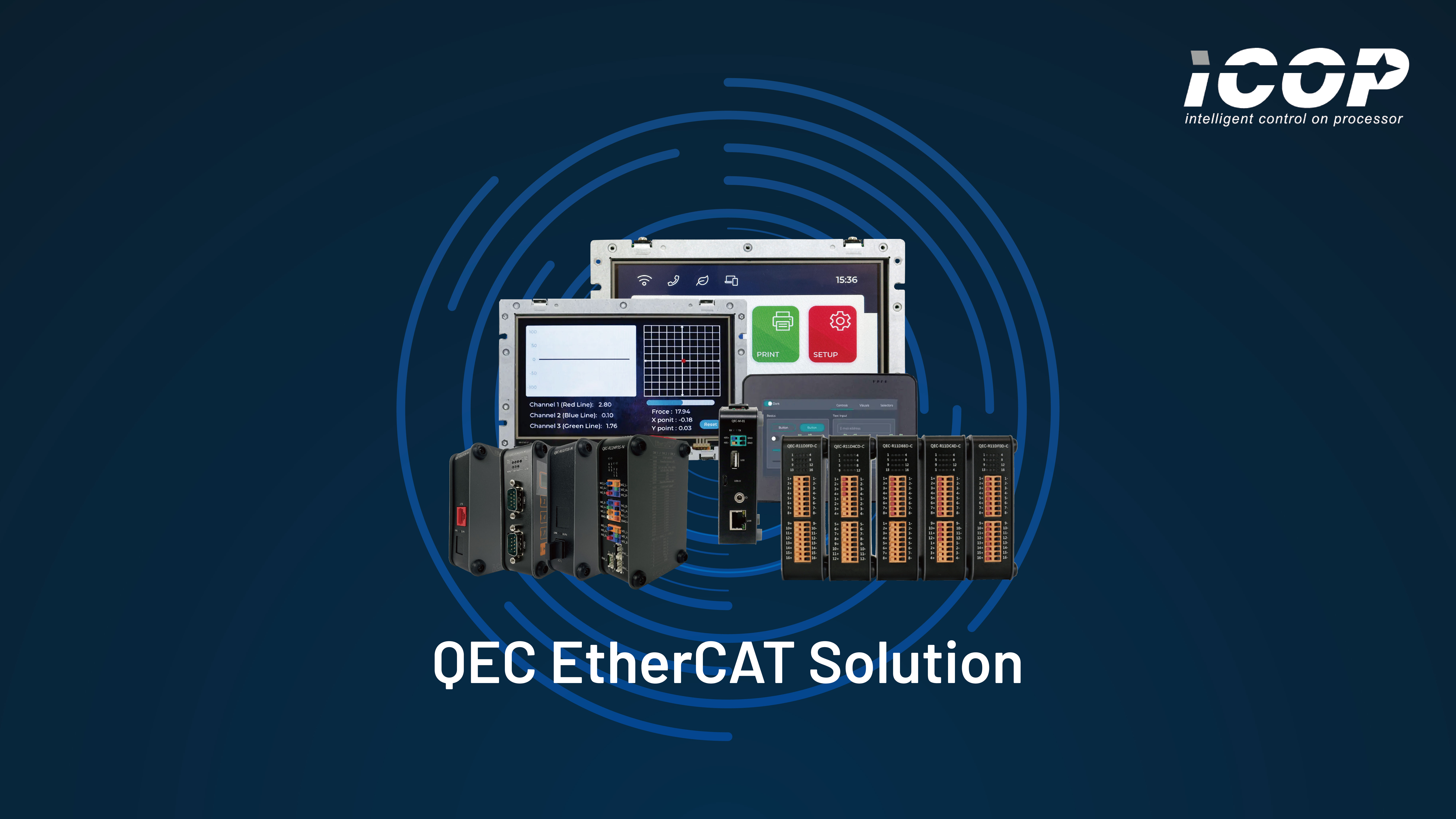

To address these needs, ICOP has developed a complete EtherCAT solution that allows for a quick promotion to real-time Industry 4.0 with "Industrial Arduino-based graphical software tools and SQL libraries".

QEC Hardware Features:

• All QEC series adopt recyclable metal cases.
• Supports two mutually isolated power inputs, Vs and Vp (5V-56Vdc).
• RJ-45 network supports 24V/3A power supplies and automatically switches ORing power supply systems.
• Hardware internal status voltage, current, and internal working temperature monitoring, provide carbon emissions calculations for industrial manufacturing products, further assisting product carbon footprint tracking.
• Supports EtherCAT Cable Redundancy so the system would not crash even when one network fails.
• When the EtherCAT network is disconnected, or an error occurs, the LED will flash or stay on, and an error code will be displayed on the programming layer.
• Multi-colored terminal blocks use color-coded distinguishing methods, making them easy to identify and saving time during installation while significantly reducing the chance of human error. Further saves labor and time costs of deploying EtherCAT devices for businesses.

🌐 More information: www.icop.com.tw/news/1044
