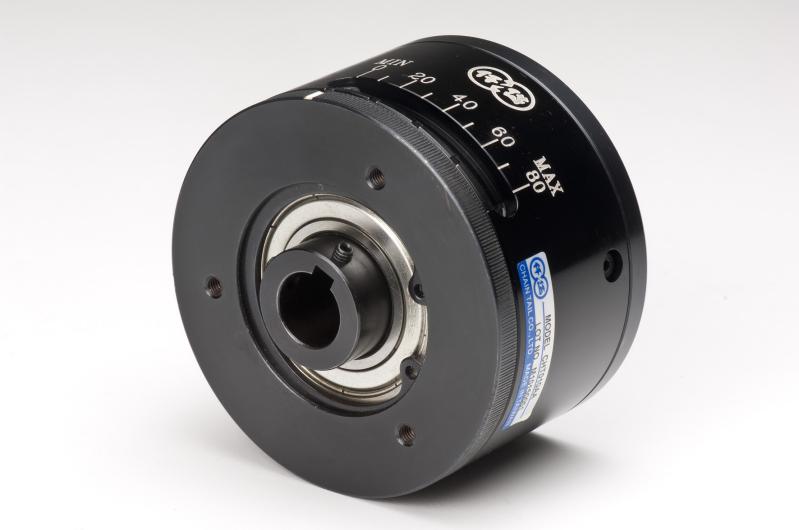

Permanent Magnet Hysteresis Torque Controller

Voltage: 24VDC or 12VDC
Torque Selection: 0.02~140 Nm (Static Holding)
Applications: robotics, servo motors, precise positioning

*Customization Available

• Quick response：Use a permanent magnet to induce an armature plate for braking force which solidifies and speeds up movement.
• Zero backlash：The armature plate is driven by a spring, thus torque is transmitted without backlash.
• Low number of decibels：As the armature plate directly connects to the spring plate, there is almost zero decibels of noise and drag torque while parts are rotating.
• Small volume and high torque：The use of superior quality of permanent magnet generates greater effect of torque than other types at the same size.

Voltage: 24 VDC
Torque Selection: 0.6~4.5 Nm
Applications: folding machines, ATM, copy machines, automatic doors

*Customization Available

• Non-asbestos：Non-asbestos materials are used for friction disc
• No residual magnetism：Using prestressed plating spring to ensure that there is no residual magnetism when clutch/brake is released.
• Small-size design：Miniaturized, high-torque and light design is easy for customers to install.
• Quick response：Quick time for torque transmitting and releasing. High accuracy for starting and stopping.
• Excellent heat dissipation：Suitable for high-frequency using, can increase work efficiency.
• Zero backlash

Over Excitation Voltage: 24 VDC
Holding Voltage:7 VDC or 12 VDC
Torque Selection: 0.06~38 Nm
Application: Robotics, Industry 4.0, servo motors

• Designed to motor frame for easy installation.
• Ultra compact design for more space saving.
• High Torque, low power consumption.

Spring-Applied Safety Brakes are for stopping or holding the load when power is cut off. The braking force is supplied by springs and this type is a highly reliable brake. They are typically used for holding robots, Z axis ball screws, automatic storage,stair lifts, electric wheelchairs, electric scooters, electric golf carts, general electric motors, and so on.

Chain Tail offers more than 2000 custom models to customers' requests.

*Customization Available

• Safety and accurate control: Little variation in torque for fast response even in abnormal conditions for maximum safety.
• Low-Decibel operation: Noise during operation is reduced.
• Durability: Non-asbestos compounds are used in linings for long life with minimal wear.
• Easy installation and adjustment: Installation together with a motor is simple and easy, and adjustments are very easy.

Voltage: 24VDC or 12VDC
Torque Selection: 0.02~140 Nm (Static Holding)
Applications: robotics, servo motors, precise positioning

*Customization Available

• Quick response：Use a permanent magnet to induce an armature plate for braking force which solidifies and speeds up movement.
• Zero backlash：The armature plate is driven by a spring, thus torque is transmitted without backlash.
• Low number of decibels：As the armature plate directly connects to the spring plate, there is almost zero decibels of noise and drag torque while parts are rotating.
• Small volume and high torque：The use of superior quality of permanent magnet generates greater effect of torque than other types at the same size.

Voltage: 24 VDC
Torque Selection: 0.6~4.5 Nm
Applications: folding machines, ATM, copy machines, automatic doors

*Customization Available

• Non-asbestos：Non-asbestos materials are used for friction disc
• No residual magnetism：Using prestressed plating spring to ensure that there is no residual magnetism when clutch/brake is released.
• Small-size design：Miniaturized, high-torque and light design is easy for customers to install.
• Quick response：Quick time for torque transmitting and releasing. High accuracy for starting and stopping.
• Excellent heat dissipation：Suitable for high-frequency using, can increase work efficiency.
• Zero backlash

Over Excitation Voltage: 24 VDC
Holding Voltage:7 VDC or 12 VDC
Torque Selection: 0.06~38 Nm
Application: Robotics, Industry 4.0, servo motors

• Designed to motor frame for easy installation.
• Ultra compact design for more space saving.
• High Torque, low power consumption.
