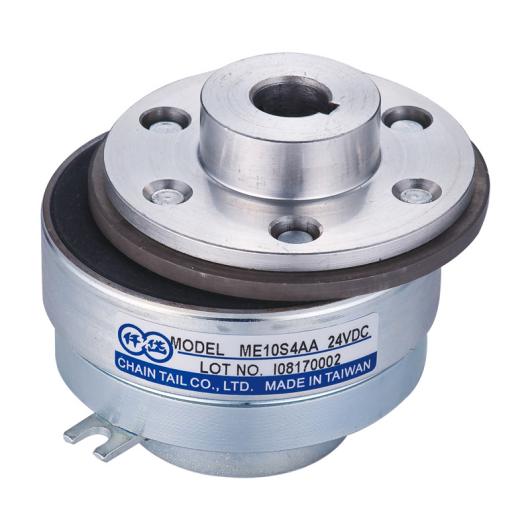

Miniature Friction Clutches

Voltage: 24VDC or 12VDC
Torque Selection: 0.02~140 Nm (Static Holding)
Applications: robotics, servo motors, precise positioning

*Customization Available

• Quick response：Use a permanent magnet to induce an armature plate for braking force which solidifies and speeds up movement.
• Zero backlash：The armature plate is driven by a spring, thus torque is transmitted without backlash.
• Low number of decibels：As the armature plate directly connects to the spring plate, there is almost zero decibels of noise and drag torque while parts are rotating.
• Small volume and high torque：The use of superior quality of permanent magnet generates greater effect of torque than other types at the same size.

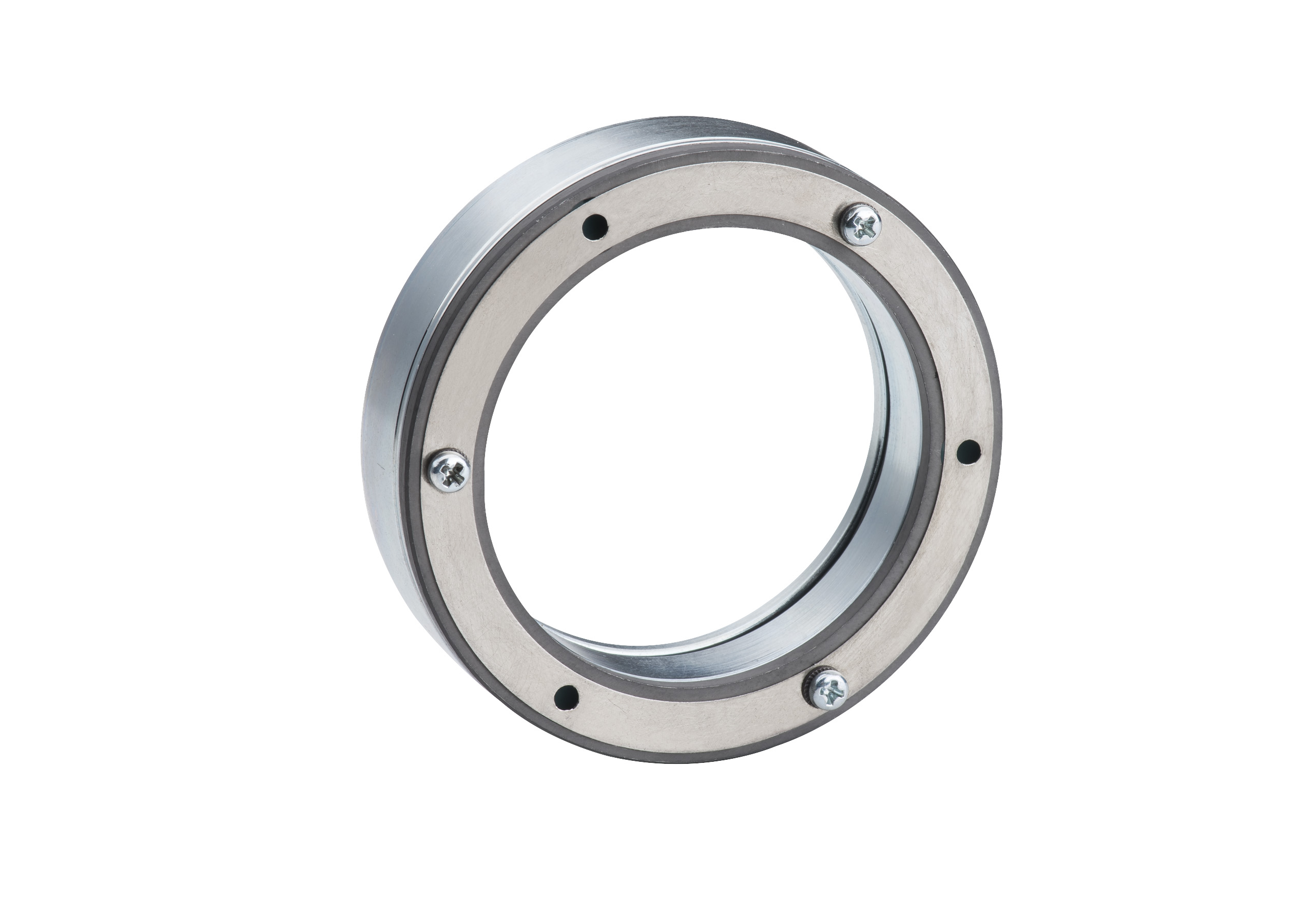

Over Excitation Voltage: 24 VDC
Holding Voltage:7 VDC or 12 VDC
Torque Selection: 0.06~38 Nm
Application: Robotics, Industry 4.0, servo motors

• Designed to motor frame for easy installation.
• Ultra compact design for more space saving.
• High Torque, low power consumption.

Voltage: No Power Needed
Torque Selection: 0.4 ~3 Nm
Application: Tension control, Torque is manually adjusted, Capping machines

• Durable：no mechanical friction, or wear components exist.
• Quick and precise manual torque adjustment：Torque is manually adjustable with a knurled adjustment ring.
• Power Saving, No Lead wires：No additional electrical circuits or external power source.
• Accurate torque repeatability：Torque is established by permanent magnet, the repeatability on ratio of torque to current is very high.
• Free mounting direction：Small size, can be installed horizontally or vertically.

Spring-Applied Safety Brakes are for stopping or holding the load when power is cut off. The braking force is supplied by springs and this type is a highly reliable brake. They are typically used for holding robots, Z axis ball screws, automatic storage,stair lifts, electric wheelchairs, electric scooters, electric golf carts, general electric motors, and so on.

Chain Tail offers more than 2000 custom models to customers' requests.

*Customization Available

• Safety and accurate control: Little variation in torque for fast response even in abnormal conditions for maximum safety.
• Low-Decibel operation: Noise during operation is reduced.
• Durability: Non-asbestos compounds are used in linings for long life with minimal wear.
• Easy installation and adjustment: Installation together with a motor is simple and easy, and adjustments are very easy.

Voltage: 24VDC or 12VDC
Torque Selection: 0.02~140 Nm (Static Holding)
Applications: robotics, servo motors, precise positioning

*Customization Available

• Quick response：Use a permanent magnet to induce an armature plate for braking force which solidifies and speeds up movement.
• Zero backlash：The armature plate is driven by a spring, thus torque is transmitted without backlash.
• Low number of decibels：As the armature plate directly connects to the spring plate, there is almost zero decibels of noise and drag torque while parts are rotating.
• Small volume and high torque：The use of superior quality of permanent magnet generates greater effect of torque than other types at the same size.

Over Excitation Voltage: 24 VDC
Holding Voltage:7 VDC or 12 VDC
Torque Selection: 0.06~38 Nm
Application: Robotics, Industry 4.0, servo motors

• Designed to motor frame for easy installation.
• Ultra compact design for more space saving.
• High Torque, low power consumption.

Voltage: No Power Needed
Torque Selection: 0.4 ~3 Nm
Application: Tension control, Torque is manually adjusted, Capping machines

• Durable：no mechanical friction, or wear components exist.
• Quick and precise manual torque adjustment：Torque is manually adjustable with a knurled adjustment ring.
• Power Saving, No Lead wires：No additional electrical circuits or external power source.
• Accurate torque repeatability：Torque is established by permanent magnet, the repeatability on ratio of torque to current is very high.
• Free mounting direction：Small size, can be installed horizontally or vertically.
