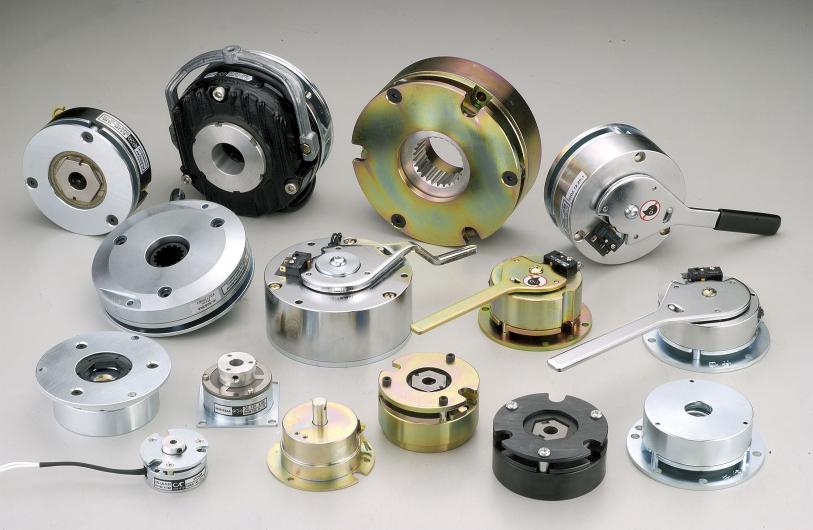

Spring Applied Brakes

Voltage: 24 VDC
Torque Selection: 0.6~4.5 Nm
Applications: folding machines, ATM, copy machines, automatic doors

*Customization Available

• Non-asbestos：Non-asbestos materials are used for friction disc
• No residual magnetism：Using prestressed plating spring to ensure that there is no residual magnetism when clutch/brake is released.
• Small-size design：Miniaturized, high-torque and light design is easy for customers to install.
• Quick response：Quick time for torque transmitting and releasing. High accuracy for starting and stopping.
• Excellent heat dissipation：Suitable for high-frequency using, can increase work efficiency.
• Zero backlash

Over Excitation Voltage: 24 VDC
Holding Voltage:7 VDC or 12 VDC
Torque Selection: 0.06~38 Nm
Application: Robotics, Industry 4.0, servo motors

• Designed to motor frame for easy installation.
• Ultra compact design for more space saving.
• High Torque, low power consumption.

Voltage: No Power Needed
Torque Selection: 0.4 ~3 Nm
Application: Tension control, Torque is manually adjusted, Capping machines

• Durable：no mechanical friction, or wear components exist.
• Quick and precise manual torque adjustment：Torque is manually adjustable with a knurled adjustment ring.
• Power Saving, No Lead wires：No additional electrical circuits or external power source.
• Accurate torque repeatability：Torque is established by permanent magnet, the repeatability on ratio of torque to current is very high.
• Free mounting direction：Small size, can be installed horizontally or vertically.

Voltage: 24VDC or 12VDC
Torque Selection: 0.02~140 Nm (Static Holding)
Applications: robotics, servo motors, precise positioning

*Customization Available

• Quick response：Use a permanent magnet to induce an armature plate for braking force which solidifies and speeds up movement.
• Zero backlash：The armature plate is driven by a spring, thus torque is transmitted without backlash.
• Low number of decibels：As the armature plate directly connects to the spring plate, there is almost zero decibels of noise and drag torque while parts are rotating.
• Small volume and high torque：The use of superior quality of permanent magnet generates greater effect of torque than other types at the same size.
