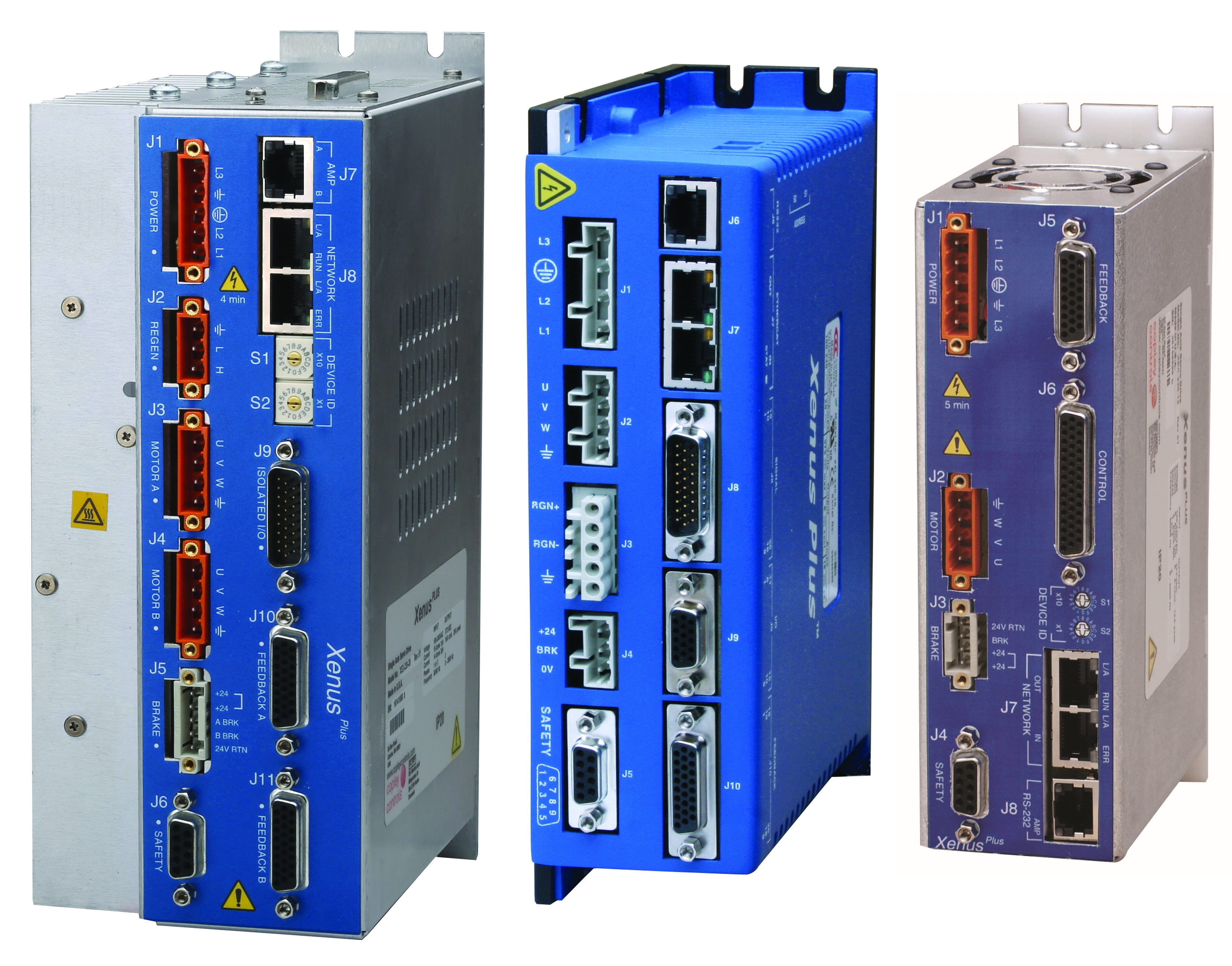

XENUS PLUS DIGITAL SERVO DRIVE FOR 110VAC / 220VAC WITH CANOPEN, ETHERCAT OR MACRO)

Xenus Plus are the HighEnd Servo Drives of the Xenus Servo Controller Family:

• operating modes: current, speed or position control
• command input: EtherCAT, CANopen, RS-232, +/-10V, PWM, I/O (Indexer), Stepper, Master Encoder (Electronic Gearing)
• operation at 100 to 230 Vac (single-phase or three-phase)
• currents from 2.1Arms to 14.2Arms continuous
• available in three designs: Panel Compact Single-axis (XEC/XPC),Panel single-axis (XEL/XPL), Panel two-axes (XE2/XP2)
• improved current resolution
• 1 analog input with 12-bit with XEC/XPC
• 2 analog inputs with 16-bit, one analog output for XEL/XPL/XE2/XP2
• more digital inputs/outputs
• more feedback options including absolut encoders: hall effects, digital incremental encoder (AquadB) / sine encoder, absolute encoder (EnDat 2.2, BiSS, SSI, HD, Tamagawa, Panasonic, Sanyo Denki, Nikon)
• Resolver-Serial-Converter for resolver motors: Data Sheet Copley CSR Serial-to-Resolver Converter
• new fieldbus systems: CANopen, EtherCAT, MACRO
• Integrated Safety: Safe Torque Off (STO), SIL 3, Category 3, PL d

The Stepnet stepping motor drives of the manufacturer Copley Controls are the modern digital stepper motor controllers and can be seen as brothers of the Xenus and Accelnet servo controllers from Copley Controls. There are stepper drives for mains operation at 1x 110 - 240Vac as well as for DC supply (24Vdc to 90Vdc).

The Stepnet stepper motor controllers are 100% software-compatible with the Xenus servo controllers and offer the same functionality, i.e. they can completely control individual axes with their indexer functionality. Communication with individual commands in ASCII format via the RS-232 interface is possible, as well as pre-programming and storing entire programs and controlling them via inputs.

The possibility for a real servo mode should be emphasized, i.e. stepper motors with an AquadB digital encoder can be operated as multi-pole servo motors.

The Stepnet stepper controllers are also equipped with a CAN interface as standard (CANopen, DSP402 profile). The new Stepnet Plus stepper amplifiers also offer an optional EtherCAT interface. The connection to these two fieldbus systems opens up new possibilities for automation concepts with distributed intelligence.

In general, the following characteristics can be noted for the stepper controllers of the Stepnet series:

• operation at 14Vdc to 90 Vdc / 110VAc to 230Vac (depending on model)
• currents from 0.7Arms to 8.5Arms continuous
• efficient control: vector control (info vector control )
• efficient commissioning: CME software with oscilloscope and auto-tuning and auto-phasing
• easy integration into central control concepts: pulse/direction interface, +/-10V, PWM
• efficient use as single axis controller: powerful indexer via RS232 interface (programs also addressable via I/O)
• easy integration into distributed control concepts: CANopen (optional CANopen libraries for C++ (data sheet CML ) and COM objects (data sheet CMO ))

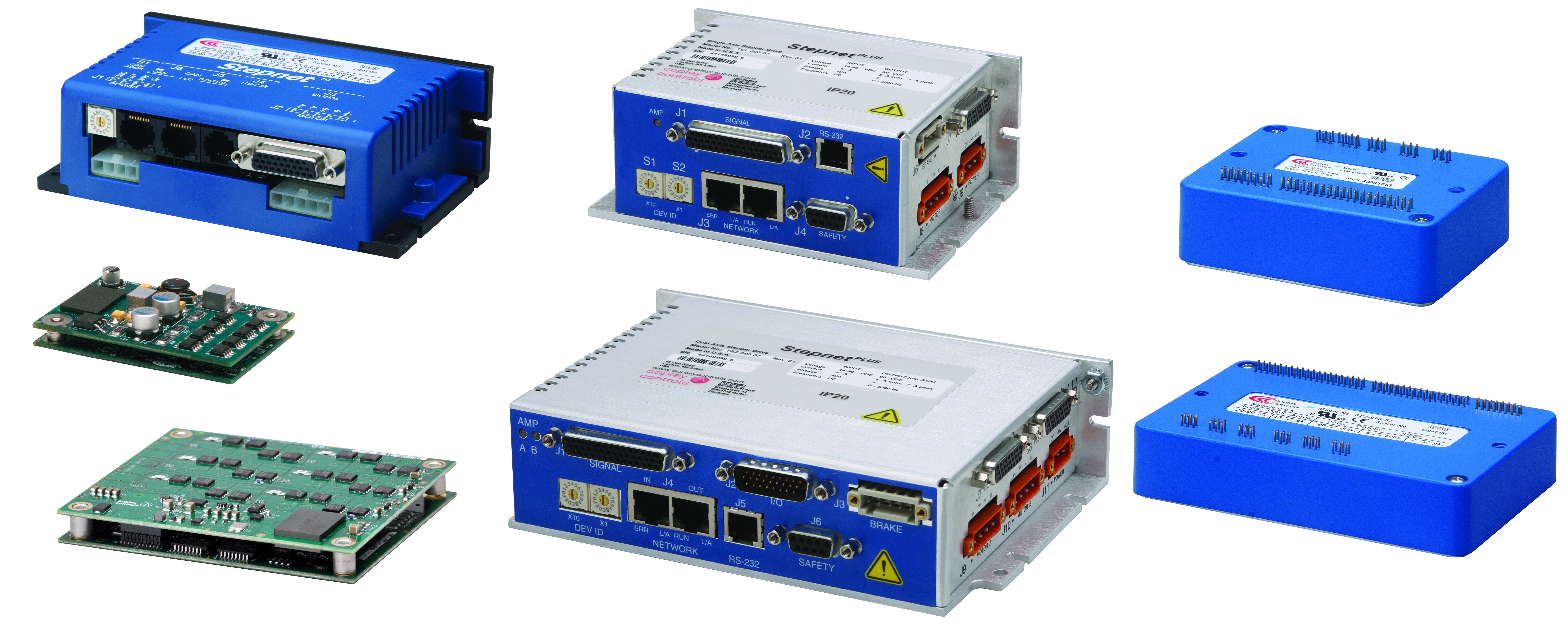

STEPNET PLUS STEPPING MOTOR CONTROLLER (RS232, ETHERCAT / CANOPEN) WITH (ABSOLUTE) ENCODER FEEDBACK

Stepnet Plus is the HighEnd version of the Stepnet stepper motor controller family:

• operating modes: speed or position control
• command input: EtherCAT, CANopen, RS-232, +/-10V, PWM, I/O (Indexer), Stepper, Master Encoder (Electronic Gear)
• operation at 24Vdc or 48Vdc (14Vdc to 90 Vdc)
• currents from 3.5Arms to 7.1Arms continuous
• available in four designs: Panel single-axis (TEL/TPL), panel dual-axes (TE2/TP2), module for soldering single-axis (SEM/SPM), module for soldering dual-axes (SE2/SP2)
• improved current resolution
• more inputs/outputs
• new fieldbus systems: CANopen, EtherCAT
• Safety integrated: Safe Torque Off (STO), SIL 3, Category 3, PL d

Tolomatic electric linear actuators are characterized by the following features:

• long service life even under heavy load (depending on the version also with planetary roller screw)
• made to order: stroke length selectable, adapted to your application (very important especially for retrofit applications)
• flexible motor mounting

The following series are available as linear rodstyls actuators:

• ERD: low cost, up to 2,2kN, optional stainless steel and housing for motor (up to 1,4kN), IP69K,
• RSA-ST up to 40,3kN / RSA-HT up to 58kN, external motor, optional with side guide: GSA
• RSX with up to 222kN, special design for electric presses
• IMA: with integrated motor (builds shorter), up to 30.6kN, optional with Foodgrade paint finish
• RSH series (external motor up to 35kN) and IMA-S (internal motor up to 11kN) for hygienic applications: 316 stainless steel, IP69K

The following series are available as linear rodless axes with slide:

• MXE/B3S: Linear axes with ball screw with various bearing configurations.
• MXB/B3W: Linear axes with toothed belt for stroke up to 5080mm with various bearing configurations
• TRS: Precision linear stages with double linear guide, prepared for xy-mounting

Tolomatic provides excellent support with educational resources, direct contact to engineer, acuator sizing tools and application worksheets, CAD library and Your Motor Here option.

NANO SERVO CONTROLLER (ETHERCAT, CANOPEN) FOR HIGH CURRENTS IN VEHICLES (AGV) AND ROBOTICS

The new ultra-compact NANO series with up to 140A dc peak is the ideal servo controller from Copley for battery-powered applications at 12 volts, 24 volts or 48 volts supply voltage, such as robotic joins or automated guided vehicles (AGV) or mobile applications in medical devices, robotics, agriculture machinery etc., i.e. all applications requiring good servo performance at DC supply with low voltages from 9Vdc. In other words, all applications that require good servo performance with DC supply with low voltage from 9Vdc and high motor current.

The basic features of the NANO servo amplifiers are:

• operating modes: current, speed or position control
• command input: EtherCAT or CANopen, RS-232, +/-10V, PWM, I/O (indexer), stepper, master encoder (electronic gear)
• operation at 9 Vdc to 90 Vdc or lower current versions for 20 Vdc to 180 Vdc
• currents up to 140A peak
• design as module for soldering/plugging in or with screw terminals
• very good current resolution
• 1 analog input +/-10V, 12-bit
• 5 digital high-speed inputs + motor overtemperature input
• 4 digital high-speed outputs
• various feedback options incl. absolute encoder: Halls, digital incremental encoder, absolute encoder (BiSS-C unidirectional, SSI)
• dual feedback
• fieldbus connection: CANopen or EtherCAT
• Safety: Safe Torque Off (STO), SIL 3, category 3, PL e
