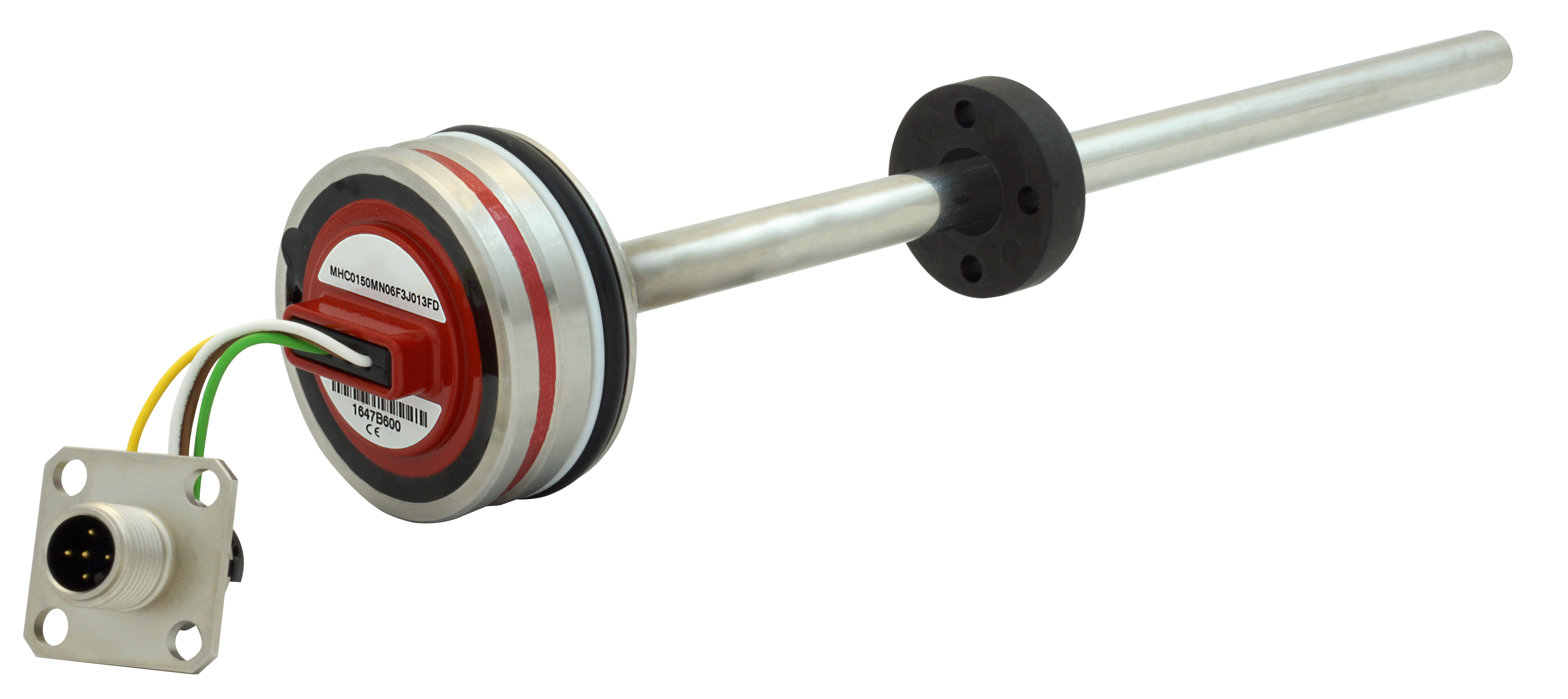

Temposonics magnetostrictive position sensors for mobile hydraulics applications feature all relevant outputs to guarantee superior control and reliability of position and velocity measurement.

• Developed for linear position measurement in mobile hydraulics machinery
• The position sensors are available with a stroke length from 50 mm to 5000 mm
• Designed for cylinder integration or external mounting
• High robustness against shock and vibration provide more safety, comfort and machine availability

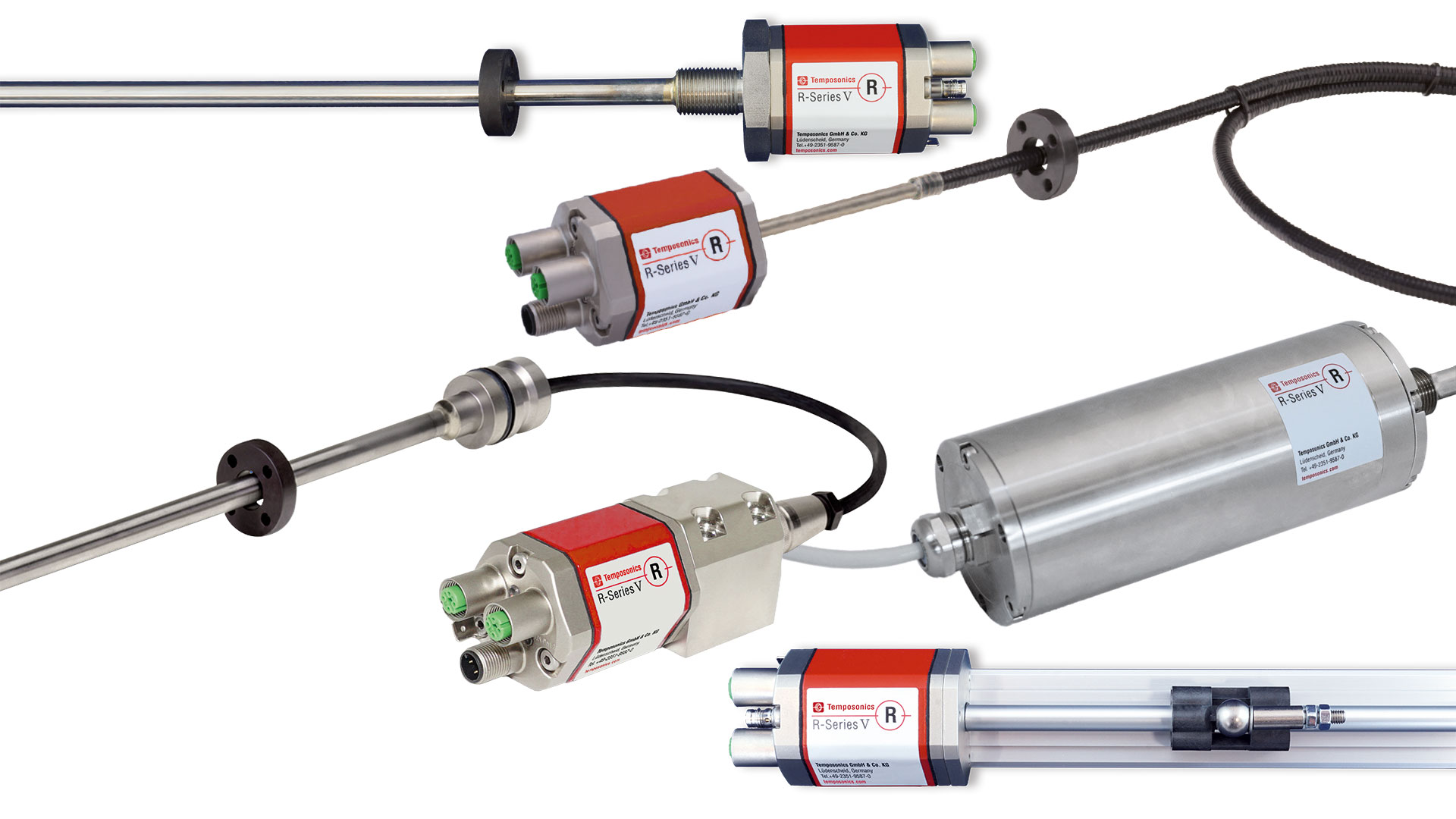

The Temposonics® R-Series V continues the success story of previous generations of sensors by adding new features and tools to further enhance the user experience. New features and tools make the R-Series V ideal for Industry 4.0 applications. The new magnetostrictive position sensors are adaptable to a wide range of applications and can now evaluate more parameters while the application is running.

The R-Series V is supported by the TempoLink® and TempoGate® sensor assistants. With the sensor assistant, detailed information about the state of the application, such as sensor status, internal temperature, total operating hours, distance travelled by position magnets and more, can be relayed and evaluated via a USB port or wireless device.

The Temposonics® R-Series V is available as rod and profile style, as well as flexible rod, with remote electronics and with super shield housing. All Industrial Ethernet sensors feature a 37% smaller package, enabling more compact application designs than previous generations. The new sensors are more robust and reliable than ever before. Thanks to improved components, the R-Series V now supports an extended operating temperature range from -40° to +85°C. In addition, shock resistance has been increased to 150 g and vibration resistance to 30 g. Combined with a wider supply voltage range, the sensors can now be more easily integrated into harsher and rougher applications, while still providing accurate measurement data down to 0.5 µm.

The new generation is fully backwards compatible, using proven electrical and mechanical connections and designs. The well-known high performance and quality of previous generations of the R-Series is continued and combined with the advanced features and new, more smart functions in the R-Series V, so that users get what they are used to from Temposonics (formerly MTS Sensors) and at the same time experience the power of the new generation.

Available as:

• Rod
• Profile
• Flexible rod
• with deteched electronics
• with super shield housing

The following outputs are supported:

• Analog
• SSI
• PROFINET
• EtherNet/IP™
• POWERLINK
• EtherCAT®

Temposonics® E-Series linear position sensors are very compact models suitable to meet the needs of various industrial applications when space is limited.

Available as:

• Rod version (EH) for cylinder integrated position measurement
• Profile version (EP) for position measurement of a motion axis
• Ultra low profile version (EL) for position measurement of a motion axis
• Flat profile version (EP2) for position measurement of a motion axis
• Rod & cylinder housing with strong piston (ER) for flexible mounting
• Rod version for embedding in cylinder (EE) for position measurement in a cylinder
• Rod version for high temperatures and hazardous areas with approvals ATEX, IECEx, CEC and NEC (ET) for cylinder integrated position measurement

Outputs:

• Analog
• CANopen
• IO-Link
• Start/Stop
• SSI

Temposonics® T-Series magnetostrictive position sensors have been specially designed for global installation in potentially explosive areas where they have to be resistant against flames or corrosive substances.

• Developed for use in hazardous areas with approvals ATEX, NEC, CEC, EAC Ex, IEC EX, KCs, CCC and for the Japanese market

Outputs:

• Analog
• CANbus
• SSI

TempoLink® Smart Assistant supports the integration of the sensor into the application. It functions as a smart assistant between sensor and user and provides the following information:

• Current sensor status
• Internal sensor temperature
• Total hours of operation
• Distance traveled by position magnets

The connection and communication between sensor and TempoLink® Smart Assistant is established via the power supply. The smart assistant can transmit the various sensor parameters wirelessly or via USB port. Your benefits:

• Detailed information about the status of your application
• WiFi access point included: no access to company network necessary
• Connect wirelessly via WiFi enabled device like smartphone, tablets or laptops
