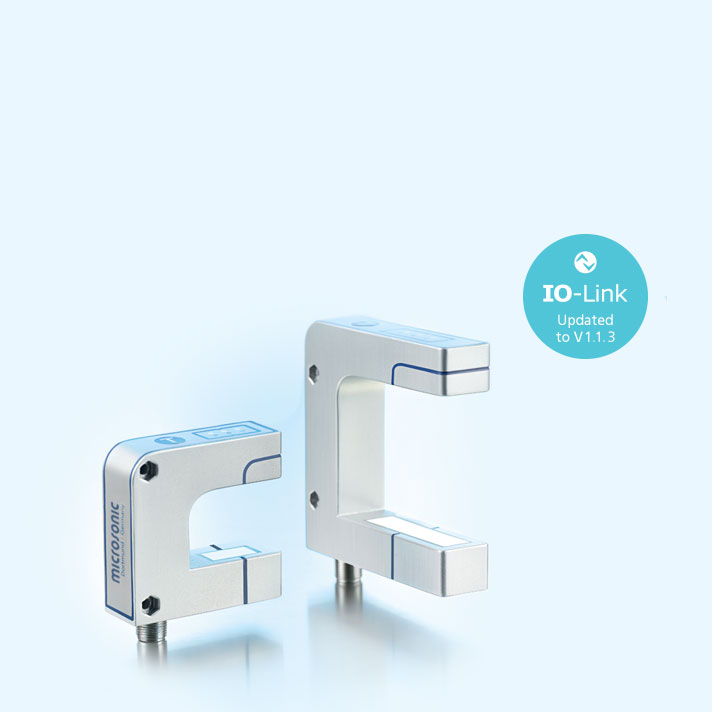

The bks+ ultrasonic web edge sensor is a fork sensor for scanning the edges of sound-impermeable materials such as foil or paper. This is why the bks+ is ideally suited for the web control of high-transparency foils, light-sensitive materials, materials with greatly varying transparency and paper subject to high paper dust loads. The bks+ edge sensor facilitates the contact-free web edge scanning of foils, paper and other soundimpermeable materials.

2 housing designs:

• 30 mm fork width
• 60 mm fork width

Output stages:

• 1 Push-Pull switching output with pnp or npn switching technology
• 1 analogue output 4-20 mA and 0-10 V

More Information here: https://www.microsonic.de/en/bks+

The mic+ sensor family in the M30 housing design covers a measuring range of 30 mm to 8 m with its five detection ranges. All sensors have integrated temperature compensation.
Users can now choose between the following variants: 1 Push-Pull switching output in pnp or npn switching on one output, 1 or 2 switching outputs in pnp or npn design, or the analogue output 4-20 mA and 0-10 V with automatic switching between current and voltage output.

Detection ranges:

• 0.25 m
• 0.35 m
• 1.3 m
• 3.4 m
• 6.0 m

Outputs:

• 1 Push-Pull switching output in pnp and npn design
• 1 or 2 switching outputs in pnp or npn design
• Analogue output 4-20 mA and 0-10 V with automatic switchover between current and voltage output

The pico+ distance sensors are a compact series in an M18 housing. There are two housing variants to choose from: with and without angle head. The ultrasonic sensors with push-pull switching output are equipped with IO-Link 1.1.

Detection ranges:

• 0.15 m
• 0.25 m
• 0.35 m
• 1.0 m

Outputs:

• 1 push-pull switching output in pnp and npn switching technology
• 1 analogue output 4-20 mA or 0-10 V

More Information here: https://www.microsonic.de/en/pico+

The esf-1 splice & label sensors with their 2 switching outputs are ideally suited for label/splice detection and web break monitoring. The fork sensor has 3 teach-in methods for efficient scanning of labels even outside the standard. The ultrasonic sensors support IO-Link version 1.1. and are available in three fork depths.

Fork depths:

• 70 mm
• 86 mm1
• 165 mm

2 output stages:

• 1 push-pull switching output
• 1 push-pull switching output and 1 pnp switching output

More Information here: https://www.microsonic.de/en/esf-1

The cube ultrasonic sensors are designed in a cubic housing for demanding applications. The cube is available with the QuickLock mounting bracket. This allows the sensor to be mounted quickly and easily. There are two output stages available: one Push-Pull switching output in pnp- or npn-circuitry and
one Push-Pull switching output and one analogue output or switchable to two switching outputs. Four LEDs show all operating states in any mounting position. The sensor status is clearly visable. cube ultrasonic sensors support IO-Link in version 1.1 as well as Smart Sensor Profile.

Detection ranges:

• 0,35 m
• 1,3 m
• 3,4 m

Outputs:

• 1 Push-Pull switching output in pnp- or npn-circuitry
• 1 Push-Pull switching output and 1 analogue output or switchable to 2. switching output
