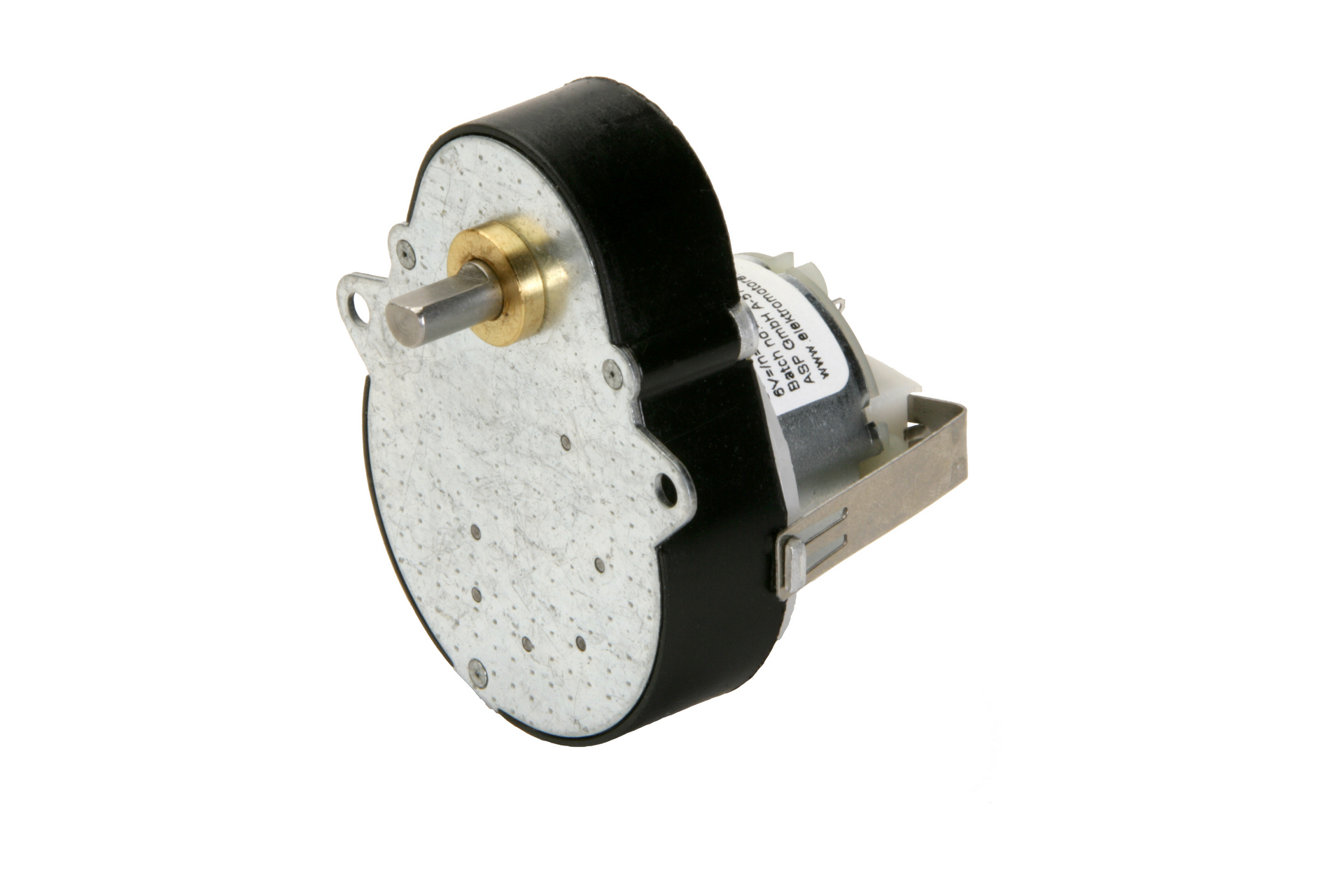

This DC-motor-series with a spur gear is applicable for all drive systems with parallel output sides as well as for higher torques and lower rotation speed.

Applications

Automated machines and equipment, office machines, laboratory applications, medical applications, traffic and communication technology, photographical/optical equipment, etc.

Benefits

• Simple construction
• Cost effective
• Versatile in use
• Well combinable

Technical Details

• Idle speed: 0.75 upto 300 UPM
• Torque: 2.3 - 0.005 Nm
• Drive transmission: 3000:1 till 16:1

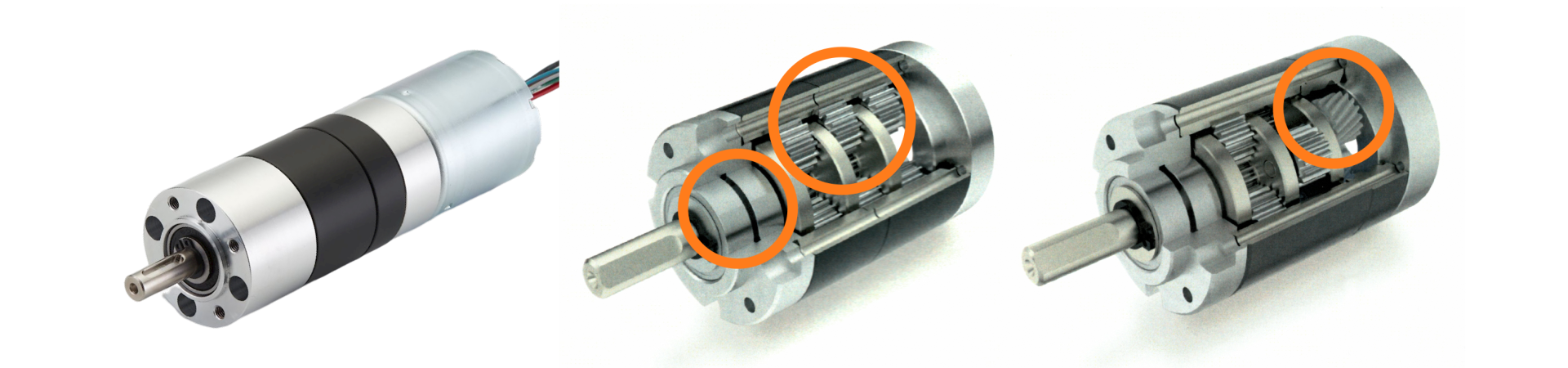

A planetary gear motor offers low output speeds and high torques. It is compact and powerful.

This series in particular has proven itself in many applications in industry and household, e.g. in positioning systems, actuators, lifting systems or in slow-running process engineering systems such as mixers and rotary filters.

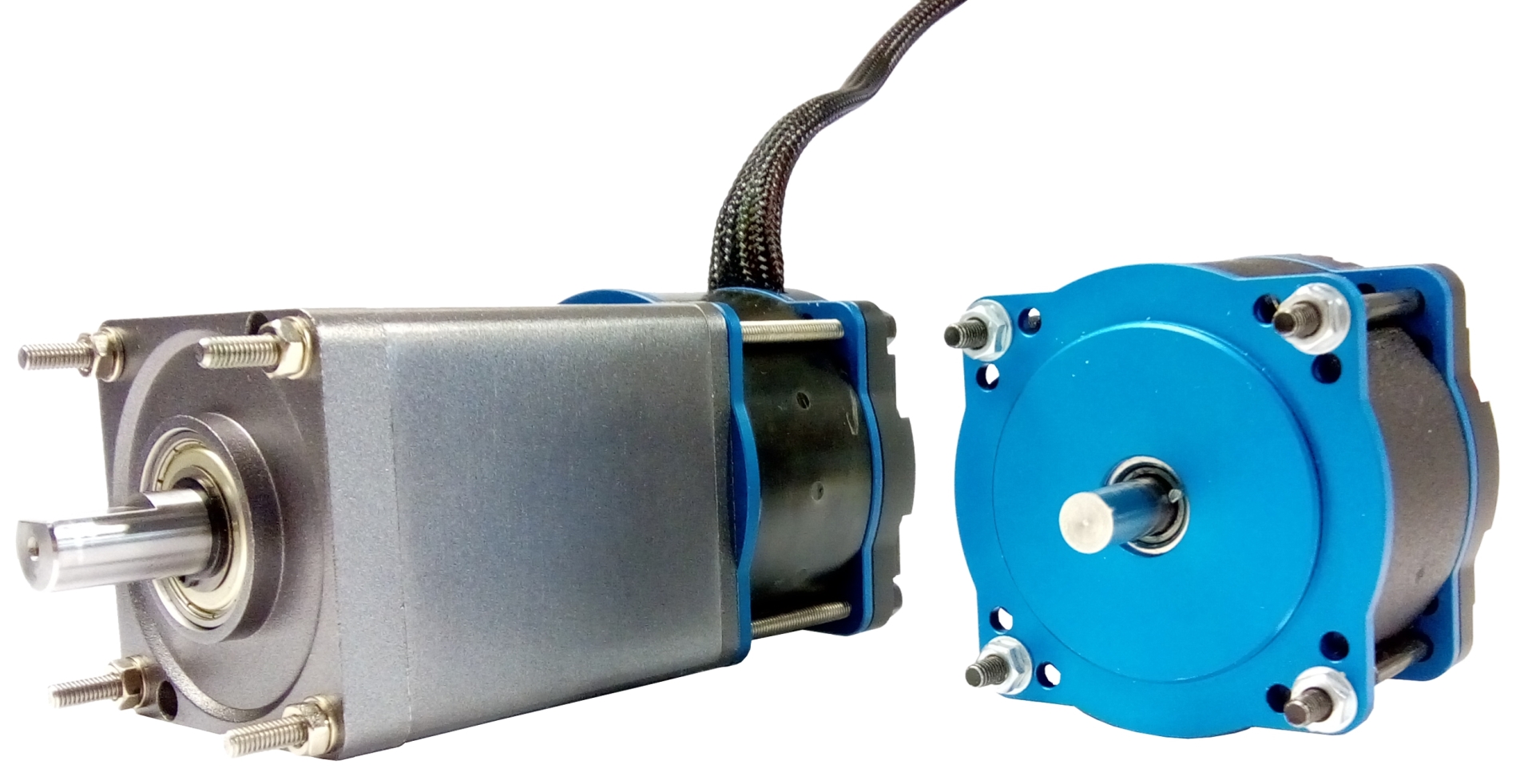

This high-torque BLDC motor, patented and produced in Germany, provides so many strong arguments for a wide range of applications with little implementation effort:

• very high efficiency
• small dimensions and weight
• very quiet, jerk-free and low-noise run
• fast, precise fine positioning
• long life span
• fully electronic commutation
• fully integrated electronic control with encoder

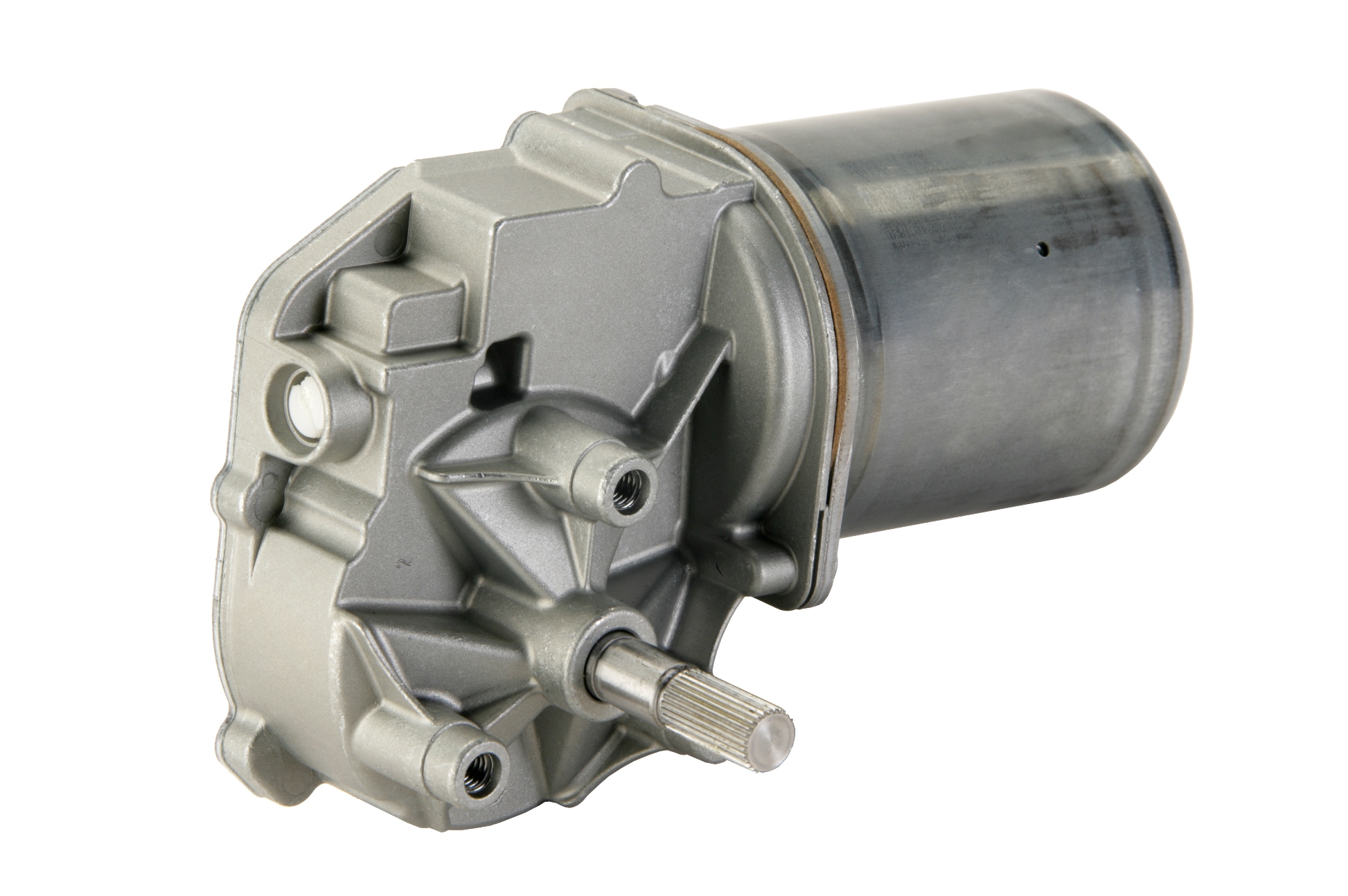

A worm gear motor can withstand high loads and is still running quietly. Its properties unfold optimally where a certain self-locking is required, but additional brakes should be dispensed with.
These arguments are often decisive: A worm gear motor is simply powerful and inexpensive.

A planetary gear motor combines a compact design with high efficiency. This new BLDC motor with planetary gear from the P042066 series promises a long service life in addition to its rated power. This BLDC planetary gear motor is available in two variants. Both have a gear with two ball-bearings and reinforced planetary gears, which ensure high torque and low gear backlash. In the second variant, the first stage of the planetary gear has helical teeth and is made of plastic, which significantly reduces running noise.

The P042066 series can be used in applications that require high radial forces in addition to high torques, such as pulleys mounted directly on the motor shaft - the mounting of the motor shaft must reliably withstand the voltage of the belt over its entire service life. In addition, these BLDC planetary gear motors are used in high-precision applications where low gear backlash is required, e.g. for the positioning drive of laser optics, in mechanical processing centers or order picking systems.

Technical data of the LN planetary gear

• Voltage: 24 VDC
• Rotation speed: 11 to 800 rpm
• Torque: 0.5 to 13.2 Nm
• Gear with two ball-bearings and reinforced planetary gears
• A variant with helical-toothed plastic gears in the first stage

Advantages of this BLDC planetary gear motor P042066

• In the elongated form, the larger part is the active part.
• Short response time
• Low moment of inertia
• High rotation speeds
• Lower power consumption
• High efficiency over long lifetime
