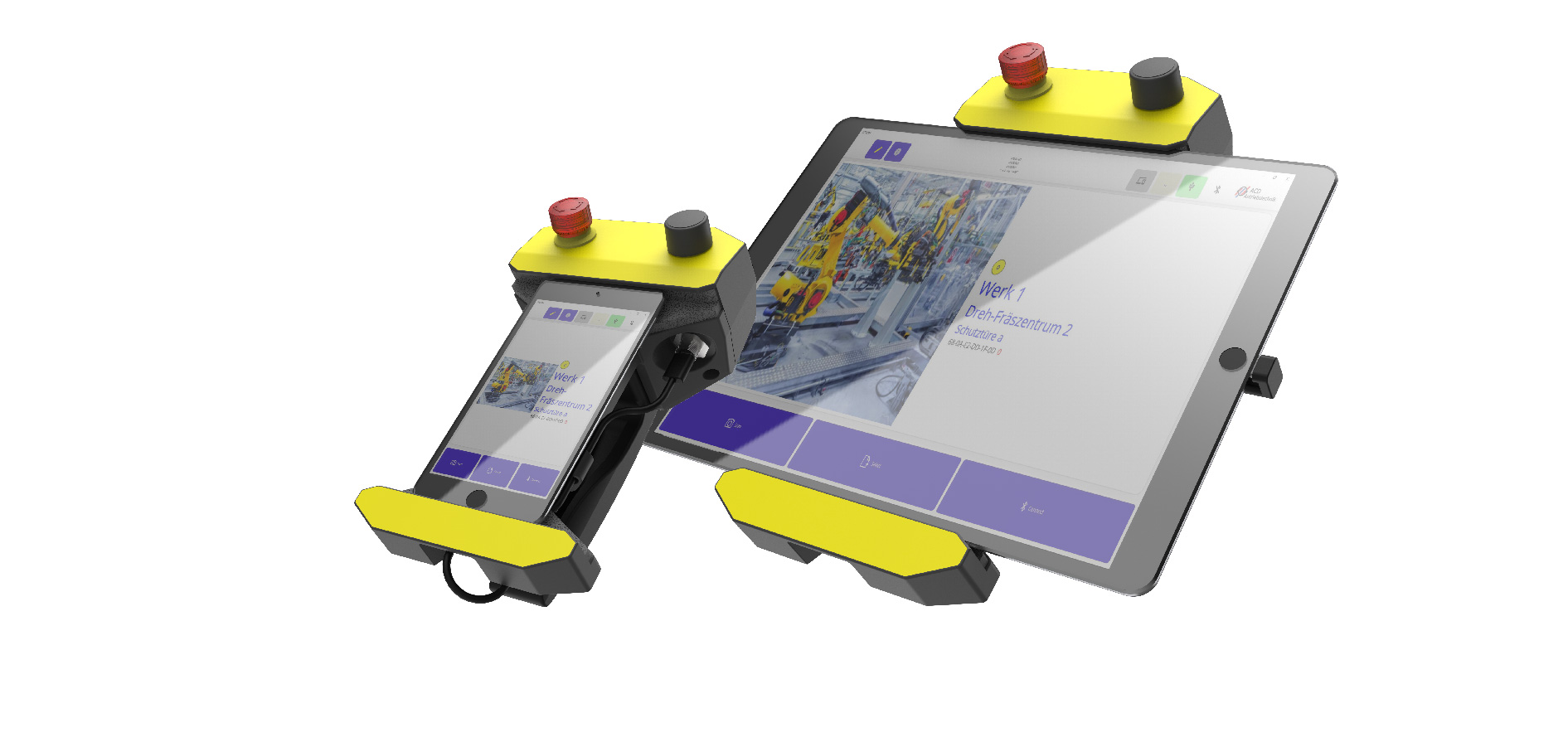

The wireless HMI safety panel SP200 of the ACD Antriebstechnik is a wireless handheld control unit with several safety functions, which can also use for process and machine control.

Tablets from different manufacturers with displays between 10.5″ and 11″ (other sizes on request) and smartphones can be installed for visualizing processes and controlling machines in the SP200 using customer-specific removable frames. Tablets with the Android, iOS and Windows operating systems can be used. All tablet functions can be used without restriction and by using an additional standard battery system, a very long runtime is achieved. The integrated control elements Not-Halt, acknowledge button and encoder are recorded by the integrated safety electronics. The safety data are transmitted to an opposite station (safety gateway) via a secure radio link. The safety gateway can be a safety control or establish connections to other safety controls and safe bus systems. Connections to several safety gateways can be configured in the SP200.

System components for your automation requirements, in various voltage and power classes.

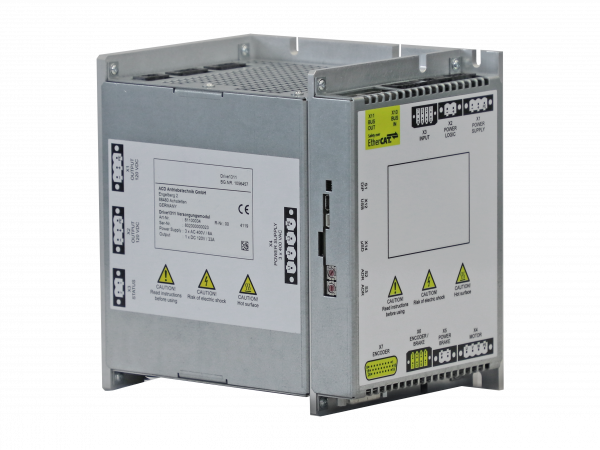

Safety Drives
Safety drives from ACD Antriebstechnik allow the selection of safety functions in accordance with DIN EN 61800-5-2 (STO, SS1, SS2, SOS, SLS, SDI, SMS, SBC with SBT) with Safety-over-EtherCAT.

Drives
Drives from ACD Antriebstechnik are standard or customer-specific developments, solving problems in automation processes across a wide range of industries.

Motors
Using ACD Antriebstechnik motors helps the customer design ideal automation solutions for the space, function and price. Special motors with integrated electronics are also developed and produced.

Over-voltage protection (OVP)
The motor OVP modules, certified in accordance with DIN EN13849-1 with integrated safety, protect the components in the drive train against excessive DC link voltage in case of fault.

Scalable I/O components for expanding safety drive systems, with EtherCAT bus connection and FSoE protocol.

I/O components with specific fieldbus connection, perfectly adapted to the customer’s needs, for implementing current as well as future automation requirements.

Products with functional safety for minimizing risk in machines, certified in accordance with DIN EN ISO 13849-1.

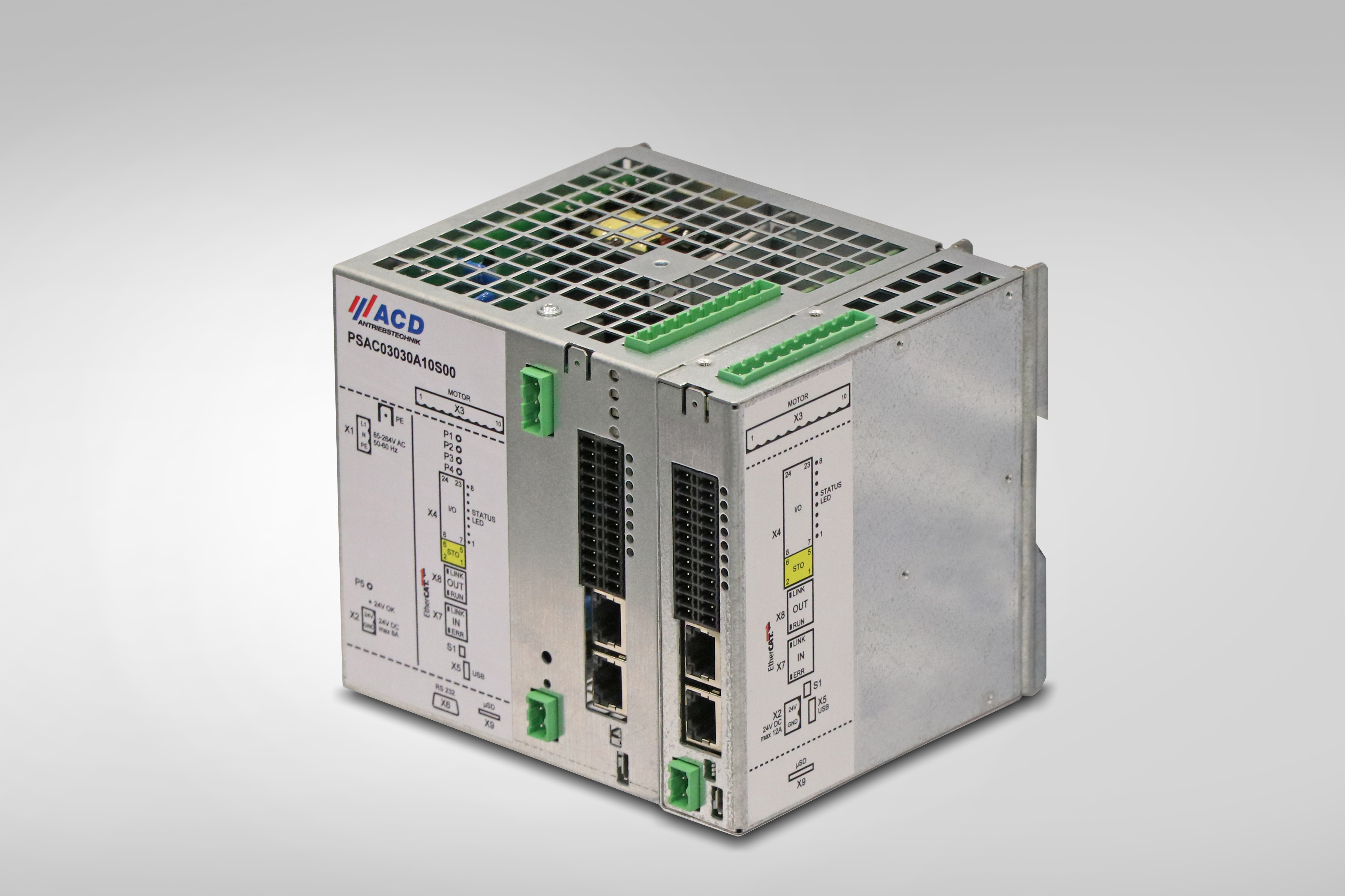

Motion
Product groups for a complete automation solution with the ideal form factor, performance spectrum & functional scope.

HMI
Handheld control units optimized for process and machine control featuring different safety functions, certified in accordance with DIN EN ISO 13849-1.

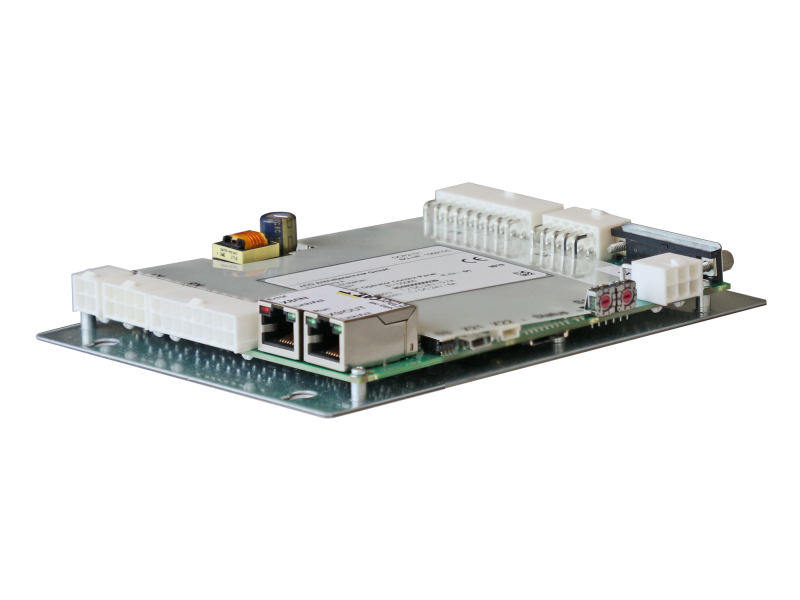

I/O
Versatile I/O assemblies with EtherCAT fieldbus and FSoE protocol, for expanding the functions of safe drive systems.

PLC
Industry-specific safety controllers with specific fieldbus connection, programmable in accordance with DIN EN 61131-3 for implementing a customer-specific application.

Professional power supplies for systems and mechanical engineering with optimized efficiency, suitable for regenerative drive systems.

1-phase
Versatile 1-phase power supplies for 230 V supply voltage. The output voltage level is set according to the customer’s wishes. They are optimized with regard to efficiency and are ideal for use in drive systems in an industrial environment.

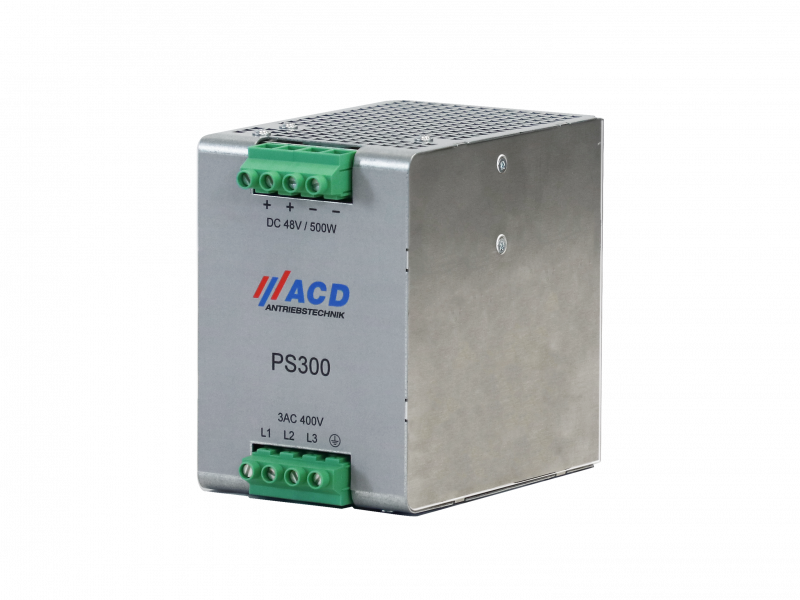

3-phase
Versatile 3-phase power supplies for 400 V supply voltage. The output voltage level is set according to the customer’s wishes. They are optimized with regard to efficiency and are ideal for use in drive systems in an industrial environment.

UPS
The UPS controller detects fluctuations and interruptions in the supply voltage of connected consumers. The variable battery module is used as a buffer for the consumers and thus prevents undefined operating states.
