LAUMAS 3-A Sanitary Standards Hygienic line
Description
The hygienic line was created with the aim of providing prefectly sanitizable, certified, hygienic weighing systems for all those sectors where hygiene is a necessary or important requirement, such as food and dairy products or the chemical and pharmaceutical industry.
The most important feature of hygienic products is the possibility of being sanitized, ensured by several factors:
→ DESIGN
Perfectly smooth surfaces, always inclined and equipped with drainage corners and joined edges, which make all the prducts easy to inspect and wash.
→ MATERIALS
Selected and certified in every detail: stainless steel, seals made of food-grade silicon, food contact cable.
→ PROTECTION RATING
Between IP67 and IP69K.

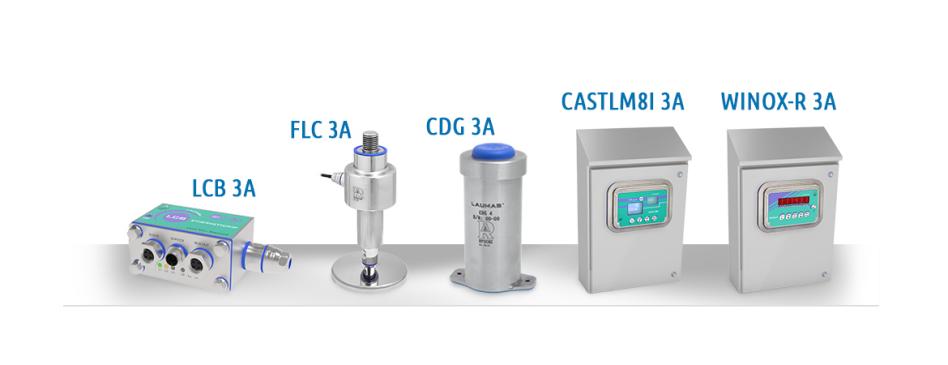

ALL THE COMPONENTS OF THE HYGIENIC LINE
▷ FLC 3A: hygienic load cell for foot
The hygienic load cell for foot is made of 17-4 PH stainless steel, it can be sanitized in its entirety and complies with the 3-A Sanitary Standards.
Its strenghts:
- easy to mount;
- has an IP69K protection rating;
- has a wide range of capacity (from 1000 kg to 20,000 kg);
- the lower stem is internelly threaded so that the height of the feet can be adjusted.
The FLC 3A is compatible with the most of the feet on the market and, on request, it can be supplied with its hygienic foot that:
- has a tilt capacity of up to ± 7.5°, to compensate for any non-parallelism of the supporting surface of the structure;
- its stem is partially threaded, to form a single body with the load cell;
- there is also a pluggable version with 2 holes for fixing to the floor with 2 hygienic screws, so as to create an anti-tilt constraint.
▷ CDG 3A: hygienic junction box
The CDG 3A junction box has a completely innovative design, ensuring it is hygienic and practical to use.
Its main features:
- it is perfectly sanitizable and complies with the 3-A Sanitary Standards;
- the cable gland also act as a seal;
- it has an IP68 protection rating;
- the closure is simplified, with no need for tools;
- it handles up to 4 load cells connected in parallel and is also available in the equalized version.
▷ CASTLM8I 3A: the hygienic version of the TLM8 multichannel weight transmitter.
The classic TLM8 weight transmitter is also available in a hygienic version thanks to the CATLM8I 3A box, which makes it sanitizable and completely sealed to dust and water.
The new version:
- is made of AISI 304 stainless steel;
- has an IP69K protection rating;
- is 3A Sanitary Standards.
So even in the most demanding industries, you can enjoy all the features of the TLM8 transmitter, including:
- 8 independent read channels for load cells, which become 4 in the case of a hygienic installation in front of the panel;
- integrated diagnostics and digital equalization;
- backlit LCD graphic display;
- the smart junction box function;
- 13 fieldbuses for communicating with the PLC;
- 3 digital inputs, 5 realay outputs, RS485 serian port and, on request, 16-bit analogue output.
▷ WINOX-R 3A: AISI 304 stainless steel hygienic weight indicator
Its main features:
- IP69K front panel protection rating;
- six-key membrane keyboard;
- different versions for various types of electrical connections;
- Multiprogram: single loading/unloading and multi-product batching.
Options on request:
- data storage on USB pen drive;
- ATEX II 3GD version
- 16-bit analog output: 0/4-20 mA - 0-5/10 V - ±5/10 V;
- alibi memory.
▷ LCB 3A: weight transmitter - digitizer for load cells
LCB 3A transforms an analog load cell (with mV/V output) into a digital load cell and can also be used with existing strain gauge cells or sensors.
Designed for mounting/wiring integrally with the load cell body, it can be connected via fieldbus to PLCs from leading international brands.
With an AISI 304 stainless steel container certified 3-A Sanitary Standards, it is perfectly sanitizable, and it is ideal for application in sectors where hygiene in an important or necessary requirement.
