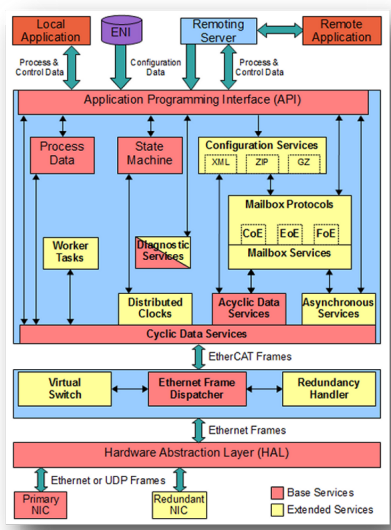

EtherCAT® MainDevice protocol stack for various real-time and general-purpose operating systems

ECS-M.2/FPGA

Convert your Embedded System into an EtherCAT SubDevice

• Add EtherCAT SubDevice (ECS) functionality to your embedded PC
• The EtherCAT SubDevice Controller address space is directly mapped to the PCI Express address space
• M.2 form factor 2280 or 2260 for smaller embedded devices like IPCs or Raspberry Pi


Simple Configuration and Rapid Application Development

• Easy configuration by esd's EtherCAT MainDevice or other MainDevices
• Sample EtherCAT SubDevice Information File (ESI file in XML format) is provided
• esd's EtherCAT SubDevice API library and sample code for rapid application development are included


Bus Master Support

• The FPGA contains Bus Master DMA support to offload the CPU from copying the output process image data into the host memory. This is utilized by the esd EtherCAT SubDevice Stack.


Customization on Request

• Customized configurations are available on request

EtherCAN/3-FD

Wide Feature Set: Gateway and Bridge for Ethernet to CAN Bus

• Secure and autonomous CAN-to-CAN bridge via encrypted TCP/IP connection by connecting two EtherCAN/3-FDs
• Sophisticated on device CAN ID based filter and forwarding mechanisms to minimize Ethernet bandwidth and/or host CPU usage
• Receive and send CAN data with any network device using the lightweight Ethernet Low Level Socket Interface (ELLSI) protocol
• Monitoring of CAN bus with an arbitrary TCP based server for customized postprocessing tasks
  Support for non-interfering CAN bus monitoring

Easy to Use with robust Communication

• Integrated web interface for an easy device configuration without additional configuration software
• Protection via mechanical switch that deactivates the web server to minimize the device’s attack surface and to prevent unwanted reconfiguration
• Robust communication thanks to TCP/IP support


Remote CAN Interface as Virtual Device

• Transparent integration of the remotely connected CAN buses into the esd NTCAN environment on Windows and Linux
• Use of existing NTCAN API based applications, protocol stacks and established CAN tools, such as CANreal on Windows

CAN-PN/2-FD

First PROFINET® IO to CAN FD Gateway for Fieldbus Communication

• Supports CAN FD with up to 64 bytes in the data field and 8 Mbit/s bit rate
• CAN FD is fully compatible with classic CAN (2.0A/B) with up to 1 Mbit/s
• Also available as CAN classic (CAN CC) only variant
• Further development of the proven CAN-PN -> Migration Guide CAN-PN to CAN-PN/2


Easy-to-configure Communication between PROFINET® and CAN

• Supports up to 512 statically configured CAN frames as modules in PROFINET®.
• Unlimited number of freely configurable CAN frames with Record Data Objects
• Reliable data transmission even with high CAN bus load


Reliable Communication with advanced Functions for Diagnostics and Troubleshooting

• User-friendly analysis of the CAN bus via the USB interface
• CAN bus monitoring with our free Windows® GUI tool CANreal
• LEDs for easy reading of PROFINET® and CAN status

CAN-M.2/402

Single Lane M.2 PCIe card with esdACC for up to 4x CAN FD

• Up to 4 CAN FD ports according to ISO 11898-2 with recommended DSUB9 adapters
• Bus mastering and local data management via esdACC
• MSI (Message Signaled Interrupts) support
• 2242, 2260 or 2280 form factor with B & M key


Extended operating system support and advanced CAN diagnostics

• Software drivers for Windows® and Linux® included free of charge
• Optional CAN Layer 2 software drivers for real-time operating systems
• CANopen, J1939 and ARINC 825 protocol libraries available for Classical CAN applications
• ISO 16845:2004 certified esd Advanced CAN Core (esdACC) technology
• High resolution hardware timestamps


Flat design of the CAN interface adapter

• CAN port via an adapter with DSUB9 connector
• CAN termination can be activated at the DSUB9 adapter


Customization on request

• Version for the extended temperature range: -40° C ... +85° C
