With the industrial PCs Christ Electronic Systems GmbH extends its product portfolio with scalable industrial PCs for industrial use.

Also with our industrial PCs we offer you the modular construction system, which provides you with a variety of configuration options.
Choose from different CPU variants and memory expansions exactly the variant that suits your application.

Advantages of the industrial PC solutions

• Very compact housing design
• Integrated UPS optionally available
• Integrated TPM 2.0
• Top price/performance ratio
• Passively cooled IPCs, fanless
• Memory individually expandable
• Integrated RTC
• IIoT gateway suitable
• Industrial quality of the individual components
• Image adaptation and BIOS customization on demand

Technical features:

Possible CPUs:

• NXP® i.MX 8M Plus Quad Core
• Intel® Celeron™ N3350 1.1 GHz
• Intel® Celeron™ 3965U 2.2 GHz
• Intel® Core™ i3-7100U 2.4 GHz
• Intel® Core™ i5-7300U 2.6 GHz
• Intel® Core™ i7-7600U 2.8 GHz

Product announcement - launch 2024:

• Intel® Celeron™ 6305E
• Intel® Core™ i3-1115G4E
• Intel® Core™ i5-1145G7E
• Intel® Core™ i7-1185G7E

Storage:

• RAM: max. 4GB DDR4 (i.MX8)
• RAM: max. 8GB DDR3L (N3350)
• RAM: max. 32GB DDR4
• Mass Storage: eMMC 8 GB bis 64 GB, Micro SD Karte
• Mass Storage: 3D TLC SSD 64 GB bis 512 GB

System overview i.MX8:

• TPM 2.0: Yes
• USB 3.0 Host: 2 (Type A, bottom)
• Ethernet 10/100/1000-BaseT: 2 (RJ45)
• EIA-232: 1 (Sub-D)
• RTC: Yes
• Temperature range: 0 to +50°C
• Cooling: Passiv (fanless)
• Power: 12 - 24 VDC ± 20%
• Power Button: Optional

System Overview N3350:

• TPM 2.0: Yes
• USB 3.0 Host: 2 (Type A, bottom)
• Ethernet 10/100/1000-BaseT: 2 (RJ45)
• EIA-232/EIA-422/EIA-485: 1 (RJ50)
• DisplayPort: 1 (DP 1.0)
• RTC: Yes
• Temperature range: 0 to +50°C
• Cooling: Passiv (fanless)
• Power: 12 - 24 VDC ± 20%
• Power Button: Optional

System Overview 3965U, i3, i5, i7:

• TPM 2.0: Yes
• USB 2.0 Host: 2 (Type A, bottom)
• USB 3.0 Host: 2 (Type A, bottom)
• Ethernet 10/100/1000-BaseT: 2 (RJ45)
• EIA-232/422/485: 1 (Sub-D)
• DisplayPort: 1 (DP 1.1)
• RTC: Yes
• Temperature range: 0 to +50°C
• Cooling: Passiv (fanless)
• Power: 12 - 24 VDC ± 20%
• Power Button: Optional

Extensions:

• USB
• Ethernet 100 Mbit
• USV
• CAN
• Side USB 2.0 / Power Button

System Overview All-in-One SPS with CODESYS:

• CPU: NXP® i.MX 8M Plus QuadCore (1.35 GHz or 1.8 GHz; depending on license)
• TPM 2.0: Infineon SLB9670
• NVRAM: 128 kB
• RTC: RV-8803-C7 (±5 ppm)
• RAM: 1 GB DDR4
• Primary mass storage: eMMC, 8 GB
• USB 3.0 Host: 2 (Type A)
• Ethernet 10/100/1000-BaseT: 2 (RJ45)
• Operating temperature: 0 to 50°C
• Cooling: Passive (fanless)
• Power: 24 VDC ± 30%
• Reset Button: Yes
• UPS: (internal)
• Run/Stop Switch: Yes (illuminated)
• Service Button: Yes
• Power/Error/User LED: Yes (RGB-LED)

Extensions All-in-One PLC with CODESYS

• Memory expansion: 2GB DDR4 + 16 GB eMMC
• USB 2.0
• Ethernet (100 Mbit)
• CAN
• RS232
• RS485
• Digital inputs and outputs
• SD-Card

All information about our industrial PCs can be found here:
https://www.christ-es.com/de/produkte/industrie-pcs

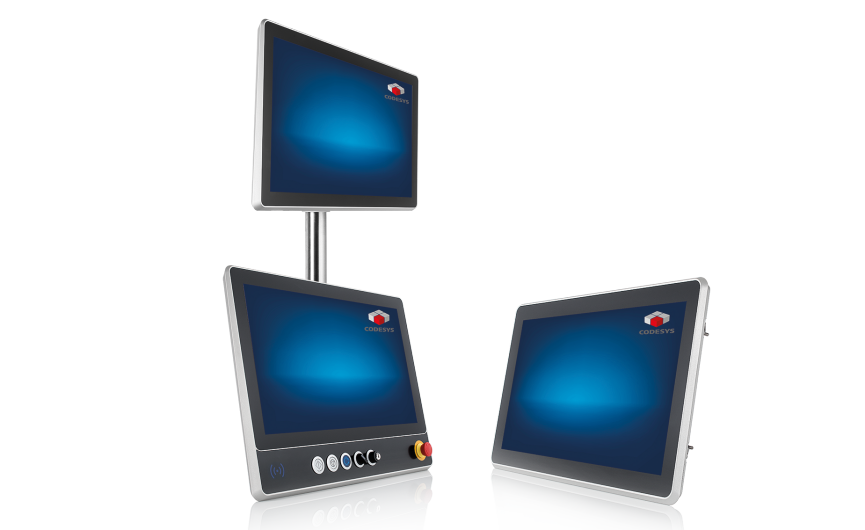

The Automation Hygienic Touch Panel is a visually appealing stainless steel Touch Panel. It has integrated buttons for use in hygienically demanding areas such as the food industry and pharmaceutical production. The completely enclosed panel can be mounted with a VESA mount as well as on customized support arm systems. The stainless steel touch panel is completely IP69 protected and complies with all EHEDG and FDA requirements. Dirt and bacteria must not be allowed to settle in hygienic areas. The beveled, smooth surfaces and rounded edges prevent this. The Touch Panel is particularly easy to clean. We have adapted the design and use hygienic screws and food-grade seals. They are particularly durable and can withstand the high stresses in the pharmaceutical and food industries. High safety requirements must be met, especially in food production. A protective film prevents possible splinters from getting into the food or medical products in the event of glass breakage.

Advantages of Automation Hygienic Touch Panel solutions

• Stainless steel Touch Panel according to protection class IP69.
• Surface inclination 5
• Inner radii at least 4 mm
• Bending angle >150
• Brushed stainless steel with Ra value less than 0.8
• Use as monitor, SMART monitor or panel PC (Intel or AMD CPUs)
• Compliance with EHEDG and GMP requirements
