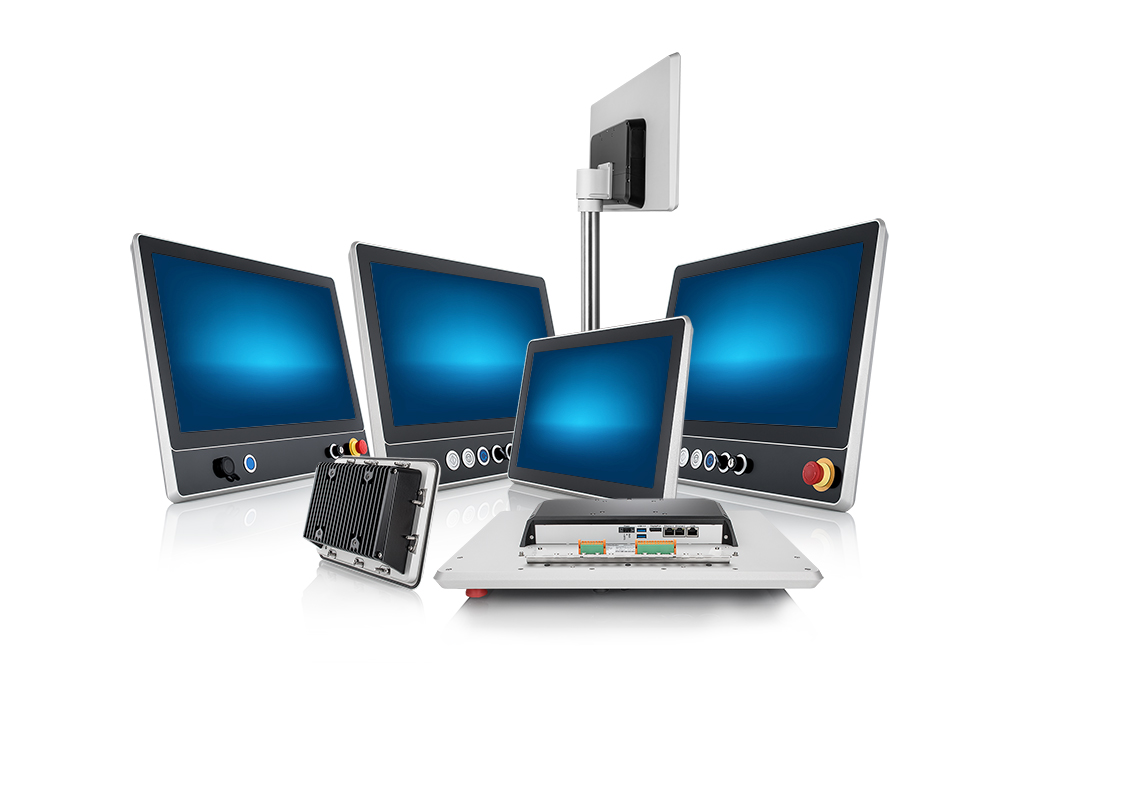

With the industrial PCs Christ Electronic Systems GmbH extends its product portfolio with scalable industrial PCs for industrial use.

Also with our industrial PCs we offer you the modular construction system, which provides you with a variety of configuration options.
Choose from different CPU variants and memory expansions exactly the variant that suits your application.

Advantages of the industrial PC solutions

• Very compact housing design
• Integrated UPS optionally available
• Integrated TPM 2.0
• Top price/performance ratio
• Passively cooled IPCs, fanless
• Memory individually expandable
• Integrated RTC
• IIoT gateway suitable
• Industrial quality of the individual components
• Image adaptation and BIOS customization on demand

Technical features:

Possible CPUs:

• NXP® i.MX 8M Plus Quad Core
• Intel® Celeron™ N3350 1.1 GHz
• Intel® Celeron™ 3965U 2.2 GHz
• Intel® Core™ i3-7100U 2.4 GHz
• Intel® Core™ i5-7300U 2.6 GHz
• Intel® Core™ i7-7600U 2.8 GHz

Product announcement - launch 2024:

• Intel® Celeron™ 6305E
• Intel® Core™ i3-1115G4E
• Intel® Core™ i5-1145G7E
• Intel® Core™ i7-1185G7E

Storage:

• RAM: max. 4GB DDR4 (i.MX8)
• RAM: max. 8GB DDR3L (N3350)
• RAM: max. 32GB DDR4
• Mass Storage: eMMC 8 GB bis 64 GB, Micro SD Karte
• Mass Storage: 3D TLC SSD 64 GB bis 512 GB

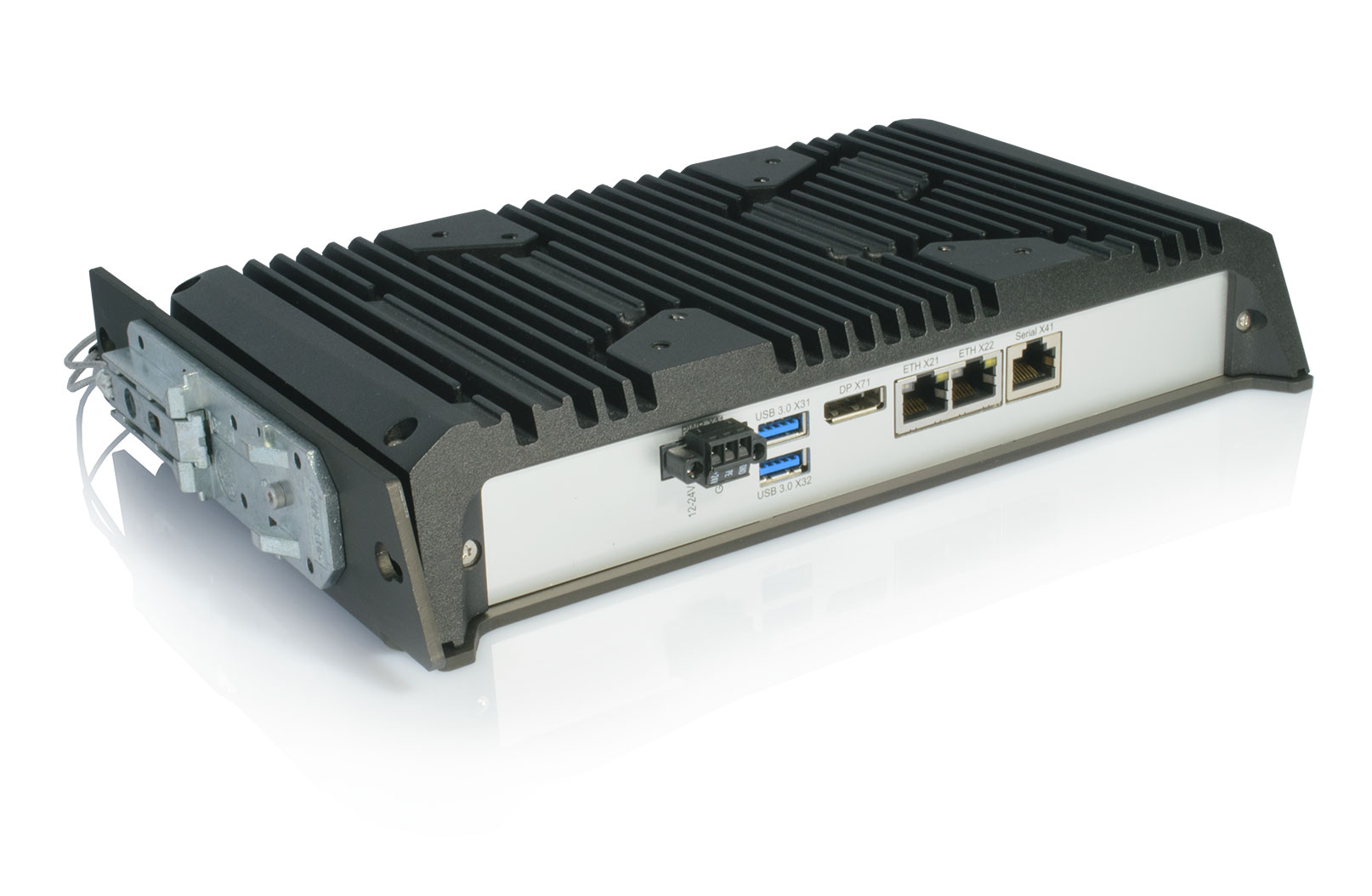

System overview i.MX8:

• TPM 2.0: Yes
• USB 3.0 Host: 2 (Type A, bottom)
• Ethernet 10/100/1000-BaseT: 2 (RJ45)
• EIA-232: 1 (Sub-D)
• RTC: Yes
• Temperature range: 0 to +50°C
• Cooling: Passiv (fanless)
• Power: 12 - 24 VDC ± 20%
• Power Button: Optional

System Overview N3350:

• TPM 2.0: Yes
• USB 3.0 Host: 2 (Type A, bottom)
• Ethernet 10/100/1000-BaseT: 2 (RJ45)
• EIA-232/EIA-422/EIA-485: 1 (RJ50)
• DisplayPort: 1 (DP 1.0)
• RTC: Yes
• Temperature range: 0 to +50°C
• Cooling: Passiv (fanless)
• Power: 12 - 24 VDC ± 20%
• Power Button: Optional

System Overview 3965U, i3, i5, i7:

• TPM 2.0: Yes
• USB 2.0 Host: 2 (Type A, bottom)
• USB 3.0 Host: 2 (Type A, bottom)
• Ethernet 10/100/1000-BaseT: 2 (RJ45)
• EIA-232/422/485: 1 (Sub-D)
• DisplayPort: 1 (DP 1.1)
• RTC: Yes
• Temperature range: 0 to +50°C
• Cooling: Passiv (fanless)
• Power: 12 - 24 VDC ± 20%
• Power Button: Optional

Extensions:

• USB
• Ethernet 100 Mbit
• USV
• CAN
• Side USB 2.0 / Power Button

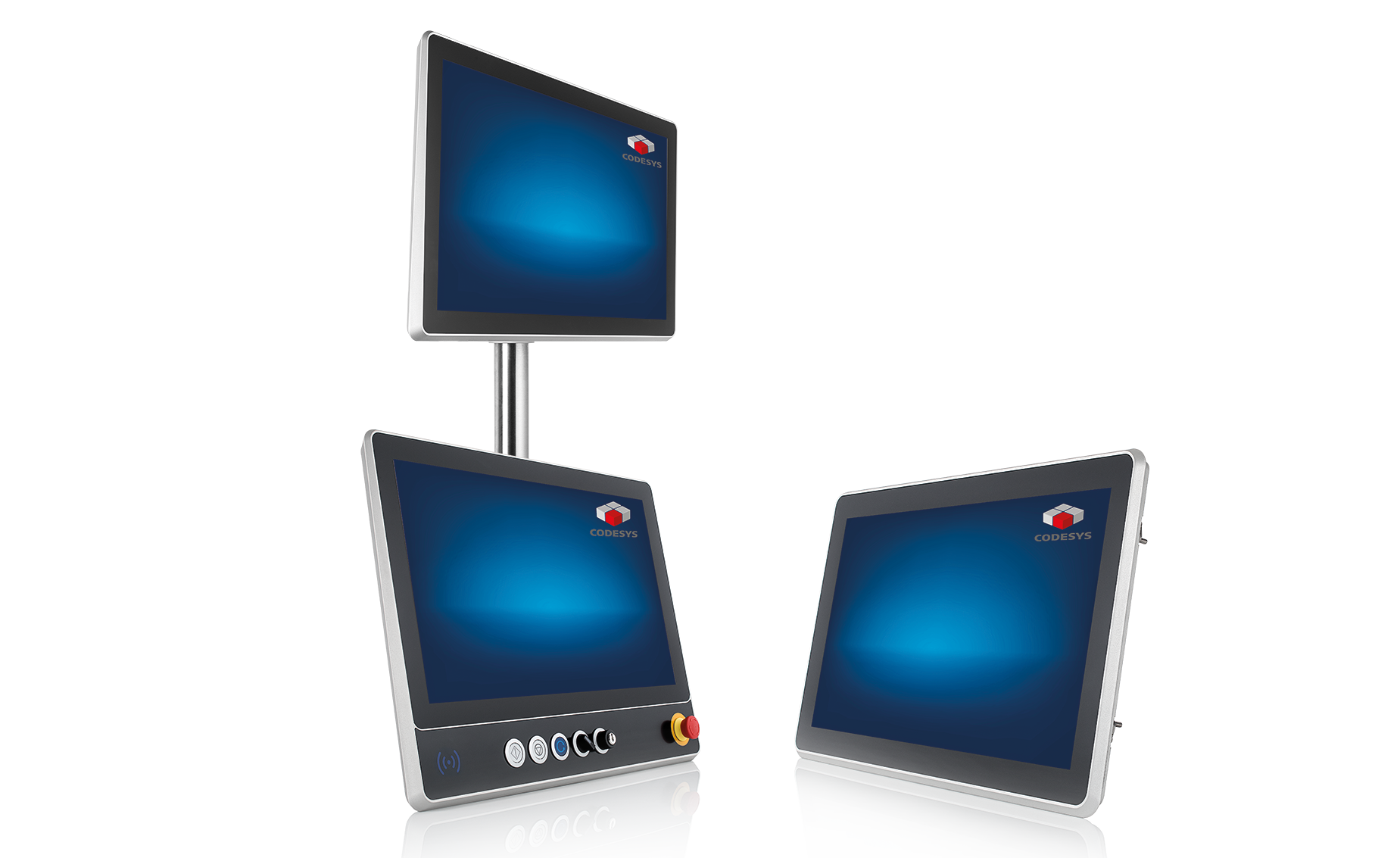

System Overview All-in-One SPS with CODESYS:

• CPU: NXP® i.MX 8M Plus QuadCore (1.35 GHz or 1.8 GHz; depending on license)
• TPM 2.0: Infineon SLB9670
• NVRAM: 128 kB
• RTC: RV-8803-C7 (±5 ppm)
• RAM: 1 GB DDR4
• Primary mass storage: eMMC, 8 GB
• USB 3.0 Host: 2 (Type A)
• Ethernet 10/100/1000-BaseT: 2 (RJ45)
• Operating temperature: 0 to 50°C
• Cooling: Passive (fanless)
• Power: 24 VDC ± 30%
• Reset Button: Yes
• UPS: (internal)
• Run/Stop Switch: Yes (illuminated)
• Service Button: Yes
• Power/Error/User LED: Yes (RGB-LED)

Extensions All-in-One PLC with CODESYS

• Memory expansion: 2GB DDR4 + 16 GB eMMC
• USB 2.0
• Ethernet (100 Mbit)
• CAN
• RS232
• RS485
• Digital inputs and outputs
• SD-Card
