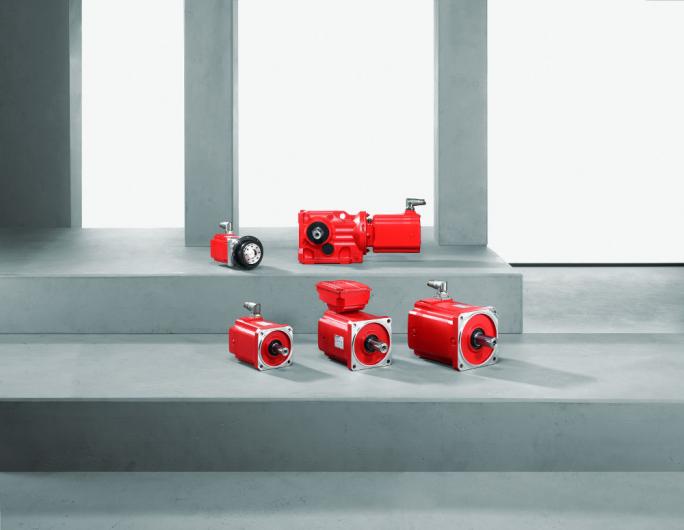

Servomotoren - Baureihe CM3C
Beschreibung
SEW-EURODRIVE is adding servomotors for high external loads to the MOVI-C® modular automation system. The new CM3C series consists of the sizes 63, 71, 80, and 100. The motors have standstill torques from 2,7 to 40 Nm. This compact range of servomotors with increased inertia are used in machines and applications where a low ratio of load moment of inertia to motor moment of inertia is desired for control reasons. In addition, there is an extensive range of possible options, such as brakes, a large number of different encoder systems and encoder interfaces, as well as flexible motor connection variants for adapting perfectly to the respective conditions of the customer application. The new series is also optionally available with single-cable technology using the newly developed, SEW-EURODRIVE-internal MOVILINK® DDI encoder interface, making wide-ranging digital integration possible. For example, an automatic startup is performed when motors are connected to SEW-EURODRIVE inverters. The encoder signals are transmitted digitally and the brake control system is also digital, with an option for monitoring the condition of the brake. To provide customers with the greatest possible degree of flexibility in their system, the CM3C motor will be offered in future both with standard SEW-EURODRIVE encoder systems and also with DRIVE-CLiQ, EnDat 2.2, and HIPERFACE DSL® encoders. As is usual for SEW-EURODRIVE, the motor series offers a diverse range of options. When combined with the Bruchsal-based company's modular gear unit system, the possibilities are almost endless. One key unique selling point is the availability of two brake versions. Alongside the 24 V holding brake typical for servomotors, there is also a brake with increased working capacity for applications where service braking or emergency braking is required. In combination with the single-cable technology, there is also a new smart brake rectifier for the brake's AC connection. This is current-controlled and can cope with a wide range of input voltages from 100 to 500 V. Typical areas of application include machine automation, handling gantries, and trolley drives.
Sizes: 63, 71, 80, 100, each in the lengths S, M, and L
Rotational speeds: 2000, 3000, 4500, and 6000 min-1
Torque M0: 2.7 to 39.6 Nm
Maximum torque: 8.1 to 118.8 Nm
Inertia:1.54 to 99.5 kg/cm²
