Nano Series Module

AccelnetPlus Micro Modules deliver high performance in compact PCB-mounted packages. Available with either EtherCAT (AEV) or CANopen (APV) communications, these products can supply brush, brushless or linear motors with up to 50A continuous current. High resolution current loops enable AccelnetPlus to meet even the most demanding applications.

Compact size 64x41x27 mm

5 to 50A continuous, 10 to 50A peak

9 to 90 VDC and 20 to 180 VDC supply voltage ranges

CSP, CSV, CST, Position,Velocity,Torque control modes

Dual absolute loop support

Wide range of absolute encoder interfaces

EtherCAT, CANopen or serial communications

Functional safety: STO

Copley Controls offers a comprehensive range of digital panel drives for brush, brushless, linear and stepper motors. Single axis and dual axis DC input drives are being offered to optimize cost per axis and installation flexibility. AccelnetPlus (servo) and StepnetPlus (steppers) feature wide range of feedback options and EtherCAT or CANopen communications. STO functionality reduces system cost in safety critical applications.

Servo drives single axis (BEL, BPL): 3A to 15A continuous, 6A to 30A peak

Servo drives dual axis (BE2, BP2): 3 to 10A continuous, 6A to 20A peak (per axis)

Stepper drives (TEL, TE2): 5A to 10A continuous, 7A to 10A peak (per axis)

Supply voltage 14 to 90VDC

Absolute encoders EnDat, BiSS, Absolute A, SSI

Functional safety: STO

XenusPlus AC powered drives are available in both EtherCAT and CANopen versions. Multi-axis models deliver optimal cost per node for brush, brushless or linear motors. A wide range of absolute encoder interfaces are built-in, including EnDat, BiSS, Absolute A and SSI. Cross coupling feature is developed specifically for gantry applications where coordinated motion is critical.

Xenus drives single axis: 3A to 20A continuous, 9 to 40A peak

Xenus drives dual axis: 10A continuous, 20A peak

Input power: 100 to 240 VAC, single or three phase

Control modes: CSP, CSV, CST, Position, Velocity, Torque

Absolute encoders: EnDat, BiSS, Absolute A, SSI

Functional safety: STO

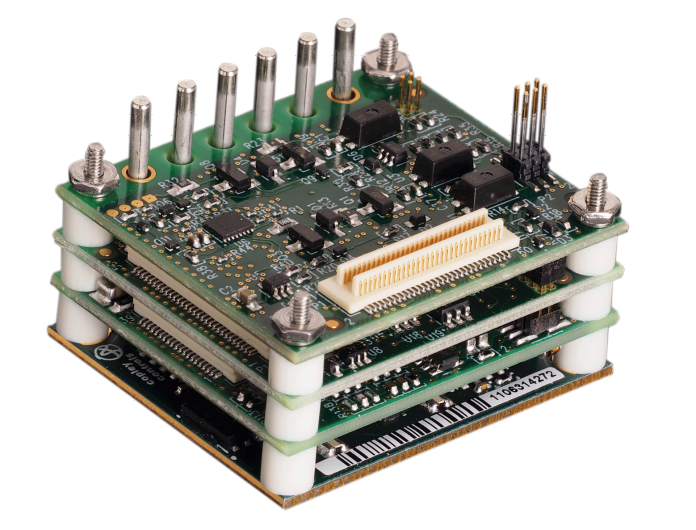

Copley Controls Nano High Power Series includes Nano, NES/NPS-HP and NanoPlus, NEP/NPP-HP (with adavanced feature set) modules. The products feature small size and high-power density. The current, form-factor and feature set are ideally suited to drive traction motors in mobile robot (AGV/AMR) applications.

Small footprint: 31.7 x 66 x 63.5 mm

High Power: Up to 140A continous current

Supply voltage: 9 to 90 VDC

CSP, CSV, CST, Position, Velocity, Torque control modes

Wide range of absolute encoder options

Dual loop support (dual absolute NanoPlus-HP)

EtherCAT, CANopen or serial communications

Functional safety: STO

AccelnetPlus Micro Modules deliver high performance in compact PCB-mounted packages. Available with either EtherCAT (AEV) or CANopen (APV) communications, these products can supply brush, brushless or linear motors with up to 50A continuous current. High resolution current loops enable AccelnetPlus to meet even the most demanding applications.

Compact size 64x41x27 mm

5 to 50A continuous, 10 to 50A peak

9 to 90 VDC and 20 to 180 VDC supply voltage ranges

CSP, CSV, CST, Position,Velocity,Torque control modes

Dual absolute loop support

Wide range of absolute encoder interfaces

EtherCAT, CANopen or serial communications

Functional safety: STO

Copley Controls offers a comprehensive range of digital panel drives for brush, brushless, linear and stepper motors. Single axis and dual axis DC input drives are being offered to optimize cost per axis and installation flexibility. AccelnetPlus (servo) and StepnetPlus (steppers) feature wide range of feedback options and EtherCAT or CANopen communications. STO functionality reduces system cost in safety critical applications.

Servo drives single axis (BEL, BPL): 3A to 15A continuous, 6A to 30A peak

Servo drives dual axis (BE2, BP2): 3 to 10A continuous, 6A to 20A peak (per axis)

Stepper drives (TEL, TE2): 5A to 10A continuous, 7A to 10A peak (per axis)

Supply voltage 14 to 90VDC

Absolute encoders EnDat, BiSS, Absolute A, SSI

Functional safety: STO

XenusPlus AC powered drives are available in both EtherCAT and CANopen versions. Multi-axis models deliver optimal cost per node for brush, brushless or linear motors. A wide range of absolute encoder interfaces are built-in, including EnDat, BiSS, Absolute A and SSI. Cross coupling feature is developed specifically for gantry applications where coordinated motion is critical.

Xenus drives single axis: 3A to 20A continuous, 9 to 40A peak

Xenus drives dual axis: 10A continuous, 20A peak

Input power: 100 to 240 VAC, single or three phase

Control modes: CSP, CSV, CST, Position, Velocity, Torque

Absolute encoders: EnDat, BiSS, Absolute A, SSI

Functional safety: STO
