DYD Budget AC/DC Gear Motors, AC/DC Gearmotors, Power up to 3.0HP
Brushed/Brushless Permanent Magnet DC Motors
12V DC Gear Motor
1)Brushed DC Motor Frame ( OD ): 22ZY; 24ZY; 28ZY; 35ZY; 38ZY, 40ZY, 42ZY; 45ZY, 50ZY, 52ZY, 54ZY, 60ZY, 63ZY, 71ZY, 73ZY, 76ZY,
80ZY, 80ZYT, 85ZY, 90ZY, 90ZYT, 96ZY, 104ZY, 110ZY, 110ZYT, 115ZY, 118ZY, 130ZYT, 160ZYT, 170ZYT
Rated Speed 750 ~ 15000RPM
Rated Power up to 5HP
Customized shaft dimensions& front cover available upon request

2)Brushless DC motor Frame ( OD ): 22ZWN, 28AWN,33ZWN, 36ZWN, 42ZWN, 42BL(square shape motor), 57ZWN

3) Nema DC Stepper Gear Motor Frame ( OD ): 20STH, 28STH, 35STH, 39STH, 42STH, 57STH, 60STH, 86STH

Optional Accessories
a) Speed reducer/gearbox: Spur Gearbox; Parallel Shaft Gearbox; Right Angle Gearbox; Worm Gearbox; Planetary Gearbox
b) Power-on/power-off Brake
c) 2-channel Magnetic encoder(2ppr, 4ppr, 8ppr, 12ppr)/ 2-channel or 3-channel
optical encoder(up to 4000cpr)
d) Connector
e) Customized double output shafts

1) AC/DC Planetary Gear Motors
Gearbox Frame ( OD ): 16JX, 22JX, 24JX, 28JX, 30JX, 32JX, 36JX, 40JX, 42JX, 45JX, 48JX, 56JX, 60JX, 72JX, 80JXZ, 82JX, 92JX,
120JX.
Gear Ratio: 3.6 : 1 ~ 2000 : 1
Motor Type: Brush DC Motors, Brushless DC Motors, Stepping Motors, AC Motors
Rated Torque up to 500N.m
Protection up to IP68
Optional: Encoder / Brake / Connector

2) AC/DC Right Angle Gear Motors
Gearbox Frame: 50JW, 63JW, 70JW, 73JW, 90JW, 102JW, 108WJ, 122WJ, 140WJ,180WJ
Rated Torque up to 500N.m
Rated Speed 1 ~ 700RPM
Protection up to IP65
Optional: Encoder / Brake / Connector

3) AC/DC Parallel Shaft Gear Motors
Gearbox Frame: 25JB, 37JB, 60YJB, 60JB, 65JB, 70JB, 80JB, 90JB, 104JB, 105JB, 118JB, 140JB
Rated Torque up to 100N.m
Rated Speed 2 ~ 700RPM
Protection up to IP65
Optional: Encoder / Brake / Connector

4) Brushed DC Motor
Motor Frame ( OD ): 38ZY, 40ZY, 45ZY, 50ZY, 52ZY, 54ZY, 60ZY, 63ZY, 71ZY, 73ZY, 76ZY, 80ZY, 80ZYT, 85ZY, 90ZY, 90ZYT, 95ZY, 104ZY,
110ZY, 110ZYT, 118ZY, 130ZYT, 160ZYT
Rated Speed 750 ~ 13000RPM
Rated Power up to 4500W
Customized shaft & front cover available upon request

5)AC Induction Motors & Reversible Motors
Motor Size ( Sq. mm ): 60, 70, 80, 90, 100
Power ( W ): 4, 6, 10, 15, 20, 25, 30, 40, 60, 90, 120, 140, 180, 200
2, 4 or 6 Pole
Protection up to IP65
Gearbox Available: Spur Gearbox, Worm Gearbox, Planetary Gearbox

6)Special Motors
Tarp Gear Motors
Slow Juicer Motors
Door & Gate Motors
Massage Bed Motors
Curtain & Window Motors
Robot Pool Cleaner Motors
Automatic Pool Cover Motors
Solar Tracking System Motors

7)Motor Parts
Motor Housing
Motor Magnets
Motor Shafts
Gearboxes

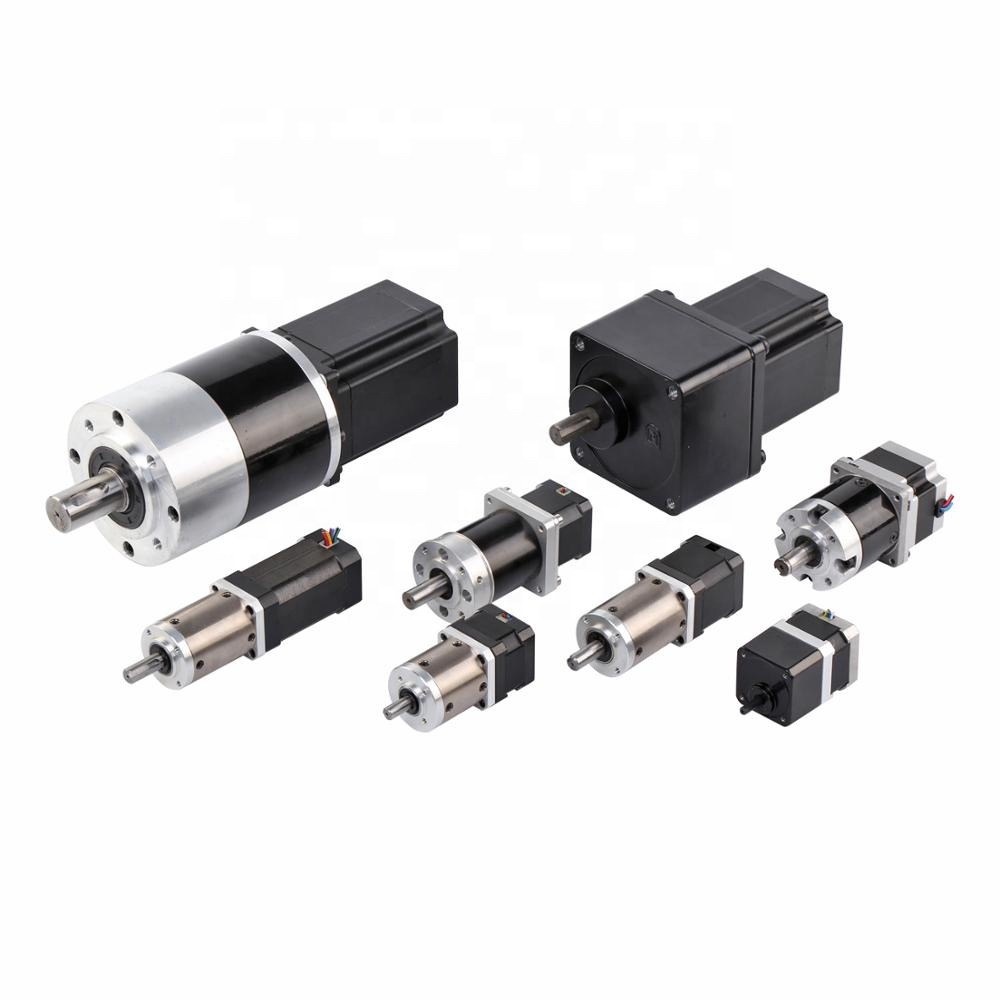

DYD Custom Brushless and Brushed DC Planetary Gear Motor Planetary Gearbox Type: 16JX, 22JX, 24JX, 28JX, 30JX, 32JX, 36JX, 40JX, 42JX, 45JX, 48JX, 52JX, 52JXM, 56JX, 60JX, 72JX, 80JXZ,82JX, 82JXZ, 92JX, 110JX, 120JX Gearbox Outer diameter: 16 ~ 120mmMatching Motor Type: 1) Brushed/Brushless DC Planetary Gear MotorBrushed DC Motor Frame Types (OD): 16ZY, 22ZY, 24ZY, 28ZY, 31ZY,35ZY, 36ZY, 38ZY, 40ZY, 42ZY, 45ZY, 50ZY, 52ZY, 55ZY, 60ZY, 63ZY, 71ZY, 76ZY, 80ZY, 84ZY, 90ZY, 96ZY, 104ZY, 110ZYT, 118ZY, 130ZYT, 160ZYT, 170ZY Brushless DC Motor Frame Types (OD): 22ZWN, 28ZWN,28ZWNP, 33ZWN, 36ZWNP, 36ZWN, 42ZWNP, 42ZWN, 42BL, 57ZWN,86ZWN Gear Motor General Performance: Voltage: 12VDC ~ 400VDC Motor Rated Speed: 600 ~ 17000rpm Gear Motor Rated Speed: 1 ~ 999rpm
Motor Output power: 1W ~ 4500W Gear Motor Rated Torque: up to 1000N.m Gear Ratio Range: 1:3 ~ 1:3000 Optional Components: Magnetic / Optical Encoder; Power-on / Power-off Brake; Connector; External/Built-in Driver Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68 Customized Technical Specs. & Dimensions Available
2) Hybrid Planetary Gear Stepper Motor
Stepper Motor Frame Types (OD): 20STH, 28STH, 35STH, 42STH, 57STH, 60STH, 86STH General Performance: Voltage: 2.7VDC ~ 12VDC StepAngle: 0.9°, 1.8° Gearbox Torque: 0.6N.m ~ 500N.m Ratio: 1:3.71~1:515 Ambient Temperature: -20℃ ~+50℃ Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68 Optional Components: Magnetic/Optical Encoder; Power-on/ Power-off Brake; Connector; External/Built-in Driver Customized shaft & Flange Cover Available
3) Single-phase / Three-phase AC Planetary Gear Motor
AC Motor Frame Types (OD): 60YN, 60YS, 70YN, 70YS, 80YN, 80YS, 90YN, 90YS, 100YN, 100YS 2, 4, 6 Pole AC Motors Voltage: 100VAC ~ 440VAC Motor speed: 1200rpm ~ 4000rpm Output power: 6W ~ 200W Ratio ranges: 1:3 ~1:250 Customized shaft & Flange Cover Available
Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68 Optional Components: Magnetic/Optical Encoder; Power-on/ Power-off Brake; Connector; External/Built-in Driver, Damper, Thermal Protector, Cool FanPlanetary Gear Motor Series Typical applications:
Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances: lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc. Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc. Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc. Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.

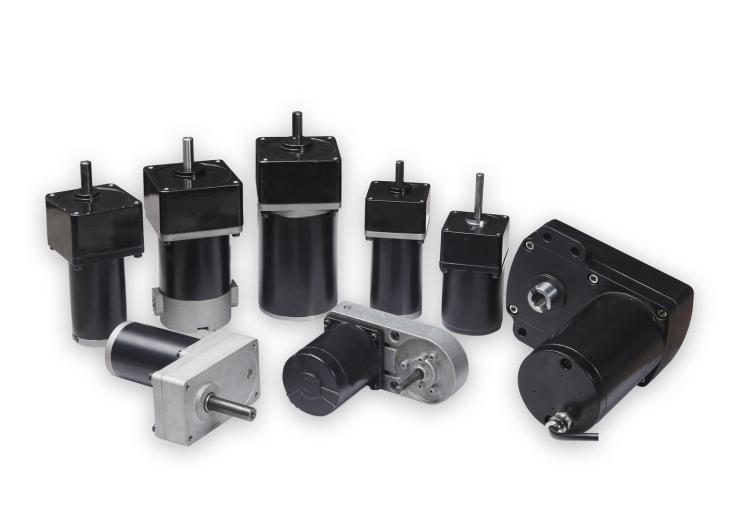

DYD Customized 12V, 24V DC Worm Gear Motor Gearbox Frame: 50JW, 63JW, 70JW, 90JW, 102WJ, 108WJ, 122WJ, 130WJ, JW-3, JW-5, RV030, RV040, RV050,
RV063, RV075, RV090 Motor OD: 42MM ~ 170MM Rated Torque up to 300N.m Rated Speed: 1 ~ 700RPM Protection up to IP66 Optional components:Encoder / Brake / Connector / Pulley

PLANETARY GEARHEAD CODE
16JX, 22JX, 24JX, 28JX, 30JX, 32JX, 36JX, 40JX, 42JX, 45JX, 48JX, 52JX, 52JXM, 56JX, 60JX, 72JX, 80JXZ, 82JX, 82JXZ, 92JX, 110JX, 120JX
Gearhead Size: Outer diameter 16~ 120mm

MOTOR TYPE
Brushed DC Motors, AC Motors, Brushless DC Motors, Stepping Motors

DC MOTORS / BRUSHED DC MOTORS / PMDC MOTORS / PERMANENT MAGNET DC MOTORS

Voltage: 6V ~ 400V DC

Speed: 1,000rpm ~ 12,000rpm

Power up to 3000W

Frame Types (OD): 16ZY, 22ZY, 24ZY, 28ZY, 31ZY, 35ZY, 36ZY, 38ZY, 40ZY, 42ZY, 45ZY, 52ZY, 55ZY, 60ZY, 63ZY, 71ZY, 76ZY, 80ZY, 84ZY, 90ZY, 96ZY, 104ZY, 110ZYT, 118ZY, 130ZYT, 160ZYT

OPTIONAL: ENCODER / BRAKE / CONNECTOR
IP CLASS: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68
