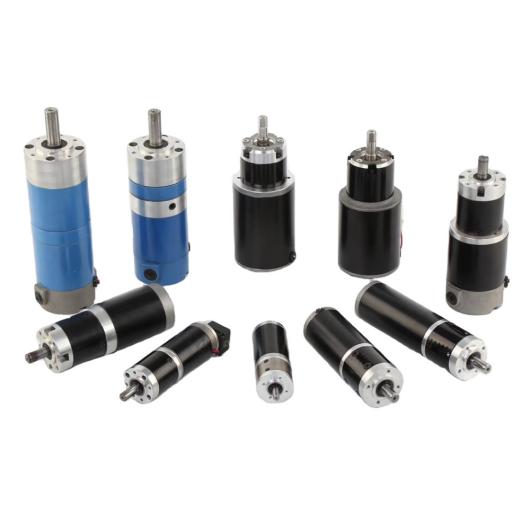

DYD Custom Brushless and Brushed DC Planetary Gear Motor Planetary Gearbox Type: 16JX, 22JX, 24JX, 28JX, 30JX, 32JX, 36JX, 40JX, 42JX, 45JX, 48JX, 52JX, 52JXM, 56JX, 60JX, 72JX, 80JXZ,82JX, 82JXZ, 92JX, 110JX, 120JX Gearbox Outer diameter: 16 ~ 120mmMatching Motor Type: 1) Brushed/Brushless DC Planetary Gear MotorBrushed DC Motor Frame Types (OD): 16ZY, 22ZY, 24ZY, 28ZY, 31ZY,35ZY, 36ZY, 38ZY, 40ZY, 42ZY, 45ZY, 50ZY, 52ZY, 55ZY, 60ZY, 63ZY, 71ZY, 76ZY, 80ZY, 84ZY, 90ZY, 96ZY, 104ZY, 110ZYT, 118ZY, 130ZYT, 160ZYT, 170ZY Brushless DC Motor Frame Types (OD): 22ZWN, 28ZWN,28ZWNP, 33ZWN, 36ZWNP, 36ZWN, 42ZWNP, 42ZWN, 42BL, 57ZWN,86ZWN Gear Motor General Performance: Voltage: 12VDC ~ 400VDC Motor Rated Speed: 600 ~ 17000rpm Gear Motor Rated Speed: 1 ~ 999rpm
Motor Output power: 1W ~ 4500W Gear Motor Rated Torque: up to 1000N.m Gear Ratio Range: 1:3 ~ 1:3000 Optional Components: Magnetic / Optical Encoder; Power-on / Power-off Brake; Connector; External/Built-in Driver Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68 Customized Technical Specs. & Dimensions Available
2) Hybrid Planetary Gear Stepper Motor
Stepper Motor Frame Types (OD): 20STH, 28STH, 35STH, 42STH, 57STH, 60STH, 86STH General Performance: Voltage: 2.7VDC ~ 12VDC StepAngle: 0.9°, 1.8° Gearbox Torque: 0.6N.m ~ 500N.m Ratio: 1:3.71~1:515 Ambient Temperature: -20℃ ~+50℃ Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68 Optional Components: Magnetic/Optical Encoder; Power-on/ Power-off Brake; Connector; External/Built-in Driver Customized shaft & Flange Cover Available
3) Single-phase / Three-phase AC Planetary Gear Motor
AC Motor Frame Types (OD): 60YN, 60YS, 70YN, 70YS, 80YN, 80YS, 90YN, 90YS, 100YN, 100YS 2, 4, 6 Pole AC Motors Voltage: 100VAC ~ 440VAC Motor speed: 1200rpm ~ 4000rpm Output power: 6W ~ 200W Ratio ranges: 1:3 ~1:250 Customized shaft & Flange Cover Available
Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68 Optional Components: Magnetic/Optical Encoder; Power-on/ Power-off Brake; Connector; External/Built-in Driver, Damper, Thermal Protector, Cool FanPlanetary Gear Motor Series Typical applications:
Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances: lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc. Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc. Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc. Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.
