Robot Mod
Description

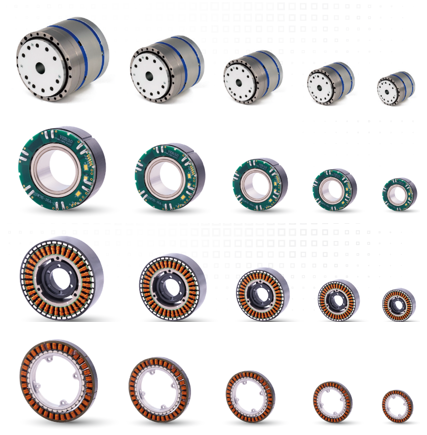

1.Robot Joint Module
Robot Joint Module Outer Frame Size: 70 / 80 / 90 / 110 mm
Voltage: 48V
Hollow Inner Diameter: 11 / 12 / 15 / 16 mm
Max. Torque: 285.55Nm
2.Internal rotor frameless motor
Outer Frame Size: 50 /60 /68 /76 /85 /94 /115 mm
Voltage: 48V
Rotor Inner Diameter: 27 /31 /35 /38 / 45 /49 /61 mm
3.External rotor frameless motor
Outer Frame Size: 67 /77 /93 mm
Voltage: 48V
Stator Inner Diameter: 39 /43 /53 mm
Function:
1)High Reliability
Designed with multiple redundant mechanical structures.
The motor's maximum speed exceeds 10,000 RPM, and the entire machine withstands over 1,000 high-strength impact tests.
2)Ultra Lightweight
Uses a high power-density motor solution with a peak torque density exceeding 100 Nm/kg.
3)High Precision
Overall positioning accuracy is less than 0.01 mm, with feedback resolution up to 19–24 bits, enabling high-precision motion control.
4)Modularity
Highly modular integration of driving and mechanical units, offering better intelligence, control, and ease of use.
5)Cost Performance
Fully self-developed across the entire supply chain, with extreme cost control.
