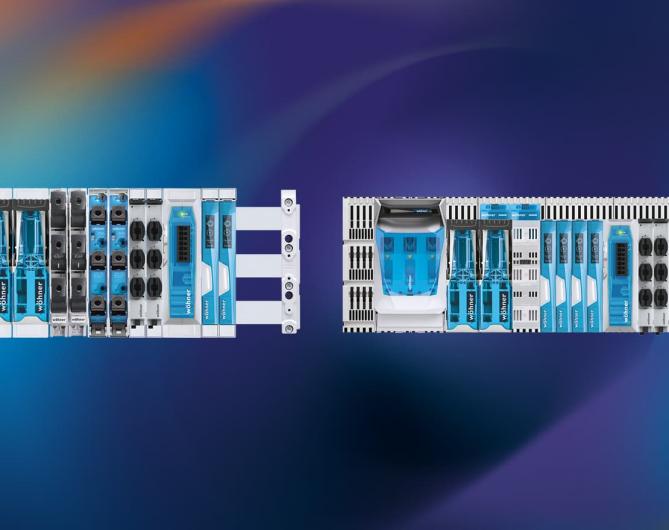

The future of power distribution: customised and out-of-the-box

Time to Switch – with the new SECUR UltraLiner, Wöhner is setting new standards for fused switching in the smallest of installation spaces. With the new switch-disconnector with fuses, outgoing circuits with cylindrical fuses type 10x38, Class CC as well as D01/D02 can now be fused and also switched under load. Wöhner is thus expanding its CrossBoard portfolio with the first genuine UL98A-compliant fusible switch, paving the way for a broad application of the CrossBoard basic system in the UL world.

In addition to its striking design and minimal width of just 22.5 mm, the new SECUR UltraLiner impresses with variants with and without integrated optical fuse failure detection. It therefore offers a suitable solution for all applications in which current needs to be safely routed, switched and fused in the smallest of spaces – internationally.

Whether classically on the front or for additional space savings on the rear – the new CRITO feeding modules can perfectly fulfil the individual requirements of any application. In particular, the new rear feeding module up to 800 A saves a considerable amount of space of up to 200 mm on the front, which means that the entire width of the busbar system and therefore also the control cabinet can be reduced at best. Genuine sustainability by saving resources. All new feeding modules can be used internationally thanks to their full IEC and UL certification.

Classic NH technology reinterpreted – the new QUADRON NH00 fuse switch-disconnector impresses with improved technical ratings and a new, unique design. The short-circuit resistance of 120 kA with a utilisation category of AC-23B optimally complements the convenient handling, which is ensured by the optimised handle and a widened access opening. Additional features allow easy rotation of the outlet direction and ensure simple and convenient removal of the fuses from the cover.

The powerful 20 A BROOME20 power supply unit is the ideal solution for the reliable distribution of 24 V auxiliary power in the control cabinet. With its extremely compact design of just 49.5 mm width and an efficiency of > 96%, electronic switching devices and measurement technology products are supplied efficiently. Using the familiar CrossLink technology, mechanical fixing and electrical contacting are carried out directly in a single work step – on all Wöhner basic systems. The integrated electronic short-circuit protection also eliminates the need for a separate back-up fuse. The option of increasing the output current to up to 60 A as required makes our BROOME20 an all-rounder in any application.
