The wireless panel series HGW offers highest flexibility in monitoring and controlling production processes. The mobile handheld panels are available in different versions – with or without Safety and rotary encoder or in portrait and landscape format.

• Mobile, wireless operating panel with data transfer via WLAN
• Wireless Safety functions - SIL 3, PL e
• High-performance EDGE2 Technology processor, OPC UA communication
• 10.1" WXGA color display, multi-touch (projective capacitive), 800 x 1280 pixels
• Battery pack integrated: 2 hours continuous-load operation without recharging
• 1,350 g including battery pack and Safety elements

Safety Functions via WLAN

In addition to function-oriented data, Safety data from emergency stop and confirmation buttons, as well as key switch can be sent wirelessly with the HGW panel 1033-3 and the HGW 1033-32. Safety-relevant data is transmitted via the standard WLAN using the Black Channel principle. The Safety panels are TÜV-certifiied and with SIL 3, PL e, meet the highest requirements.

Equipped with high-performance, low-loss processors, our robust CPU modules and units are the right choice for single and multi-CPU concepts. They can be used with simple, as well as complex and very fast control, regulation and motion tasks as a flexible system solution (bus speed – 100 Mbit/s).

Via OPC UA connectivity, the CPUs are well equipped for Industry 4.0. In combination with versatile I/O, Motion and Safety modules of the S-DIAS series, you get a tailor-made automation system.

With the CPU modules and units, long-term available processors are used that ensure high processing. Numerous interfaces enable open communication and flexible system architecture.

• High-Performance: EDGE2 Technology processor or Intel® Atom processor
• Super compact: high performance in a small space
• Flexible: single and multiple CPU solutions
• Simple: one engineering tool for all tasks

Whether for classic operating or modern visualization concepts – with the HMIs from SIGMATEK, your machines cut a good figure in any situation. Our human-machine interfaces are compactly designed and fanless. You have the choice between panels with a processor and remote operating units without a processor (HMI-Link up to 100 m).

Regardless of whether single- or multi-touch screens – we put the main focus on all our human-machine interfaces to ensure that you can work intuitively, quickly and safely.

For demanding visualizations (HTML5), our HMIs with EDGE3 Technology processors are the best choice. All HMIs equipped with a processor are fit for the Smart Factory (OPC UA communication).

The broad selection includes color touch displays from 3.5 to 23.8 inches - with single or Multitouch (PCT). In addition to the classic 4:3 format, panels in vertical and widescreen format are available. Customer-specific HMI designs are also possible.

• Open: with standard interfaces such as Ethernet, CAN, USB, HMI-Link, VARAN or RS232, the HMIs easily connect
• Fast and reliable: data exchange with the control and additional components
• Fit for the digital factory: all SIGMATEK HMIs with a processor support OPC UA communication
• Comfortable: simply create visualizations with the HMI-tools LASAL SCREEN and the web-based LASAL VISUDesigner

The modularDIAS Drive generation MDD 2000 combines high performance and flexibility to control servo motors.

• Highest power density in a highly compact design with up to three axes, a supply, power filter, brake resistor, DC-Link circuit and an overload factor of up to 300 percent
• Modular use as standalone or in combination with any number of axis modules enables a precisely fitting drive concept
• Many Safety functions: Safe Torque Off (STO), Safe Stop 1 + 2 (SS1 + SS2), Safe Operating Stop (SOS), Safe Brake Control (SBC), Safe Brake Test (SBT), Safely-Limited Speed (SLS), Safe Speed Monitor (SPM), Safe Maximum Speed (SMS), Safe Maximum Acceleration (SMA), Safely Limited Acceleration (SLA), Safely Limited Position (SLP), Safe Position (SP), Safely Limited Increment (SLI), Safe CAM (SCA), Safe Direction (SDI) - all according to SIL 3, PL e, Cat. 4 and TÜV certified!

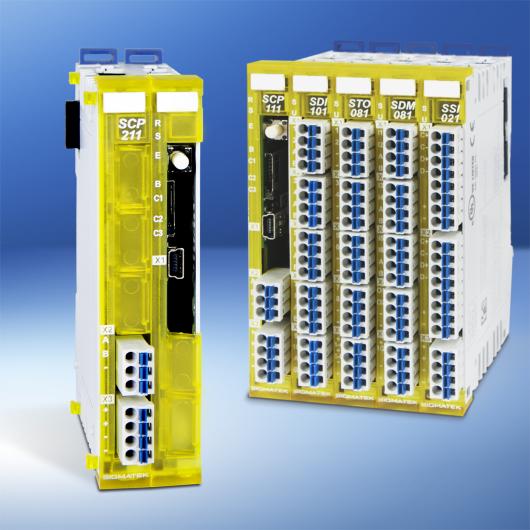

• Safety Functionblocks (when using a Safety-CPU SCP 211): DH-Transformation, Collision Detection, Safe Area
• Shortened installation thanks to clever connection mechanism in fast, tool-free stacking technology
• In addition to digital motor feedback interface Hiperface DSL, numerous encoder variants are supported

Dimensions:
DIAS Drive size 1: 75 x 240 x 219 mm (W x H x D)
DIAS Drive size 2: 150 x 240 x 219 mm (W x H x D)
