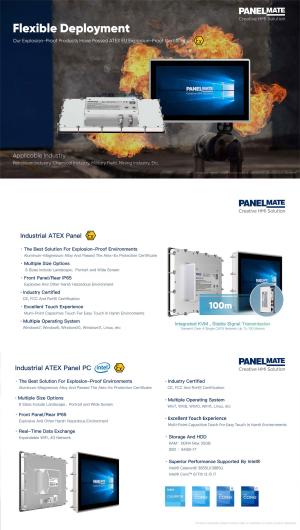

Industrial Embedded Full Aluminum ATEX-Ex products（monitor and panel PC）

Embedded Industrial Fanless Panel PC

• Total 14 Screen Sizes Optional: 10.1"，10.4"，11.6"，12.1"，12.2"，15"，15.6"，17"，17.3"，18.5"，19"，21.5"，24"，27"
• Support various processor, Intel® Celeron® J6412 / J1900, Intel® Processor N97, and Intel® Core™ 6/7/10/11/12/13 generation i3/i5/i7 series processors to optional
• Waterproof and Dustproof: Front IP65/Rear IP20
• Single point resistive touchscreen,Multi-point capacitive touchscreen,Tempered glass non touchscreen for option
• Precise touch
• Aluminum-magnesium alloy Housing
• Large aluminum fins design to ensure the reliability and heat dissipation
• OS:Win 8, WIN 10,WIN 11 , Linux
• According to configuration of mainboard,it's equipped with 2*Intel i210AT Ethernet ports,4*USB ports
• Wide voltage range:12~36v
• Extensible WIFI 4G network
• Customized

• 10.1"，12.2" display for handling robots,1280x800 HD resolution
• Front panel/Rear：IP65 / IP20
• Touchscreen mode：Single point resistive touchscreen，Multi-touch capacitive screen
• Ergonomic design, comfortable and easy to operate
• The button in the lower right corner of the GUI for quick access to custom functions
• Moderate display size,shoulder straps and grips are designed to simplify operation and prevent fatigue
• System frame grounding protection (GPE) design
• OS:Win7，Win8，Win10，Win11，Linux，etc
• Power supply： DC 24V
• A new stylus has been added, making operation more convenient

Automation Controller

• Compact aluminum-magnesium alloy profile housing, dust-proof design
• Intel® Core™ 6/7/8/9th i3/i5/i7,Intel® Pentium® high performance desktop processor optional

• Unilateral interface，DIN rail wall-mounted
• 2 x Intel i210 Gbe LAN support EtherCAT and jumbo frames
• 4 x USB3.0,built-in 1 x USB2.0,pluggable software dongle to prevent data loss
• DVI+DP dual interface
• 2 x COM（DB9）,2 x COM（DB9）,BIOS serial port setting RS232 or RS485
• OS:Win7，Win8，Win10，Win11，Linux ,etc（Intel®Core™ 8/9th don’t support Win7）

• Real-time optimization，more suitable for motion control
• DC 9~36V

• Industrial Arm-mounted Operation Panel (PC)
• Intel® Celeron® J6412, Intel® Core™ 6th/7th/10th/11th/12th/13th i3/i5/i7 series processors to optional
• Equipped with 2 Intel Gigabit network cards,4 USB ports
• Single point resistive touchscreen,multi-point capacitive touchscreen,tempered glass for option
• Aluminum-magnesium alloy Housing
• Wide voltage range:12~36v
• 24-hour operation
• Precise touch
• IP65 Dustproof and waterproof
• Aluminum-magnesium chassis
• Using a flexible mounting arm, the Cantilever Panel PC can be placed in the desired position
• The arm has a modular construction, which allows it to be height adjusted for different uses and objects
• The pipe section can be cut to the desired length
• The cable can be laid in the stem
• Optional R1(IDD-LINK),long distance USB output,up to 50m
• Optional R2(IDD-LINK4),Video and USB transmission through a single CAT6 network cable,the transmission distance up to 100m
• Operating Temperature:-20~70 degrees celsius
