Shanghai Panelmate Electronics Co., Ltd.

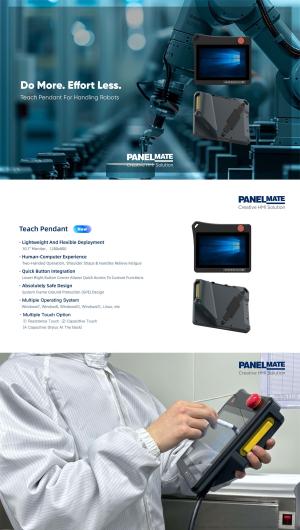

Product: Teach Pendant

Teach Pendant

Shanghai Panelmate Electronics Co., Ltd.
Supplier profileAll products
Contact supplier

Description

  • 10.1"，12.2" display for handling robots,1280x800 HD resolution
  • Front panel/Rear：IP65 / IP20
  • Touchscreen mode：Single point resistive touchscreen，Multi-touch capacitive screen
  • Ergonomic design, comfortable and easy to operate
  • The button in the lower right corner of the GUI for quick access to custom functions
  • Moderate display size,shoulder straps and grips are designed to simplify operation and prevent fatigue
  • System frame grounding protection (GPE) design
  • OS:Win7，Win8，Win10，Win11，Linux，etc
  • Power supply： DC 24V
  • A new stylus has been added, making operation more convenient

More from us

Our websiteOur product

More products by Shanghai Panelmate Electronics Co., Ltd.

Industrial Arm-mounted Operation Panel (PC)

Industrial Arm-mounted Operation Panel (PC)

  • Industrial Arm-mounted Operation Panel (PC)
  • Intel® Celeron® J6412, Intel® Core™ 6th/7th/10th/11th/12th/13th i3/i5/i7 series processors to optional
  • Equipped with 2 Intel Gigabit network cards,4 USB ports
  • Single point resistive touchscreen,multi-point capacitive touchscreen,tempered glass for option
  • Aluminum-magnesium alloy Housing
  • Wide voltage range:12~36v
  • 24-hour operation
  • Precise touch
  • IP65 Dustproof and waterproof
  • Aluminum-magnesium chassis
  • Using a flexible mounting arm, the Cantilever Panel PC can be placed in the desired position
  • The arm has a modular construction, which allows it to be height adjusted for different uses and objects
  • The pipe section can be cut to the desired length
  • The cable can be laid in the stem
  • Optional R1(IDD-LINK),long distance USB output,up to 50m
  • Optional R2(IDD-LINK4),Video and USB transmission through a single CAT6 network cable,the transmission distance up to 100m
  • Operating Temperature:-20~70 degrees celsius
Industrial Panel PC &Industrial Touch Monitor

Industrial Panel PC &Industrial Touch Monitor

Embedded Industrial Fanless Panel PC

  • Total 14 Screen Sizes Optional: 10.1"，10.4"，11.6"，12.1"，12.2"，15"，15.6"，17"，17.3"，18.5"，19"，21.5"，24"，27"
  • Support various processor, Intel® Celeron® J6412 / J1900, Intel® Processor N97, and Intel® Core™ 6/7/10/11/12/13 generation i3/i5/i7 series processors to optional
  • Waterproof and Dustproof: Front IP65/Rear IP20
  • Single point resistive touchscreen,Multi-point capacitive touchscreen,Tempered glass non touchscreen for option
  • Precise touch
  • Aluminum-magnesium alloy Housing
  • Large aluminum fins design to ensure the reliability and heat dissipation
  • OS:Win 8, WIN 10,WIN 11 , Linux
  • According to configuration of mainboard,it's equipped with 2*Intel i210AT Ethernet ports,4*USB ports
  • Wide voltage range:12~36v
  • Extensible WIFI 4G network
  • Customized
