In order to meet the high hygiene standards in the food and packaging industry, we offer various stainless steel enclosures, control cabinets and support arm systems: · Stainless steel terminal boxes: such as our standard housing "stainless steel industry", "stainless steel industry hinges", our stainless steel small cabinets, or our new RMS stainless steel housing to configure yourself · Stainless steel commander: such as Commander 410 with bolted rear wall and integrated sloping roof · or the Commander 420 for industrial control units with optional handle set, stainless steel support arm systems: such as: the stainless steel round tube systems GTH 48 and GTH 60 The system components are completely assembled on request. We also offer: Stainless Steel Industrial Panel PC and Monitors. With the stainless steel panel PC, robust construction and elegant appearance complement each other perfectly. Our corresponding devices are completely closed and hygienically designed. Thanks to their protection class IP69K, they are completely dustproof and can withstand high-pressure steam jet cleaning - even during operation. Our stainless steel panel PCs are therefore ideally suited for chemical, pharmaceutical, hygiene and food sectors. The hygienic stainless steel housings are protected all around IP69K. Even during operation, high-pressure cleaning can be performed. The extremely flat housing with only 45mm was designed to be completely closed, so that it is completely sealed and protected against contamination. The housing tightness of the stainless steel Panel PCs is achieved by a hygienic seal in an angled rear wall of the housing: water, disinfectants, even acids and alkalis cannot penetrate. We manufacture high-quality industrial PCs and Panel PCs specifically to customer requirements. Due to our modular principle, we can flexibly and cost-effectively implement your solution and advise you professionally in all detail. The completely enclosed housings are reliably protected against contamination and cleaning is completely trouble-free, as the Panel PCs can withstand water, disinfectants, even acids and alkalis. With a VESA attachment or a stainless steel flange, the device can be quickly and safely attached to all standard support arm systems, stands or other elements.

Technical Info:

• Sealed junction - housing / touch glass
• Long-term available PC components
• CPU Intel Atom Quad Core E3845 or Pentium N4200 (others on request)
• Interfaces like USB, Ethernet and more
• Hygienic, food-certified seals
• No condensation due to special membrane
• 230 V / 24V DC operating voltage
• VESA bracket 100 x 100 mm for protection class IP65 or stainless steel support arm system for IP69K
• In addition to the standard interfaces, the integration of further communication interfaces is possible.

Display:

• Display sizes: 15 ", 19", 21.5 "and 42" (special sizes on request)
• Resistive or industrial grade PCAP Touch
• Multi-touch surface "Gorilla Glass"
• Glove Operable
• Cleaning possible during operation
• LED backlight
• High transmission

Options:

• RFID reader
• Acrylic glass surface
• Housing in V4 stainless steel
• Bluetooth
• Acoustic touch feedback
• Capacitive function keys - individually assignable and illuminated
• UPS
• Interface Enhancements

The SL 4000 is one of the most modular control enclosure systems currently available on the market and protects IP65-rated. The system comprises six different aluminum profiles and covers mounting depths from 55 mm to 270 mm. Height and width of the housing are manufactured individually according to customer requirements. The handle bar integrated in the profiles simplifies the handling of the system. With the SL 4000, the profiles can be hinged together or firmly screwed together, resulting in 18 different variants of the housing. Displays, controls, buttons or membrane keypads can be picked up via the front panel. In addition, the side profiles and the rear wall can be used for the installation of additional components, such as e.g. interface inserts, etc. For the SL 4000 we offer an individual processing service from the mechanical processing, the assembly according to customer specifications up to the customer-specific coloring. The scope of delivery consists of: Housing body, including corners, seals, fasteners, rear panel or door, front panel mounting kit and front panel.

Technical specifications

Material: profile: DIN EN 573 EN AW-AlMgSi

Cast: corners: DIN EN AC-AlSi 12 Cu 1 (Fe)

Color: Powder coating or natural anodised, profile: optionally RAL 7035 or natural anodised, corner elements: optionally RAL 7035, light gray or RAL 9007, gray aluminum, special colors on request

Degree of protection: IP 65 according to EN 60529

Seal Material: Corners: PE gasket Front panel: CR gasket

Temperature range: -30°C to +80°C

The height-adjustable GTV light suspension system is the perfect complement to our GTN II suspension system when it comes to the professional ergonomic design of the interface between man and machine. There are three main applications of the GTV light:

• Ergonomic workplace design on the machine: The machine operator can adjust the panel to his / her best suitable height and side so that a healthy posture is maintained when operating the machine.
• More efficient operation of the machine: The control panel can be swiveled out of the work area if it affects the view of the workspace.
• Safe workplace during operation of the machine: Easy upward pivoting of the panel, so that no restriction of the escape route arises.

Thanks to its height adjustability, the GTV light can be steplessly moved in the vertical position over the entire stroke. It then remains in the desired position on its own.

Thanks to the three different strokes from 400 mm to 600 mm up to 800 mm as well as the integration into the GTN II suspension system, the GTV light suspension system is unique in the market. Simple integration into existing GTN II systems is possible without changing the drilling patterns on the machine or the control housing. The flexible connection of the system provides additional variability. The load range up to 25kg and the degree of protection IP54 are particularly suitable for accommodating encapsulated Panel PCs and small control housings. Another advantage is the cable duct, which is separated from mechanical components and thus enables safe cable routing away from pinching and shearing points.

The connection of the support arm system to other systems, such as GTN II or smaller device carrier systems GTS and GTK electronic, via adapters. It is also possible to attach the GTV light to a round tube with an outside diameter of 48mm. As a result, encapsulated Panel PCs from different manufacturers can be connected. The installation of the GTV light is characterized by the following points:

• Easy and quick opening of the cable duct
• Low weight of 6 kg (400 mm version) allows for one-person installation
• Adjustable limit stops prevent the control housing from colliding with any interfering nodes
• An additional brake fixes the GTV light in the desired position, if no continuous adjustment is required
• An adjustment screw allows the GTV light to be precisely adjusted to the weight of the attached panel The scope of delivery consists of: Height adjustment incl. mounting material. (Attachment components for connection to the machine and the control housing are not included).

Technical specifications Stroke: 400/600/800 mm Load range: 5 - 25 kg Lifetime: 20,000 double strokes Protection Class: IP54

Temperature range: up to approx. 80°C

For us as a supplier of industrial enclosures, not only the requirements of automobile manufacturers are important, but also those of the suppliers. The manufacturers of state-of-the-art production facilities must constantly face the new and changing challenges of the industry. Machinery and plant engineering is about much more than just market-driven prices. That is why we at ROSE Systemtechnik not only offer industrial, display and operating housings as well as support arm systems of the highest quality, but also: • extensive technical knowledge • fast reaction and response times • shortest delivery times • reliability • flexibility Of course, we also supply panel PCs and industrial monitors according to customer requirements. Due to our modular design, we can flexibly and cost-effectively implement your solution and advise you professionally and in detail. So you get your customized solution without detours - everything from a single source and made in Germany.

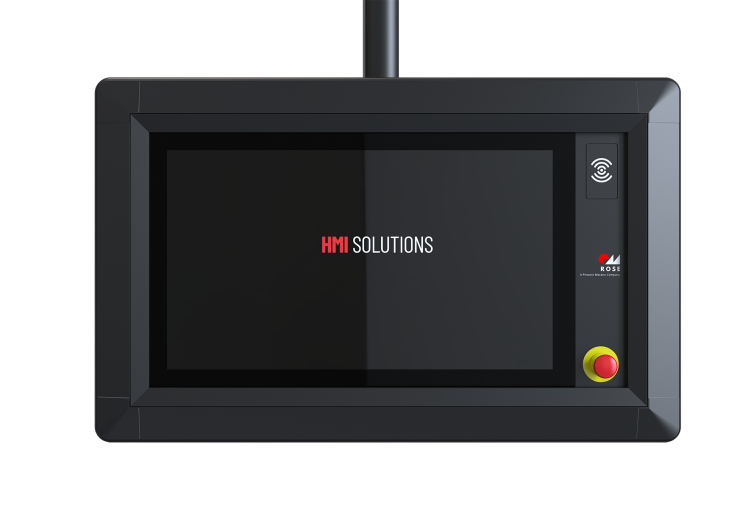

Our industrial Panel PCs for installation in switchboards, control panels or control cabinets are also absolutely robust, reliable and durable. The devices offer the highest performance for all applications, of course, only components of the highest efficiency are integrated. In addition, intelligent heat management for smaller control cabinets ensures a balanced temperature. Thanks to a special clamping system, the installation of our Industrial Panel PC is extremely easy. If you are still unsure whether you can install the Panel PC properly, then you are welcome to consult the experts at ROSE Systemtechnik - this is part of our comprehensive range of services.

Our Touch Panel PC Economy illustrates particularly well how energy-efficient modern industrial PCs can be designed. The touch panel PC Economy is available in sizes 15" and 19". The unique "power saving concept" of 17W (15") or 20W (19") makes it an energy-efficient, yet very powerful panel PC for all applications in the industry. The low consumption is due to the panel, in addition to the Atom CPU, and the sensitive coordination of the entire computer components.

Compact dimensions and flexible installation are decisive features of our Industrial Box PCs, which are also referred to as Embedded PCs. Thanks to the large selection of different components, our selection is extremely variable. For example, we offer: 19" industrial rack PC, DIN rail industrial PC, compact industrial mini PC or industrial box PC. All of them can be easily embedded in existing systems for control, signal processing in measurement technology or visualization. Every embedded PC is already geared towards its use in special industrial environments in order to optimally meet the respective requirements of the customer.
