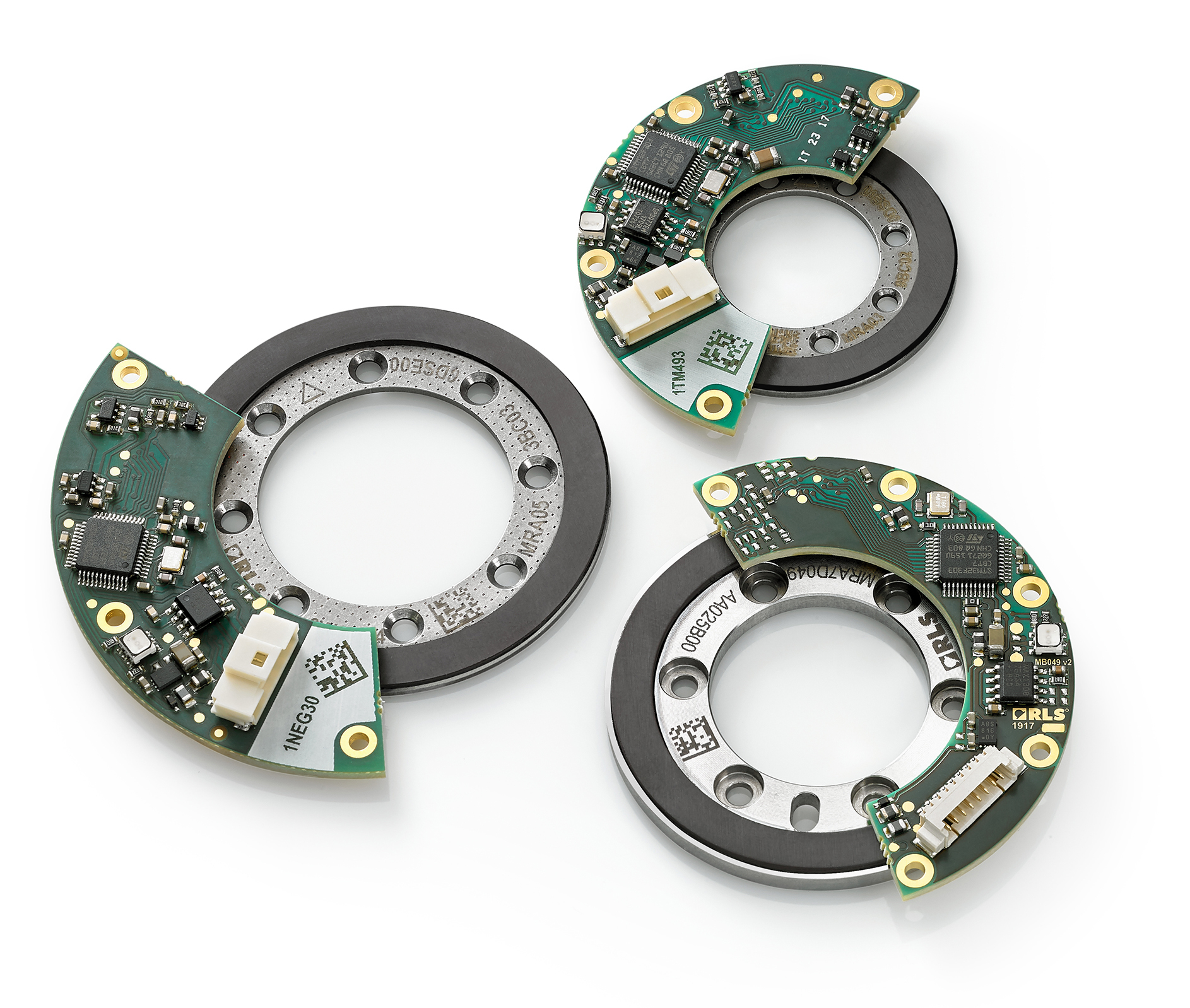

The AksIM-2 encoder system is suitable for use in industrial and medical applications.
A typical application is a robotic arm joint with a cable feed running through the ring or a precision gearbox where the ring is attached onto the main transmission shaft.
Custom design service for OEM integration is also available.

• True absolute system
• Custom magnetic sensor ASIC
• Self-calibration option
• No hysteresis
• Resolutions up to 20 bits
• Multiturn counter option
• High speed operation
• 9 kHz bandwidth,
• 44 kHz refresh rate
• Low profile, non-contact
• Built-in self-monitoring
• Integrated status LED
• SSI, BiSS or asynchronous serial communication interface
• Corrosion resistant magnetic ring

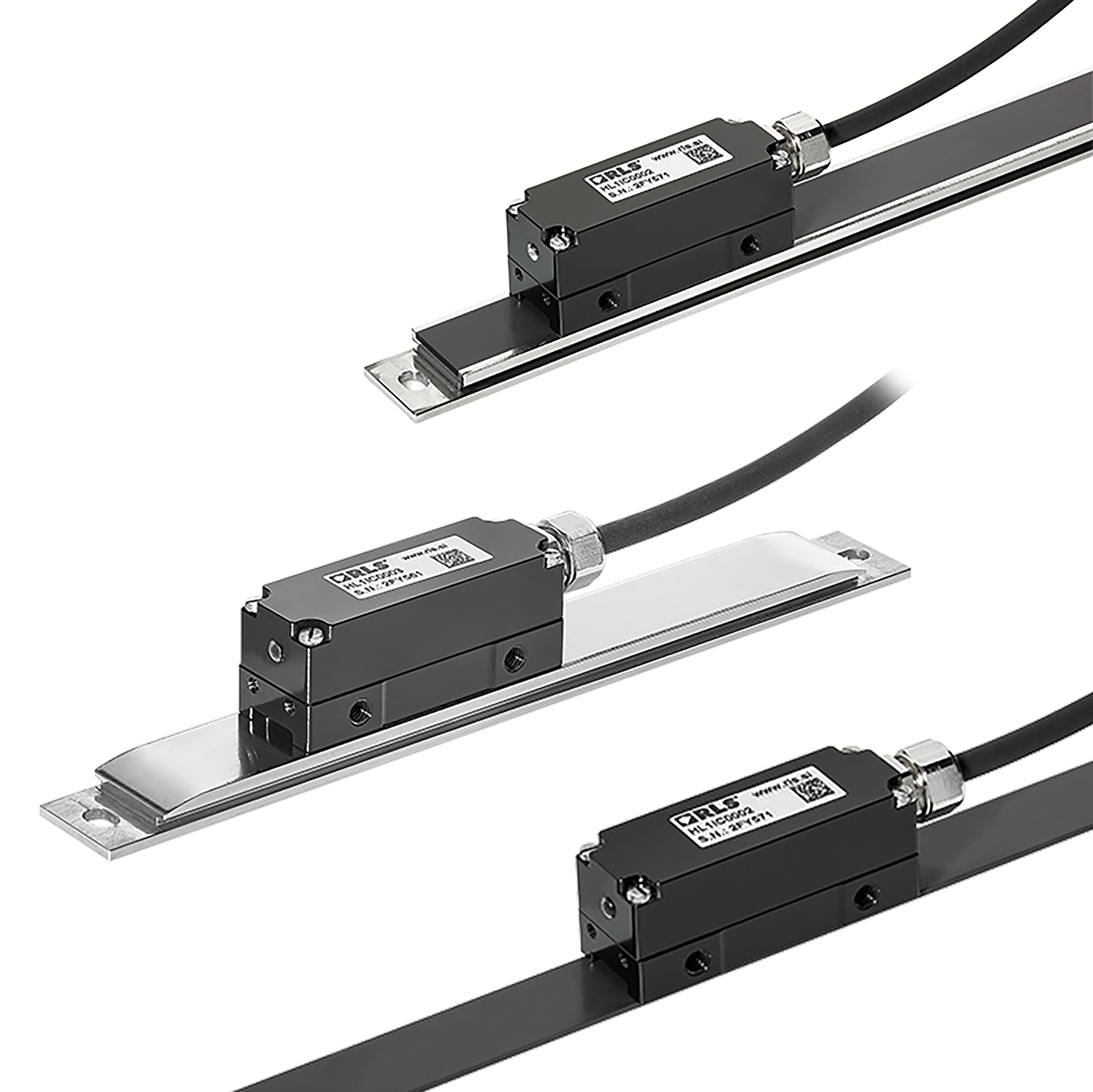

The HiLin series of highest performance general purpose robust magnetic encoders is a family of linear incremental systems suitable for a variety of demanding applications. The incremental encoder system consists of a compact sealed readhead and a separate magnetic scale.

• Resolutions down to 0.1 μm
• Low hysteresis: ≤1 μm
• Low interpolation error (SDE): ±1.5 μm
• High travel speed (25.28 m/s with 1 μm resolution)
• Wide operating temperature range from –40 °C to +75 °C

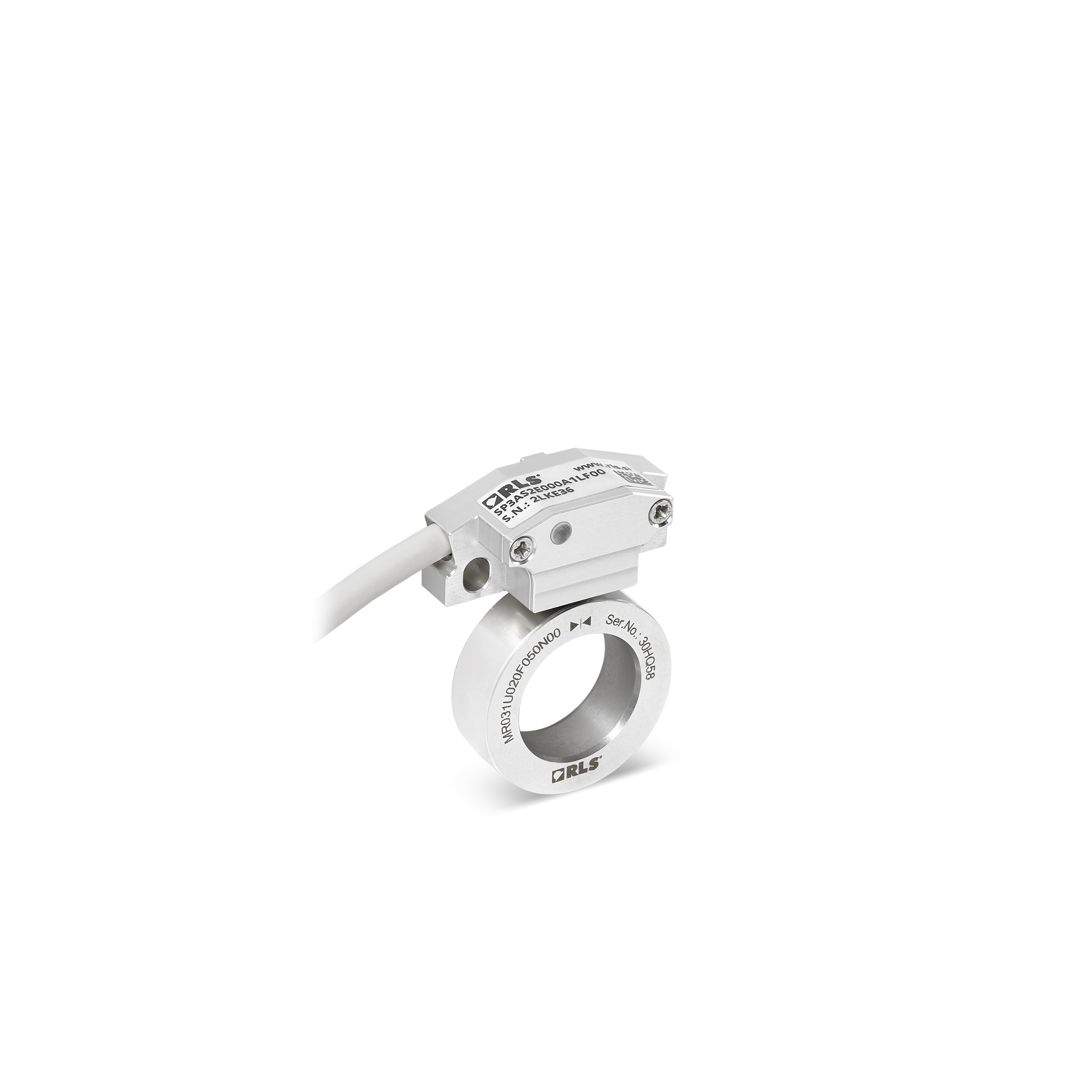

SpinCo™ is an incremental magnetic encoder system designed for use as primary position and speed feedback sensor for machine tool spindles.

It consists of two key elements, a readhead and a magnetic ring with welded cover foil.

• Different ring sizes available
• Speeds up to 55,000 rpm
• From 50 to 556 sin/cos periods per revolution
• ABZ digital incremental outputs with up to 4,096 steps
  per sin/cos period
• Analogue output signals (1 Vpp)

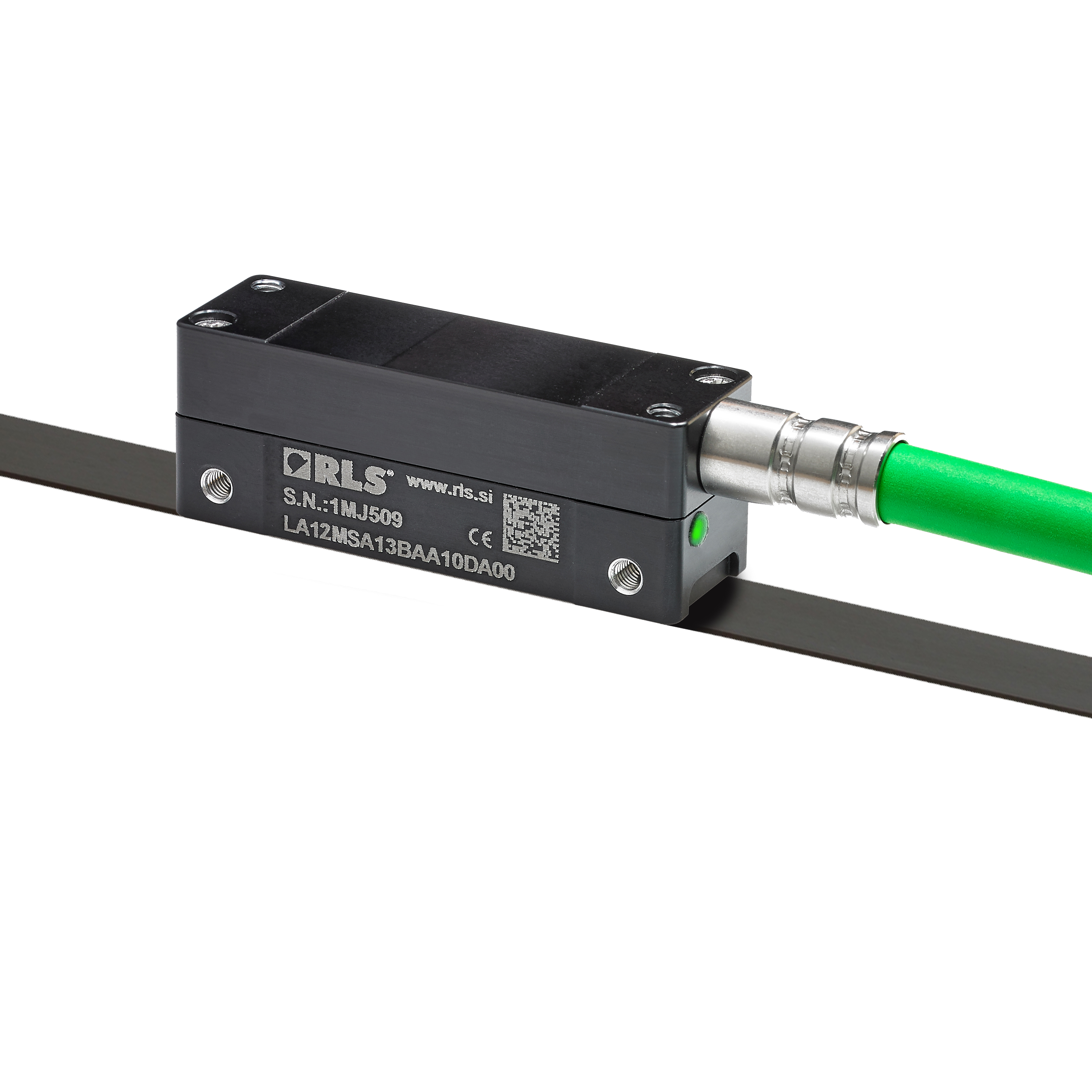

LA12 is a true absolute magnetic encoder system designed for motion control applications as a position and velocity control loop feedback element. The encoder readhead is sealed to IP67 providing reliable operation with resolutions up to 0.244 µm and supports Mitsubishi, Yaskawa and Fanuc serial communication.

• True absolute system
• Fanuc, Mitsubishi and Yaskawa serial communication protocols (Half-Duplex, RS-485)
• IP67 (including readhead and SAS10 scale)
• Resolutions up to ~0.244 µm
• High accuracy up to ±20 µm/m

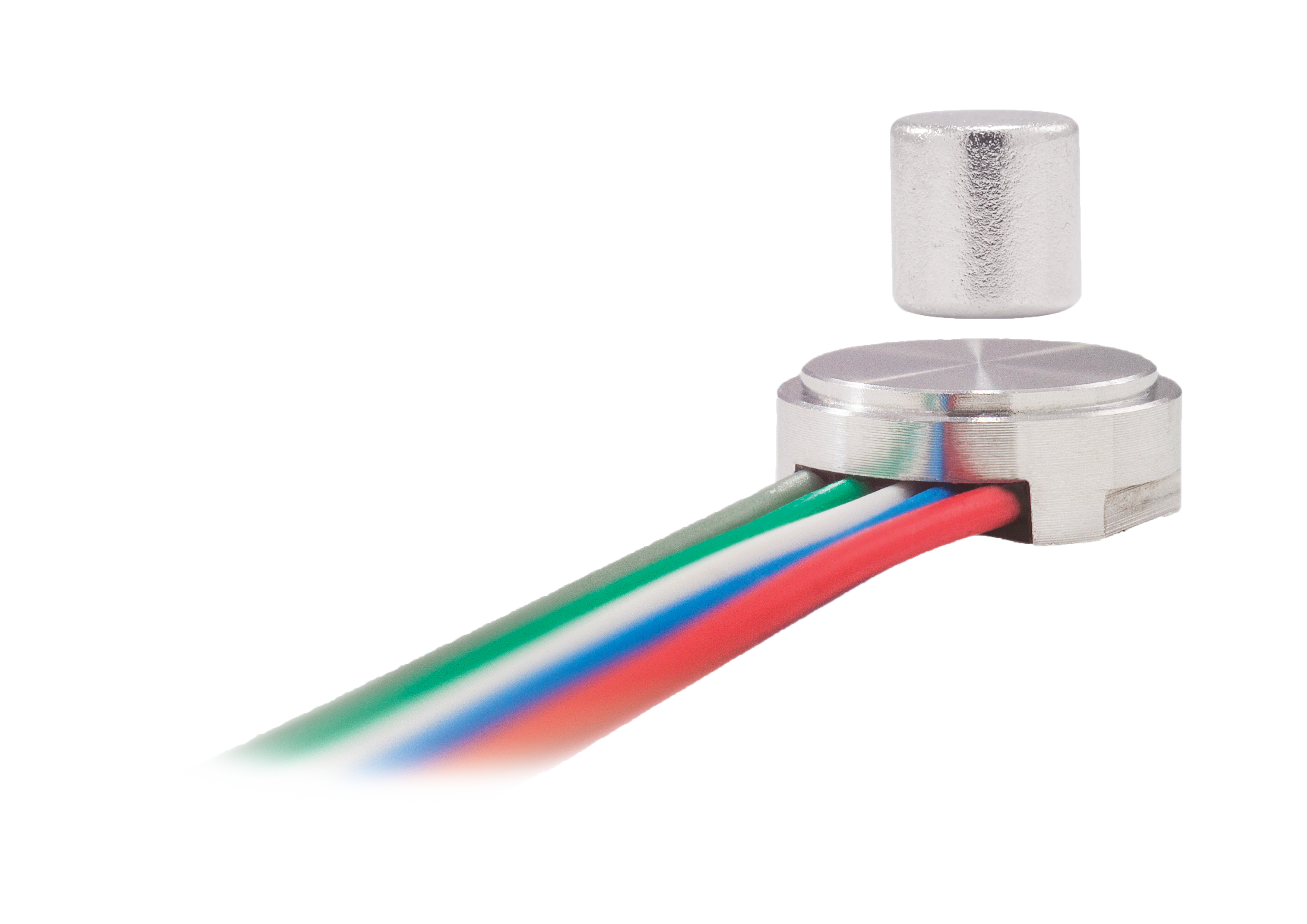

The RM08 is a compact, super small high-speed rotary magnetic encoder designed for use in harsh environments. The noncontact two part design removes the need for seals or bearings ensuring longterm reliability and simple installation.The RM08 encoder has been designed for direct integration to high volume OEM applications and can be used in a wide range of applications including motor control and industrial automation.

• Super small size – 8 mm diameter body
• Accuracy to ±0.3°
• 3.3 V or 5 V power supply versions
• High speed operation to 30,000 rpm
