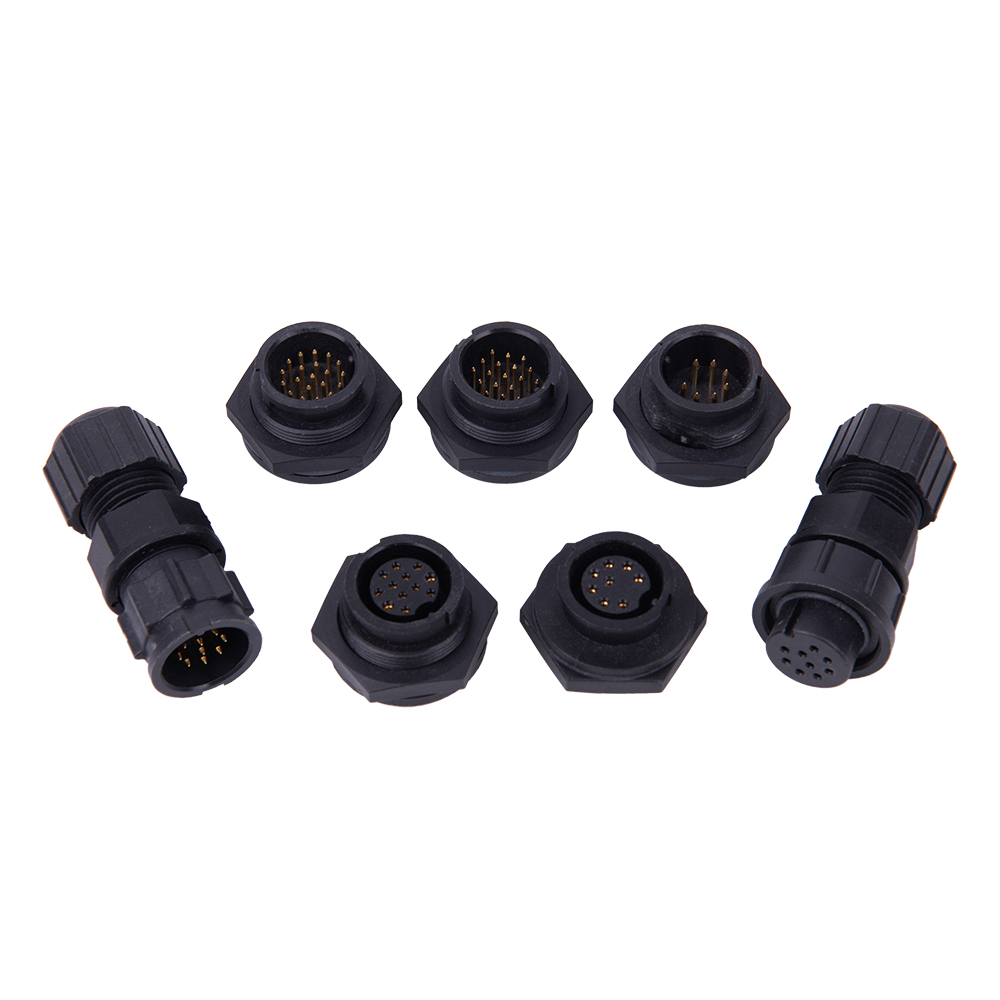

Waterproof Connector – Product IntroductionOverview

Waterproof connectors are engineered for reliable performance in harsh environments where protection against water, dust, and moisture is essential. They are widely used in outdoor equipment, marine systems, LED lighting, and industrial applications. With robust sealing structures and durable materials, waterproof connectors ensure long-term stability and safety of electrical connections.

Key Features

• High Protection Level
  Designed with sealing rings and locking mechanisms to achieve IP67/IP68 ratings, ensuring excellent resistance to water and dust ingress.

• Durable Construction
  Housings made of high-quality plastic, nickel-plated brass, or stainless steel for superior corrosion resistance and mechanical strength.

• Versatile Configurations
  Available in multiple pin counts and current/voltage ratings to support both signal transmission and power delivery.

• Easy Installation
  User-friendly assembly design with options for push-lock, screw-lock, or bayonet coupling.

• Wide Compatibility
  Compliant with international standards and adaptable to diverse equipment requirements.

Applications

• Outdoor LED lighting systems

• Marine and underwater equipment

• Industrial machinery and automation

• Renewable energy systems (solar, wind)

• Transportation: automotive, railway, aerospace

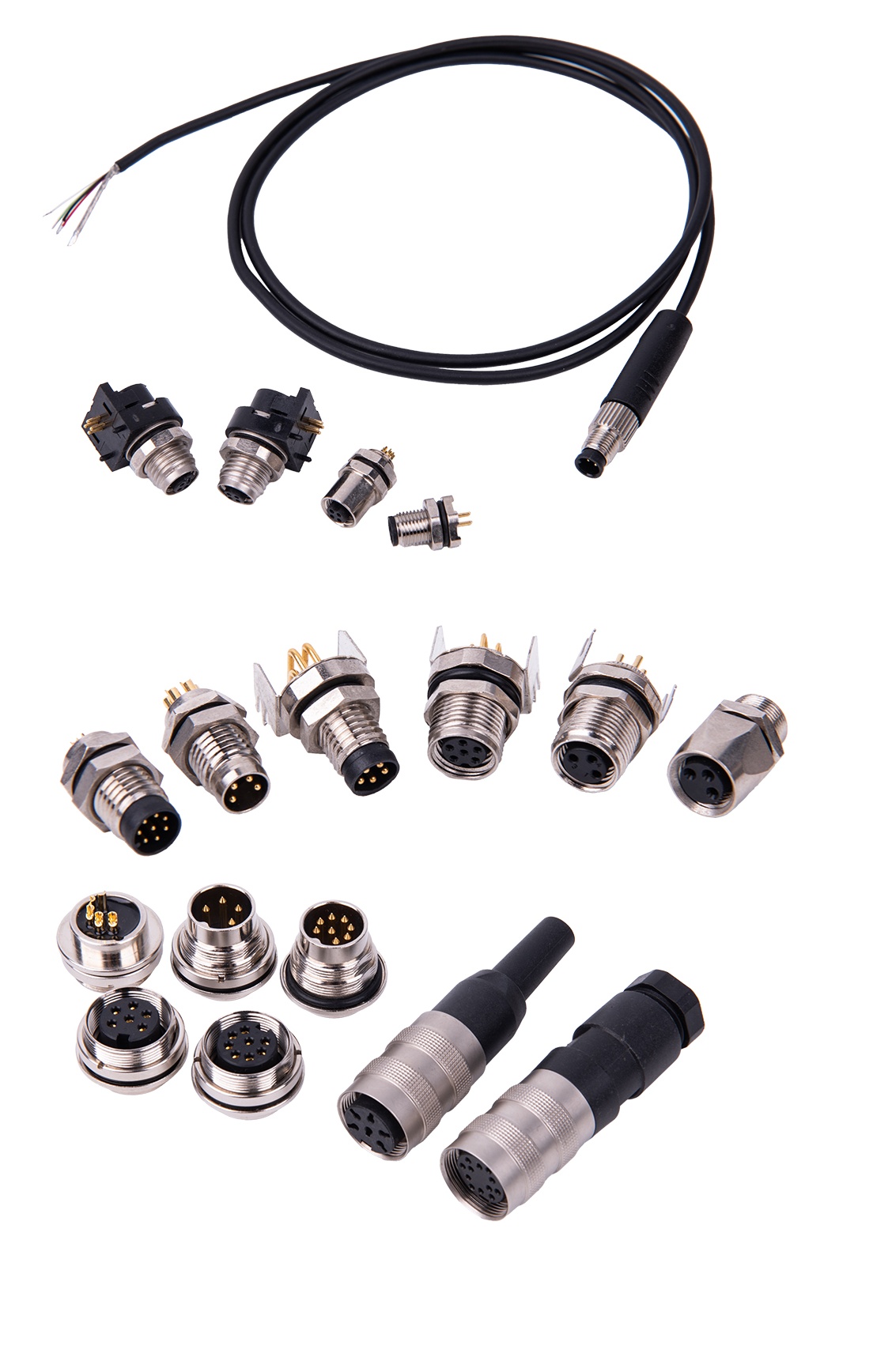

M5 / M8 / M12 / M16 Connectors – Product IntroductionOverview

The M5, M8, M12, and M16 circular connector series are widely used in industrial automation, sensors, robotics, and harsh-environment applications. Each connector size offers specific advantages in terms of compactness, current capacity, and robustness, providing flexible solutions for signal, data, and power transmission.

Product RangeM5 Connectors

• Features: Ultra-compact design, ideal for space-limited applications.

• Electrical: Typically 3–5 pins, up to 60V / 1A.

• Applications: Miniature sensors, medical devices, instrumentation.

M8 Connectors

• Features: Small yet robust, balancing size and performance.

• Electrical: 3–8 pins, up to 60V / 4A.

• Applications: Sensors, actuators, fieldbus communication in automation systems.

M12 Connectors

• Features: Industry standard for industrial automation, available in coding options (A, B, D, X, etc.).

• Electrical: 2–12 pins, supporting 30V–250V, up to 12A.

• Applications: PLC systems, robotics, LED lighting, transportation, power supply and signal transmission.

M16 Connectors

• Features: Larger contact area for higher current/power applications.

• Electrical: Multiple pin configurations, up to 250V / 15A.

• Applications: Industrial machinery, heavy equipment, renewable energy systems, outdoor electronics.

Key Features Across Series

• High Protection: IP67/IP68 waterproof and dustproof options available.

• Durable Materials: Nickel-plated brass, stainless steel, or reinforced plastics for harsh environments.

• Flexible Coupling: Screw, push-pull, or bayonet locking systems.

• Reliability: High mating cycles, excellent vibration and corrosion resistance.

• Standards Compliance: IEC and industry-specific standards ensure interoperability.

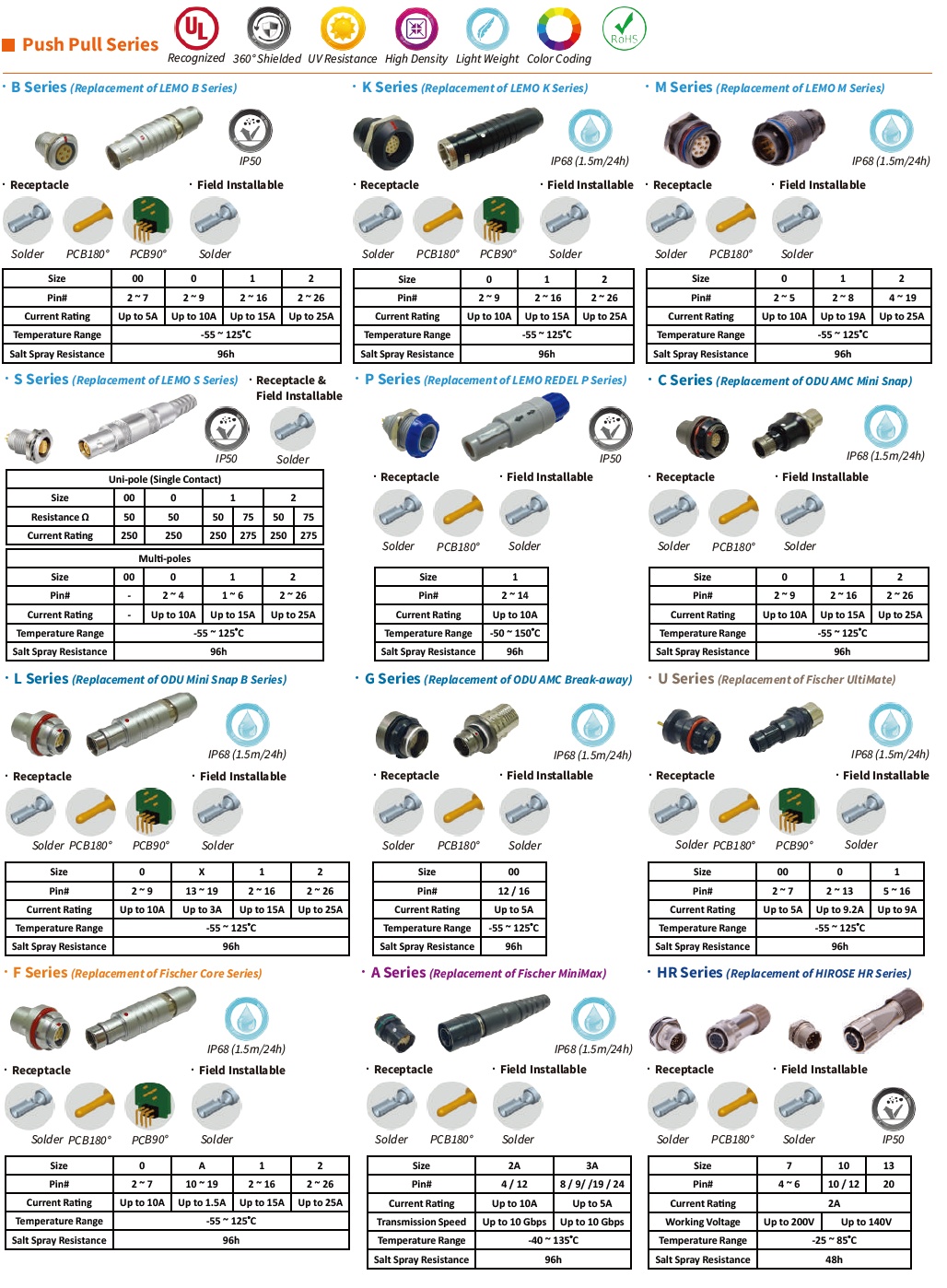

Push-Pull Connector – Product Introduction

Push-Pull connectors are designed for quick, secure, and reliable connections in applications that demand high mating cycles, compact design, and robust performance. With a simple push-to-lock and pull-to-release mechanism, they offer intuitive operation while ensuring strong retention, even in environments subject to vibration or accidental pulls.

Key Features

• Quick Locking Mechanism
  Push-to-connect and pull-to-release operation saves installation time and ensures user-friendly handling.

• High Reliability
  Secure locking prevents accidental disconnection, providing stable performance in critical systems.

• Durable Construction
  Available in plastic, aluminum alloy, or stainless steel housings for excellent resistance to corrosion and mechanical stress.

• Versatile Configurations
  Multiple pin counts (2–30 pins) supporting signal, data, and power transmission.

• Protection Options
  Available with IP50 to IP67/IP68 sealing for dustproof and waterproof performance.

• EMC Shielding
  Optional 360° shielding for applications requiring electromagnetic interference (EMI) protection.

Applications

• Medical devices and diagnostic equipment

• Industrial automation and robotics

• Test and measurement systems

• Broadcast and audio/video equipment

• Military, aerospace, and transportation electronics

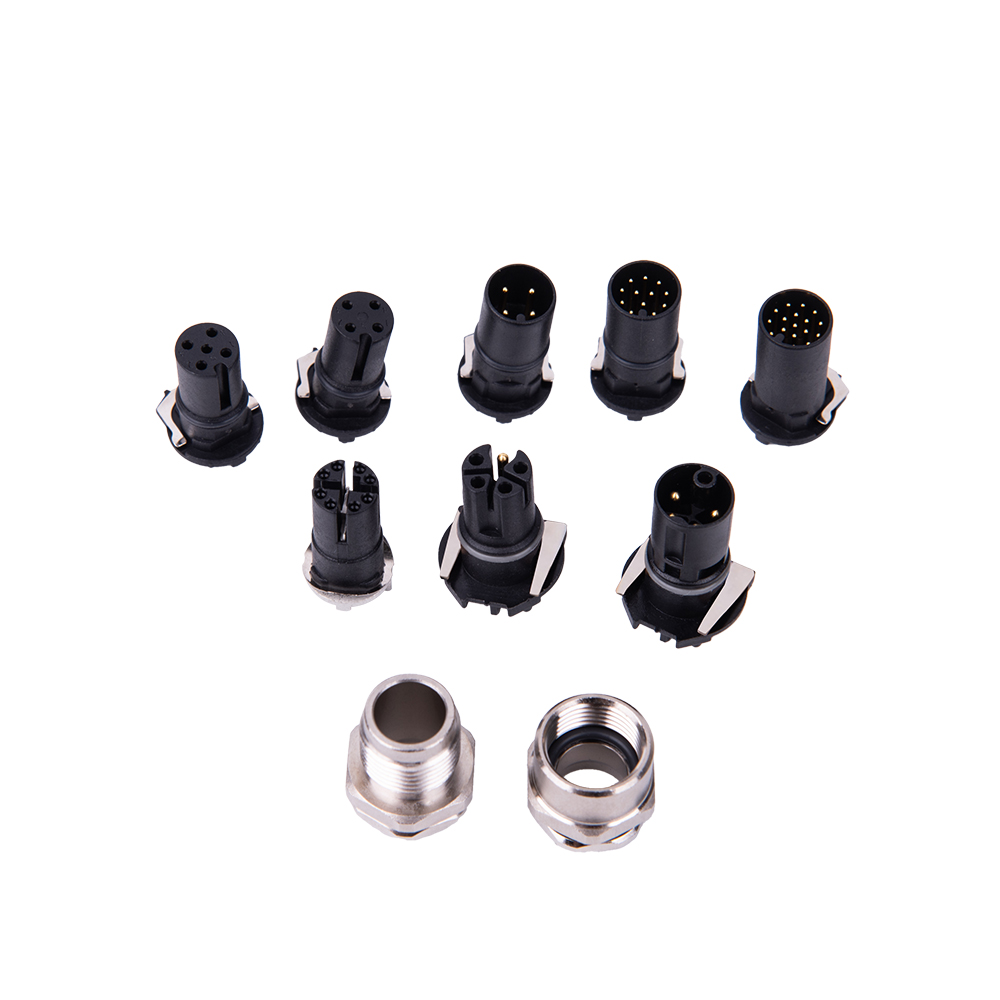

M12 Two-Piece Connector – Product IntroductionOverview

The M12 two-piece connector is designed for industrial automation, sensors, machinery, and harsh-environment applications. Its two-piece structure, consisting of the housing and the contact insert, allows for easier assembly and maintenance, while ensuring high protection and reliable electrical performance.

Key Features

• Two-Piece Design
  The housing and contact insert are separated, providing flexibility in assembly and reducing maintenance and replacement costs.

• High Protection Level
  Threaded locking with O-ring sealing, compliant with IP67/IP68 waterproof and dustproof standards.

• Durable Materials
  Housings made of nickel-plated brass or stainless steel, offering excellent corrosion resistance and mechanical strength.

• Versatile Signal & Power Options
  Available in 2–12 pin configurations to support data, power, and hybrid applications.

• Standardized Interface
  Fully compatible with IEC 61076-2-101 standards and interchangeable with mainstream M12 connectors.

Applications

• Industrial automation & PLC control systems
• Sensors and actuators
• Robotics and automated production lines
• LED lighting modules & outdoor equipment
• Railway and marine electrical systems
