M16 12+3 Circular Connector

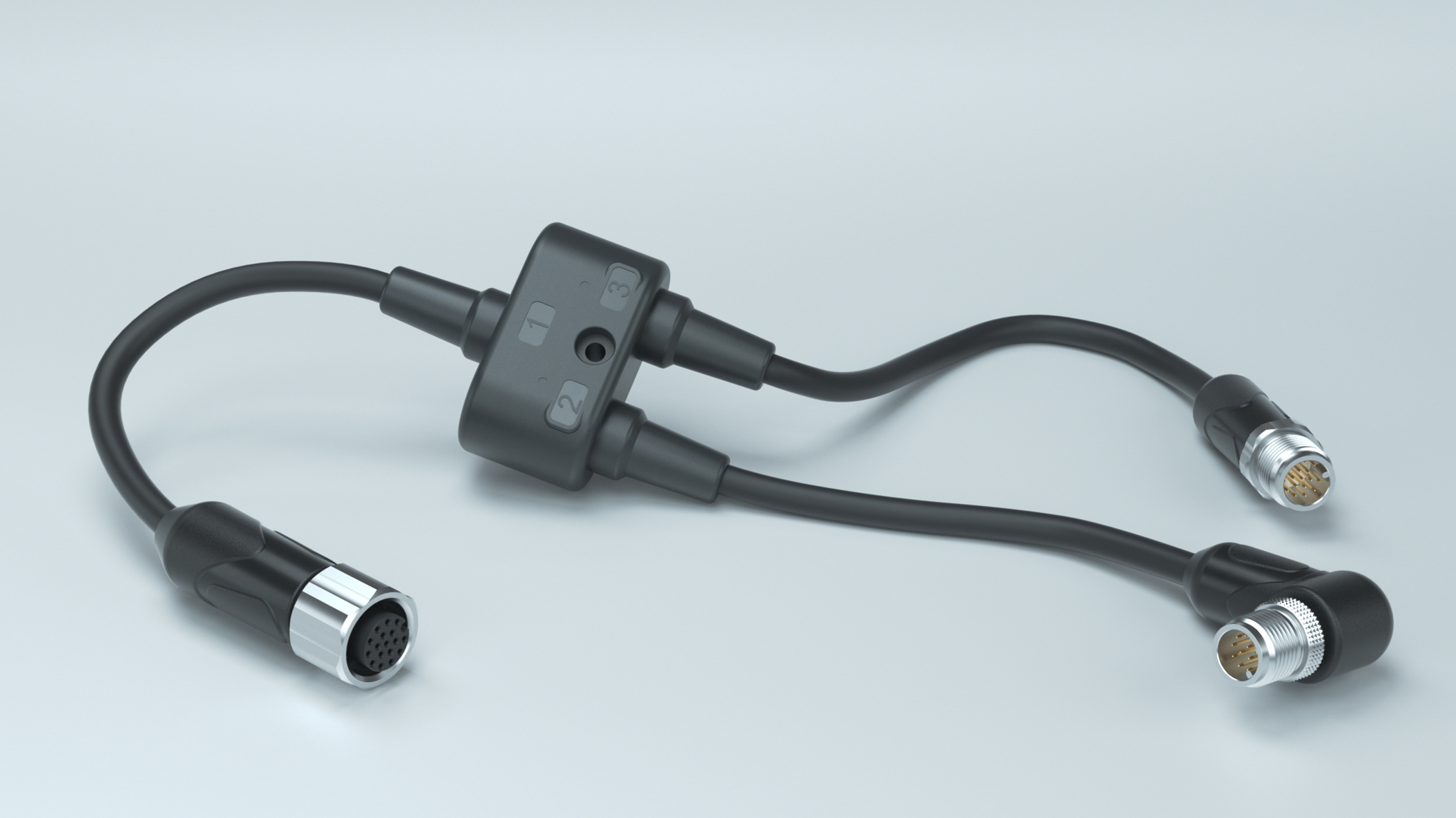

Y-distributor

The new Y-distributor

• different connectors possible
• individual cable types and cable lengths
• customized pin arrangements
• shielded and overmoulded

Connections from A to B and C. You can achieve this in many different ways with the overmoulded Y-connectors from phg. We haven't reinvented the wheel with our Y-connectors, but we do create new and individual solutions according to your wishes. Can your Y-distributor currently do everything you need it to do? Uncomplicated, flexible, expandable?

Because that's exactly what we can offer you! The individual Y-distributor solutions from phg offer maximum flexibility and can be configured and assembled according to your requirements. We have a whole range of options.

Cable lengths and cable types can be individually selected and combined. For particularly easy handling, we offer the option of having the cables and connectors in different colors. This makes it easy to avoid errors when connecting, for example. Individual wiring in the Y-connector as well as different connector assignments on all sides allow absolutely customer-specific productions.

You need fixed connectors? Our system is also prepared for this, as well as for mixed constellations.

Y-distributors from phg come in shielded design and are particularly robust and suitable for industrial use due to the overmoulding. The installation of the Y-distributors is uncomplicated and fast thanks to the numerous variation possibilities.

Customized Solutions.

phg is a co-engineering partner and idea provider for the customers. We support you during the whole process, from development and CAD-design, the creation of prototypes and the mould and tool construction to series production including overmoulding, assembly and final inspection.

High-end or low-cost. Customized system solutions are created in close cooperation with our customers. Fast and target-oriented. phg relies on know-how accumulated over decades for you. State-of-the-art development, production and test facilities are ready to realize customized solutions.

Roughly sketched a project flow may look like this:

• Co-engineering / exchange of ideas
• Feasibility study
• Prototype production
• Tool and equipment production
• Series production with:
  Assembly
  Overmoulding
  Labeling
  100% final inspection

Optimized for your specific application, also with M12 Power

Why do customers choose M12 S-coded or T-coded cables from phg? Here are a few reasons that can be decisive:

• Ready-to-install assembly
• Use of customer-specific cables (e.g. mixed cross-sections / different materials)
• Cable length and pin assignment specified by the customer
• Including the right connector assemly for the device-side connection
• Overmolded connectors, also with special design requirements

M23 is the large format phg panel mount connector. The 19 pole device connector has 16 signal and 3 power contacts. The male contacts are crimped to the stranded wires and assembled according to customer specifications. The coding nose can be individually aligned during assembly using the integrated counter system.

Highlights:

• customized strand selection, strand combination and strand length
• mixed contact arrangement (power and signal contacts)
• gold-plated contacts
• if necessary, back-potted for increased tightness
• housings for front and rear mounting
