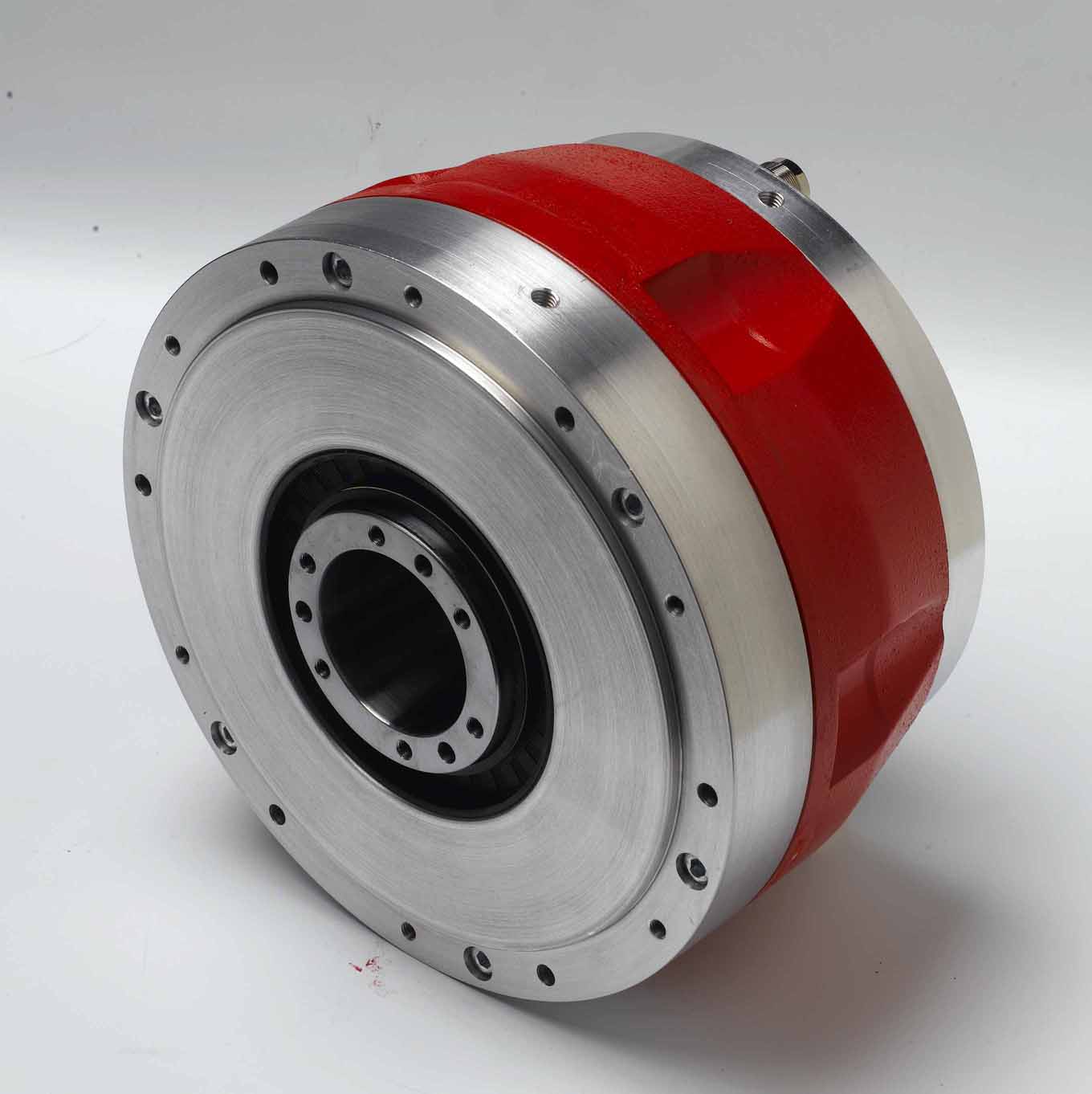

DIRECT DRIVE TORQUE

These direct drive, rotary table servo motors are ideal for applications that demand freedom from backlash and accurate control. SKA Rotary Table torque servo motors feature an evolved design that satisfies the needs of highly dynamic, high-end applications. These servo motors are also available with Flexi Pro intelligent digital drives to satisfy the demand for high torque, high precision motion control.

SKA ROTARY TABLE direct drive torque servo motors – Characteristics:

• Up to 2400 Nm instantaneous peak torque
• Up to 1400 rpm high-speed operation
• Up to 900 rpm maximum motor speed
• High precision indexing with over 1,000,000 PPR, after interpolation
• ± 25 and 11 arc seconds absolute precision
• Zero backlash for high precision, high speed operations with short implementation times
• High positioning precision
• Easy to use drives
• Various motor-drive communication network options
• Analog encoder for high resolution
• Speed, torque and position control

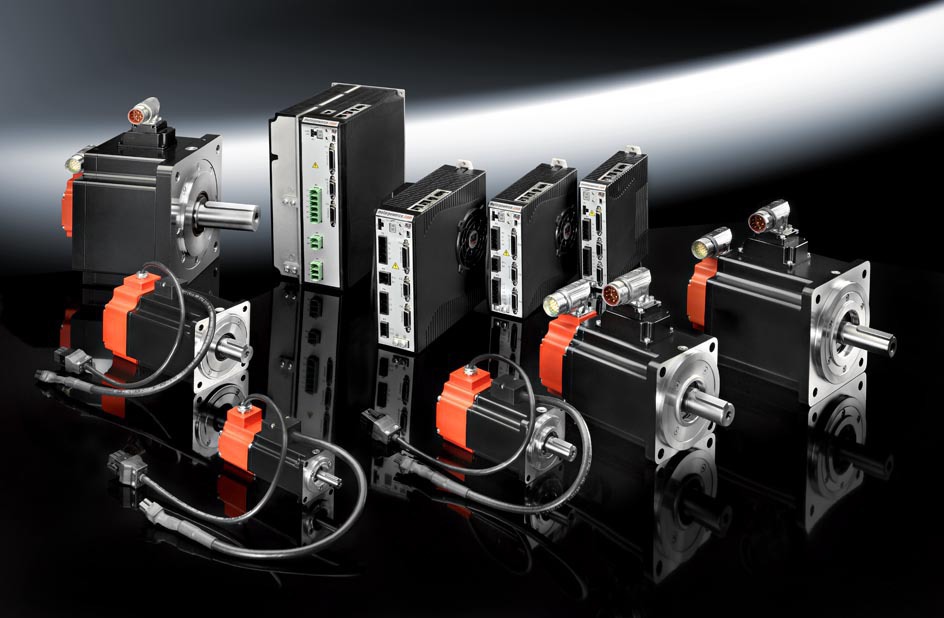

TETRA COMPACT – E brushless servo motors are the result of innovative design and production concepts. These brushless servo motor and digital drive bundles satisfy top-end application needs. Excellent quality, international certifications, carefully selected components and a wide range of power ratings make these servo motors ideal for highly dynamic, accurate and reliable automation.

TETRA COMPACT – E brushless DC servo motors – Characteristics:

• Flange dimensions: 40 – 60 - 80 - 100 – 130 -180 mm
• 0.16 to 48 Nm rated torque
• 50 W to 7.5 kW rated output power
• Absolute and incremental encoder
• Ambient functioning temperature from -20° C to +40° C
• UL 1004, CSA

Motor Power Company keeps developing new concepts in sorting and material handling. Our goal is sharing with the market our domain expertise in intralogistics; innovative solutions through our gearless technology products. We propose motion control bundles composed by gearless motorollers and smart drives. All our solutions are in-house developed and are particularly oriented for control, movement, storage and protection of materials and products throughout manufacturing, sorting, warehousing, distribution, consumption and disposal. NO GEARS, that's why we are better.

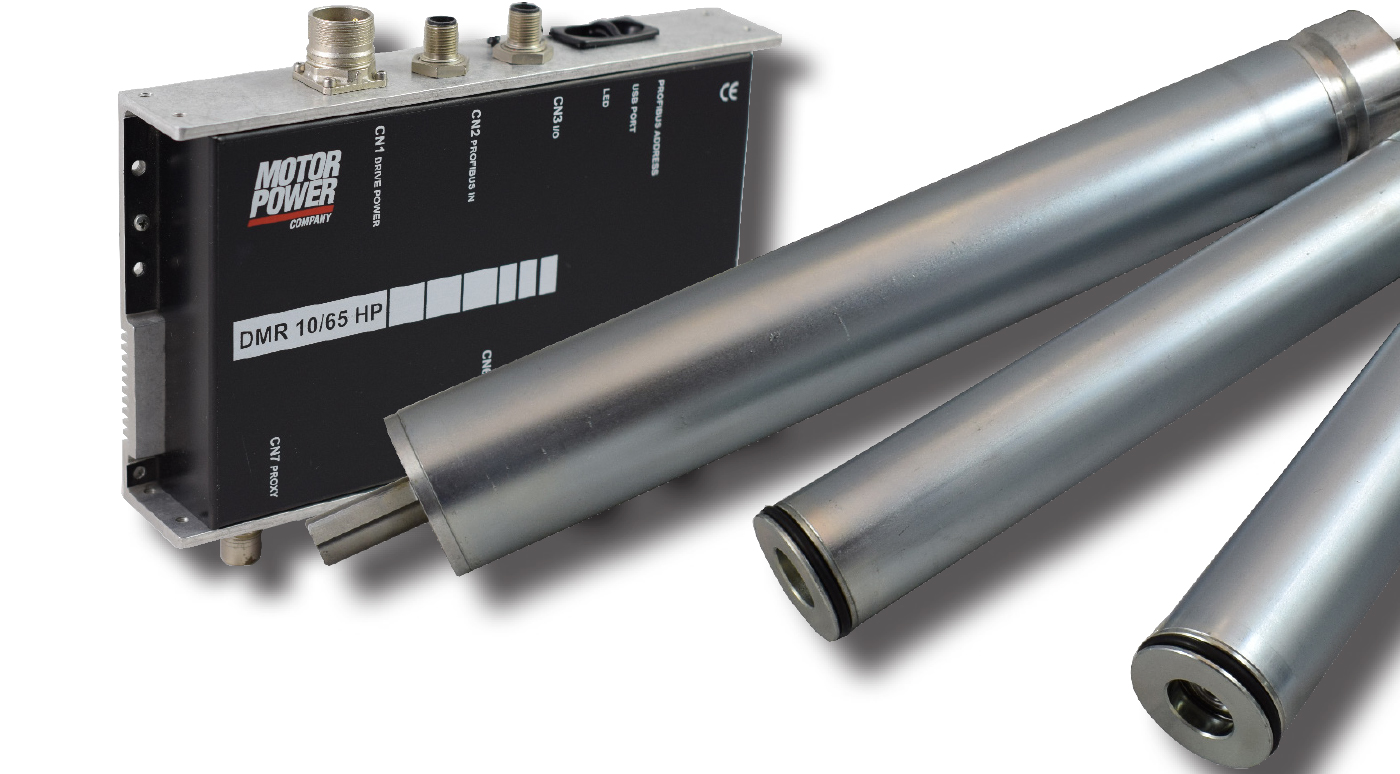

These perfect matched bundles costituted by gearless motorollers and smart drives have been conceived as a specific product for conveyor, crossbelt or any roller transfer systems. Two versions are proposed; frameless cartridges without tube, to be inserted into the roller to be moved, and power pack version, a ready to use motoroller embedded in its own  tube. The technology on which the motor is based comes from the direct drive torque motors. Consequently, the motion is transmitted directly from the motoroller to the load, without any gear.Motoroller without gears ensures:

> High MTBF, as the motoroller needs less components than the standard kinematic chain
> System efficiency increase due to the absence of gears inside the motoroller
> Accuracy,  due to the feedback reliability
> High dynamic thanks to the direct drive technology
> Easy replacement, with the autoaddressing system of DMR Drives, the substitution with a new motoroller does not require any configuration action
> Easy commissioning, due to a unique part number, there are no different gearbox ratios to handle according to different speed needs
> Wide speed availability, one motoroller for all speed range

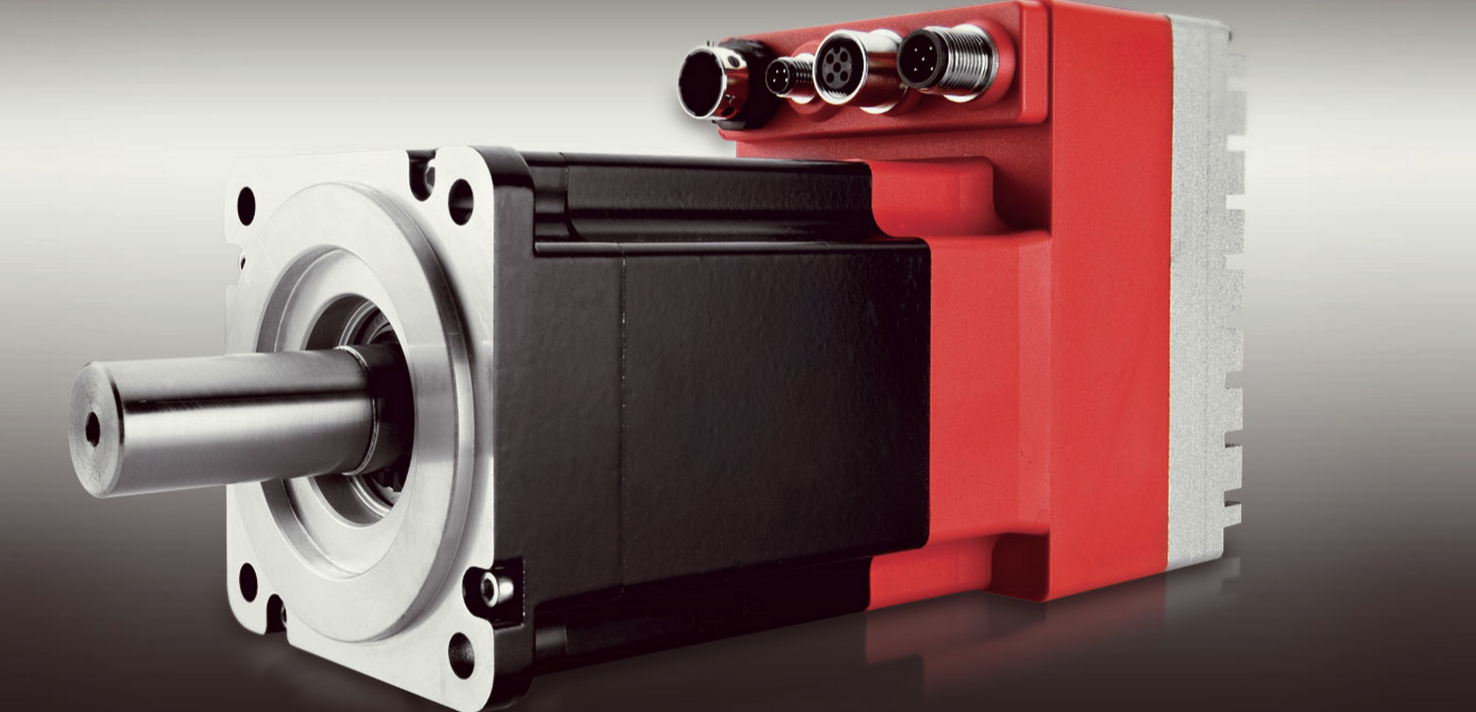

The DUET series of exceptionally compact integrated drive systems incorporates everything necessary for efficient axis movement and control. Their smart architecture allows control functions to be decentralised away from crowded control cabinets. The series consists of three models, DUET, DUET FLEXI and DUET HV. All incorporate smart drives for easy integration, with CANopen, EtherCAT and Profinet networks possibility, system configuration and set-up, high (DUET HV) and low (DUET and DUET FLEXI) voltage. While smaller control cabinets and less cabling are among their most visible benefits, these integrated drives can also be relied on to deliver superior performance and control.DUET integrated drive systems – Characteristics:

• 60 W to 1600 W output power
• 48 and 560 Vdc power supply
• Brake control
• Integrated 2 pole resolver
• Absolute encoder
• Connectors
• CanOpen, Ethercat and Profinet

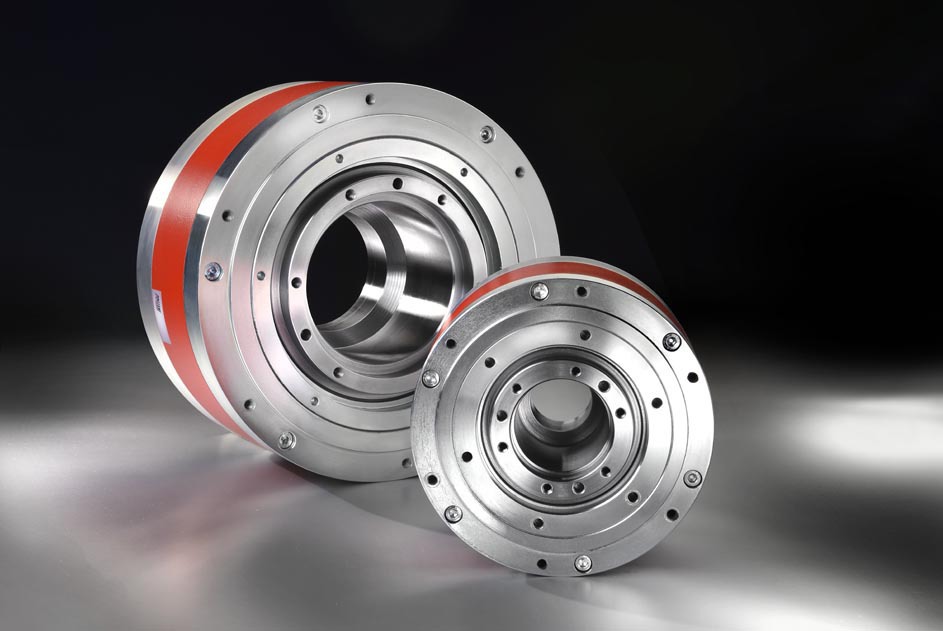

Direct drive technology is what sets SKA DDR synchronous multi-pole brushless torque servo motors apart. Unprecedented performance in terms of torque and acceleration. These motors give far better results and accuracy than could possibly be achieved with conventional alternatives with power transmission systems like gearboxes, belts, pulleys, etc. The ability to maximise the benefits of mechanical integration makes these high performance torque motors ideal for technological automation upgrades.SKA DDR direct drive torque servo motors – Characteristics:

• 2 Nm to 760 Nm rated torque
• Thermal circuit breaker PT 1000
• NdFeB magnets
• Insulation class F
• IP65 protection rating (Power Pack version)
• Transducers: resolver, incremental and absolute encoders, Hall effect sensors
• The Power pack version of SKA DDR torque motors comes complete with flange, bearings, and transducer with aluminium cover and dedicated connections.
• Available in hollow shaft, solid shaft and hollow through shaft versions
