DRIVEConn® MT - SERVO

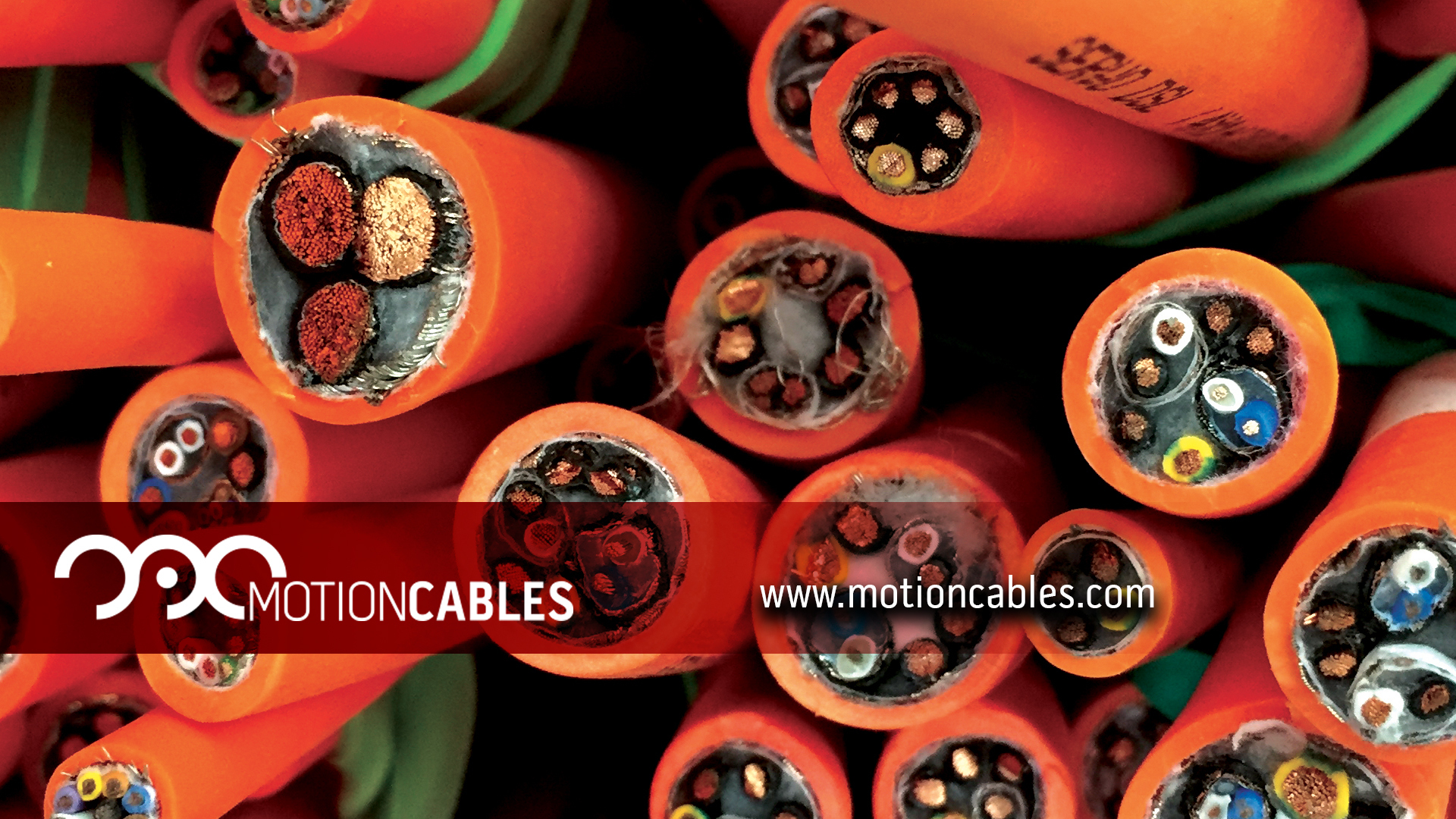

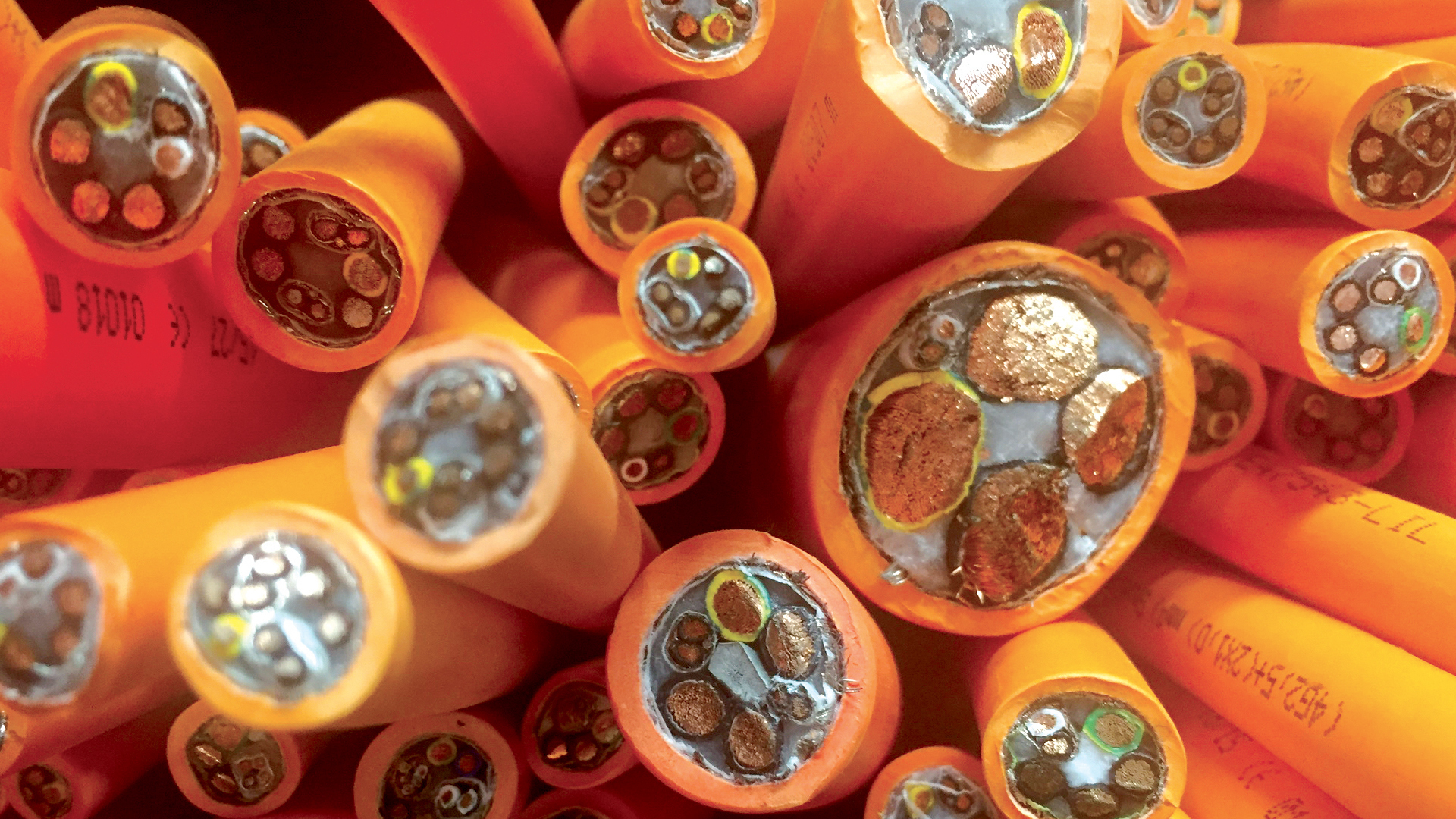

DRIVEConn® MT Power & SERVO Cables are specialised cables designed for use in servo motor systems, which are commonly used in industrial automation, robotics, CNC machinery, and other precision control applications. These cables play a crucial role in ensuring the reliable and efficient operation of servo motors. Here are some key considerations and features of servo cables:

• High Flexibility
• Shielding:
• High-Quality Insulation
• Oil and Chemical Resistance
• Temperature Resistance
• Connector Compatibility
• Strain Relief:.
• Abrasion Resistance
• Customization
• Compliance

When selecting servo cables for your application, it's essential to consider the specific environmental conditions, voltage and current requirements, and motion dynamics of your system. Choosing the right cables ensures the overall performance and longevity of your servo motor system. Additionally, consulting with cable manufacturers or suppliers with expertise in servo applications can help you make informed decisions.

https://www.motioncables.com/specialcables/family/en/servo-motor-cables

In the machine tools market, the OCT (One Cable Technology) solutions are becoming increasingly common.

The single-cable solution ensures that, instead of using the traditional servo cable for power supply and a separate sensor cable for position information, the transmission and signal are integrated into a single cable. The precondition for using a single-cable solution between the servomotor and the controller is the use of a hardware-based encoder specifically designed for this purpose. Since the encoder is permanently connected to the servomotor, the system shall be made available to the final customer by the manufacturer of the servomotor.

MotionCables began the development of its OCT solutions with SICK®, creating a cable for its HIPERFACE® DSL system that has been approved and qualified by SICK®: now MotionCables is a SICK® certified manufacturer for this cable. Strengthened by this experience, MotionCables has developed a version for the HMC 6® Full Digital system of Heidenhain® based on the EnDat 2.2 protocol, as well as the analogous from B&R® and now for SIEMENS SM120 C and for IndraDyn S from Bosch Rexroth.

Both cables have been tested in our laboratories and in their versions (fixed installation, mobile, high performance) have operated up to ten million cycles. With regard to the HIPERFACE® DSL cable, MotionCables has recently developed a new version with dual Shield, even more powerful for data transmission quality and with a higher rate in noise reduction up to 4,5 kV @ 10 MHz. The reference to trademarks and standards is made for reference or information purposes only. These trademarks and standards are the exclusive property of their respective owners.

MotionCables proposes the whole series of hybrid servo cables suitable for the main standards. You can find all the relevant information about the available types at: http://www.motioncables.com/special-cables/type/en/motion-hybrid-servo-cable-dsl
