The LENSLED II is the magnifying lamp par excellence. Developed for stationary use at assembly or control workstations, the LED light with its magnifying lens can be positioned as desired thanks to the aluminium spring arm. The extremely scratch-resistant lens is made of glass and offers 1.85x magnification. The high-intensity illumination of the magnification area is free of shadows and glare, and the luminous intensity can be adjusted via infinitely variable dimming.

• Aluminium spring arm, 3D head joint
• Head and spring arm can be pivoted and locked in position
• Aluminium head with rear heat dissipation
• Glass loupe, Ø 160 mm, extremely scratch-resistant with 1.85x magnification (optional as biconvex lens with additional recessed bifocal Ø 31.5 mm, 8 dpt)
• Bright, glare-free and flicker-free illumination
• Infinitely variable dimming with memory function

Due to its extremely compact design (25 x 30 mm), the LEANLED II can be used in almost any machine space without chip bombardment or coolant (IP54). A polycarbonate cover protects the LED chips from dust and splash water. The electrical interlinking enables very simple and quick installations that can illuminate large production areas homogeneously and uniformly.

• Uniform, flicker-free illumination
• Very bright LED luminaire
• Homogeneous illumination with opal white glare suppression
• Slender, barely protruding LED luminaire, only 25 mm high
• 7 lengths, clear or opal white cover made of polycarbonate, shatter and splinter-free
• Cascadable, i.e. electrically interlinkable versions - thus simple power supply of several luminaires with one supply cable.

Areas of application

• For machines and plants with very little space
• Automatic machines, bending machines, punching machines, conveyor belts
• Logistics and many other applications

The TUBELED_25 is a light with a signal function that has been specially developed for use in technical systems, automation and CNC machine tools. With its minimal height of only 23 mm, it is ideal for tight installation situations where only limited space is available.

The TUBELED_25 RGB-W sees its use in upcoming IOT applications where space is limited but illumination and signalling are still crucial.

This LED luminaire combines lighting and signalling in the simplest way possible. With the TUBELED_25 RGB-W, it is possible to signal changes in the status of areas by changing the illumination light to coloured light like red, green or yellow that can be seen from a distance.

The light outlet of the TUBELED_25 RGB-W is protected by safety glass that is firmly bonded into the tailormade aluminum housing. High-quality seals provide protection against dust and water up to the high IP67 protection rating, which is why the TUBELED_25 works reliably even under adverse conditions. The light is also shock, vibration, and impact resistant so that it can be used at higher temperatures of up to +55 °C without any problems.

If you want more, go for the TUBELED_25 RGB-W with the IO-Link communication standard. The functionality of the light has been expanded here to include dimming, automatic reduction in the event of overtemperature, blinking, flashing, operating hours display, and diagnostic tools. The advantage of the IO-Link capability is in the complete integration, and control option of individual luminaires in systems or machines with automated processes.

As a surface-mounted LED luminaire, the TUBELED_25 RGB-W combines robustness, efficiency, and flexibility in a very compact design. With its outstanding features, the slimline LED luminaire is a first-class lighting solution for a wide range of requirements in industrial environments.

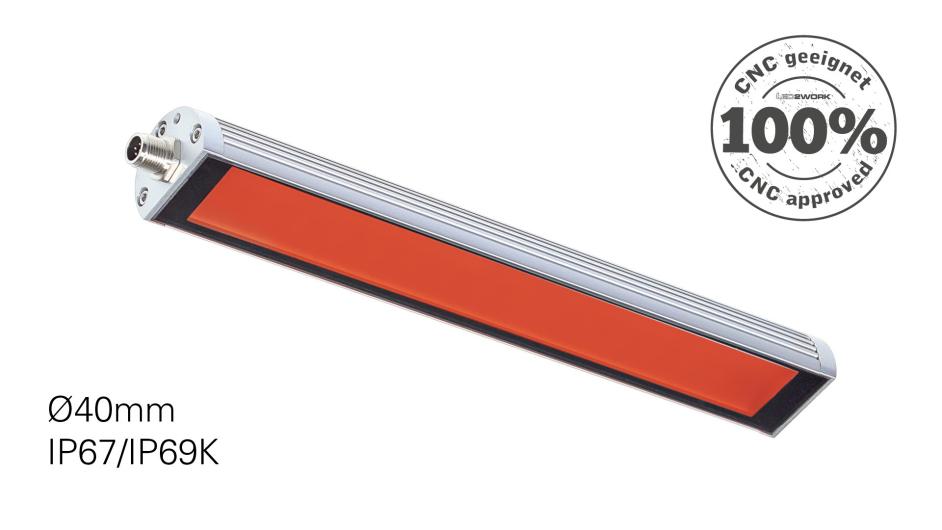

Narrow installation space with simultaneously rough production conditions and temperatures up to +70°C − the light TUBELED_40 II can do this like no other. With a luminaire body diameter of only 40 mm and 7 available lengths, the slender LED light is truly an all-rounder.

• Heat dissipation using aluminium extruded profile to the rear – no burn-in of coolant
• Crack-proof, 4 mm thick safety glass
• Light Forming Technology
• Oil-resistant seals (FKM seal Viton®)
• Machine room lighting - chip bombardment-proof, vibration and shock resistant - 100% CNC suitable
• Easy and quick retrofitting of machines
• Optimum lighting through 100° surface light
• Flicker-free without UV and IR components
• High degree of protection IP67/IP69K
• Electrically interlinkable (cascadable)
• On/Off interface: load-free switching, flashing and dimming possible
• Power versions with optimised luminous flux and ECO versions with optimised performance
