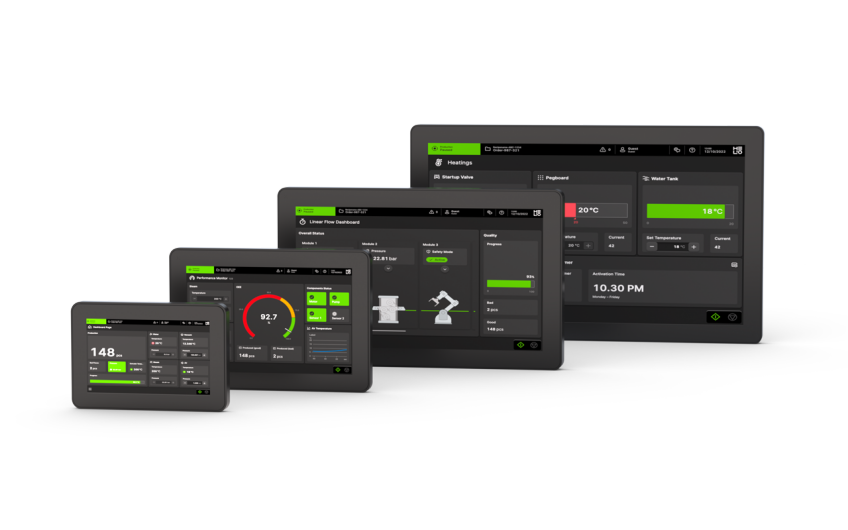

Innovative concept for the HMI of the future – HELIO

High transparency and machine availability

Machines and systems rethought: As a platform, NOA offers the possibility of designing your own automation solutions on the basis of open systems. In addition to hardware and software products from KEB, the concept can be easily expanded – through the user‘s own expertise or the integration of third-party providers. This means that basic elements can be simply supplemented with knowledge from specialised companies.

The core infrastructure on the edge component (NOA Core) is based on a Linux and container-based architecture and can be used on embedded hardware, IPCs and panels from KEB or 3rd party devices. The App Manager is used to operate NOA apps such as solutions for HMIs, machine learning (anomaly detection and predictive maintenance), monitoring and control systems as well as customised or 3rd party apps. Apps and devices can be managed across locations in the optional cloud component (NOA Portal). NOA is also customisable as a white label version for OEMs and end customers to enable business models such as “automation platform-as-a-service”.

Highlights:

• Hardware independent
• Future proof real open​ architecture
• Add your own and 3rd party apps
• Increasing flexibility
• Linux and container based architecture

Drive controller with matched filter technology

COMBIVERT F6 drive controllers as high-speed drives: The devices are available in four housing sizes and have an output power of 30 kW to 450 kW. Realize your high-speed application and benefit from high output frequencies of up to 2,000 Hz. The drives are available as liquid- and air-cooled versions and equipped with a special 3C3 coating for use in harsh environmental conditions. Effortlessly implement high speeds in your application - from small machining spindles to turbo compressors.

Highlights:

• Drive controller with matched filter technology
• Power range from 30 kW to 450 kW
• Switching frequencies up to 16 kHz
• For machining spindles, turbo compressors, etc.

Drive Technology

Solutions for electric drives: Quality and performance of KEB solutions prove themselves daily in the machines and systems of our customers. To solve your motion tasks, we offer a broad portfolio in the field of automation. In addition, our drive controllers – which are matched to KEB motors and controls – can be conveniently and efficiently integrated into other systems.

• Drive Controller
• Servo Drives
• Power Supply and Regeneration Units
• EMC, Mains and Motor Filters
• Modular Inverter System
• Pitch Drives
• Firmware Simulation Models
• Software Tools

High-performance permanent magnet break

The COMBIPERM P2 is a very compact and powerful permanent magnet brake with a frictionally engaged, backlash-free effect. In comparison with the COMBIPERM P1, the brake has a shorter assembly space and requires less power for increased performance. In addition, due to its structure, it can also be used in temperatures as low as -40°C. In the energised state, the magnetic field of the permanent magnet is cancelled and the connected component can rotate without residual torque. In the event of an emergency stop or if the power is switched off, the safety brake engages, brakes and holds the drive safely in position. Thanks to the short switching times and the compact design, these brakes are ideal for servo motors and the medical industry. The high-performance brake has a torque range of 0.8 Nm to 60 Nm.

Highlights:

• Eight sizes
• Can be used in temperatures as low as -40 °C
• Backlash free
• Frictional engagement
• Up to ten million switching cycles as standard

Brakes and Clutches

Whether a tried-and-tested standard version or individually adapted to the customer’s requirements, KEB’s brakes and clutches have always impressed users around the world thanks to their high level of safety and reliability. In addition to our standard range of safety brakes, safety clutches and corresponding electronic accessories, we work with you to adapt the products to your requirements and needs.

• Spring-applied brakes
• Permanent magnet brakes and clutches
• Electromagnetic brakes and clutches
• Energy-saving brakes and clutches
• Accessories

Open and cost-efficient

For the automation of applications with low to medium complexity it is the right choice: The C6 COMPACT 3. Its concept is based on the Linux operating system and offers an open microservice architecture. Its container-based technology allows various software functions to be integrated and organized. The system is future-proof thanks to the use of the latest multicore technology and real-time capable motion control – programmable via IEC 61131.

The C6 COMPACT 3 can be used for various tasks in addition to the actual machine automation. For example, it can act as a gateway between a higher-level control and a programmable control system with KEB Motion functionality. Among other things, an OPC UA server serves as an interface. Furthermore, the control can be used as HMI server device. It realizes the communication with one or more 3rd party systems and enables browsers to provide the contents via an HMI server.

Highlights:

• Low-cost control
• Real-time motion control
• Gateway, IIoT/edge device, HMI server
• Linux-based, open microservice architecture

Control and Automation

Innovative hardware and software for your application: The KEB range offers extensive hardware solutions combined with excellent software functionalities, from the HMI through to the motion profile.

• HMI Touch Panel
• Embedded Automation Controller
• Industrial PC Technology
• Safety PLC and Safety I/Os
• I/O System
• Industrial Monitors
• Remote Maintenance
• Software Tools
