Modular Expandable Energy Analyzer – UMG 800

From power quality analysis to energy monitoring, from residual current to temperature monitoring, the UMG 96-PQ-L-LP offers the right functions for every application. Avoid system failures by clearly displaying the entire power quality of a measurement level at low cost with the UMG 96-PQ-L-LP.

Short of space in the switchboard cabinet? Thanks to the low-power current inputs, classic current transformers can be replaced with smaller and less expensive current transformers. Since low-power transformers operate in the millivolt range on the secondary side, no converter disconnect terminal is required.

Passive Rogowski coils can also be used for simple retrofit solutions. In this case, the measurement device serves as the measurement transducer, saving money and essential space in the switchboard cabinet.

The UMG 96-PQ-L-LP modular network analyzer can measure full-wave events and present and analyze them directly in the network display. It also comes with a large memory, which, thanks to a special data compression method, ensures several years’ worth of storage. Memory partitioning preserves the long storage time for current, power and work even in combination with high-resolution power quality measurement.

All values can be conveniently displayed and graphically represented on the color graphic display. What’s more, the UMG 96-PQ-L-LP offers plug-in modules for functional enhancements and 50 comparators that can be configured individually or via predefined comparator profiles.

Low-Power Inputs

• Switchable current measuring channel
• Low-power current measuring channel for low-cost 333 mV current transformer
• Current measurement with passive Rogowski coils e.g. 100 mV/1 kA

Power Quality

• Harmonics current up to the 65th harmonic
• High sampling rate with 280 sampling points per full wave
• 20 ms RMS value memory for full-wave events

Energy Management

• Identify savings potentials
• Active energy class 0.5 S
• Compliance with regulatory and tax requirements Configurable screened average values

Visualization

• Oscilloscope function
• Phasor diagram on the display
• History of drag indicator values on the display
• Resetting of the drag indicator values via display or remotely

Operation

• 6-button operation on the color graphic display
• Intuitive operation
• Configuration directly on the display
• On-site operation
• Configurable home screen and jump-back point

Events

• Representation in the display
• Read out last event via Modbus
• Display root-mean-square value curves in the GridVis® event browser

Modularity

• Temperature measurement with monitoring via integrated comparator
• Ethernet interface and Modbus gateway
• Multifunction inputs for residual current measurement or DC power measurement

Limit Value Monitoring

• 50 comparators in the device
• Hysteresis
• Predefined comparator profiles for quick configuration (GridVis®)

Peripherals

• 3 digital outputs
• 1 analog output
• 3 digital inputs
• 4 power inputs directly from the basic device

Installation & Integration

• Overvoltage category 600 V CAT III / 300 V CAT IV
• Easy installation thanks to 96 x 96 mm front panel
• Time setting via third-party systems according to EN 60870-5-4:1993
• Serial interface with Modbus RTU

Communication

• Client / Server*
• Gateway function*
• Ethernet interface*
• RS-485
• 5 simultaneous Modbus TCP connections* (*with module 96-PA-RCM-EL)

Memory

• High memory depth with low memory requirements
• Memory depth up to 15 years with 23 measured values of 15 min each and 8 measured values of 1 h each
• Memory partitioning into long-term memory and high-resolution PQ short-term memory

Module UMG 96-PA-RCM-EL

The device is quick and easy to expand with 1 Ethernet interface, 2 residual current inputs amd 1 thermistor input by means of a plug-in extension module. When used with the Ethernet module, the device offers additional connection options for up to 30 simple MID energy meters as slave devices, e.g. of the type B23 312-10J.

• Temperature measurement with monitoring via integrated comparator
• Ethernet interface and Modbus gateway
• Residual current measurement or DC power measurement

The two-channel residual current monitoring device meets the requirements of the DIN EN 62020 standard. A recurring insulation test can be omitted or at least limited. Typical applications are low-voltage main distribution boards (LVMDB) and subdistribution panels (SDP) in grounded systems (e.g. TN-S systems). The RCM 202-AB is a technical alternative usable across all industries when power interruptions due to a residual current circuit breaker (RCD) or insulation resistance measurement cannot be tolerated. Complete integration into the GridVis® Power Grid Monitoring software is possible. The device can be integrated directly via the RS-485 interface.It can be used as an RCM at any point, e.g. in direct current systems, for frequency converters, or in applications with increased fire protection requirements. The RCM 202-AB allows type B/type B+ monitoring with common passive residual current transformers. Type B measurement is also possible with separable transformers, making it an ideal solution for existing systems.

Residual currenttransformer

• Residual current measurement, up to 2 residual current transformers
• Measurement range, AC/DC 10 mA ... 20 A

Patented measuring method

• Type A, B, B+ measurement with passive residual current transformers

Standards-Compliant to IEC 62020

• Detection, evaluation and monitoring of residual current types A, B and B+

RCM analysis

• Evaluation of AC and DC
• Harmonic spectrum up to 2 kHz, Type B
• Mixed current up to 20 kHz, Type A, Type B+

Historical data

• Memory for measured values and extreme values with time stamp

On-site operation

• High resolution LCD display with intuitive operation

Peripherals

• 2 analog outputs
• 2 alarm outputs
• Compatible with RCM inputs of the UMG 96-RM-E & UMG 96-PA with RCM module

Communication

• RS485 interface (protocol: Modbus RTU)
• Compatible with all communication-enabled Janitza Modbus master devices

Implement the three application areas of energy management, power quality and residual current monitoring with the scalable GridVis® power grid monitoring software. GridVis® identifies potential energy savings and helps to optimize the utilization of operating equipment as well as detect production failures at an early stage. Numerous functions support the fulfillment of standards, the preparation of key figures and the analysis of measured values. This makes the scalable, user-friendly software perfectly suited for developing standards-compliant energy, residual current and power quality monitoring systems. Depending on your specific needs, there are four editions with different range of functions available.

Energy management

• Certified according to ISO 50001. With Janitza GridVis®, you are on the safe side when it comes to things like BAFA, reduction of the EEG levy or peak balancing according to SpaEfV.

Safety & alarm management

• Monitor limit values of measured variables, consumption data, residual currents and device communication. Escalation levels for needs-based alerting via email and web interface.

Visualization & documentation

• Visualization according to your needs. Create dashboards quickly and easily without programming knowledge and use the report editor for customized reports.

Network analysis & evaluation

• Analyze and evaluate measurement data. Use numerous tools such as statistics, charts, heatmaps, Sankey diagrams and key performance indicators.

Connectivity

• Whether OPC UA, REST API or CSV. We offer many options for data import & export as well as data access. An open and future-proof system.

Automation

• Use the automation functions for time-controlled task management. Plan data imports, report generation or device readouts and create shift schedules.

The highlight of GridVis® 9 is the new improved dashboard editor. Numerous visualization objects and the intuitive operation open up completely new possibilities for the individual design of your dashboards. The new edition GridVis® Cloud is an energy monitoring portal for the simple display of consumption.

The energy monitoring portal

The GridVis® Cloud Edition offers an easy-to-use interface for energy monitoring. Combined with the Cloud Connector, basic consumption data is collected and clearly prepared. You benefit from worldwide access to your data. Conveniently view CO2 emissions and energy costs on predefined dashboards and compare values across different time periods.

Clear and customized dashboards

The Dashboard Editor for the Standard and Expert editions allows for the customizable design of dashboards. Save time and effort when creating your documents with the intuitive tools and drag-and-drop system. Customizable measured values and templates help you to have an overview of the most important values. With the new dashboard period and customizable time periods for each object, you can quickly and easily compare the values from different time periods.

Customize reports

The GridVis® Expert Report Editor enables you to customize reports, archive them and make them available as PDFs in compliance with standards. Additionally, they can be sent automatically via email. Embed images and logos and use various objects, such as charts, in the design of your reports. Reports such as the meter reading cycle and utilization reports are now also available in the web application.

A key success factor for modern companies is transparency across all data levels. Data from all company divisions must be acquired and consolidated in order to optimize planning for production processes, establish safety measures to protect systems and machines, and save costs, for example. This objective entails a number of challenges, because different standards, interfaces and communication options must be coordinated with each other. Networking areas that were previously examined separately, from the machine level to ERP systems and building management systems is very complex. OPC UA is a data transmission standardization that simplifies this consolidation.

The Janitza UMG 801 energy measurement device offers various communication interfaces and enables direct data transmission to higher-level systems via OPC UA, eliminating the need for costly integration.

The modularly expandable UMG 801 is ideally suited for the complete acquisition of an energy management system (e.g. ISO 50001). You gain transparency about energy consumption and energy costs at all measurement levels. In addition, critical deviations in power quality as well as residual currents (RCM), which load or even systems at risk, can be detected.

Future-proof investment: the measuring points can be subsequently extended to up to 92 measurement channels thanks to easily integrated current measuring modules.

All in one device

• The basic device has:
  • 8 current measurement channels with 1/5 A inputs
  • 4 Multifunction channels, optionally configurable as RCM, temperature measurement channels or additional current measurement channels
• Extensive measurement data memory with 4 GB for storage of measurement data
• Two groups with four digital IOs each (tariff changeover and pulse input, logic states)
• Analog output (DC 0/4-20 mA)

High-Precision measurement

• High sampling frequency (51.2 kHz voltage)
• 1024 Samples for the voltage measurement
• High measurement accuracy on all channels (V: 0.2% / A: 0.2% / kWh: class 0.2)
• Maximum safety: 1000 V CAT III
• Extensive power quality parameters
  • Voltage up to 127th harmonic and interharmonics – THD-U and THD-I
  • THD-U and THD-I
  • unbalance
  • Event and transient detection

Visualizing, documenting and analyzing

• Comprehensive options for visualizing, analyzing and documenting energy measurement data (GridVis® software)
• Integrated automatic report generation (GridVis® software)
• Integrated color graphic display for visualization and intuitive configuration on site

Managing and using data

• Various interfaces for simultaneous use
  • 2 Ethernet interfaces
  • RS485 interface for data readout and can be used as gateway
• Comprehensive protocols and services (OPC UA and Modbus)

Profit from OPC UA

• Easy integration of measurement data from the basic device and measurement modules into higher-level systems (e.g. building control systems, SCADA systems)
• Cyber security: Integrated security mechanisms to protect against unauthorized access and misuse
• Configuration of the entire measuring system via OPC UA
• Future-proof software architecture as the OPC UA standard evolves with new applications

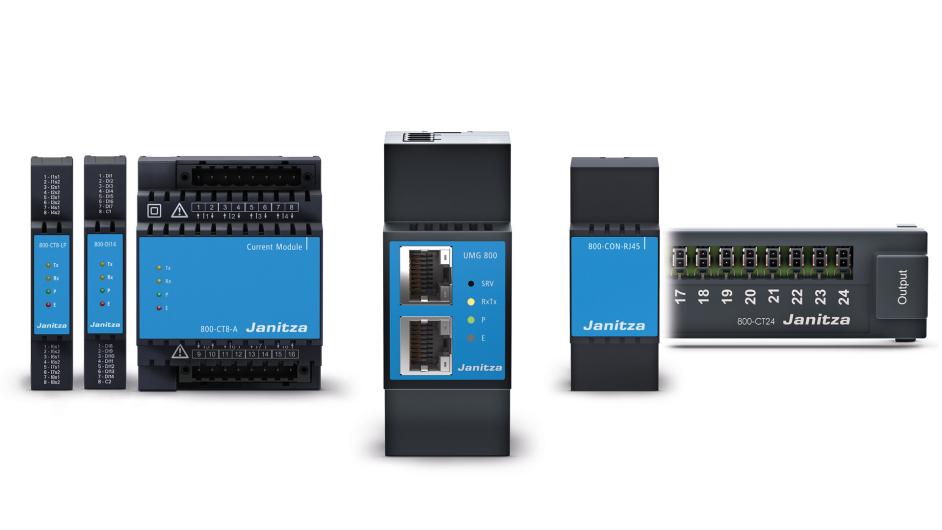

Expansion module 800-CT8-A

The 800-CT8-A expansion module extends the base device with 8 additional current measuring
channels for each module attached. The modules can be connected using a click system with no
external cabling between the base device and the current measuring modules.

• 8 additional current measuring channels
• Connection of conventional current transformers
• Installation via click system with no external cabling
• Compact 4 sub-unit size
• Requires a single module slot

Expansion module 800-CT8-LP

You can use the 800-CT8-LP expansion module to expand the basic device by 8 additional current measuring channels for low power current transformers. The module takes up very little space with just one 1 sub-unit. The modules are connected via the click system. You do not need any cables connecting the basic device and module.

Low power current transformers offer numerous advantages over conventional transformers. For example, they do not have to be short-circuited during
installation or servicing, which eliminates the need for transformer disconnect terminals. This saves a lot of space in the switchboard cabinet and saves the cost of disconnect terminals and installation.

• 8 additional current measuring channels
• Connection of low power current transformers
• Installation via click system with no external cabling
• Takes up very little space with just one 1 sub-unit and no transformer disconnect terminals are required
• Price advantage of low power current transformers compared to conventional transformers
• Higher levels of occupational health and safety during installation
• Up to 40% cost saving and 75% space saving compared to 800-CT8-A module

Expansion module 800-DI14

The 800-DI14 expansion module has 14 additional digital inputs. Use the click system to connect the modules to the base system.

• 14 additional digital inputs used to capture digital status information (on/off, open/closed,
  etc.)
• Installation via click system with no external cabling
• Takes up very little space with just one 1 sub-unit
• Requires a single module slot

Transfer Module 800-CON-RJ45

• Has a RJ45 interface and can be connected via a standardized cable
• 2 modules connect remote measurement points with each other
• Bridge distances of up to 100 m using cables
• only 2 sub-units per module
• Requires no module slot

Transfer module 800-CON

Remote measurement points can be connected quickly and easily using the 800-CON transfer module. This involves docking the transition module to the base device and connecting it to a transition module located up to 100 m away using a cable.

The expansion modules can be connected to the second transition module to take measurements
remotelyand record the data.

An 800-CON module does not requires a module slot.

From power quality analysis to energy monitoring, from residual current to temperature monitoring, the UMG 96-PQ-L-LP offers the right functions for every application. Avoid system failures by clearly displaying the entire power quality of a measurement level at low cost with the UMG 96-PQ-L-LP.

Short of space in the switchboard cabinet? Thanks to the low-power current inputs, classic current transformers can be replaced with smaller and less expensive current transformers. Since low-power transformers operate in the millivolt range on the secondary side, no converter disconnect terminal is required.

Passive Rogowski coils can also be used for simple retrofit solutions. In this case, the measurement device serves as the measurement transducer, saving money and essential space in the switchboard cabinet.

The UMG 96-PQ-L-LP modular network analyzer can measure full-wave events and present and analyze them directly in the network display. It also comes with a large memory, which, thanks to a special data compression method, ensures several years’ worth of storage. Memory partitioning preserves the long storage time for current, power and work even in combination with high-resolution power quality measurement.

All values can be conveniently displayed and graphically represented on the color graphic display. What’s more, the UMG 96-PQ-L-LP offers plug-in modules for functional enhancements and 50 comparators that can be configured individually or via predefined comparator profiles.

Low-Power Inputs

• Switchable current measuring channel
• Low-power current measuring channel for low-cost 333 mV current transformer
• Current measurement with passive Rogowski coils e.g. 100 mV/1 kA

Power Quality

• Harmonics current up to the 65th harmonic
• High sampling rate with 280 sampling points per full wave
• 20 ms RMS value memory for full-wave events

Energy Management

• Identify savings potentials
• Active energy class 0.5 S
• Compliance with regulatory and tax requirements Configurable screened average values

Visualization

• Oscilloscope function
• Phasor diagram on the display
• History of drag indicator values on the display
• Resetting of the drag indicator values via display or remotely

Operation

• 6-button operation on the color graphic display
• Intuitive operation
• Configuration directly on the display
• On-site operation
• Configurable home screen and jump-back point

Events

• Representation in the display
• Read out last event via Modbus
• Display root-mean-square value curves in the GridVis® event browser

Modularity

• Temperature measurement with monitoring via integrated comparator
• Ethernet interface and Modbus gateway
• Multifunction inputs for residual current measurement or DC power measurement

Limit Value Monitoring

• 50 comparators in the device
• Hysteresis
• Predefined comparator profiles for quick configuration (GridVis®)

Peripherals

• 3 digital outputs
• 1 analog output
• 3 digital inputs
• 4 power inputs directly from the basic device

Installation & Integration

• Overvoltage category 600 V CAT III / 300 V CAT IV
• Easy installation thanks to 96 x 96 mm front panel
• Time setting via third-party systems according to EN 60870-5-4:1993
• Serial interface with Modbus RTU

Communication

• Client / Server*
• Gateway function*
• Ethernet interface*
• RS-485
• 5 simultaneous Modbus TCP connections* (*with module 96-PA-RCM-EL)

Memory

• High memory depth with low memory requirements
• Memory depth up to 15 years with 23 measured values of 15 min each and 8 measured values of 1 h each
• Memory partitioning into long-term memory and high-resolution PQ short-term memory

Module UMG 96-PA-RCM-EL

The device is quick and easy to expand with 1 Ethernet interface, 2 residual current inputs amd 1 thermistor input by means of a plug-in extension module. When used with the Ethernet module, the device offers additional connection options for up to 30 simple MID energy meters as slave devices, e.g. of the type B23 312-10J.

• Temperature measurement with monitoring via integrated comparator
• Ethernet interface and Modbus gateway
• Residual current measurement or DC power measurement

The two-channel residual current monitoring device meets the requirements of the DIN EN 62020 standard. A recurring insulation test can be omitted or at least limited. Typical applications are low-voltage main distribution boards (LVMDB) and subdistribution panels (SDP) in grounded systems (e.g. TN-S systems). The RCM 202-AB is a technical alternative usable across all industries when power interruptions due to a residual current circuit breaker (RCD) or insulation resistance measurement cannot be tolerated. Complete integration into the GridVis® Power Grid Monitoring software is possible. The device can be integrated directly via the RS-485 interface.It can be used as an RCM at any point, e.g. in direct current systems, for frequency converters, or in applications with increased fire protection requirements. The RCM 202-AB allows type B/type B+ monitoring with common passive residual current transformers. Type B measurement is also possible with separable transformers, making it an ideal solution for existing systems.

Residual currenttransformer

• Residual current measurement, up to 2 residual current transformers
• Measurement range, AC/DC 10 mA ... 20 A

Patented measuring method

• Type A, B, B+ measurement with passive residual current transformers

Standards-Compliant to IEC 62020

• Detection, evaluation and monitoring of residual current types A, B and B+

RCM analysis

• Evaluation of AC and DC
• Harmonic spectrum up to 2 kHz, Type B
• Mixed current up to 20 kHz, Type A, Type B+

Historical data

• Memory for measured values and extreme values with time stamp

On-site operation

• High resolution LCD display with intuitive operation

Peripherals

• 2 analog outputs
• 2 alarm outputs
• Compatible with RCM inputs of the UMG 96-RM-E & UMG 96-PA with RCM module

Communication

• RS485 interface (protocol: Modbus RTU)
• Compatible with all communication-enabled Janitza Modbus master devices

Implement the three application areas of energy management, power quality and residual current monitoring with the scalable GridVis® power grid monitoring software. GridVis® identifies potential energy savings and helps to optimize the utilization of operating equipment as well as detect production failures at an early stage. Numerous functions support the fulfillment of standards, the preparation of key figures and the analysis of measured values. This makes the scalable, user-friendly software perfectly suited for developing standards-compliant energy, residual current and power quality monitoring systems. Depending on your specific needs, there are four editions with different range of functions available.

Energy management

• Certified according to ISO 50001. With Janitza GridVis®, you are on the safe side when it comes to things like BAFA, reduction of the EEG levy or peak balancing according to SpaEfV.

Safety & alarm management

• Monitor limit values of measured variables, consumption data, residual currents and device communication. Escalation levels for needs-based alerting via email and web interface.

Visualization & documentation

• Visualization according to your needs. Create dashboards quickly and easily without programming knowledge and use the report editor for customized reports.

Network analysis & evaluation

• Analyze and evaluate measurement data. Use numerous tools such as statistics, charts, heatmaps, Sankey diagrams and key performance indicators.

Connectivity

• Whether OPC UA, REST API or CSV. We offer many options for data import & export as well as data access. An open and future-proof system.

Automation

• Use the automation functions for time-controlled task management. Plan data imports, report generation or device readouts and create shift schedules.

The highlight of GridVis® 9 is the new improved dashboard editor. Numerous visualization objects and the intuitive operation open up completely new possibilities for the individual design of your dashboards. The new edition GridVis® Cloud is an energy monitoring portal for the simple display of consumption.

The energy monitoring portal

The GridVis® Cloud Edition offers an easy-to-use interface for energy monitoring. Combined with the Cloud Connector, basic consumption data is collected and clearly prepared. You benefit from worldwide access to your data. Conveniently view CO2 emissions and energy costs on predefined dashboards and compare values across different time periods.

Clear and customized dashboards

The Dashboard Editor for the Standard and Expert editions allows for the customizable design of dashboards. Save time and effort when creating your documents with the intuitive tools and drag-and-drop system. Customizable measured values and templates help you to have an overview of the most important values. With the new dashboard period and customizable time periods for each object, you can quickly and easily compare the values from different time periods.

Customize reports

The GridVis® Expert Report Editor enables you to customize reports, archive them and make them available as PDFs in compliance with standards. Additionally, they can be sent automatically via email. Embed images and logos and use various objects, such as charts, in the design of your reports. Reports such as the meter reading cycle and utilization reports are now also available in the web application.
