Inovance Technology Europe GmbH

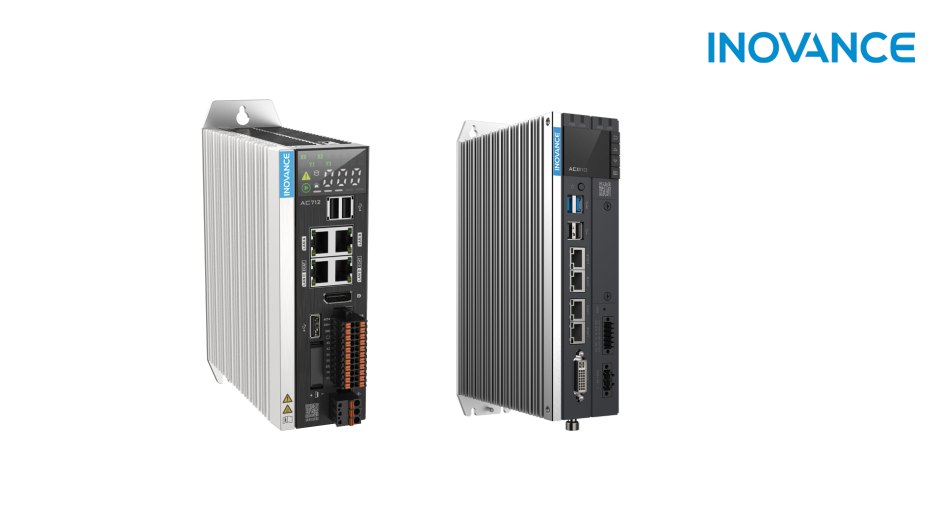

AC700 & AC800 Series IPC Motion Controllers

AC700 & AC800 Series IPC Motion Controllers

Inovance Technology Europe GmbH

Supplier profile All products

Contact supplier

Description

CPU: Celeron series (AC703) or Intel i5 (AC810)
Dual EtherCAT ports with redundancy support (AC802, AC810)
Up to 256 EtherCAT axes
Multiple communication protocols:
- Modbus RTU/TCP
- Ethernet IP
- OPC UA
Remote commissioning and IIoT capabilities
IEC 61131-3 programming environment (CODESYS)
Webvisu functionality (AC703, AC810)

More from us

Our website Our product

More products by Inovance Technology Europe GmbH

SV670 and SV680 Servo Drives

SV670 – Single-Axis Servo Drive

1/3 ph 200V, 3 ph 400V
1 kW to 7.5 kW
STO SIL 3 PL e
Ultra-fast 4.5 kHz current loop
Easy set-up and tuning
Feedback encoder interface: serial (Weton), Nikon and Tamagawa
Second encoder interface: incremental quadrature
EtherCAT, pulse, CANopen variants
+24 VDC backup control supply (as variant)

SV680 – Single-Axis Servo Drive

1/3 ph 200V, 3 ph 400V
1 kW to 7.5 kW
STO SIL 3 PL e
SS1, SS2, SLS, SBC, SOS, SSM, SDI SIL 3 PL e (option)
Ultra-fast 4.5 kHz current loop
Easy set-up and tuning
Feedback encoder interface: serial (Weton), BiSS-C and SSI
Second encoder interface: incremental quadrature, serial (Weton), BiSS-C and SSI
EtherCAT and pulse variants
Linear motor control
+24 VDC backup control supply (option)

Trade fair innovation

Easy Series PLC and GL20 I/O Modules

Easy series PLC

Compact footprint
Able to control up to 32 EtherCAT axes (72 slaves)
Up to 16 local expansion modules (GL20)
Built-in I/Os
8 High speed inputs (200 kHz)
8 DO (with 4x 200 kHz channels & PWM support)
PLCopen-compliant axis control
Axis group for lineal and circular interpolation, CAM table functionality
Simulation mode for offline debugging
Supports function block and function for encapsulation, code reusability, and scalability
ST, LD, SFC language support
Multiple communication protocols: Modbus RTU/TCP, CANopen (optional), Ethernet/IP (scanner)

GL20 Expansion modules

Local & remote I/O expansion for Easy series, remote for AC700, AC800, H5U & AM600
EtherCAT, PROFINET, Ethernet/IP and I/O-Link couplers for remote expansion (up to 16 modules)
Min EtherCAT cycle 125µs
DI/DO hardware response time within 100µs
AI/AO capture cycle up to 62.5 µs
Digital I/O modules
Analog I/O modules
Temperature sensing modules

MD800 - Compact AC multi-drive

MD800 is answering the call of OEMs for reduced installation costs and smaller machine cabinets. It has a modular design that allows up to 8 drives per rectifier, reducing overall drive footprint by up to 50% compared to traditional single drive modules. And it’s the rising star of our product range.

50% footprint reduction
Common rectifier, 1 to 8 drives
Single and dual drive modules
1 ph 200V, 3 ph 400V
2 kW to 7.5 kW (dual: up to 3.7 kW)
STO SIL 3 PL e individual for each drive
+24 VDC backup control supply
Induction and PMS motor control (sensorless)
Built-in Modbus RTU, CANopen
EtherCAT, PROFINET, Ethernet/IP as option

SV670 and SV680 Servo Drives

SV670 – Single-Axis Servo Drive

1/3 ph 200V, 3 ph 400V
1 kW to 7.5 kW
STO SIL 3 PL e
Ultra-fast 4.5 kHz current loop
Easy set-up and tuning
Feedback encoder interface: serial (Weton), Nikon and Tamagawa
Second encoder interface: incremental quadrature
EtherCAT, pulse, CANopen variants
+24 VDC backup control supply (as variant)

SV680 – Single-Axis Servo Drive

1/3 ph 200V, 3 ph 400V
1 kW to 7.5 kW
STO SIL 3 PL e
SS1, SS2, SLS, SBC, SOS, SSM, SDI SIL 3 PL e (option)
Ultra-fast 4.5 kHz current loop
Easy set-up and tuning
Feedback encoder interface: serial (Weton), BiSS-C and SSI
Second encoder interface: incremental quadrature, serial (Weton), BiSS-C and SSI
EtherCAT and pulse variants
Linear motor control
+24 VDC backup control supply (option)

Trade fair innovation

Easy Series PLC and GL20 I/O Modules

Easy series PLC

Compact footprint
Able to control up to 32 EtherCAT axes (72 slaves)
Up to 16 local expansion modules (GL20)
Built-in I/Os
8 High speed inputs (200 kHz)
8 DO (with 4x 200 kHz channels & PWM support)
PLCopen-compliant axis control
Axis group for lineal and circular interpolation, CAM table functionality
Simulation mode for offline debugging
Supports function block and function for encapsulation, code reusability, and scalability
ST, LD, SFC language support
Multiple communication protocols: Modbus RTU/TCP, CANopen (optional), Ethernet/IP (scanner)

GL20 Expansion modules

Local & remote I/O expansion for Easy series, remote for AC700, AC800, H5U & AM600
EtherCAT, PROFINET, Ethernet/IP and I/O-Link couplers for remote expansion (up to 16 modules)
Min EtherCAT cycle 125µs
DI/DO hardware response time within 100µs
AI/AO capture cycle up to 62.5 µs
Digital I/O modules
Analog I/O modules
Temperature sensing modules

MD800 - Compact AC multi-drive

50% footprint reduction
Common rectifier, 1 to 8 drives
Single and dual drive modules
1 ph 200V, 3 ph 400V
2 kW to 7.5 kW (dual: up to 3.7 kW)
STO SIL 3 PL e individual for each drive
+24 VDC backup control supply
Induction and PMS motor control (sensorless)
Built-in Modbus RTU, CANopen
EtherCAT, PROFINET, Ethernet/IP as option

SV670 and SV680 Servo Drives

SV670 – Single-Axis Servo Drive

1/3 ph 200V, 3 ph 400V
1 kW to 7.5 kW
STO SIL 3 PL e
Ultra-fast 4.5 kHz current loop
Easy set-up and tuning
Feedback encoder interface: serial (Weton), Nikon and Tamagawa
Second encoder interface: incremental quadrature
EtherCAT, pulse, CANopen variants
+24 VDC backup control supply (as variant)

SV680 – Single-Axis Servo Drive

1/3 ph 200V, 3 ph 400V
1 kW to 7.5 kW
STO SIL 3 PL e
SS1, SS2, SLS, SBC, SOS, SSM, SDI SIL 3 PL e (option)
Ultra-fast 4.5 kHz current loop
Easy set-up and tuning
Feedback encoder interface: serial (Weton), BiSS-C and SSI
Second encoder interface: incremental quadrature, serial (Weton), BiSS-C and SSI
EtherCAT and pulse variants
Linear motor control
+24 VDC backup control supply (option)

Trade fair innovation

Easy Series PLC and GL20 I/O Modules

Easy series PLC

Compact footprint
Able to control up to 32 EtherCAT axes (72 slaves)
Up to 16 local expansion modules (GL20)
Built-in I/Os
8 High speed inputs (200 kHz)
8 DO (with 4x 200 kHz channels & PWM support)
PLCopen-compliant axis control
Axis group for lineal and circular interpolation, CAM table functionality
Simulation mode for offline debugging
Supports function block and function for encapsulation, code reusability, and scalability
ST, LD, SFC language support
Multiple communication protocols: Modbus RTU/TCP, CANopen (optional), Ethernet/IP (scanner)

GL20 Expansion modules

Local & remote I/O expansion for Easy series, remote for AC700, AC800, H5U & AM600
EtherCAT, PROFINET, Ethernet/IP and I/O-Link couplers for remote expansion (up to 16 modules)
Min EtherCAT cycle 125µs
DI/DO hardware response time within 100µs
AI/AO capture cycle up to 62.5 µs
Digital I/O modules
Analog I/O modules
Temperature sensing modules
