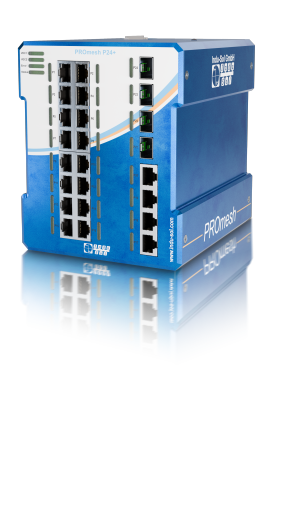

PROmesh P24+ – The full-managed 24-port switch for diagnostics and security
Description
The PROmesh P24+ is a full-managed Industrial Ethernet and PROFINET switch that combines high-performance networking with extensive diagnostic and security functions. Designed for industrial environments, it supports data rates of up to 10 Gbit/s and provides reliable communication for up to 24 lines.
The integrated diagnostics make network conditions transparent at all times:
-
Line diagnostics monitor cable quality continuously.
-
Port statistics provide detailed insights into errors, discards, load (per ms or s) and neighboring devices.
-
Environmental monitoring detects leakage current, vibration, light or humidity.
-
Port mirroring and customizable triggers allow targeted alarms on the web interface, in the system or directly on mobile devices.
Beyond diagnostics, PROmesh P24+ enhances network security and flexibility:
-
Security features: Integrated firewall, ACLs and NAT routing enable access control and support PROFINET Security Level 1 and IEC 62443 concepts.
-
Flexible connectivity: 20 RJ45 ports and 4 SFP slots allow copper or fiber optic connections.
-
Robust design: Compact metal housing, DIN rail mounting and extended operating temperature range (–40 °C to +75 °C).
-
Certifications: CE, UKCA, UL/CSA and PROFINET v2.4.
With its combination of high-speed performance, permanent monitoring and advanced security functions, the PROmesh P24+ provides a transparent, secure and stable foundation for modern industrial networks.
