Hokuyo Automatic Co.,Ltd

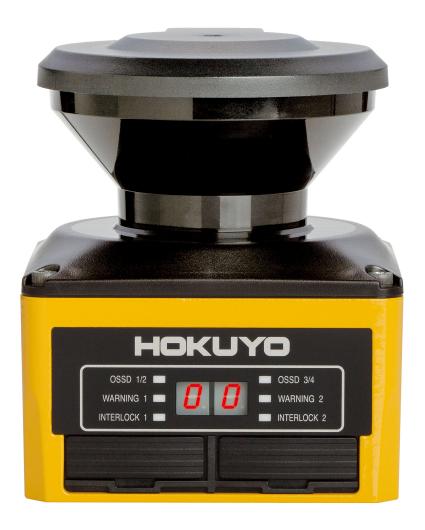

UAM-05LP-T301

UAM-05LP-T301

Hokuyo Automatic Co.,Ltd

Description

With its small profile and 5m protection range, UAM-05LP-T301 is the world's smallest and longest protection range Safety Laser Scanner. Under its innocent look, customers will appreciate a load of features which allow them to save cost on additional accessories and modules. Namely, the master-slave function allows to configure one scanner as a master and up to 3 scanner as a slave which reduces drastically cabling and maintenance effort. Equipped with encoders inputs, it allows dynamic protection fields switching logic to be configured on the scanner which reduces the need for higher specs PLC and extra modules. In addition to the rich safety related features, the scanner provides raw measurements data of 270° FOV up to 40m for navigation through a dedicated Ethernet port. Each measurement includes range and intensity information at 33Hz data rate. Visit our booth to see it performing live!

More products by Hokuyo Automatic Co.,Ltd

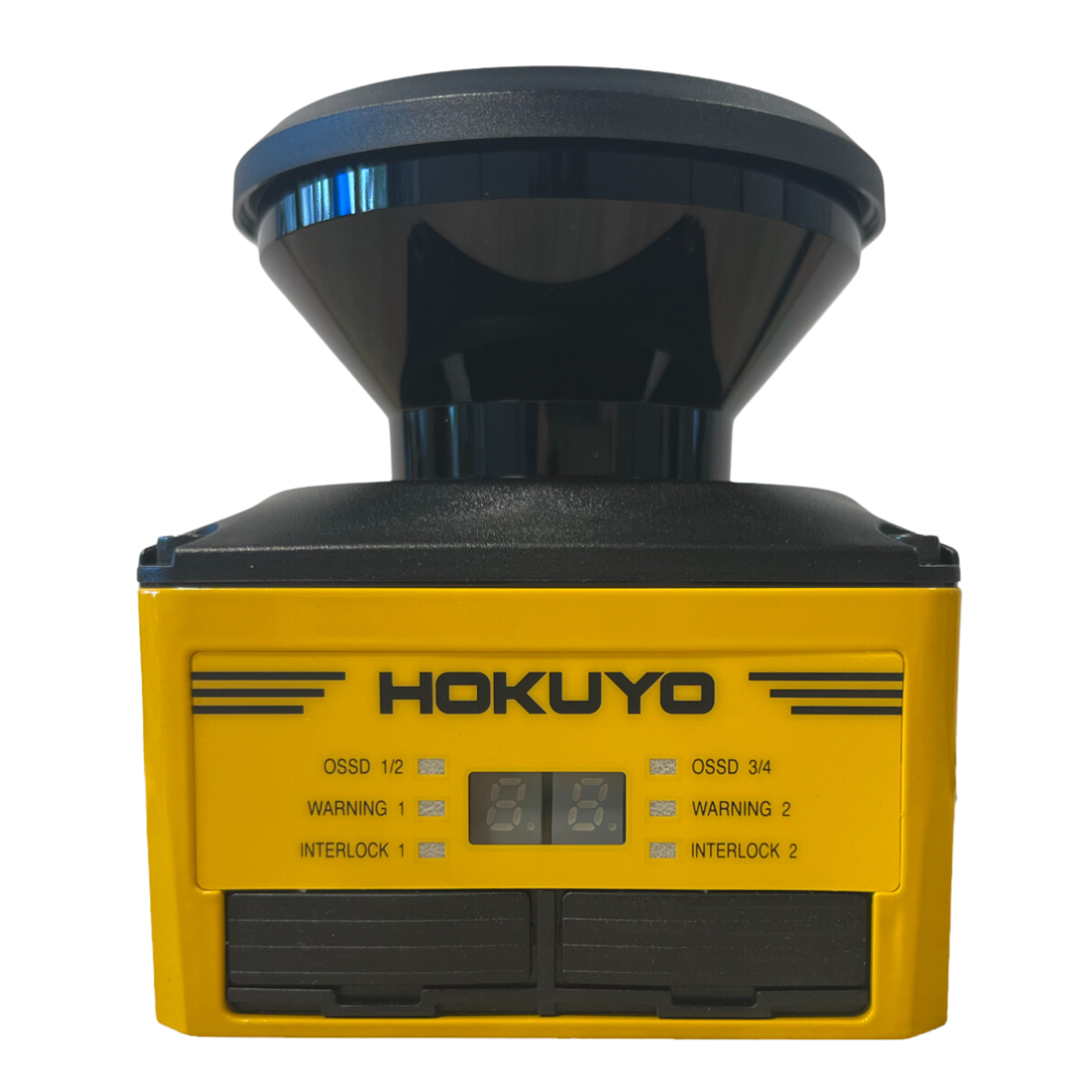

UAM-05LECA-T301

UAM-05LECA-T301 is a Safety LiDAR scanner with FSoE support. It is the last addition to Hokuyo's safety lineup.
With the EtherCAT support, UAM-05LE-T301 offers more benefits to its users.

Followings are some of the benefits:

  • Simplified cabling connection to control and system
  • Extended number of detection field (max.176 detection field set)
  • Maximum 5 simultaneous protection and warning zones monitoring
  • Flexible configuration via USB, FoE (File over EtherCAT) and EoE (Ethernet over EtherCAT)
  • Measurement data obtained via EoE (Ethernet over EtherCAT)
  • Hybrid connectivity for AGV application
  • Smallest safety scanner with EtherCAT support, 80mm x 100mm x 95mm (W x D x H)
  • Performance and functions inherited from the successful former model

The scanner can be configured either via USB, FoE or EoE. Configuration via FoE is done offline. It is efficient for bulk configuration during mass-production and prevents users from configuration failures thanks to its provisioning system. EoE support is another valuable feature of UAM-05LECA-T301. Since natural navigation using raw measurement data via Ethernet is becoming a trend for AGV application, EoE support gives its users more flexibility on their system architecture.

UAM-05LECA-T301 is a hybrid scanner. While supporting EtherCAT, UAM-05LE-T301 retains its encoder and reset inputs to accommodate with AGV application. This allows users to develop their AGV with their own choice of encoders. Since encoders are directly connected to the scanner, it also saves the extra modules cost.

UAM-05LECA-T301 is an innovative and user-friendly product designed with the future of the industry in mind.
