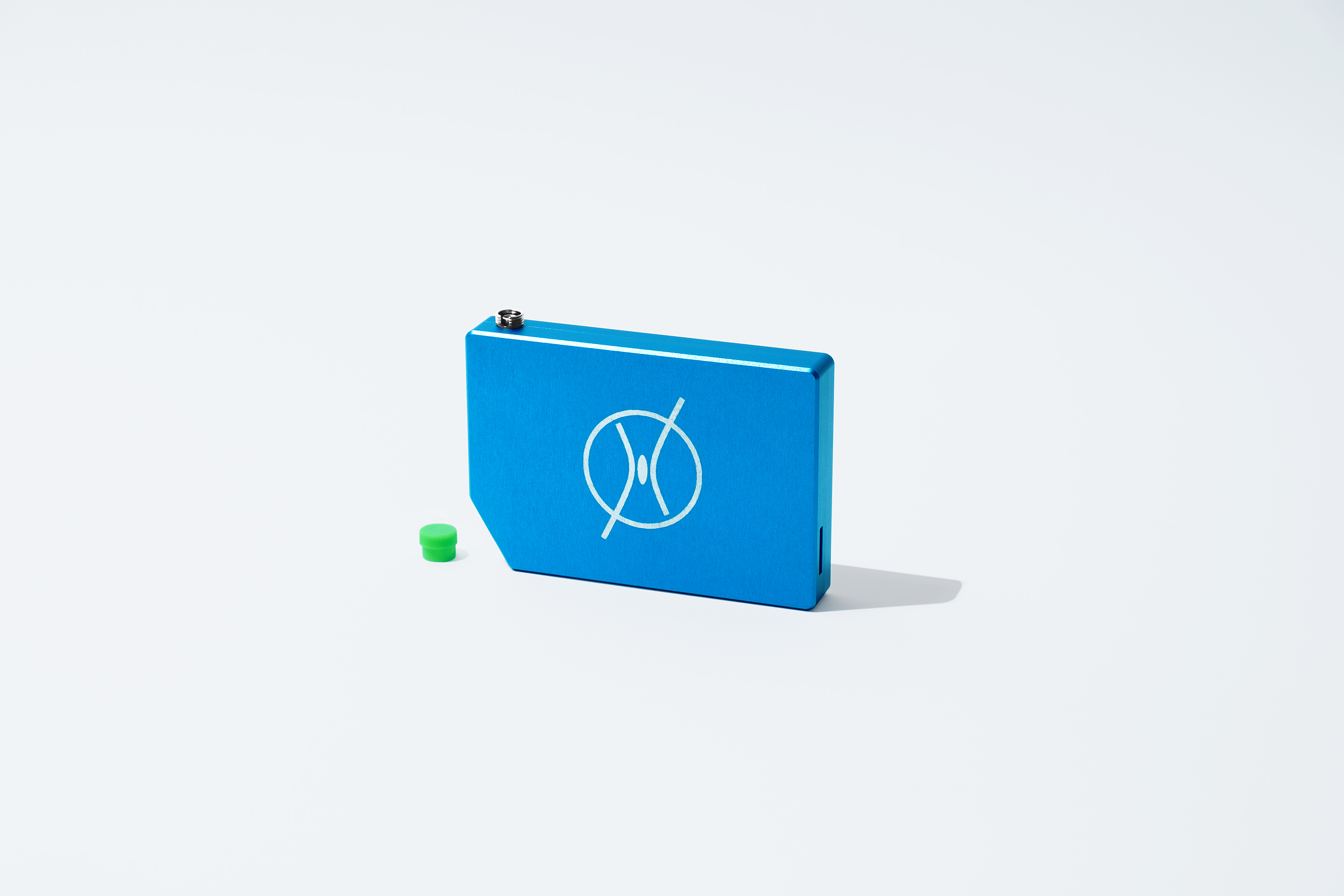

Ultra-compact, rugged and cost-effective FBG-Interrogator.
Fully-integrated system with light source and electronics including
onboard analysis for real-time measurement and streaming of wavelength, strain and temperature data.

10dB Bandwidth: 810-880nm
Number of Channels: 1
Max. number of FBG: 30
FBG-Temperature Precision (Typ):
0.45/0.15/0.05K @ 100/10/1Hz (2sigma)
FBG-Strain Precision (Typ):
4.5/1.5/0.5µe @ 100/10/1Hz (2sigma)
Thermal Stability: below 0.1C/C
Repetition rate: up to 200Hz

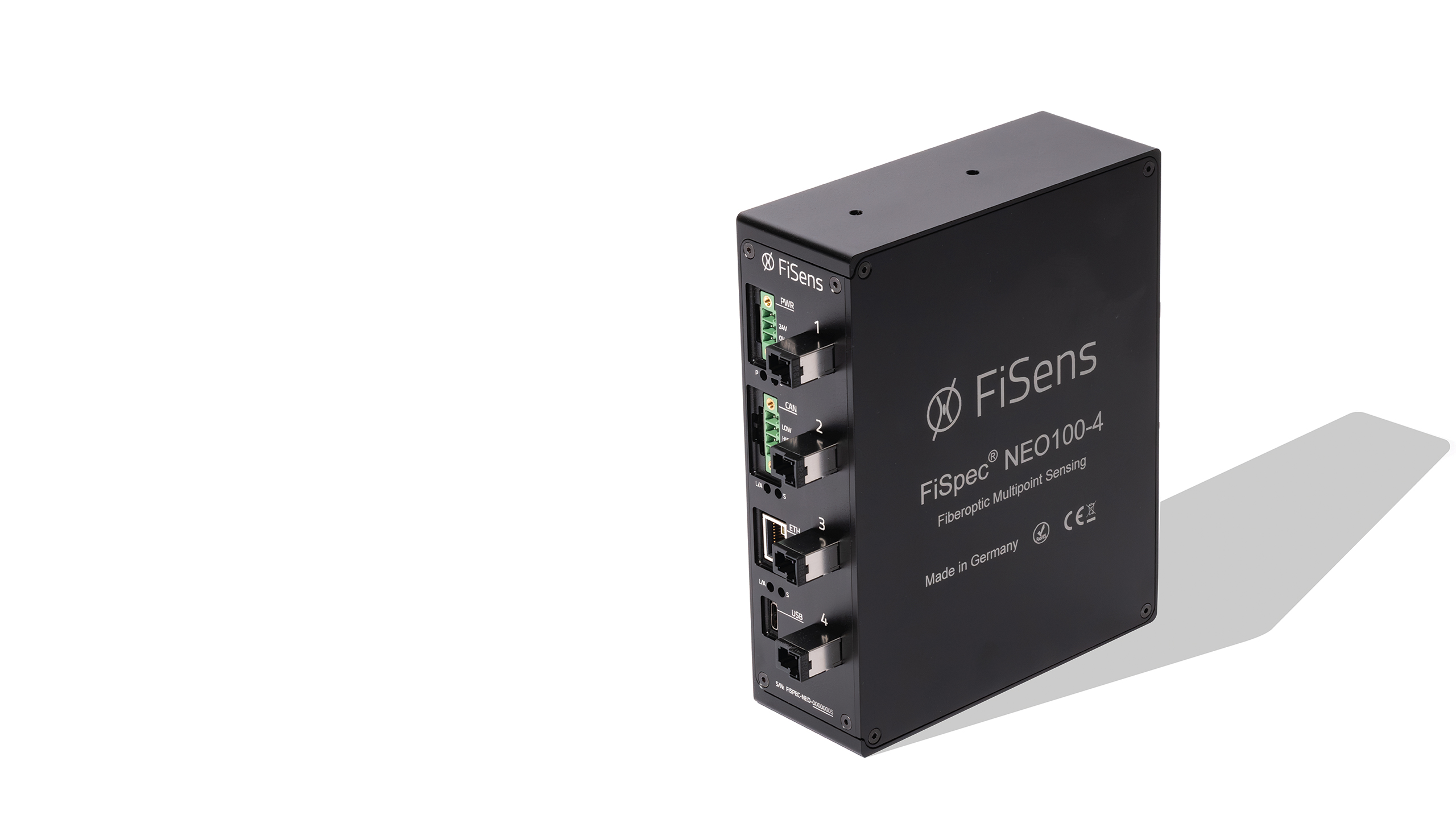

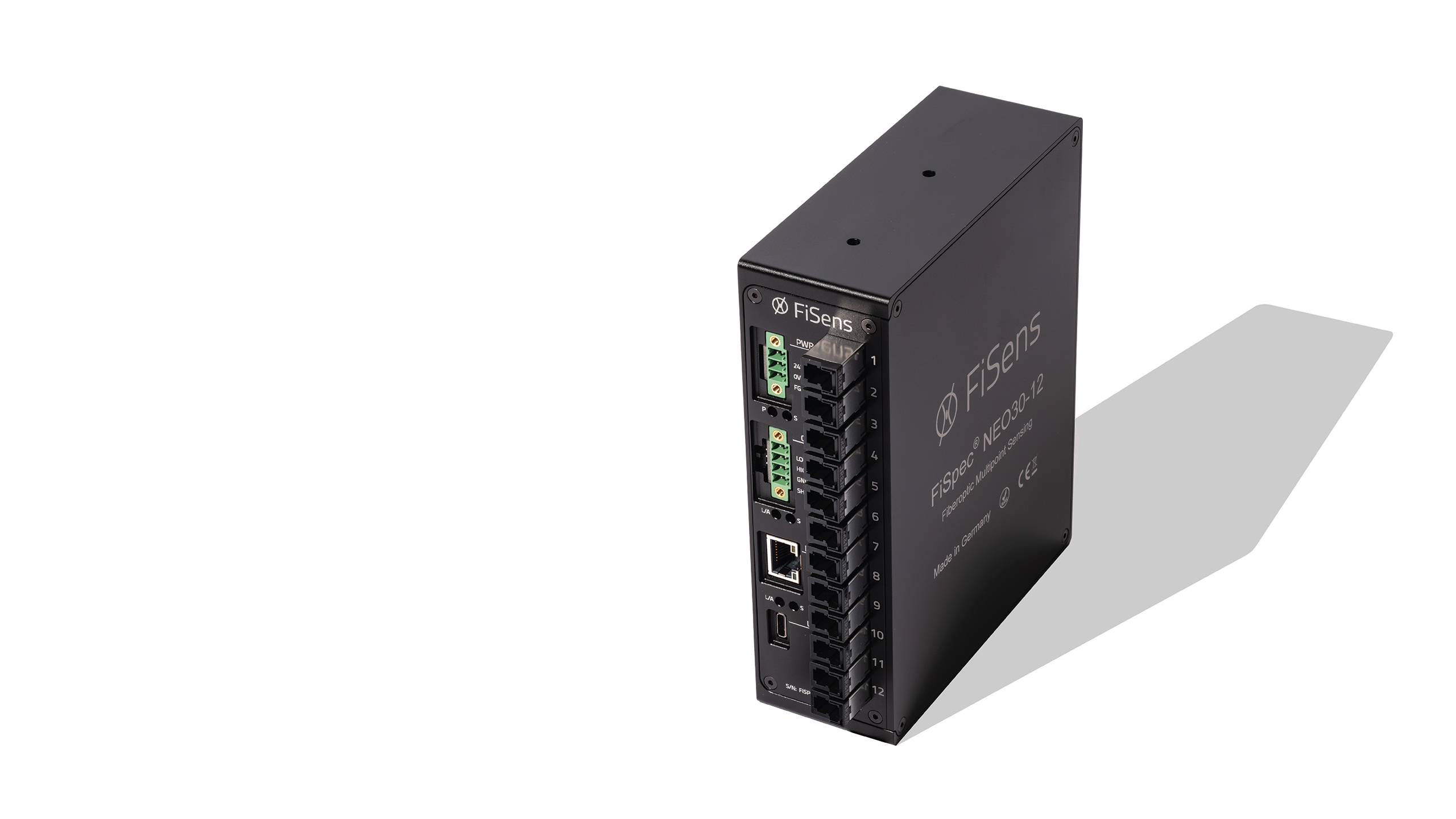

The NEO FBG Interrogator platform is FiSens’s latest innovation, featuring
a powerful set of precise, accurate fiber Bragg grating (FBG)
measurements and an unprecedented multiplexing capability of up to
300 sensing points over 12 optical fibers.

The NEO platform is designed as a highly inter-operable measurement
instrument for direct, seamless integration into any industrial environment.
It has a DIN-rail mounting clip and supports most common industrial
fieldbuses, including PROFINET, CANopen, and EtherNet/IP as
well as machine-to-machine communication protocols such as MQTT.

Equipped with an RTOS, web server, and over-the-air firmware update
capabilities, the NEO FBG Interrogator supports IoT-ready applications,
ultimately easing the setup and utilization of temperature or
strain sensing fibers.

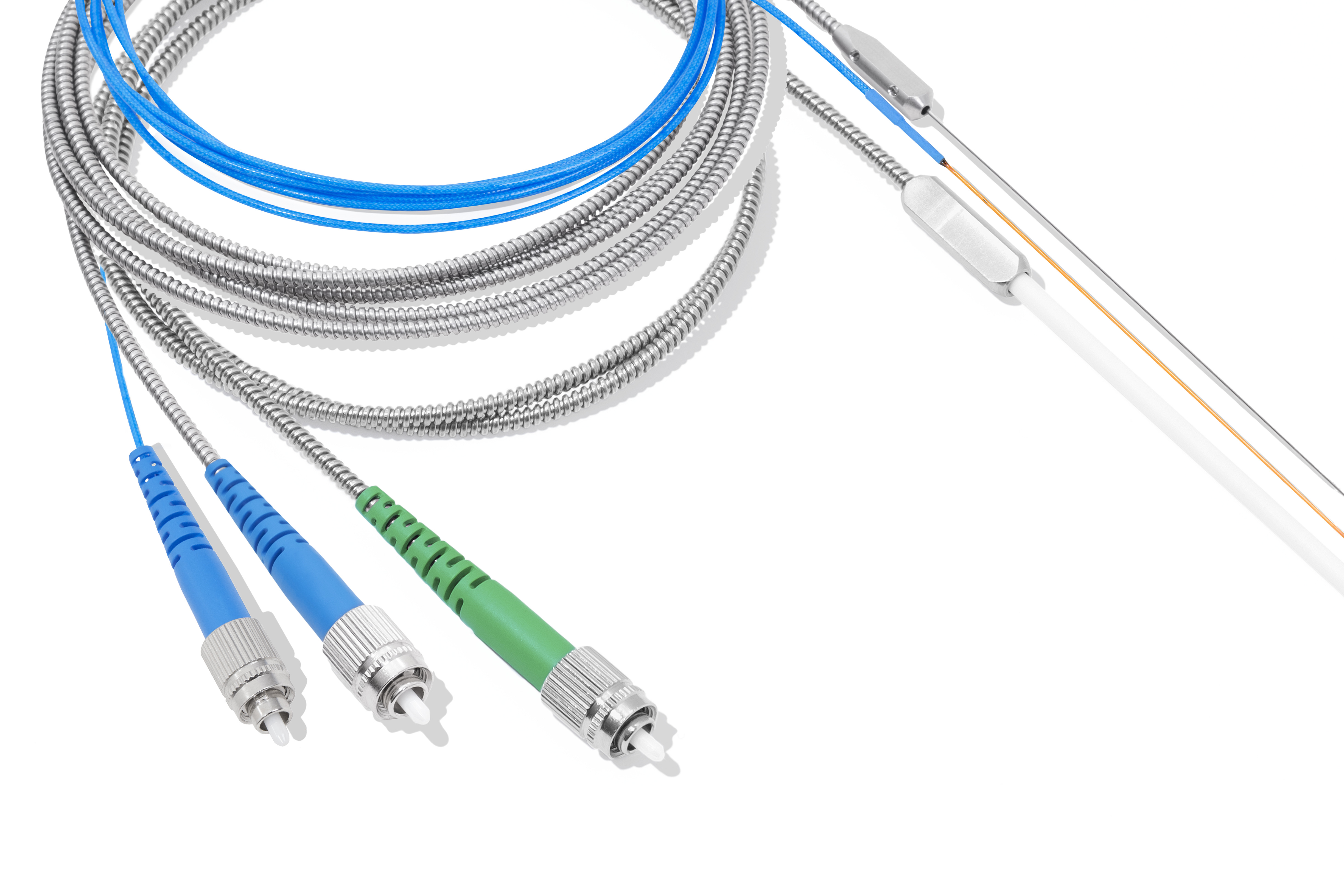

Highest-quality fiber Bragg grating (FBG) sensor arrays housed in custom tubings and capillaries for direct use. The FBG fibers are assembled with FC/APC connectors and configured with central wavelengths to be interoperable with all our FiSpec FBG Interrogators.

The NEO FBG Interrogator platform is FiSens’s latest innovation, featuring
a powerful set of precise, accurate fiber Bragg grating (FBG)
measurements and an unprecedented multiplexing capability of up to
300 sensing points over 12 optical fibers.

The NEO platform is designed as a highly inter-operable measurement
instrument for direct, seamless integration into any industrial environment.
It has a DIN-rail mounting clip and supports most common industrial
fieldbuses, including PROFINET, CANopen, and EtherNet/IP as
well as machine-to-machine communication protocols such as MQTT.

Equipped with an RTOS, web server, and over-the-air firmware update
capabilities, the NEO FBG Interrogator supports IoT-ready applications,
ultimately easing the setup and utilization of temperature or
strain sensing fibers.

Ultra-compact, rugged and cost-effective FBG-Interrogator.
Fully-integrated system with light source and electronics including
onboard analysis for real-time measurement and streaming of wavelength, strain and temperature data.

10dB Bandwidth: 810-880nm
Number of Channels: 1
Max. number of FBG: 30
FBG-Temperature Precision (Typ):
0.45/0.15/0.05K @ 100/10/1Hz (2sigma)
FBG-Strain Precision (Typ):
4.5/1.5/0.5µe @ 100/10/1Hz (2sigma)
Thermal Stability: below 0.1C/C
Repetition rate: up to 200Hz

The NEO FBG Interrogator platform is FiSens’s latest innovation, featuring
a powerful set of precise, accurate fiber Bragg grating (FBG)
measurements and an unprecedented multiplexing capability of up to
300 sensing points over 12 optical fibers.

The NEO platform is designed as a highly inter-operable measurement
instrument for direct, seamless integration into any industrial environment.
It has a DIN-rail mounting clip and supports most common industrial
fieldbuses, including PROFINET, CANopen, and EtherNet/IP as
well as machine-to-machine communication protocols such as MQTT.

Equipped with an RTOS, web server, and over-the-air firmware update
capabilities, the NEO FBG Interrogator supports IoT-ready applications,
ultimately easing the setup and utilization of temperature or
strain sensing fibers.

Highest-quality fiber Bragg grating (FBG) sensor arrays housed in custom tubings and capillaries for direct use. The FBG fibers are assembled with FC/APC connectors and configured with central wavelengths to be interoperable with all our FiSpec FBG Interrogators.
