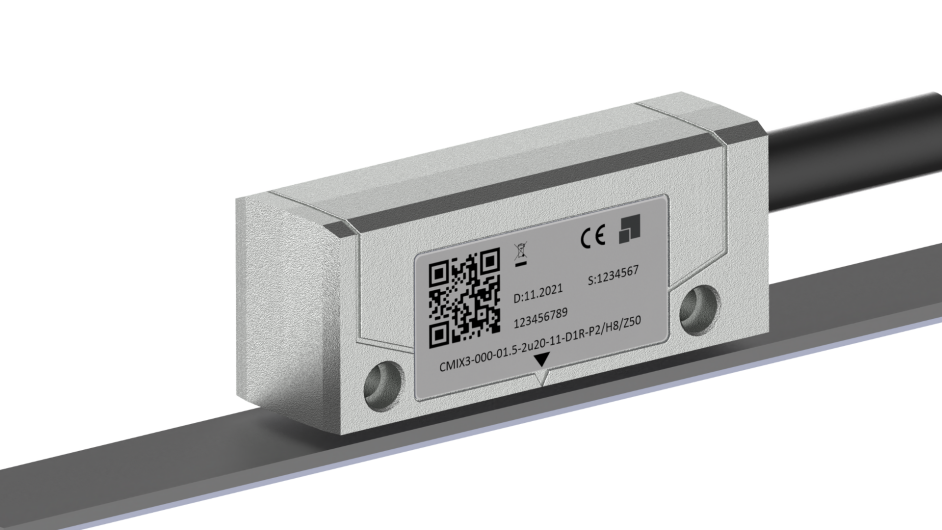

Programmable Incremental Linear Encoder System - High-Resolution & Super-Fast & Smart
Description
The CMIX3 series is a magnetic encoder system for linear and rotary applications, with the highest resolution and a travel speed of up to 100 m/s. The high resolution makes the encoder compatible for applications in which only optical measuring systems could previously be used.
The encoder head contains both the required evaluation electronics and an interface for programming various software parameters. This means that the system can be flexibly adapted to the needs of the application, even when installed via cable.
An error display via the RGB LED and the integrated error memory speed up problem detection and reduce downtime. Thanks to the contactless magnetic measuring principle, the system is completely maintenance-free and wear-free.
PROFILE CMIX3
- -High resolution - up to 16 nm (with four-edge evaluation)
- Super fast - high output frequency of up to 32 MHz (increments/s)
- Smart - customer-specific functions can be retrofitted using software add-ons
- Flexible - parameters such as resolution, index pulse width, hysteresis and much more. can be configured via cable when installed
- Convenient - firmware updates possible via cable when installed
- Robust - robust zinc die-cast housing, protection class IP67, optimal EMC protection
- High availability - error display via LED and the integrated error memory speed up problem detection and shorten downtimes
- Linear & rotary - for linear and rotary applications
Address
ELGO Electronic GmbH & Co. KG
Carl-Benz-Str. 1
78239 Rielasingen
Germany
Telephone+49 7731 93390
Fax+49 7731 28803
