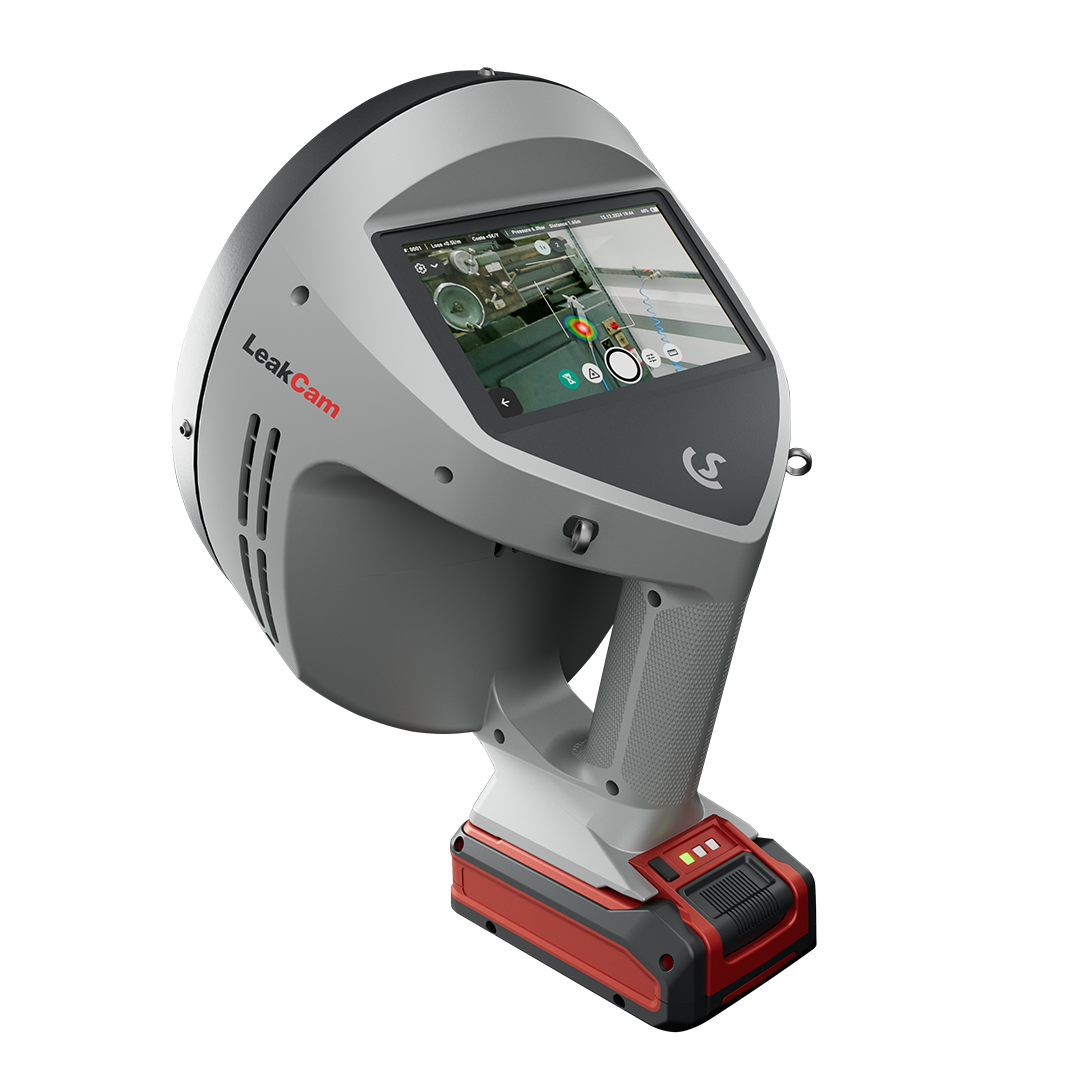

The LeakCam 600 precisely detects compressed air leaks and leaks in compressed gases - even in noisy industrial production environments. Equipped with 64 ultrasonic MEMS microphones and the Power Beam Forming algorithm, it visualises multiple leakages simultaneously and enables them to be located quickly from a great distance. This saves you time when searching for leaks, reduces energy costs and increases the efficiency of maintenance.

• The power beam forming algorithm - enables simultaneous detection and visualisation of multiple leakages from long distances
• 64 ultrasonic microphones arranged at a maximum distance of 20 cm enable the precise localisation of leakages from a distance of up to 120 metres with a compressed air leakage of 10 € / year.
• Customisable frequency range from 2 to 80 kHz for accurate leak detection, even in noisy production facilities, sources of interference are effectively masked.
• Intuitive operation without the need for training.
• 5" HD display and 13 megapixel camera for clear, detailed visualisations.
• Ergonomic design with one-handed handle, neck strap and fastening eyelets for extended use.
• Replaceable batteries for up to 8 hours of operating time, enabling uninterrupted work.
• Estimation of leakage volume in l/min or cfm and calculation of annual costs.
• Precise focussing and leakage rate determination thanks to integrated laser distance module.
• Compatibility with Leak Reporter V2 and Cloud-solution software for advanced analysis and documentation.

Leak detector with a camera – indicates leakage rate in [l/min or cfm] and costs in country currency [ e.g. $ / year]

Reduce your energy costs by fixing compressed air leaks and increase your profitability and sustainability with the help of the perfect interaction between the LD 500/510 and the associated software "CS Leak Reporter."

Special features of leak detector LD 500/LD 510

• Find the smallest leaks even at great distances
• Find out your leakage size (l/min or cfm) and potential saving (currency/ year)
• Automatic laser distance measurement for a more reliable cost calculation
• Auto level: adapts the sensitivity automatically to the environment and eliminates the background noise reliably (0 dB to 120 dB bandwidth)
• Photograph leaking parts
• Describe each leak and the necessary actions via the built-in touchscreen
• Transmit the leak details via USB to your desktop software
• Create an ISO 50001 report
• Seek the leak the whole day (9 hours battery life)
• Additional sensor input for CS Instruments and 3rd party sensors (LD 510 only)

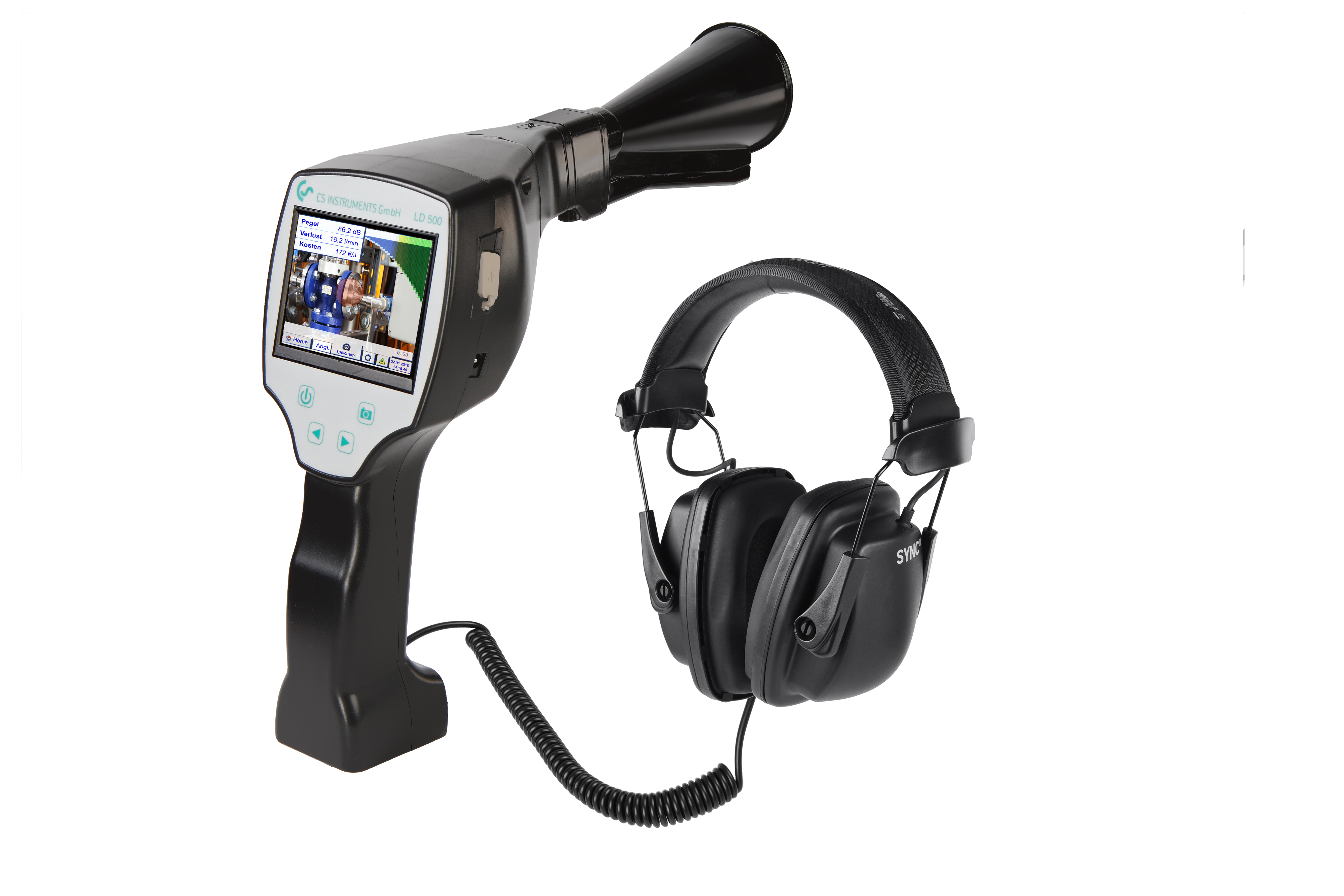

The LD 500 leak detector measures the ultrasound generated by compressed air, steam, gas, and vacuum leaks, as well as partial discharge on insulators, transformers, switchgear, high-voltage lines (corona effect). Ultrasound, which is inaudible to the human ear, is amplified and mixed into the audible sound frequency range by the LD 500. This enables you to precisely locate the compressed air leak (ultrasonic source) via the headphones and the camera image, even in noisy environments.

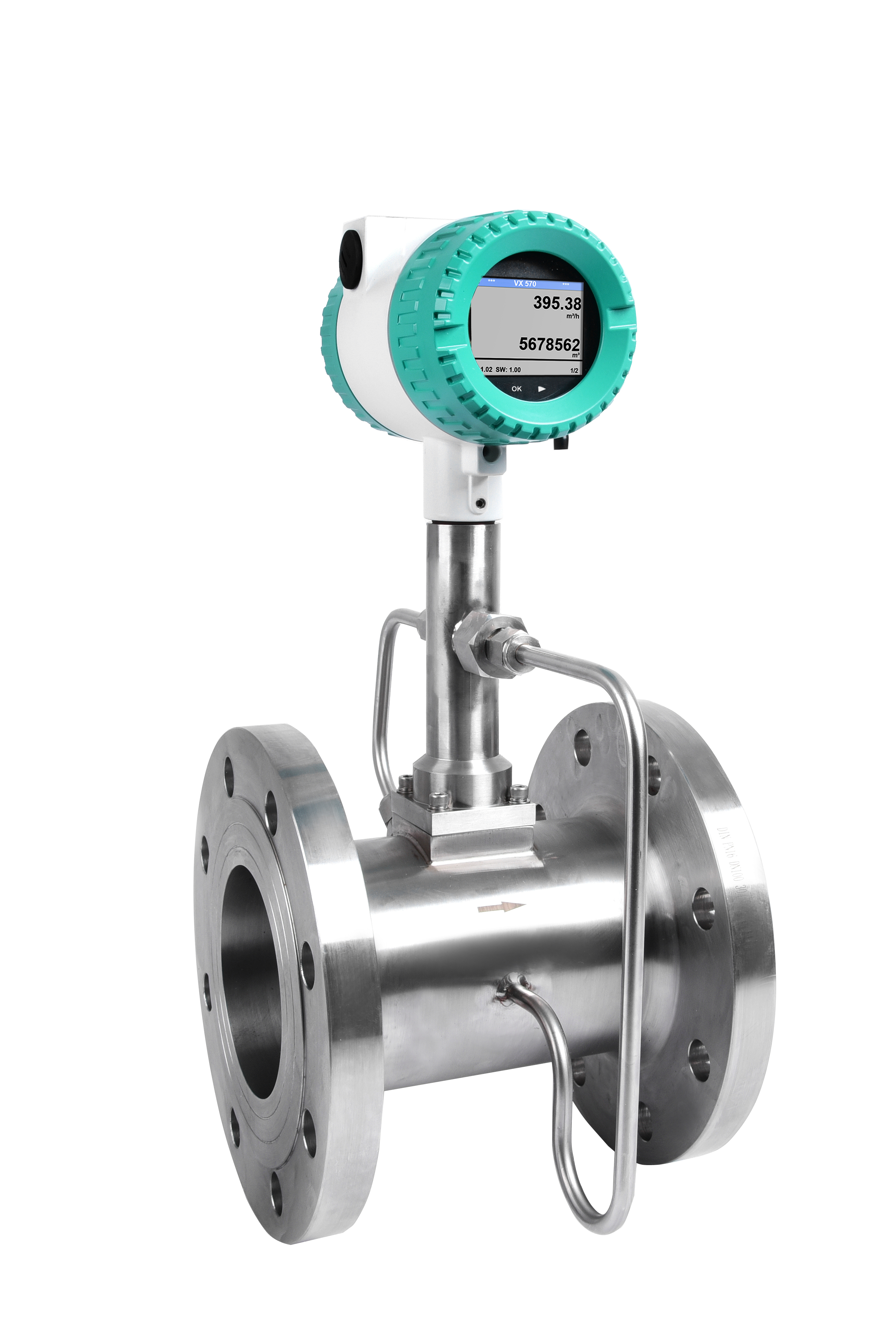

VX 570 - Vortex Flow sensor for steam, gases and liquidsThe high-precision all-rounder with integrated pressure and temperature compensationField of application:

• Measurement of saturated steam or superheated steam
• Measurement of liquids
• Measurement of mixed gases
• Measurement of corrosive media

Benefits at a glance:

• Measurement of standard volume flow, operating volume flow, mass flow
• Measurement at high temperatures of up to 350°C
• Measurement up to 63 bar
• Suitable for unknown/changing gas compositions and mixed gases
• Aggression resistant – all parts in contact with media made of stainless steel
• Not sensitive to vibrations due to reference vibration measurement
• No moving parts

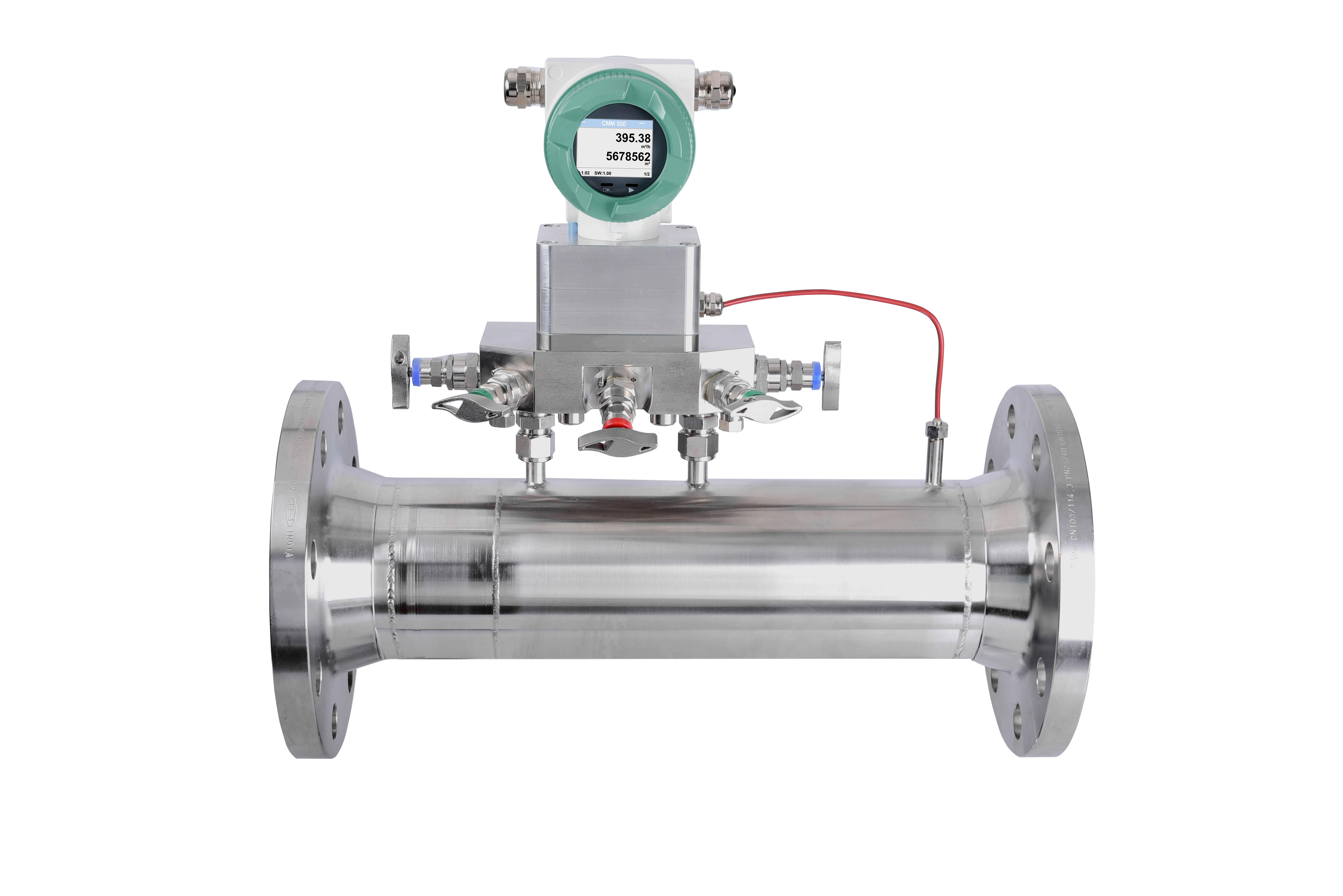

The CMM 500 Compressor Master Meter is a new type of reference flow measuring device that has been specially developed for high-precision measuring of the capacity of compressors and for billing compressed air. The CMM 500 can be used both directly downstream of the compressor for measuring wet compressed air and as a compressed air meter for consumption measurement and billing of dry compressed air.

The large measuring span of 1:130 and an accuracy of <0.5 % of the measured value (0.2 Qmax to Qmax) are unique.

Service or maintenance can be carried out at any time via the mounting plate (zero point correction, condensate drain, sensor replacement for calibration), even during operation under pressure.

The LeakCam 600 precisely detects compressed air leaks and leaks in compressed gases - even in noisy industrial production environments. Equipped with 64 ultrasonic MEMS microphones and the Power Beam Forming algorithm, it visualises multiple leakages simultaneously and enables them to be located quickly from a great distance. This saves you time when searching for leaks, reduces energy costs and increases the efficiency of maintenance.

• The power beam forming algorithm - enables simultaneous detection and visualisation of multiple leakages from long distances
• 64 ultrasonic microphones arranged at a maximum distance of 20 cm enable the precise localisation of leakages from a distance of up to 120 metres with a compressed air leakage of 10 € / year.
• Customisable frequency range from 2 to 80 kHz for accurate leak detection, even in noisy production facilities, sources of interference are effectively masked.
• Intuitive operation without the need for training.
• 5" HD display and 13 megapixel camera for clear, detailed visualisations.
• Ergonomic design with one-handed handle, neck strap and fastening eyelets for extended use.
• Replaceable batteries for up to 8 hours of operating time, enabling uninterrupted work.
• Estimation of leakage volume in l/min or cfm and calculation of annual costs.
• Precise focussing and leakage rate determination thanks to integrated laser distance module.
• Compatibility with Leak Reporter V2 and Cloud-solution software for advanced analysis and documentation.

Leak detector with a camera – indicates leakage rate in [l/min or cfm] and costs in country currency [ e.g. $ / year]

Reduce your energy costs by fixing compressed air leaks and increase your profitability and sustainability with the help of the perfect interaction between the LD 500/510 and the associated software "CS Leak Reporter."

Special features of leak detector LD 500/LD 510

• Find the smallest leaks even at great distances
• Find out your leakage size (l/min or cfm) and potential saving (currency/ year)
• Automatic laser distance measurement for a more reliable cost calculation
• Auto level: adapts the sensitivity automatically to the environment and eliminates the background noise reliably (0 dB to 120 dB bandwidth)
• Photograph leaking parts
• Describe each leak and the necessary actions via the built-in touchscreen
• Transmit the leak details via USB to your desktop software
• Create an ISO 50001 report
• Seek the leak the whole day (9 hours battery life)
• Additional sensor input for CS Instruments and 3rd party sensors (LD 510 only)

The LD 500 leak detector measures the ultrasound generated by compressed air, steam, gas, and vacuum leaks, as well as partial discharge on insulators, transformers, switchgear, high-voltage lines (corona effect). Ultrasound, which is inaudible to the human ear, is amplified and mixed into the audible sound frequency range by the LD 500. This enables you to precisely locate the compressed air leak (ultrasonic source) via the headphones and the camera image, even in noisy environments.

VX 570 - Vortex Flow sensor for steam, gases and liquidsThe high-precision all-rounder with integrated pressure and temperature compensationField of application:

• Measurement of saturated steam or superheated steam
• Measurement of liquids
• Measurement of mixed gases
• Measurement of corrosive media

Benefits at a glance:

• Measurement of standard volume flow, operating volume flow, mass flow
• Measurement at high temperatures of up to 350°C
• Measurement up to 63 bar
• Suitable for unknown/changing gas compositions and mixed gases
• Aggression resistant – all parts in contact with media made of stainless steel
• Not sensitive to vibrations due to reference vibration measurement
• No moving parts
