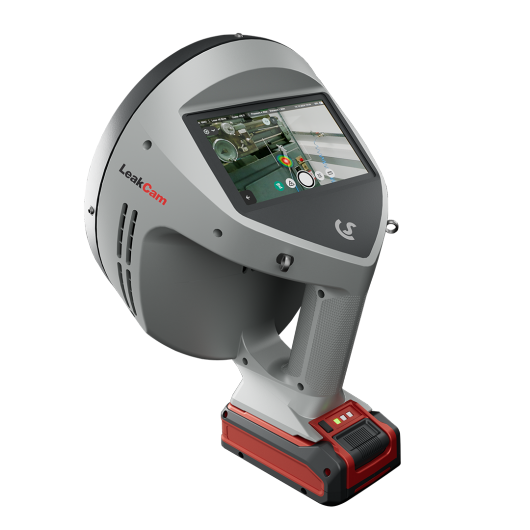

Leak detector with a camera – indicates leakage rate in [l/min or cfm] and costs in country currency [ e.g. $ / year]

Reduce your energy costs by fixing compressed air leaks and increase your profitability and sustainability with the help of the perfect interaction between the LD 500/510 and the associated software "CS Leak Reporter."

Special features of leak detector LD 500/LD 510

• Find the smallest leaks even at great distances
• Find out your leakage size (l/min or cfm) and potential saving (currency/ year)
• Automatic laser distance measurement for a more reliable cost calculation
• Auto level: adapts the sensitivity automatically to the environment and eliminates the background noise reliably (0 dB to 120 dB bandwidth)
• Photograph leaking parts
• Describe each leak and the necessary actions via the built-in touchscreen
• Transmit the leak details via USB to your desktop software
• Create an ISO 50001 report
• Seek the leak the whole day (9 hours battery life)
• Additional sensor input for CS Instruments and 3rd party sensors (LD 510 only)

The LD 500 leak detector measures the ultrasound generated by compressed air, steam, gas, and vacuum leaks, as well as partial discharge on insulators, transformers, switchgear, high-voltage lines (corona effect). Ultrasound, which is inaudible to the human ear, is amplified and mixed into the audible sound frequency range by the LD 500. This enables you to precisely locate the compressed air leak (ultrasonic source) via the headphones and the camera image, even in noisy environments.

Thermal mass flow sensor for compressed air and gases

Recording and reducing energy costs and CO2 emissions while increasing the sustainability of any compressed air system. With our VA500 it is possible to monitor your consumption and analyze your leakage flows with just one measuring device. Due to its design, it is also ideal for mobile measurements.

Advantages of the VA 500 flow meter:

• Measurement of mass flow direct output of standard volume flow
• Highly accurate at small as well as higher flow rates
• Pressure and temperature compensated by the thermal mass flow principle
• Quick and easy installation via a ½" ball valve
• No moving parts, thus low maintenance
• Vanishingly low pressure drop due to vanishingly low blockage of the diameter
• Can be used for compressed air and non-corrosive gases such as nitrogen, oxygen, argon, helium, etc.

VX 570 - Vortex Flow sensor for steam, gases and liquidsThe high-precision all-rounder with integrated pressure and temperature compensationField of application:

• Measurement of saturated steam or superheated steam
• Measurement of liquids
• Measurement of mixed gases
• Measurement of corrosive media

Benefits at a glance:

• Measurement of standard volume flow, operating volume flow, mass flow
• Measurement at high temperatures of up to 350°C
• Measurement up to 63 bar
• Suitable for unknown/changing gas compositions and mixed gases
• Aggression resistant – all parts in contact with media made of stainless steel
• Not sensitive to vibrations due to reference vibration measurement
• No moving parts

The CMM 500 Compressor Master Meter is a new type of reference flow measuring device that has been specially developed for high-precision measuring of the capacity of compressors and for billing compressed air. The CMM 500 can be used both directly downstream of the compressor for measuring wet compressed air and as a compressed air meter for consumption measurement and billing of dry compressed air.

The large measuring span of 1:130 and an accuracy of <0.5 % of the measured value (0.2 Qmax to Qmax) are unique.

Service or maintenance can be carried out at any time via the mounting plate (zero point correction, condensate drain, sensor replacement for calibration), even during operation under pressure.
