Planetary gearboxes have much higher mechanical rating compared to parallel shaft gearboxes as the power being transmitted gets equally distributed among four streams in each stage thus reducing the induced stresses, which very much optimizes the sizes as well allows to accommodate higher ratio to eliminate open pair.
• The reduction in floor space as compared to conventional drive i.e. with open gearing, almost to the
tone of 50% reduction in floor space.
• Heaviest gear internals such as annuli are stationary thus requires no bearing and automatically
improves the stability and reduces the vibration level and in turn noise. Low noise level 80-85 db as
well as low vibration level going up to 4.5 mm/sec can be achieved.
• Planetary gearbox has an advantage the planet bearings are only loaded where as in case of bearing supporting sun or carrier loads are more or less nullified by virtue of higher number of planets and their equal and opposite forces.
• Lubrication of planetary gearbox is quiet simple as the rotating gear train partially acts as pump thus
allowing splash lubrication.
• We are proposing two to four stage planetary gearboxes; in each stage sun is input and carrier is the output keeping annuli stationary as well acting as casing.
• Elecon Benzler’s machine capability cuts the internal teeth of annulus to the accuracy of DIN-7 or Grinds if required to the accuracy class DIN-6.

Roller Mils are directly driven bevel-wheel planetary gears or bevel cylindrical gear units.
The gear unit represents an almost integral component of the mill. The output flange of the gear unit is rigidly connected with the grinding table. In addition to transmitting the torque ,the gear unit also has capability to take up the reaction forces from the the griding force of the mill’s rollers.

Hydro dynamically or hydrostatically lubricated thrust bearing being mounted in the upper housing parts of the gear unit absorb the grinding force which is then transferred though the housing into mill’s foundation .
This growing number of roller mills in operation as well as the increasing specific need and demand of gear transmission feature .

Features: Bevel Planetary Gear box with horizontal input and vertically flanged output shaft with inbuilt thrust bearings

Advantages: Compact design suitable for high power transmission and capable of withstanding high loads due to grinding rollers

Technical Specifications: B2PV 101 to B2PV 186

Elecon Benzler is a leading manufacturer and exporter of various types of fixed and variable speed industrial couplings. Elecon Benlzer’s range of Couplings includes Elign Geared coupling, Elflex Flexible couplings, Fluid couplings, Scoop controlled variable speed controlled fluid coupling, and torsion shaft couplings. Elecon Benzler couplings are well known for their energy efficiency with low maintenance there by increasing the life of gearboxes and motors that drive them.

Elecon Benzler couplings are preferred by the engineering industry due to their rugged construction, simple design, and operational reliably in extended duty cycles and are widely used in multiple industries including steel, rolling mills, heavy engineering, sugar, material handling, mining, coal, power, and more.

SPECIFICATION RANGE

Size: 130 to 6,27,000
Power: 0.136 to 2,320 kW
Torque: 0.70 to 6,2070 KNm

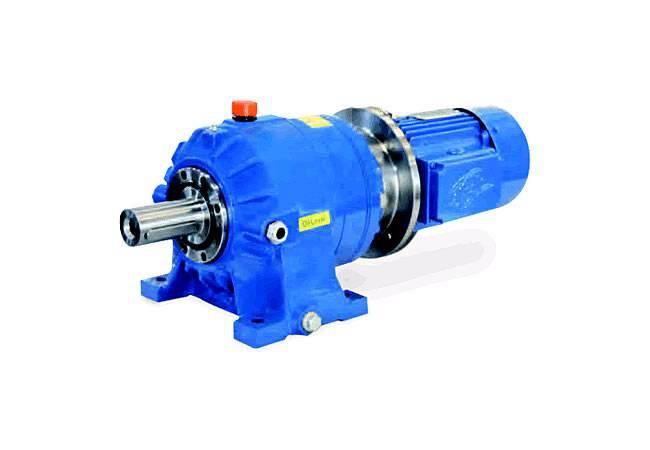

Discover the next level of performance with the ELECON BENZLERS Second Generation Gearbox - EON2 series. Engineered to perfection, this series offers a versatile range of Helical and Bevel-Helical executions tailored to meet a diverse spectrum of applications.

The EON2 series represents the culmination of over seven decades of relentless research and
development by ELECON BENZLERS. Our journey has been shaped by invaluable field experience
spanning a multitude of industries and applications.

Benefits with EON2 Gearbox:

• Compact dimensions
• Robust highly reliable design
• Fully modular design
• High torque to weight
• Prompt delivery
• Boost efficiency
