ZED by STXI Motion is a compact plug-n-play low-voltage servo drive with an output current of up to 30A.

Its small footprint enables space-saving and near-motor mounting, easily fitting within the tight space constraints of applications such as electronics assembly, medical devices, and AGVs/AMRs.

Supporting common motor feedback types and STO functional safety, ZED meets the full range of resolution and safe operation requirements from static to extremely dynamic applications.

Tech Spec:

Current (cont./peak): 15/100 A rms

Voltage: 24-48 VDC

Fieldbus: CANopen , EtherCAT

• Designed for durability in tough environmental conditions.
• Compact design perfectly fits compact applications such as mobile robotics.
• Energy efficiency provides a greater range of non-stop mobility.

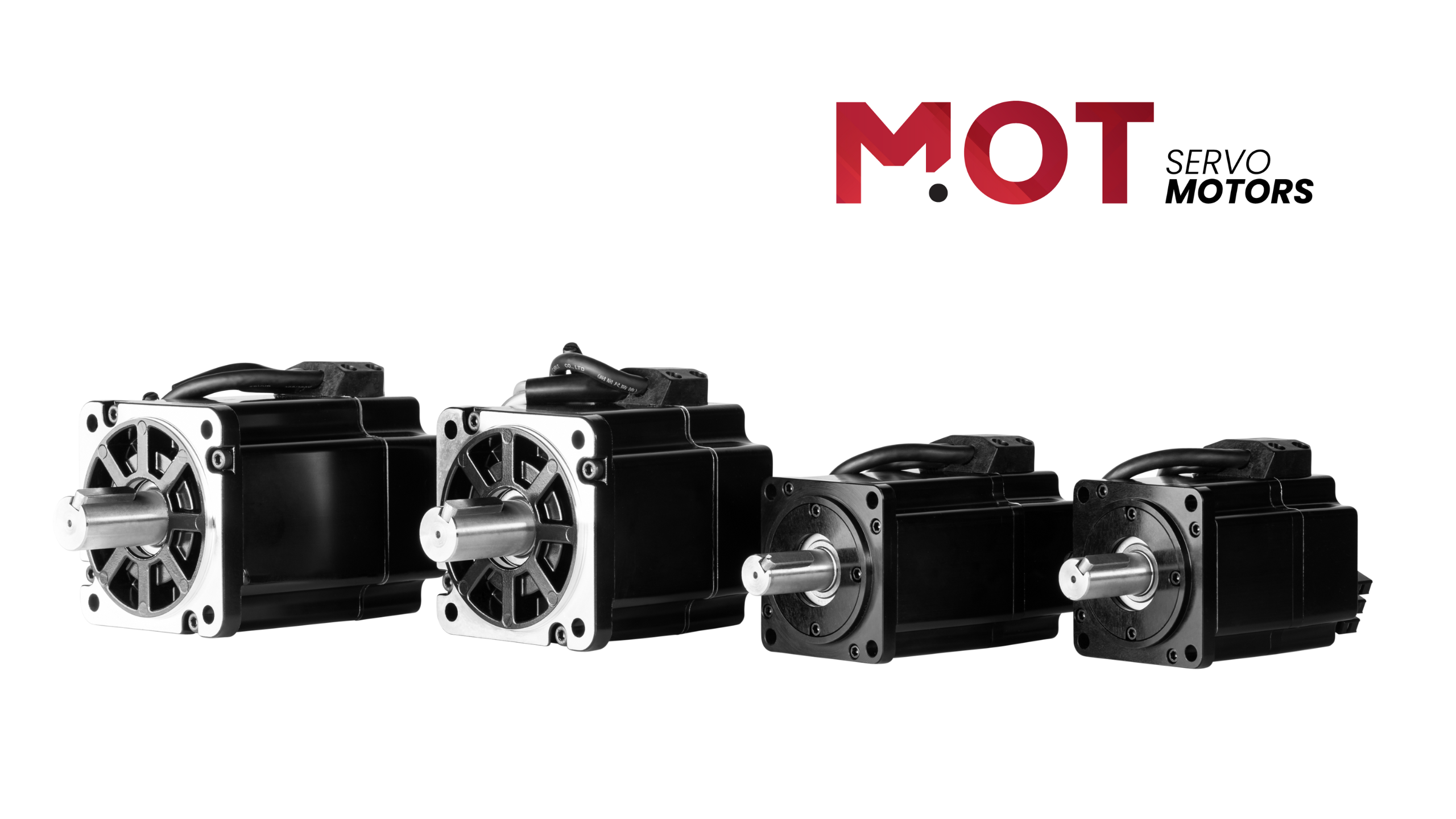

Combining high dynamics and power density, MOT synchronous servo motors provide an efficient and cost-effective solution for low-voltage applications.

Paired with the ZED low voltage servo drive, the MOT servo motors offer unmatched performance and high power density, all within a compact deisgn.

Tech Spec:

Flange size: 60 mm, 80 mm

Power: 200-800 W

Rated torque: 0.64-2.55 Nm

Peak torque: 1.92-7.6 NM

Rated speed: 3,000 rpm

Max speed: 5,400 rpm

Votage: 48 VDC

Compact. Robust. Optimized.

MOT is a comprehensive gear motor system specifically designed and optimized for AGVs and AMRs.

MOT by STXI Motion includes a high torque density brushless servo motor, a planetary gearbox, a spring-loaded brake, and an encoder.

A compact, integrated design simplifies the cabling and mechanical design of the mobile vehicle while allowing significant space saving.

Strong output bearings and a shock & vibration proof servo system ensure a powerful wheel traction and high durability. A low current consumption servo motor minimizes the recharging cycles and increases the mobility range.

Tech Spec:

Power: 200 W, 400 W, 500 W, 900 W

Peak torque: Up to 120 Nm

Voltage: 21-48 VDC

Wheel size: 150-200 mm

The ultimate solution for cabinet-free motion control.

TIM integrated servo motor is a cost-effective, flexible and modular solution, ideal for applications with limited control cabinet space and decentralized machine architecture.

TIM offers high power density at a compact size, enabling reduced footprint, shorter build cycles and

Tech Spec:

Frame size: 60 mm, 80 mm

Rated torque: 0.64-2.55 Nm

Rated speed: 3,000 rpm

Voltage: 24-60 VDC

Fieldbus: CANopen & EtherCAT
