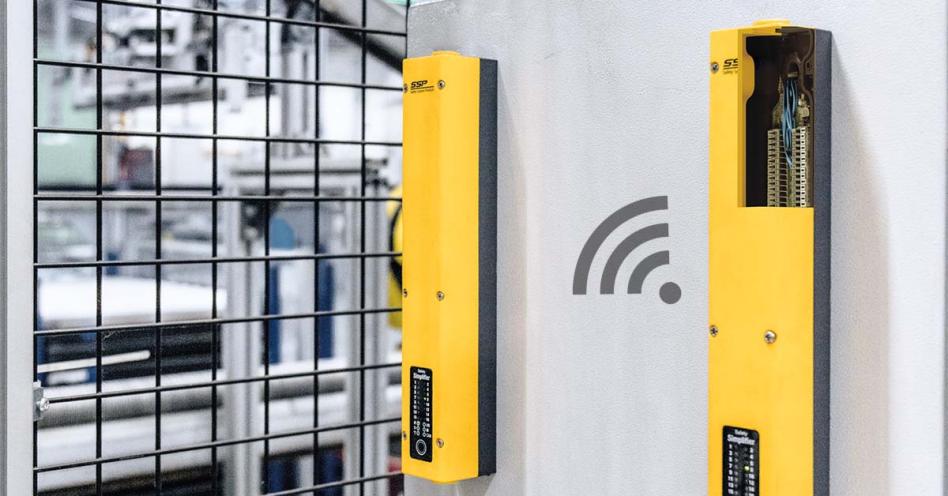

Safety Simplifier - Safety controller with integrated wireless interface

The new generation of magnetic process interlocks - award winning, innovative and intelligent.
The HOLDX R series cleverly combines a safe non-contact RFID safety sensor with an intelligent electromagnet in just one device. With this combination of safe position monitoring and process guard locking, the HOLDX R is universally applicable and ensures increasing quality and less downtime and setup time.

• PLe according to EN ISO 13849-1:2016
• Highly coded according to EN ISO 14119:2013
• Wear-free process lock
• Response times of only 75 ms
• High protection class, IP67 for use in harsh environments

• Extended diagnostic capabilities thanks to Bluetooth interface and HOLDX Manager software
• One diagnostic output provides up to 17 messages
• Function blocks for evaluating diagnostics are available for Siemens, Beckhoff and Rockwell

ZEUS is a modular enabling switch with modern safety functions.

Commissioning - Maintenance - Servicing - Setup

Avoidance of tampering incentives

👋 Thanks to the capacitive hand detection and the vibration sensor, the enabling switch detects whether it is being tampered with or actually guided in the hand of the operator:in.

⚡️ How ZEUS avoids operating errors

ZEUS uses the home sensor to detect whether it has been placed in the designated holder, or removed. Thus, the enabling switch cannot be forgotten or misplaced in the system.

These functions as well as different pushbutton options, control functions and cable configurations are possible.

When machines are controlled in a special operating mode, such as a robot for setup, enabling switches are usually used.

Often, people need to be in close proximity to or at least within the facility of a robot to perform maintenance or setup. In this case, protective devices must be lifted.

Here, the persons are in a hazardous environment, hence the enabling mode.

In this operating mode, the operator of the machine has the option of overriding certain safety devices such as protective doors by selecting the operating mode and actuating the enabling device.

The 3-step function is important here. Only in the center position does the 3-stage enabling switch release certain hazardous movements. If the operator releases the enabling switch or pushes it through to stage three, the system switches off in a safety-oriented manner.

tGard - Combination of electric safety switch, key transfer system and operating system

The tGard safety switch from Fortress Safety provides the innovative solution by combining the safety function and control unit at access points to hazardous machinery and equipment.

Fortress Safety's tGard electric and modular configurable safety switch offers a wide range and combination of controls and safety functions.

The extremely robust metal housing makes the tGard safety switch stable and durable. The narrow design of only 40 mm allows the tGard to be mounted directly on common aluminum profiles. The various connections with quick couplings facilitate fast commissioning.

The compact and extremely robust metal housing guaranteed the necessary stability and longevity.
tGard is the perfect solution for robot applications up to PLd and can also be used with RFID for applications up to PLe.

THE BEST OF TWO WORLDS

Wireless Safety meets Safe Bus Systems

We have combined the best of two worlds: Wireless safety communication and PROFIsafe. We offer you a solution that adapts to your wishes and specifications - with extremely little effort on your part!

The Simplifier System is a versatile solution for various safety applications. With wireless communication and the integration of the PROFIsafe bus, it enables the protection of doors, drawers, lift gates and more. Flexible and customizable.

The new generation of magnetic process interlocks - award winning, innovative and intelligent.
The HOLDX R series cleverly combines a safe non-contact RFID safety sensor with an intelligent electromagnet in just one device. With this combination of safe position monitoring and process guard locking, the HOLDX R is universally applicable and ensures increasing quality and less downtime and setup time.

• PLe according to EN ISO 13849-1:2016
• Highly coded according to EN ISO 14119:2013
• Wear-free process lock
• Response times of only 75 ms
• High protection class, IP67 for use in harsh environments

• Extended diagnostic capabilities thanks to Bluetooth interface and HOLDX Manager software
• One diagnostic output provides up to 17 messages
• Function blocks for evaluating diagnostics are available for Siemens, Beckhoff and Rockwell

ZEUS is a modular enabling switch with modern safety functions.

Commissioning - Maintenance - Servicing - Setup

Avoidance of tampering incentives

👋 Thanks to the capacitive hand detection and the vibration sensor, the enabling switch detects whether it is being tampered with or actually guided in the hand of the operator:in.

⚡️ How ZEUS avoids operating errors

ZEUS uses the home sensor to detect whether it has been placed in the designated holder, or removed. Thus, the enabling switch cannot be forgotten or misplaced in the system.

These functions as well as different pushbutton options, control functions and cable configurations are possible.

When machines are controlled in a special operating mode, such as a robot for setup, enabling switches are usually used.

Often, people need to be in close proximity to or at least within the facility of a robot to perform maintenance or setup. In this case, protective devices must be lifted.

Here, the persons are in a hazardous environment, hence the enabling mode.

In this operating mode, the operator of the machine has the option of overriding certain safety devices such as protective doors by selecting the operating mode and actuating the enabling device.

The 3-step function is important here. Only in the center position does the 3-stage enabling switch release certain hazardous movements. If the operator releases the enabling switch or pushes it through to stage three, the system switches off in a safety-oriented manner.

tGard - Combination of electric safety switch, key transfer system and operating system

The tGard safety switch from Fortress Safety provides the innovative solution by combining the safety function and control unit at access points to hazardous machinery and equipment.

Fortress Safety's tGard electric and modular configurable safety switch offers a wide range and combination of controls and safety functions.

The extremely robust metal housing makes the tGard safety switch stable and durable. The narrow design of only 40 mm allows the tGard to be mounted directly on common aluminum profiles. The various connections with quick couplings facilitate fast commissioning.

The compact and extremely robust metal housing guaranteed the necessary stability and longevity.
tGard is the perfect solution for robot applications up to PLd and can also be used with RFID for applications up to PLe.
