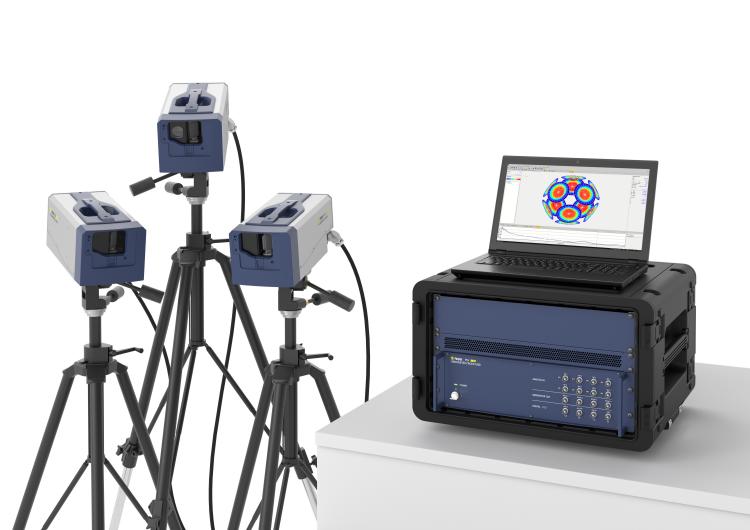

VibroScan QTec 3D Scanning Vibrometer

With VibroFlex, Polytec introduces the new flexibility in optical vibration measurement with a modular sensor solution that adapts to your needs: Add microscope objectives for observing tiny structures or measure NVH noise vibration harshness on large, complex samples like machinery, motors etc.

Discover acoustics and vibration phenomena in research and product development for a faster time-to-market or reliably and cost-efficiently inspect production parts in-line.

• High-performance non-contact vibration measurement solution
• Flexible, modular sensor solution that adapts to your needs
• Sub-pm displacement resolution and vibration velocities up to 30 m/s
• Configurable bandwidth from DC to 24 MHz with highest time resolution
• Sensor heads with auto- and remote focus for excellent signal quality
• Compact sensor head with integrated camera for precise laser positioning and sample monitoring
• Differential fiber optic sensor head for separating relative motions
• Reliable measurement even on challenging surfaces (dark, oily, shiny, hot)
• Digital data interface for convenient setup and best SNR
• Wide range of application-specific accessories
• Laser protection class 2

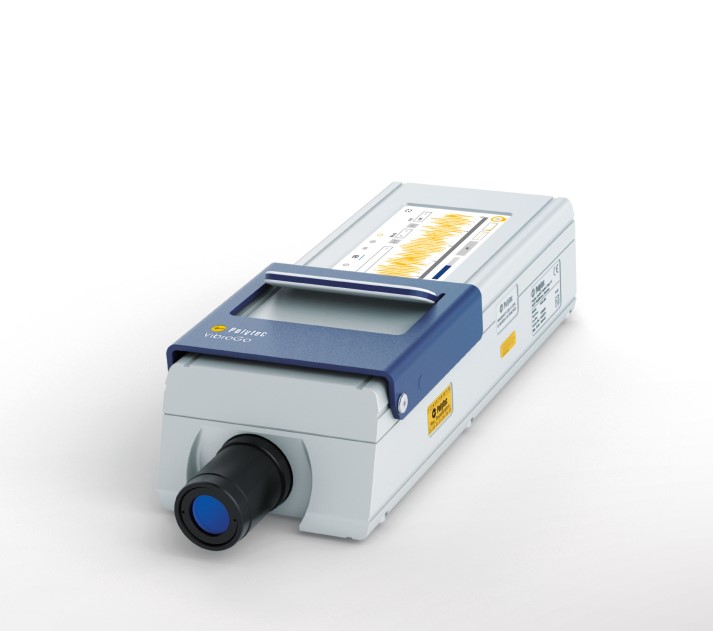

VibroGo® - Truly portable laser vibration measurement

VibroGo® is the truly portable, battery powered laser vibrometer for field studies and quick and easy condition monitoring of machines and facilities on the go.

This sensor measures the real vibration behavior, acoustics and dynamics of excited structures without contact and directly displays measurement data in the time and frequency domain. VibroGo® even allows on-board analysis in the field, while covering a wide frequency range of up to 320 kHz. Its outstanding resolution, with high linearity across the entire frequency range provides a handy precision analysis tool. Use VibroGo® for a better understanding of dynamics and acoustics in nature and technology - for research, product development and quality assurance.

Optical characterization of component dynamics, performance and topography of microsystems and MEMS.

The IVS-500 Industrial Vibration Sensor is the key to fast acoustic quality inspection, structure-borne noise analysis and reliable pass-fail decisions. This Laser sensor measures reliably, in demanding industrial environments, without contact and therefore without wear and on virtually all surfaces.
Costs and yields are therefore optimized by reducing false rejects in the production and assembly process for a cost-efficient and flexible industrial quality assurance.
The simple setup and ruggedized sensor design of the IVS-500 enable a smooth integration into production test systems. Complemented with the software tool SonicTC QuickCheck, Polytec offers a comprehensive solution for reliable pass/fail analysis.

The IVS-500, which has proven itself for years, comes as a compact all-in-one device with integrated decoder electronics and has now been expanded in its range of functions. It can now output a displacement or acceleration signal as an alternative to the velocity signal, making integration even easier. Choose the right model for your application - for low frequencies or up into the ultrasonic range. The optional remote and auto focus allow you to adapt to different sample geometries and guarantee the best signal-to-noise ratio for each sample tested.

All IVS-500 models can output the measurement signal digitally (via Ethernet) or as an analog signal (via BNC). They are compatible with all common data acquisition systems.

• Clear and repeatable pass/fail decisions for production testing
• Measures non-contact with laser precision
• Signal output directly in displacement, velocity or acceleration
• Flexible working distances up to 3 m with auto focus
• Versatile covering any application up to 100 kHz
• Robust and wear-free sensor technology
• Easy set-up and integration

With VibroFlex, Polytec introduces the new flexibility in optical vibration measurement with a modular sensor solution that adapts to your needs: Add microscope objectives for observing tiny structures or measure NVH noise vibration harshness on large, complex samples like machinery, motors etc.

Discover acoustics and vibration phenomena in research and product development for a faster time-to-market or reliably and cost-efficiently inspect production parts in-line.

• High-performance non-contact vibration measurement solution
• Flexible, modular sensor solution that adapts to your needs
• Sub-pm displacement resolution and vibration velocities up to 30 m/s
• Configurable bandwidth from DC to 24 MHz with highest time resolution
• Sensor heads with auto- and remote focus for excellent signal quality
• Compact sensor head with integrated camera for precise laser positioning and sample monitoring
• Differential fiber optic sensor head for separating relative motions
• Reliable measurement even on challenging surfaces (dark, oily, shiny, hot)
• Digital data interface for convenient setup and best SNR
• Wide range of application-specific accessories
• Laser protection class 2

VibroGo® - Truly portable laser vibration measurement

VibroGo® is the truly portable, battery powered laser vibrometer for field studies and quick and easy condition monitoring of machines and facilities on the go.

This sensor measures the real vibration behavior, acoustics and dynamics of excited structures without contact and directly displays measurement data in the time and frequency domain. VibroGo® even allows on-board analysis in the field, while covering a wide frequency range of up to 320 kHz. Its outstanding resolution, with high linearity across the entire frequency range provides a handy precision analysis tool. Use VibroGo® for a better understanding of dynamics and acoustics in nature and technology - for research, product development and quality assurance.

Optical characterization of component dynamics, performance and topography of microsystems and MEMS.
