FUNCTION
With a current load capacity of 5 amperes effective continuous and 40 amperes peak for 3 seconds compared to the storage unit, which may have a maximum voltage of 450 volts DC, the PxtTX device can generate up to 18 kilowatts of power. The device has a closed housing to provide special protection against suspended particles in the air. Heat is dissipated by convection via heat sinks.

The device can be equipped ex works with a storage volume of two or four kilowatt seconds. Built into the device as standard is the automatic detection of the brake transistor switch-on voltage threshold, which enables the device to work with all commercially available frequency inverters and servo controllers in a plug play manner. The extensive safety features of the PxtTX protect against reverse polarity of the DC link connections, against the connection of loaded memories and against overloading the system on both the memory and DC link sides. Internal fuses are standard.

The PxtTX device is equipped with an SD memory card, an external 24-volt power supply, status indicators via LEDs, boot loading and reset options and 6 digital I/Os. This is supplemented by output functions via a USB module.

BENEFITS
The main application is that of a short-term UPS for electrical drives in an environment with suspended particles in the air. The device is specially protected against this with a closed housing and convection heat dissipation.

The main area of application of the PxtTX is the compensation of so-called brownouts, i.e. the bridging of short voltage dips as well as the safe and defined standstill of the electrical drive system during blackouts.

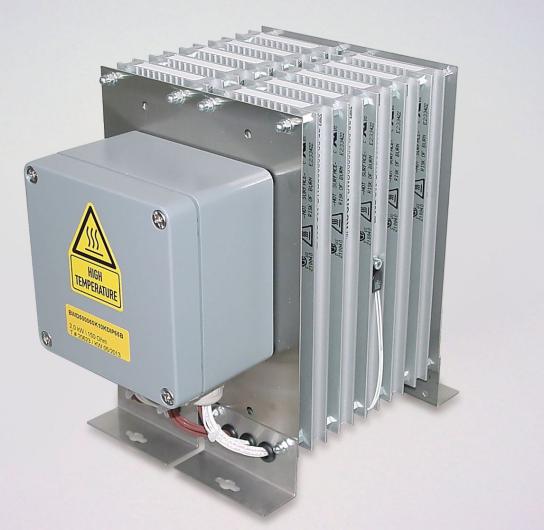

Safe brake resistors for electric drive technology are subject to specific requirements. High pulse load capacity with controlled surface temperature including a conclusive safety concept with continuous overload is required. Taking all parameters into account, we achieved an optimum with our safe brake resistors in wire-wound technology. In compliance with relevant standards, subcomponents were selected and installed in a stable, anodised aluminum housing by means of specific design measures. The result is something we are proud of: Particularly impulse-resistant, low-induction resistors with a specific safety concept combined with a long service life.


Data sheet: https://www.bremsenergie.de/images/20190710_Koch_BWx_Mailversion-engl.pdf

- Safe brake resistor in PTC technology - With four mechanical and electrical ranges of 35, 70, 105 and 140 watts continuous power on a heat sink, the PTC brake resistors cover the power requirements of small frequency inverters and servo controllers. Similar to the level of wire-based brake resistors, the impulse power ratings are of major importance for the applications and have a factor of 35 with a 1 percent duty cycle. The elements which may be installed in the inverter´s enclosure are also known as ballast resistors and have an IP20 protection class. Several mechanical designs are available in the series. Customer requirements are implemented as necessary when the order involves sufficient quantities. The resistance values for each type are dynamic with respect to the temperature at the PTC (see R(T) curve) and the applied voltage.


PTC brake resistors - resistors with an integrated self-protection function.
The resistance value of these resistors increases up to high resistance at a defined temperature.
Rated Power: 35 - 140 W
Resistances: 44 bis 1.750 Ohm
Protection class: IP20

Active energy management systems

KTS refers to the standard control cabinets that we offer in the event that our energy management devices no longer find room in the control cabinet of the machine or system. After all, many machine operators also want to use the advantages of our energy management systems for existing machines. Retrofitting is the keyword for this. But for new machines. For these situations, we can equip control cabinets to suit the individual application and supply them fully assembled and ready for connection.

KTS-C
Continuous power up to approx. 54.000 (KTS-C1000)
Continuous power up to approx. 36.000(KTS-C2000)
Continuous power up to approx. 72.000(KTS-C2000)
Peak power up to approx. 126.000(KTS-C1000)
Peak power up to approx. 108.000(KTS-C2000)
Peak power up to approx. 216.000 (KTS-C2000)

KTS-U
Peak power up to approx.180.000 (KTS-U0800)
Peak power up to approx.40.000(KTS-U1000)
Peak power up to approx.108.000(KTS-U2000)
Peak power up to approx.216.000 (KTS-U2000)

Our active energy management devices, which are designed to suit specific applications, ensure the optimum energy of frequency converters or servo controllers. Our products and systems are used worldwide in a wide variety of applications in all kind of industries. Their tasks include the management of braking energy, the stable and uninterrupted supply of energy for drives in the event of voltage fluctuations or power failures, the reduction of load peaks in the power grid and mains-independent operation.

They enable our customers to significantly increase the energy efficiency of their machines and systems, improve reliability and minimize downtimes. They can drastically reduce the connected load, keep the grid stable and even achieve concretely measurable productivity increases.

• Active energy management devices with internal storage
  PxtFX
  The PXT-FX increases productivity, saves energy and is an active buffer module for DC links.
  Max. Continuous output Pmax (at Uc = 800 VDC) 9 [kW]
  Max. Operating voltage UZmax (IEC) 1000 [VDC]
  Max. Operating voltage UZmax (UL) 848 [VDC]
  Max. Peak power Pmax (at Uc = 800 VDC) 18 [kW] (peak 60s at a cycle time of 240s)

  PxtEX
  Expand the capacity of your Pxt device with our expansion module EX.
  Energy of integrated capacities 2 [kJ] (stand alone)
  Energy of integrated capacities 4 [kJ] (stand alone with 1 energy module)
  Energy of integrated capacities 6 [kJ] (stand alone with 2 energy modules)
  Max. Voltage storage Ucmax 450 [VDC]


• Active energy management devices with external storage
  PxtRX
  Max. Continuous output Pmax (at Uc= 800 VDC) 24 [kW](continuous)
  Max. Current storage continuous Ic 30 [A](continuous)
  Max. Operating voltage UZmax (IEC) 1.000 [VDC]
  Max. Operating voltage UZmax (UL) 848 [VDC]
  Max. Peak power Pmax(at Uc= 800 VDC) 48 [kW] (peak 45s at a cycle time of 180s)

• Current-based Peak Load Reduction
  PxtMX
  Powerful module for the Pxt active energy management devices for current-based mains load peak reduction
