MQR480-24C
Description

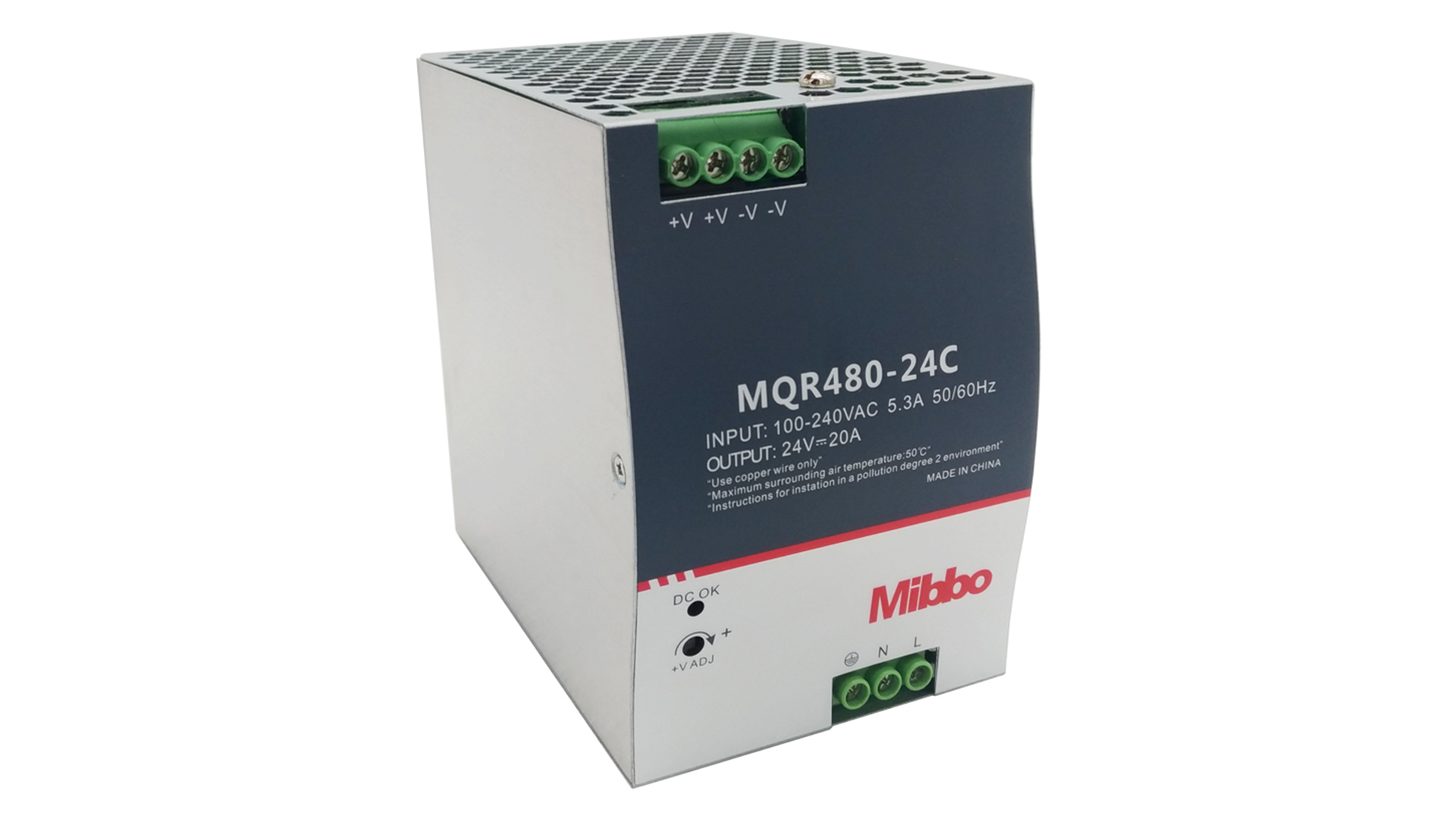

MQR480-24C is a high-performance, high-efficiency rail-mounted switching power supply launched by Mibbo, belonging to the MQR480-□C series.
1. Product Features
High-Performance Output: MQR480-24C provides 480W of output power and 24V output voltage, making it suitable for high-power equipment. Its high-efficiency design ensures low energy consumption even at full load, reducing overall system operating costs.
Full-Range AC Input: The power supply supports a full AC input range from 90 to 264VAC, eliminating concerns about voltage fluctuations. Additionally, it features active PFC (Power Factor Correction) functionality, improving the power factor and reducing grid pollution.
Multiple Protection Mechanisms: MQR480-24C is equipped with multiple protection mechanisms such as overload, overvoltage, short circuit, and over-temperature, ensuring that both the power supply and connected equipment are well protected. In case of abnormalities, the power supply will automatically engage protective measures and resume output after the abnormal conditions are removed.
2. Application Fields
The MQR480-24C rail-mounted switching power supply is widely applicable in industrial automation, control systems, communication equipment, data centers, and other fields. It provides stable and reliable DC power support for various high-precision, high-reliability equipment, ensuring normal equipment operation and system stability.
3. Technical Specifications
Input Voltage Range: 90～264VAC/127～370VDC
Input Frequency Range: 47～63Hz
Output Voltage: 24V
Output Power: 480W
Efficiency (Typ): 93%
Output Voltage Adjustment Range: 24V～28V
Rated Current: 20A
Inrush Current (max): Varies based on input voltage
Protection Functions: Overload, overvoltage, short circuit, over-temperature, etc.
Operating Temperature Range: -40～+70℃ (please refer to the load derating curve)
Storage Temperature Range: -40～+85℃
Protection Class: IP20
Weight: Approximately 1.5Kg
Dimensions: 125.2mm (L) × 85.5mm (W) × 128.5mm (H)"
