SERIE 10K. High Resolution IP69K Incremental Encoder for Extreme Environments

Specially designed for the Food Industry

SERIE E36 SSI. Singleturn & Multiturn Absolute Encoder with SSI Interface

What does a programmable encoder consists in?

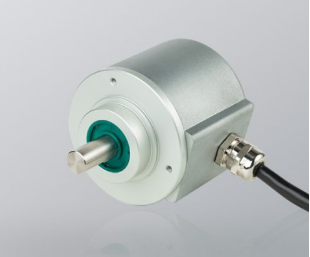

The PR90 programmable (solid shaft) and PR90H (hollow shaft) allow us to easily program any number of pulses per revolution that we want, from 1 to 65.536 ppr, simply by connecting via USB cable, without needed an additional programming box.

Specialties

This product “all in one” introduce a big versatility of functions that could offer at the same time: unlike the other incremental encoders, those series allow us to configure at once the number of pulses, the output type and the rotation direction, among other aspects.

Some of its strong points are its easy programming and setting, because it’s only needed to connect the USB cable with the encoder and a computer programmer. We are able to reprogram it as many times as we want, with or without power. Furthermore, it can also be use in multiple applications and has an automatic power supply voltage detection 5..30V, with HTL/TTL selectable output.

Although, without a doubt, its biggest strength is that the PR90 and PR90H are the ideal solution for an emergency cases in which we don’t have spare parts for any type of incremental encoder that fails us.

Configurable options

• Pulses per Revolution (PPR)
• Output type (HTL / TTL)
• Rotation direction (CW / CCW)
• Reference signal position (Z de 0º/180º)
• Reference signal width (Z 90º/180º)
• Differential output inversion (A-nA / B-nB / Z-nZ)

SERIE 100. Robust & Accurate Solutions.

Hohner encoders for Heavy Industry are designed for maximum robustness and reliability, to ensure best performance even in the toughest conditions, such as extreme temperatures, shocks and vibrations, dust and humidity.

• Insulated bearings. Dual set of hybrid bearings with ceramic balls
• High resistant. Robust housings and electronics
• High protection. Short-circuit, overvoltage and polarity protection
• Easy installation. Pluig-in spring terminals inside the 360º rotatable terminal box
