FLUKE FLK-FEV500/CCS2 | Analyzer for DC fast charging stations, CCS2

The FLIR iXX-Series combines robust, industrial-grade hardware with a modern, app-supported workflow and direct cloud connection. MSX image overlay and a thermal sensitivity < 40 mK provide clear, meaningful thermal images for fast diagnostics - from the control cabinet to the building envelope.

• App-based operation, radiometric JPEGs and direct cloud upload (Ignite/Assetlink).
• WLAN (IEEE 802.11 a/ac/b/g/n, 2.4 & 5 GHz) in all models; LTE additionally with i35 & i65.
• 5″ Color touch display (720 × 1280), integrated LED light and laser pointer (class 2).
• Picture modes: MSX, thermal, picture-in-picture, digital camera; 8 MP view camera (AF), FOV 50.5° × 64.5°.
• Thermal key data (series): 30 Hz, f/1.4, fixed focus, spectral range 7.5-13 µm, FOV (IR) 38° × 49°, minimum focus 0.5 m, NETD < 40 mK (at 30 °C).
• Rugged: IP54, 2 m drop test, -15 °C to +50 °C operating range; 225 × 136 × 73 mm, 0.8 kg.
• Energy: Li-Ion battery, approx. 4 hrs. runtime; charging: ~2 hrs in the charger / ~4 hrs in-cam up to 90 %.

• Electrical & machine inspection: Hot connections, bearings, drives - early fault detection, less downtime.
• Condition monitoring: Company-wide programs with asset hierarchies and cloud data management.
• Building diagnostics & facility management: Leakage/moisture detection, HVAC checks, energy and heat loss analysis.

• Article number:PQ402
• Bandwidth (MHz):200
• Counter:YesDVM:Yes
• Dimensions (L x W x H) (mm):221 x 173 x 30
• Function generator:Yes
• nterfaces:USB
• Model:5464E MSO kit
• Number of channels:4
• Number of digital channels:16
• Samplerate:1 GSa/s
• Segmentable memory:Yes
• Signal acquisition rate:300,000 wfms/s
• Storage depth:512 MPts
• Triggertypes:None, auto, repeat, single, rapid, Edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt, transition time, logic
• Vertical resolution:16-bit
• Warranty (years):5
• Weight (kg):0

Description

PQ402 | 5464E MSO kit USB oscilloscope, 200 MHz (16-bit), 4 channels (analog) + 16 MSO, 16-bit (1 GS) resolution

The PicoScope 5000E series offers high-resolution PC-based oscilloscopes for precise measurements and sophisticated signal analysis. The instruments combine 16-bit resolution with a high sampling rate of up to 2.5 GS/s, low inherent noise, and a dynamic range of over 73 dB. This makes them particularly suitable for applications requiring both high accuracy and fast signal processing.

The series features extensive trigger functions, FFT spectrum analysis, serial protocol decoding, DeepMeasure analysis, Math channels, and integrated function and arbitrary waveform generators. The MSO models expand the analog channels by an additional 16 digital inputs and enable the simultaneous analysis of analog and digital signals in embedded, automotive, and industrial applications.

Differences from the other variants

The PicoScope 5464E MSO is the most powerful mixed-signal model in the classic PicoScope 5000E series. It combines four analog channels with 16 digital inputs and offers a bandwidth of 200 MHz at full 16-bit resolution. This makes the instrument ideal for demanding mixed-signal analysis, high-speed embedded systems, and high-precision laboratory and development applications.

Compared to the 5462E MSO and 5463E MSO, the 5464E MSO offers the highest bandwidth and fastest rise time within the standard 5000E series. Unlike the 5000E+ MSO variants, the device operates exclusively in 16-bit mode and does not feature an additional 8-bit high-speed mode with extended bandwidths up to 500 MHz.

• Weight (kg):0

Description

DAS1820 | Portable high-speed data logger, 2 slots, 16 channels

The DAS1820 from Sefram is a portable, high-speed data acquisition system with a compact dual-slot chassis, designed for precise and flexible measurement tasks in development, validation, process monitoring, and energy technology. The system utilizes the same modular concept as the larger DAS1800 platform, offering high configuration flexibility and plug-and-play functionality without factory recalibration when changing modules.

General features include a 12-inch HD touchscreen with multi-touch operation, an internal 500 GB SSD, up to 16 analog inputs with the multiplex module, 16 digital input channels, and interfaces such as USB 3.0 and Gigabit LAN. The DAS1820 supports real-time scripting for scaling, linearization, and multi-channel calculations, various trigger and synchronization functions, and integrated power analysis for DC, single-phase, and three-phase networks at 50 Hz, 60 Hz, and 400 Hz. Optional battery operation with up to 4 hours of runtime and synchronization via IRIG, GPS, and PTP are available. The product is particularly suitable for monitoring and verifying energy systems, process and plant monitoring, and product validation and verification. The various measurement modules allow for the acquisition of both highly dynamic signals with up to 1 MSa/s per channel and slow temperature, voltage, or resistance waveforms. This makes the DAS1820 a powerful solution for versatile measurement and analysis tasks, both in the laboratory and in mobile field applications.

Product features

• High-voltage test AC: 100 - 5.500 V / 0 - 20 mA
• High-voltage test DC: 100 - 6.000 V / 0 - 20 mA
• Insulation measurement DC: 100 - 6.000 V / 100 kΩ - 50 GΩ
• Protective conductor test AC: 1 - 32 A / 1 mΩ - 6 Ω
• Replacement leakage current test AC: 90 - 270 V / 0 - 10 mA
• Resistance measurement: 1 Ω - 1 MΩ
• Function test AC / DC: 250 V AC / 200 V DC, 16 A AC / 10 A DC
• Effective power measurement: 0 - 4.000 W
• Reactive power measurement: 0 - 4.000 var
• Apparent power measurement: 0 - 4.000 VA
• cos φ: -1 to +1
• Mains supply: 90 - 250 V, 50 Hz / 60 Hz

• Active power test:Yes
• Article number:S6700H
• DG test:Yes
• Design type:Table housing
• Dimensions (L x W x H) (mm):482 x 465 x 132
• Display:Touch display
• EN 50191:Yes
• Functional current test:Yes
• Galvanic isolation:No
• HV test AC:Yes
• HV test DC:Yes
• Insulation test:Yes
• Interfaces:USB, LAN
• Leakage current:Yes
• Model:S6700U
• Number of channels:1
• Partial discharge:No
• Protective conductor test:Yes
• Software included:No
• Weight (kg):20.4

Description

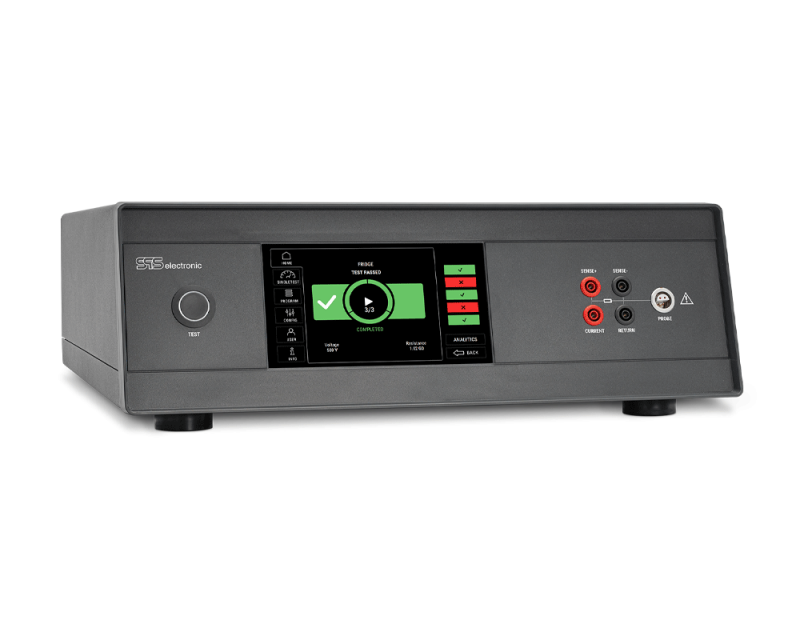

S6700U | Multifunction safety tester, 5.5 kV HVAC, 6 kV HVDC

The S 6700H, S 6700U and KT 6780H multifunction safety testers from SPS electronic are powerful devices for demanding electrical tests. While the S 6700H and S 6700U are designed as desktop devices, the KT 6780H is a plug-in model for integration into racks. The S 6700H has a country-specific mains socket, while the S 6700U is equipped with laboratory and high-voltage sockets.

All three models enable comprehensive safety tests, including high-voltage tests (100 - 5,500 V AC / 100 - 6,000 V DC), insulation measurements (100 kΩ - 50 GΩ) and protective conductor tests (1-32 A, 1 mΩ-6 Ω). They also offer equivalent leakage current tests and functional tests for AC and DC voltages up to 250 V and currents up to 16 A. In addition, the devices offer various power measurement tests, including efficiency measurement up to 4,000 W, reactive power measurement up to 4,000 var and apparent power measurement up to 4,000 VA. These functions are crucial for analyzing the efficiency and energy consumption of electrical systems. Another technical highlight is the ability to measure the power factor (cos φ) in the range from -1 to +1.

Thanks to their wide-range power supply unit (90 - 250 V, 50/60 Hz), they can be used worldwide. Their combination of technological excellence and user-friendliness makes them an ideal solution for laboratories, workshops and industrial applications.

The FLIR iXX-Series combines robust, industrial-grade hardware with a modern, app-supported workflow and direct cloud connection. MSX image overlay and a thermal sensitivity < 40 mK provide clear, meaningful thermal images for fast diagnostics - from the control cabinet to the building envelope.

• App-based operation, radiometric JPEGs and direct cloud upload (Ignite/Assetlink).
• WLAN (IEEE 802.11 a/ac/b/g/n, 2.4 & 5 GHz) in all models; LTE additionally with i35 & i65.
• 5″ Color touch display (720 × 1280), integrated LED light and laser pointer (class 2).
• Picture modes: MSX, thermal, picture-in-picture, digital camera; 8 MP view camera (AF), FOV 50.5° × 64.5°.
• Thermal key data (series): 30 Hz, f/1.4, fixed focus, spectral range 7.5-13 µm, FOV (IR) 38° × 49°, minimum focus 0.5 m, NETD < 40 mK (at 30 °C).
• Rugged: IP54, 2 m drop test, -15 °C to +50 °C operating range; 225 × 136 × 73 mm, 0.8 kg.
• Energy: Li-Ion battery, approx. 4 hrs. runtime; charging: ~2 hrs in the charger / ~4 hrs in-cam up to 90 %.

• Electrical & machine inspection: Hot connections, bearings, drives - early fault detection, less downtime.
• Condition monitoring: Company-wide programs with asset hierarchies and cloud data management.
• Building diagnostics & facility management: Leakage/moisture detection, HVAC checks, energy and heat loss analysis.

• Article number:PQ402
• Bandwidth (MHz):200
• Counter:YesDVM:Yes
• Dimensions (L x W x H) (mm):221 x 173 x 30
• Function generator:Yes
• nterfaces:USB
• Model:5464E MSO kit
• Number of channels:4
• Number of digital channels:16
• Samplerate:1 GSa/s
• Segmentable memory:Yes
• Signal acquisition rate:300,000 wfms/s
• Storage depth:512 MPts
• Triggertypes:None, auto, repeat, single, rapid, Edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt, transition time, logic
• Vertical resolution:16-bit
• Warranty (years):5
• Weight (kg):0

Description

PQ402 | 5464E MSO kit USB oscilloscope, 200 MHz (16-bit), 4 channels (analog) + 16 MSO, 16-bit (1 GS) resolution

The PicoScope 5000E series offers high-resolution PC-based oscilloscopes for precise measurements and sophisticated signal analysis. The instruments combine 16-bit resolution with a high sampling rate of up to 2.5 GS/s, low inherent noise, and a dynamic range of over 73 dB. This makes them particularly suitable for applications requiring both high accuracy and fast signal processing.

The series features extensive trigger functions, FFT spectrum analysis, serial protocol decoding, DeepMeasure analysis, Math channels, and integrated function and arbitrary waveform generators. The MSO models expand the analog channels by an additional 16 digital inputs and enable the simultaneous analysis of analog and digital signals in embedded, automotive, and industrial applications.

Differences from the other variants

The PicoScope 5464E MSO is the most powerful mixed-signal model in the classic PicoScope 5000E series. It combines four analog channels with 16 digital inputs and offers a bandwidth of 200 MHz at full 16-bit resolution. This makes the instrument ideal for demanding mixed-signal analysis, high-speed embedded systems, and high-precision laboratory and development applications.

Compared to the 5462E MSO and 5463E MSO, the 5464E MSO offers the highest bandwidth and fastest rise time within the standard 5000E series. Unlike the 5000E+ MSO variants, the device operates exclusively in 16-bit mode and does not feature an additional 8-bit high-speed mode with extended bandwidths up to 500 MHz.

• Weight (kg):0

Description

DAS1820 | Portable high-speed data logger, 2 slots, 16 channels

The DAS1820 from Sefram is a portable, high-speed data acquisition system with a compact dual-slot chassis, designed for precise and flexible measurement tasks in development, validation, process monitoring, and energy technology. The system utilizes the same modular concept as the larger DAS1800 platform, offering high configuration flexibility and plug-and-play functionality without factory recalibration when changing modules.

General features include a 12-inch HD touchscreen with multi-touch operation, an internal 500 GB SSD, up to 16 analog inputs with the multiplex module, 16 digital input channels, and interfaces such as USB 3.0 and Gigabit LAN. The DAS1820 supports real-time scripting for scaling, linearization, and multi-channel calculations, various trigger and synchronization functions, and integrated power analysis for DC, single-phase, and three-phase networks at 50 Hz, 60 Hz, and 400 Hz. Optional battery operation with up to 4 hours of runtime and synchronization via IRIG, GPS, and PTP are available. The product is particularly suitable for monitoring and verifying energy systems, process and plant monitoring, and product validation and verification. The various measurement modules allow for the acquisition of both highly dynamic signals with up to 1 MSa/s per channel and slow temperature, voltage, or resistance waveforms. This makes the DAS1820 a powerful solution for versatile measurement and analysis tasks, both in the laboratory and in mobile field applications.
