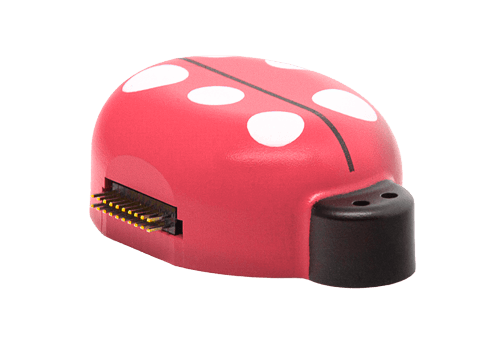

Machine Learning SmartBug 2.0
Beschreibung
All-in-One Wireless Sensor Module for Your IoT Applications
- All-in-one multi-sensor wireless solution with ICM-45686-S BalancedGyro™ IMU platform
- Machine learning enabled – to build, test, and deploy ML models on the IMU
- Head tracking solution added for TWS (true wireless stereo) and AR/VR/MR glass solutions
SmartBug 2.0 is a smart remote data-collection module for IoT, developed after the success of the original SmartBug. BalancedGyro™ technology enables developers to collect high quality IMU data for a longer period of time, due to the 3x battery life. The new IMU also provides premium temperature stability and vibration rejection, making SmartBug 2.0 useful for products such as AR glasses, VR, OIS, drones, MR, TWS, and robotics for prototyping, data collection, and machine learning-based algorithm development.
Software Features
- Raw sensor data streaming and logging with configurable FSR and ODR
- Demonstrate TDK’s headtracking solution by output real time position data (roll/pitch/yaw), raw angles and offset data at different power mode and ODR combinations
- Detects orientation accurately with 6-axis and 9-axis sensor fusion using advanced calibration
- 6-axis IMU provides Tap, Tilt, Raise to Wake, Pedometer, WOM outputs
- Two Pressure sensors accurately measure the ΔPressure and show alerts based on ΔP thresholds
- 6-axis, pressure, magnetometer, temperature and humidity sensor monitor the condition of an asset with configurable thresholds and provide event outputs such as Freefall, Shock, Magnetic Change etc.
- 6-axis maps the movement of an Air Mouse
- 6-axis detects if door is in open or close state (< 3°). Enables logging angle output and open/close states
- Firmware upgrade feature available on the SmartBug Application
- Data Acquisition: Bluetooth Low Energy, USB, WiFi, SD Card
- Asset Monitoring: 6-axis IMU, pressure, magnetometer, temperature and humidity sensor monitor the condition of an asset with configurable thresholds and provide event outputs such as Freefall, Shock, Magnetic Change etc. Enables logging event history
- Air Mouse: 6-axis IMU maps the movement of an Air Mouse
- Smart Door Lock: 6-axis IMU detects if door is in open or close state (< 3-degree accuracy). Enables logging angle output and open/close states
- Over the Air (OTA) Firmware upgrade: Upgrade the firmware on the SmartBug using the OTA FW upgrade feature available on the SmartBug Application
- Multiple Options for Data Acquisition: Bluetooth Low Energy (BLE), USB, WiFi, SD Card
