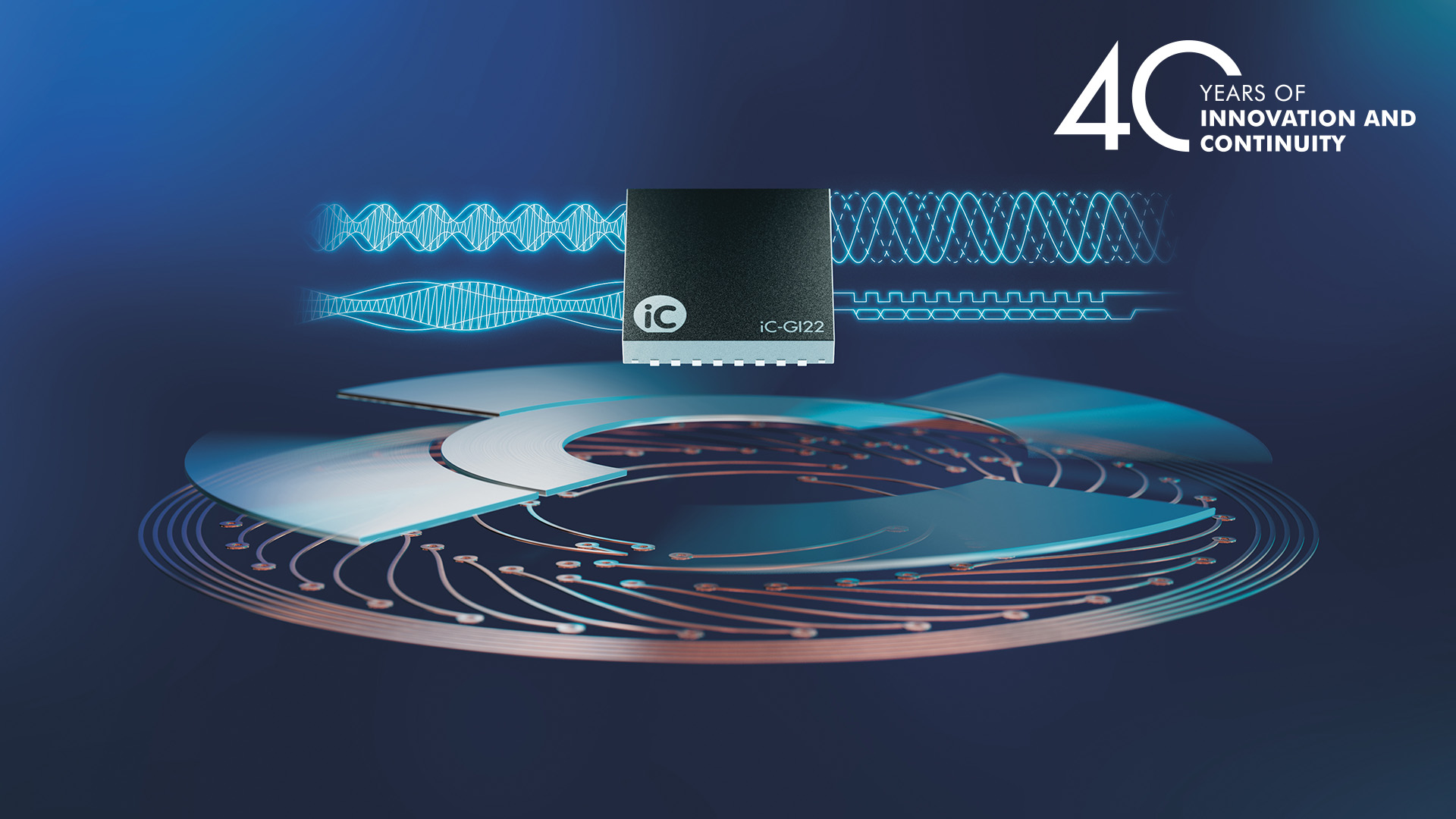

The iC-Gi22 dual-channel inductive sensor IC with sin/cos and interpolated SSI data output is used for magnetic off-axis position sensing using a simple metal target. The device enables absolute angle detection over the entire mechanical revolution by sampling two separate channels (master plus slave). The demodulated receiver signals feed the external processor, i.e. a suitable nterpolation device such as the iC-MNF, iC-TW29, iC-NQE, and an MCU with ADCs, to determine the position with higher resolution.

Features:

• Adjustable transmitter with coil driver (2-5 MHz, up to 20 mA)
• Two independent receiver channels with demodulation and line driver (1 Vdiff @ 100 Ω)
• High level output with selectable center voltage
• Adjustable coarse (x1...10) and fine gain (x1...20)
• Precision offset correction (via 11 bits up to 200 mV)
• Automatic gain control (per channel)
• Sin/cos interpolation with 8-bit resolution (1 channel)
• Angle output via SSI with error and warning
• I2C multi-master for self-configuration from external EEPROM
• I2C slave interface to the system (MCU)
• Operation monitoring with alarm masking: signal loss, I/O short circuit, RAM CRC
• Signal frequency up to 50 kHz (allows for 90000 rpm minimum)
• Power supply from 3.3 V to 5 V, approx. 15 mA
• Space-saving 32-pin QFN with 5x5 mm

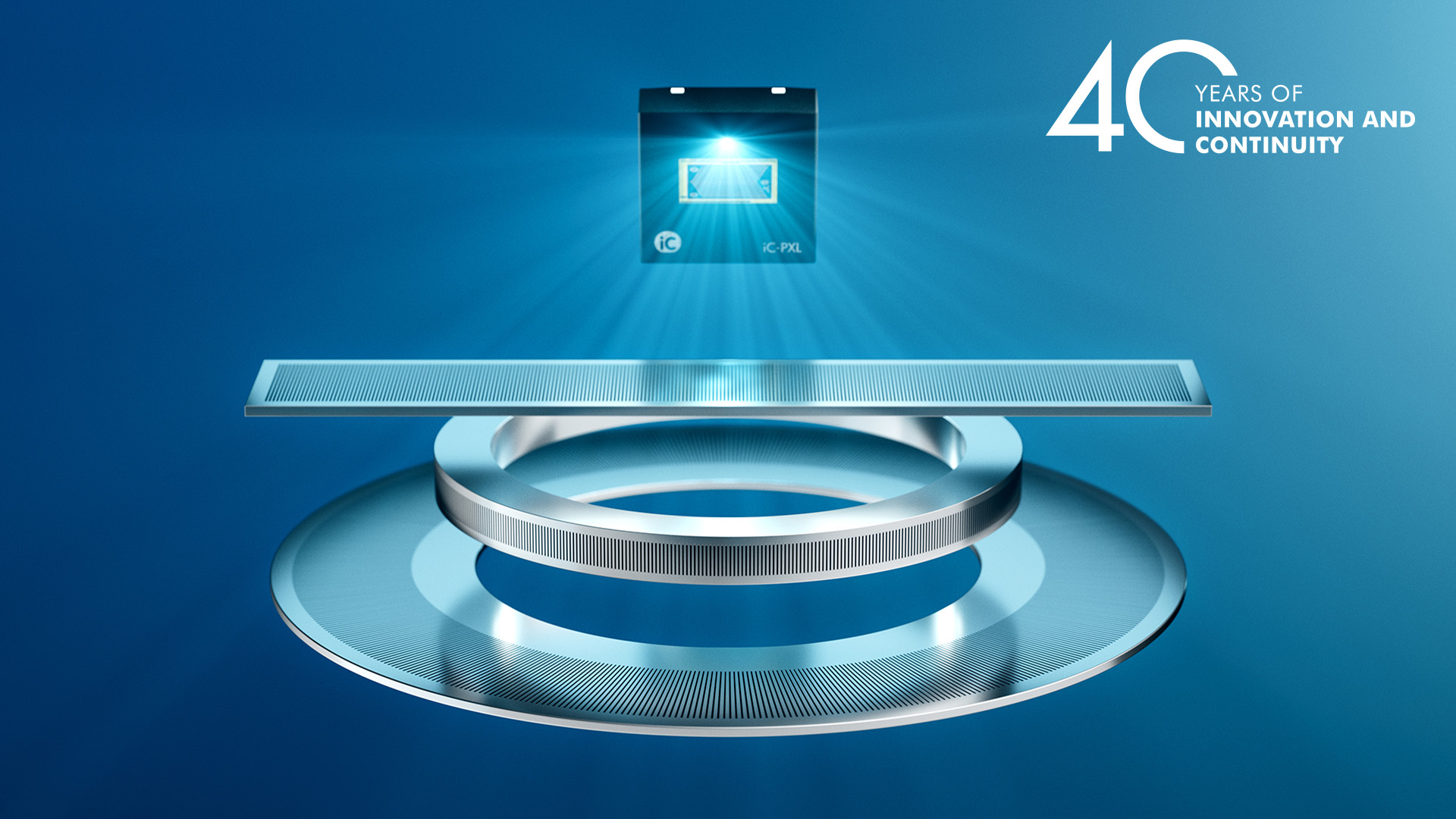

The iC-PXL3212 is an optical-reflective encoder iC, featuring integrated HD Phased Array photosensors with newest amplification technology, on-chip interpolation and embedded blue LED. It provides 2-Channel digital AB outputs with on-chip interpolation or sin/cos analog signal outputs and thus complements our existing EncoderBlue family. The sensor can be used with existing iC-PX series code discs or custom disc designs ranging from 10mm in diameter to linear scanning. OTP FlexCount® allows chip to be customized after fabrication.

Features:

• Lensless reflective opto-encoder iCs, compact, high-resolution, incremental
• For reflective discs of >Ø10mm and linear scales
• Monolithic HD Phased Array with excellent signal matching
• Integrated blue LED with power control, EncoderBlue®
• Low-noise signal amplifiers with high EMI tolerance
• Pin-selectable modes of operation: Digital A/B(×16,×64 interpolated) or analog sin/cos
• OTP FlexCount®
• Analog signal output for ease of alignment and resolution enhancement by external interpolation
• Operating temperature range of –40°C to +125°C
• Compact and lensless optoQFN mold package (4mm×4mm×0.9mm)
• Evaluation kits available

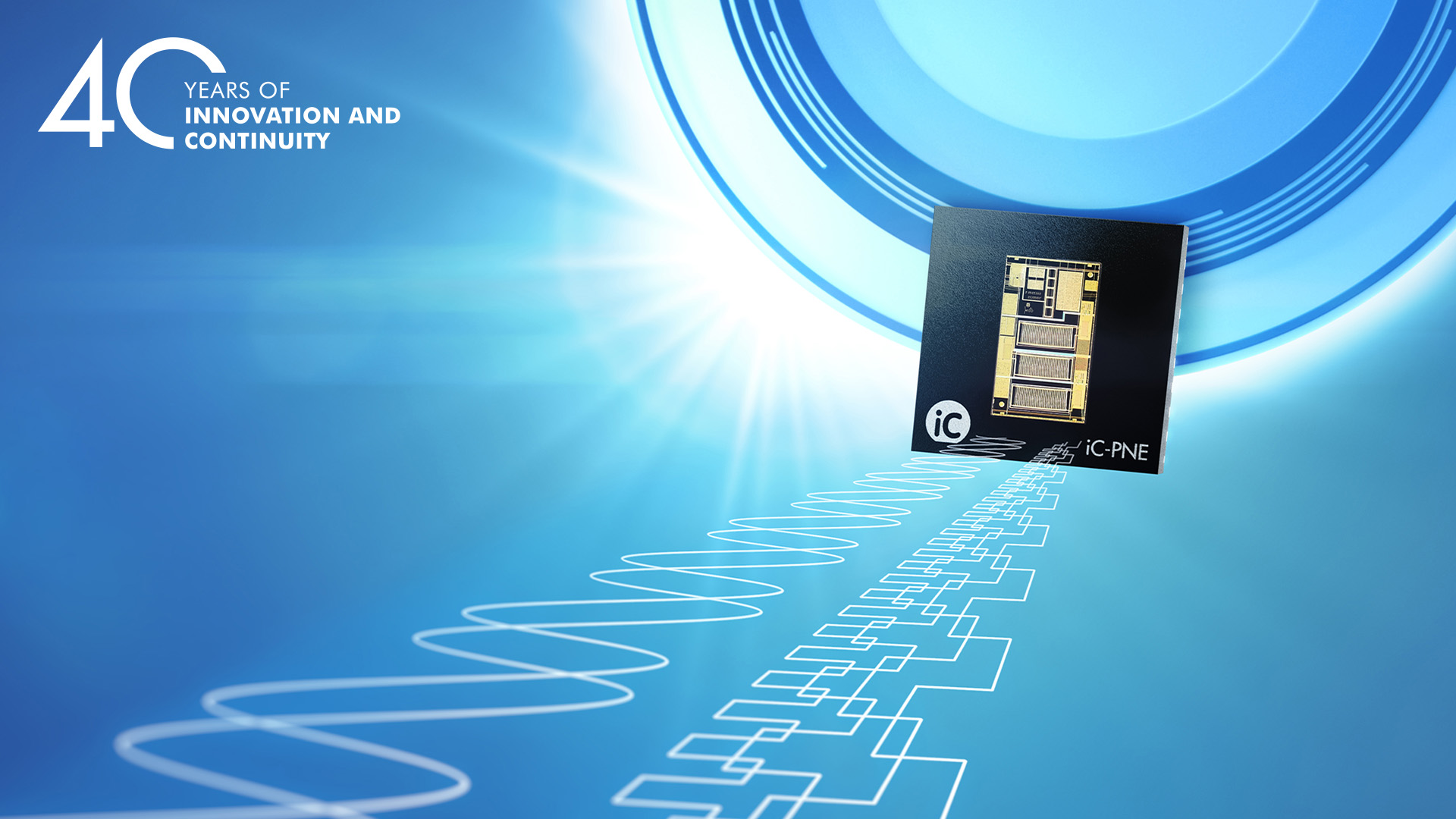

This series of optical encoder iCs features monolithically integrated photosensors. Precision sine/cosine signals are output for a high-resolution interpolation by subsequent devices, such as iC-MNF, resolving a singleturn position with 23 bits and higher. Output amplitudes of several hundred millivolts are achieved at low illumination levels, saving LED current for durability. As a typical Nonius scale for iC-PNE repeats 8 times per turn, 4 sector tracks are scanned digitally by additional photosensors. This section runs independently on a lower supply voltage with extremely low power consumption, allowing battery operation. The typical application of iC-PNE devices are absolute position encoders for motion control and drive applications.

Features:

• For compact, high resolution absolute position encoders
• Monolithic 3-channel HD phased array with excellent signal matching
• Embedded octal sector detection by 4-bit Gray code scanning
• Moderate track pitch for reduced crosstalk
• Ultra-low dark currents for operation at high temperatures
• Low-noise photocurrent amplifiers with 1 MΩ transimpedance gain
• Enhanced EMI tolerance by low impedance differential, short-circuit-proof, analog sine/cosine outputs
• Operation from 4.1 V up, respectively 1.8 V for digital section
• Operational temperature range of -40 to +125 °C
• Space-saving, RoHS compliant optoQFN package
• Sampling with evaluation kit and code disc

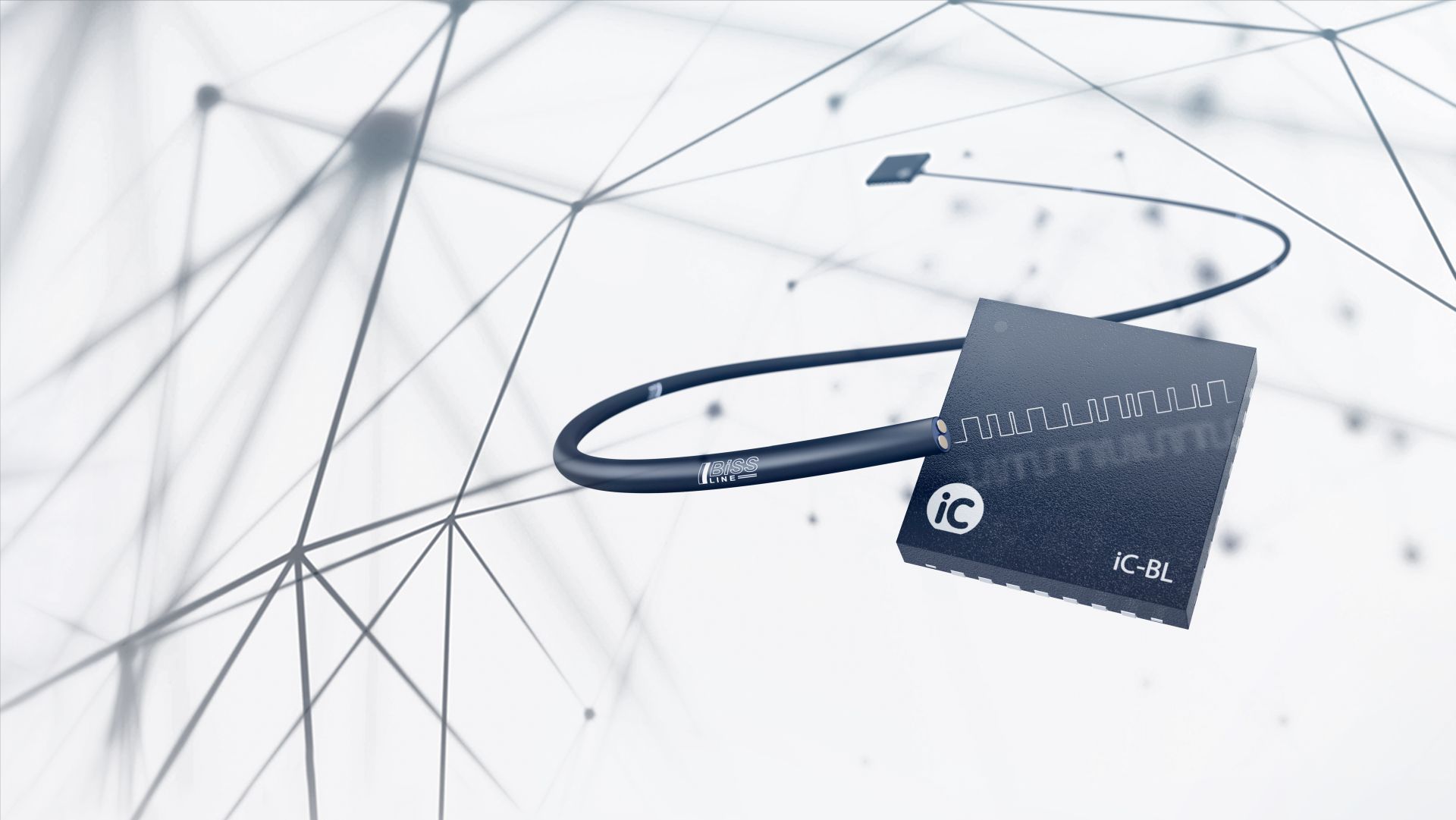

iC-BL is the interface IC for the One-Cable Technology BiSS Line. It is applicable on both sides of the interface and provides full BiSS Line Master and Slave functionality. iC-BL enables a robust data transmission with high availability between serial interfaces (e.g. SPI and BiSS). Thus, it is suitable for various applications e.g. integration of a BiSS C sensor into BiSS Line and robust communication between two MCUs via 2- or 4-Wires.

Features:

• BiSS Line slave resp. master
• Full BiSS Line protocol support including
• Cyclic Redundancy Check (CRC)
• Forward Error Correction (FEC)
• 2-wire and 4-wire BiSS Line interface support
• RS485 line transceiver for BiSS Line sensor network
• Operation at 5 V or from 7.0 to 30V,
• BiSS Line to BiSS C protocol transfer with :
• Sensor sided BiSS C master
• CMOS driver/receiver for BiSS C sensor network
• SPI™ slave interface
• Full BiSS C and BiSS safety related features capable
• BiSS C bus structure capable up to 8 BiSS C slaves with each 64 bit
• Selectable sensor supply voltage 2.5 V, 3.3V or 5 V
• Operating temperature range of -40° to +105°C
• Space-saving, 28-pin 5mm x 5mm QFN package

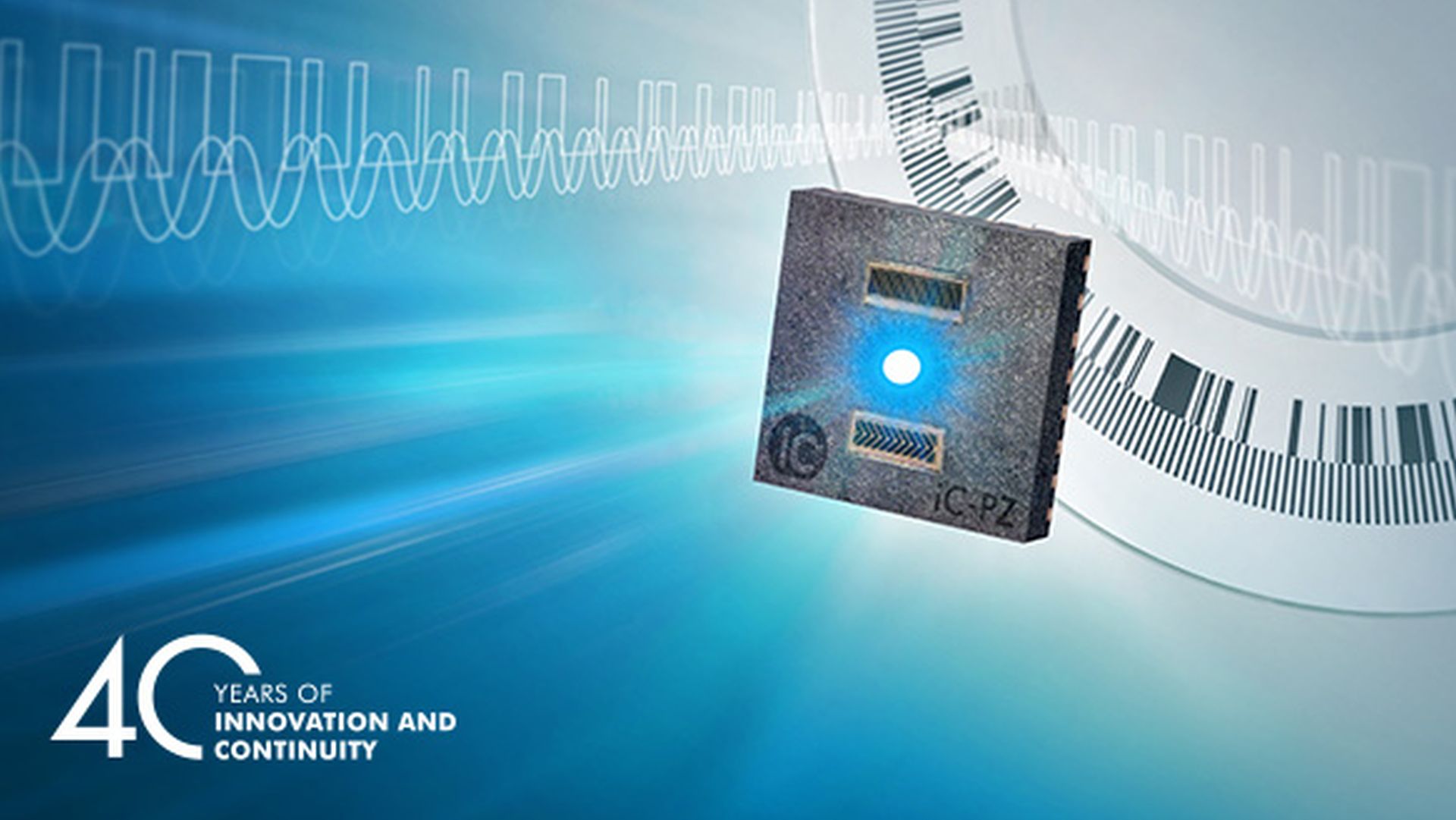

The iC-PZ is a complete lensless optical reflective absolute encoder IC. With its integrated blue LED and interpolator, the iC-PZ provides
a high-resolution single-chip absolute linear or rotary encoder solution. Independently configurable BiSS/SSI, ABZ, UVW, SPI, and analog Sin/Cos outputs may be used singly or in combination to provide a highly flexible system. FlexCount® and FlexCode® allow arbitrary ABZ resolution and arbitrary code disc diameter.
Automatic calibration corrects for sin/cos signal errors (offset, gain, and phase) and code wheel eccentricity without requiring external hardware or software. Calibrated parameter values are stored in an external EEPROM. Wide assembly tolerances ensure that the iC-PZ is easy to install and align, making design-in to any application simple.

Reflective, compact, high-resolution, absolute encoder iC
• iC-PZ0974 and iC-PZ2656 for reflective code discs up to ø45 mm
• iC-PZ205 for reflective code discs > ø45 mm and linear scales
(max. 6.71m)
• Miniature oQFN32 5×5 package
• Monolithic HD Phased Array with excellent signal matching
• System-on-chip design with embedded blue LED for excellent reliability, EncoderBlue®
• FlexCount® interpolation for arbitrary ABZ resolutions
• FlexCode® circuitry for arbitrary code disc diameters
• UVW commutation signals with 1 to 32 CPR, for motors of up
to 32 pole pairs
• LED power control for constant illumination
(sine square or sum control)
• Absolute singleturn resolution of 22 bits (ø26 mm) via built-in interpolation
• On-chip automatic signal adjustment
• Calibration and configuration storage via external I²C EEPROM
• Digital BiSS, SSI, and SPI interfaces with CMOS I/O
• Temperature detection and monitoring
• 2.5, 3.3, and 5.0 V compatible I/O ports
• Configurable analog outputs
• Absolute data interface for connection of external multiturn sensors
